English
| Power: | |
|---|---|
| Battery Type: | |
| Special Features: | |
| MPPT Maximum Input: | |
| Transfer Time: | |
| Output frequency: | |

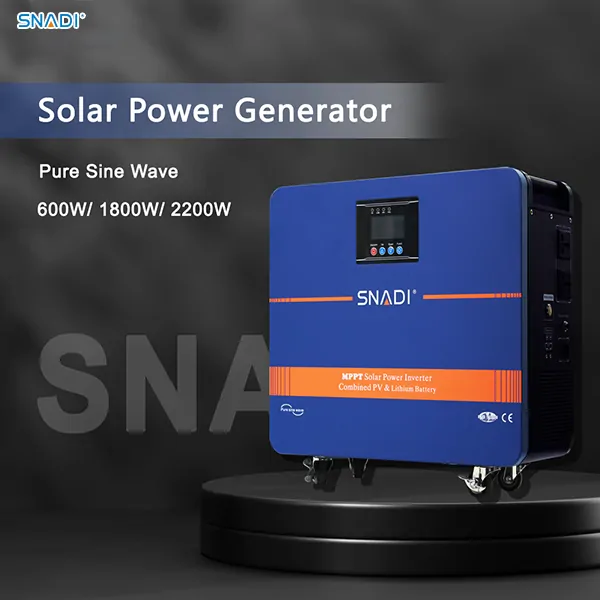

AL-S600、AL-S1200、AL-S2200
SNADI
| Model: AL | AL-S600 | AL-S1200 | AL-S2200 | |
| Inverter | Battery Voltage | 12.8V | 25.6V | |
| In-built Battery Specification | 50AH/12.8V | 50AH/25,6V | 100AH/25.6V | |
| Rated Power | 600W | 1200W | 2200W | |
| Output Voltage | 110/120/220/230/240VAC | |||
| Output Frequency | 50/60Hz | |||
| Output Waveform | Pure Sine Wave | |||
| Input Voltage Range | 72-138/145-275VAC | 85-138/170-275VAC | ||
| Input Frequency | 45-65Hz | |||
| MPPT Charge | Maximum Photovoltaic Voltage | ≤150V | ||
| PV Input Range Voltage | 18-100V | 35-150V | ||
| Rated Charge Current | 30A | |||
| Maximum Power | 420Wp | 840Wp | ||
| Voltage Of Floating Charge | 14.2V | 28.4V | ||
| MPPT Efficiency | ≥97% | |||
| DC Output | Voltage Of High-voltage Protection | 17V | 34V | |
| Voltage Of High Voltage Recovery | 15V | 30V | ||
| Voltage Of Low Voltage Recovery | 13V | 26V | ||
| Voltage Of Low Voltage Protection | 11.2V | 22.4V | ||
| 5VDC USB Output Port | 2 Units/MAX 2A | |||
| 12VDC Output Port | 2 Units/MAX 2A | |||
| Other | Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | ||
| Ambient Temperature For Operation | 0~40℃ | |||
| Ambient Temperature For Storage | -25~55°C | |||
| Operation/Storage Conditions | 0-90% (no condensation) | |||
| External Dimensions: DxWxH (mm) | 460*182*397 | 485*202*406 | 500*229*464 | |
| Packing Dimensions: DxWxH (mm) | 527*267*470 | 552*277*477 | 570*310*535 | |
| Net Weight (KG) | 13 | 26 | 41.5 | |
| Gross Weight (KG) | 15 | 27.5 | 43 | |
FAQ:
Q1: What is your minimum quanlity order?
A: One set.
Q2: Are you trading company or manufacturer ?
A:We are a manufacturer in China. We have own factory in Foshan.
Q3: What is your term of payment?
A: 30% TT for deposit, balance before the shipping.
Q4:Can you supply the sample?
A: Yes. we can supply the sample order for testing .
Q5: When you can delivery the goods?
A: Sample order 3-5 days ,mass order usually 15-25 days according to the quantity.
Q6: Is this instalation easy?
A: Yes , We will provide install drawing and user manual ,and you can make a video call to get technical support.
Q7: Can you customized it for us?
A: Yes ,we can customize the logo ,color ,size ...
