HTB-3.6KW、HTB-5KW-5、HTB-5KW-10
SNADI

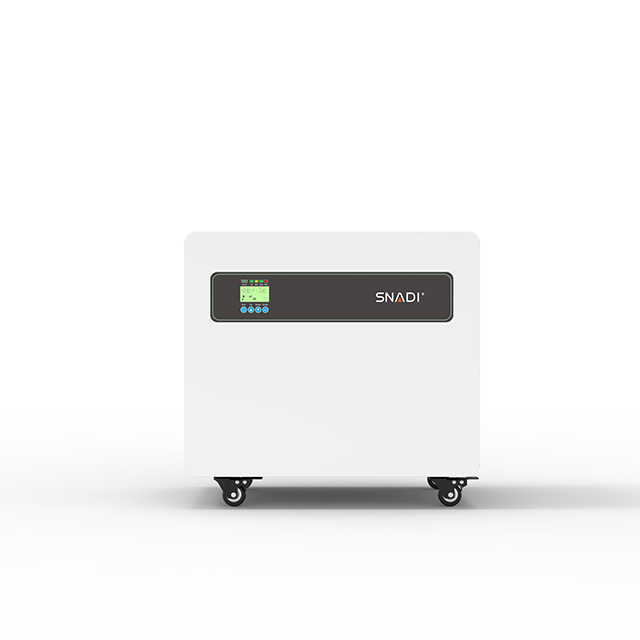

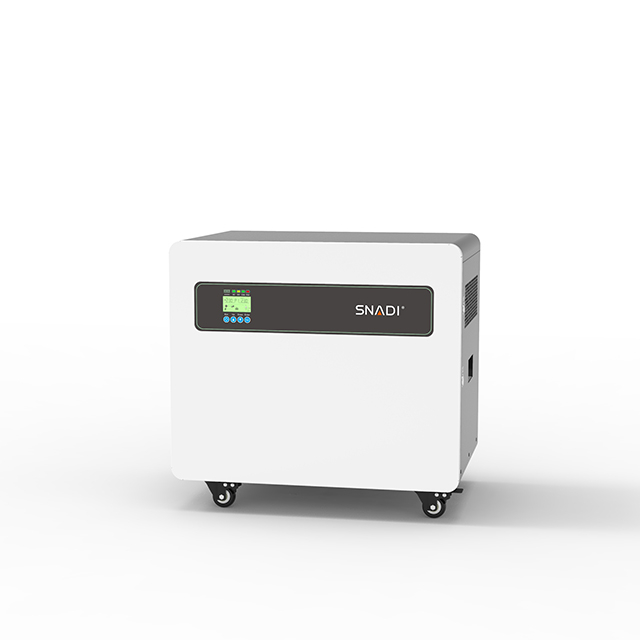

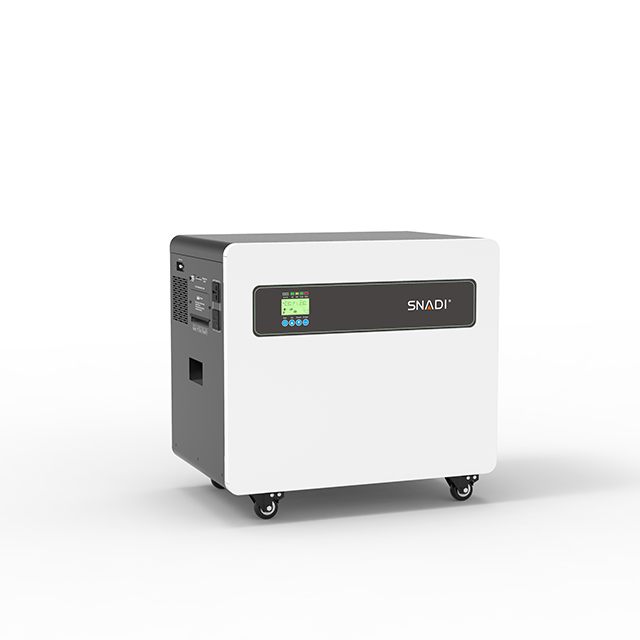

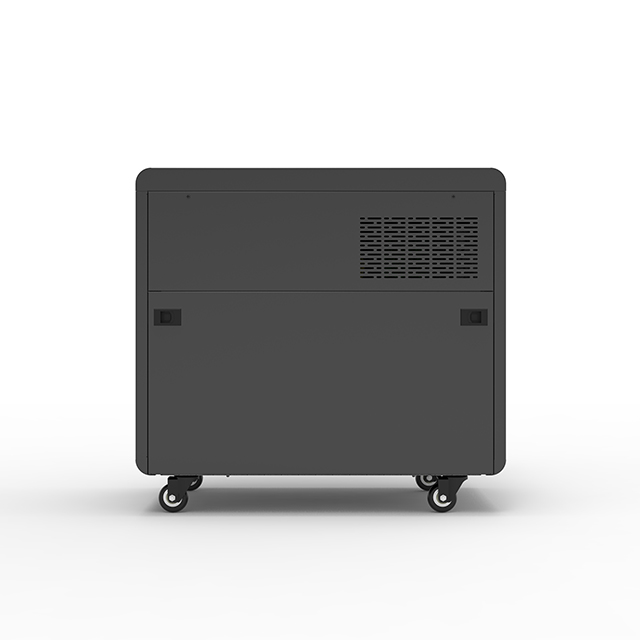

SNADI HTB Solar Power Generator Built-in 1/2 MPPTs, supports LiFePO4 batteries via RS485, pure sine wave with 1.0 power factor, lithium activation by PV/utility, optional WiFi monitoring, EQ function, multiple output modes, and 6000-cycle battery life up to 10 years.
MAIN FEATURES
◆Built-in 1 or 2 MPPT
◆Lithium battery activation function by PV or Utility
◆Compatible work with LiFePO4 battery via RS485
◆Pure Sine Wave
◆Power factor 1.0
◆6000 cycles LifePO4 battery with 10 years service life
◆Wifi remote monitoring optional
◆Support multiple output priority: UTL,SOL,SBU,SUB
◆EQ function to optimize battery performance and extend lifecycle
| Model | HTB-3.6KW | HTB-5KW-5 | HTB-5KW-10 | ||
| Rated Power | 3600W | 5000W | |||
| Lifepod Battery | Specification | 25.6V-200AH | 51.2V-100AH | 51.2V-200AH | |
| Battery Capacity | 5120WH | 5120WH | 10240WH | ||
| Stacking Quantity | built-in | ||||
| MPPT Input | Max PV Input | 5000W | 5500W | ||
| PV Input Voltage | 40~430VDC | 120~450VDC | |||
| Max Open Circuit Voltage | 450VDC | 500VDC | |||
| Charging Current(can be set) | 100A | 80A | 120A | ||
| AC Input | Voltage Range | UPS | 170~264VDC | 170~280VDC | |
| INV | 90~280VDC | 120~280VDC | |||
| Frequency | 45~65Hz | ||||
| Charging Current(can be set) | 100A | 80A | |||
| Inverter Output | Voltage Range(can be set) | 208/220/230/240VAC±5% | |||
| Frequency | 50/60Hz | ||||
| Output Wave | Pure Sine Wave | ||||
| Conversation Time | 10ms | ||||
| Efficiency | >93% | ||||
| Overload | 102~110%/60s;110%~130%/10s;130%~150%/3s>150%/0.2s | ||||
| Ambient Temperature For Operation | ‘-10~50℃ | ||||
| Ambient Temperature For Storage | ’-15~60℃ | ||||
| Operating/Storage Environment | 5~95%Relative humidity(non-condensing) | ||||
| Product Size:W*L*H(mm) | 627*471*580 | ||||
| Package Size:W*L*H(mm) | 715*520*761 | ||||
