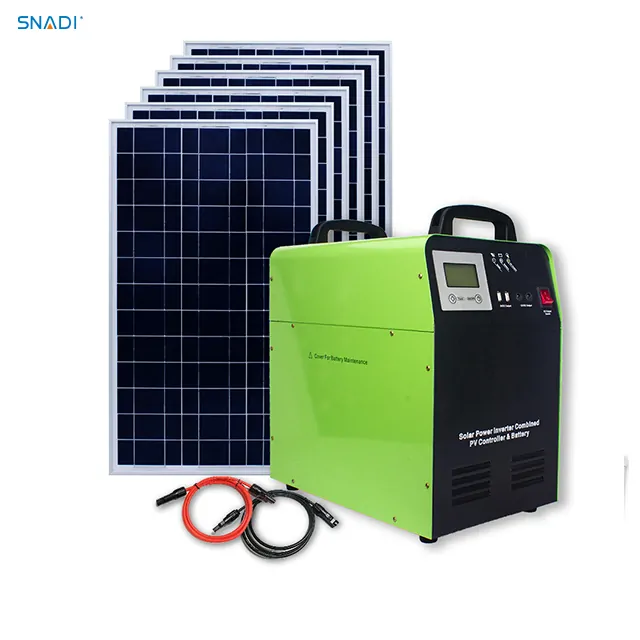

Product overview
1. The product applies to diversified loads because its digital design, pure sine wave output and excellent overcurrent protection can withstand the loads with a large starting current
2. The product is provided with independent solar three-stage charge management to improve charge effciency of its battey and realize a longer life
3. The product provides universal 5VDC USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring, industrial and
Features
◆Pure sine wave output
◆Built in Gel battery 55AH /100AH
◆PV input 18~150VDC/34~150VDC
◆Convenient and practical 5VDC-USB output port and 12VDC output port
◆Digital LCD and LEDs for visualization of operation status of the equipment
◆The mains supply mode/battery mode can be set for flexible
◆MPPT Controller greatly improving the charging efficiency more than 20%
◆Overcharge protection and over discharge protection for a longer battery life
◆Safe and reliable with intelligent exhaust fan control
| Model | AL-300 | AL-500 | AL-1000-12 | AL-1000-24 | AL-1500 |
| Inverter | Battery Voltage | 12V | 24V |
| In-built Battery Specification | 1*55AH/12V | 1*100AH/12V | 2*55AH/12V | 2*100AH/12V |
| Rated Power | 300W | 500W | 1000W | 1000W | 1500W |
| Output Voltage | 110/120/220/230/240VC |
| Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Chorge By A Mains Supply | Input Voltage | 73~138/145~275VAC | 95~125VAC | 170~250VAC |
| Charge Current | 15A(MAX) |
| Solar Input | Voltage Range | 18~150V | 34~150V |
| Rated Charge Current(A) | 30A |
| Maximum Power(Wp) | 420Wp | 840Wp |
| Voltage Of Overcharge Protection | 14.2V | 28.4V |
| Voltage Of Overcharge Recovery | 14.0V | 28.0V |
| Voltage Of Floating Charge | 13.7V | 27.4V |
| DC Output | Voltage Of High Voltage Protoction | 17V | 34V |
| Voltage Of High Volatge Recovery | 14.5V | 29V |
| Voltage Of Low Voltage Recovery | 12.5V | 25V |
| Voltage Of Low Voltage Protection | 11V | 22V |
| 5VDC USB Output Port | 2 Units/MAX 2A |
| 12VDC Output Port | 2 DC ports + backboard 12V terminal block (MAX 8A) |
| Starting Temperature Of The Exhaust Fan | >45°C |
| Ambient Temperature For Operation | 0-40°C |
| Ambient Temperature For Storage | -25~55°C |
| Operation/Storage Conditions | 0-90% (no condensation) |
| Extemal Dimensions: DxWxH (mm) | 343*225* 443 | 423*260*453 | 513*310*493 |
| Packing Dimensions: DxWxH (mm) | 420*290* 490 | 520*370*520 | 610*420*550 |
| Net Weight(KG) | 25 | 26.7 | 43 | 46 | 84 |
| Gross Weight(KG) | 25.6 | 26.8 | 45 | 47.6 | 88 |
FAQ:
Q1: What is your minimum quanlity order?
A: One set.
Q2: Are you trading company or manufacturer ?
A:We are a manufacturer in China. We have own factory in Foshan.
Q3: What is your term of payment?
A: 30% TT for deposit, balance before the shipping.
Q4:Can you supply the sample?
A: Yes. we can supply the sample order for testing .
Q5: When you can delivery the goods?
A: Sample order 3-5 days ,mass order usually 15-25 days according to the quantity.
Q6: Is this instalation easy?
A: Yes , We will provide install drawing and user manual ,and you can make a video call to get technical support.
Q7: Can you customized it for us?
A: Yes ,we can customize the logo ,color ,size ...
