PV Combiner Boxes

SCB PV Combiner Box

4 Arrays to 10 Arrays

  • Comprehensive range of SNADI/SNAT solar accessories and components on a transparent background

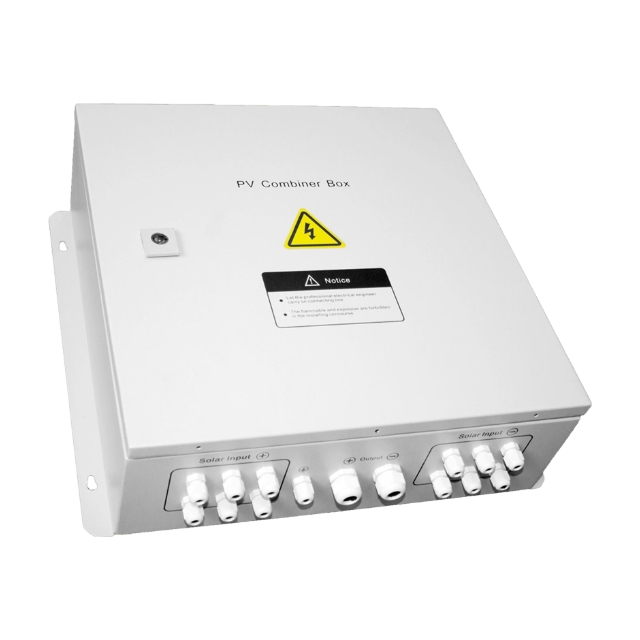

    Side perspective of SNADI SCB series PV combiner box featuring an IP65 rated waterproof and dustproof housing for outdoor solar installations.

The SNADI/SNAT Solar SCB PV Combiner Box streamlines solar installations by merging multiple PV strings into a single output. Featuring IP65 protection and professional lightning safeguards, it ensures high reliability and safety for DC500V/1000V photovoltaic systems.

snadi-scb-series-pv-combiner-box-ip65-outdoor-protection

Product Advantage

The SCB Series simplifies system wiring while significantly enhancing the safety of photovoltaic power generation. By integrating specialized high voltage fuses, lightning protection, and circuit breakers within an IP65 rated enclosure, it provides a robust barrier against environmental hazards and electrical faults, ensuring long term stability and easier maintenance for solar arrays ranging from 1 to 24 strings.

MAIN FEATURES


Enhanced Safety

  1. Built in specialized high voltage DC fuses for over current protection.


  1. Professional lightning protection modules to prevent surge damage.


  1. Integrated high voltage DC circuit breakers for reliable fault isolation.

Flexible Configuration

  1. Supports a wide range of input configurations from 1 to 24 strings.


  1. Rated for both DC500V and DC1000V high voltage photovoltaic systems.


  1. Compatible with various solar array scales and industrial power requirements.

Industrial Protection

  1. IP65 protection level for superior dust and water resistance.


  1. Enclosure available in cold rolled steel, stainless steel, or engineering plastic.


  1. Designed for durable outdoor installation in harsh environments.

System Optimization

  1. Significantly reduces connecting wires between PV modules and inverters.


  1. Simplifies installation processes and minimizes wiring errors.


  1. Enables easier system maintenance and troubleshooting for large arrays.

Product Parameters
