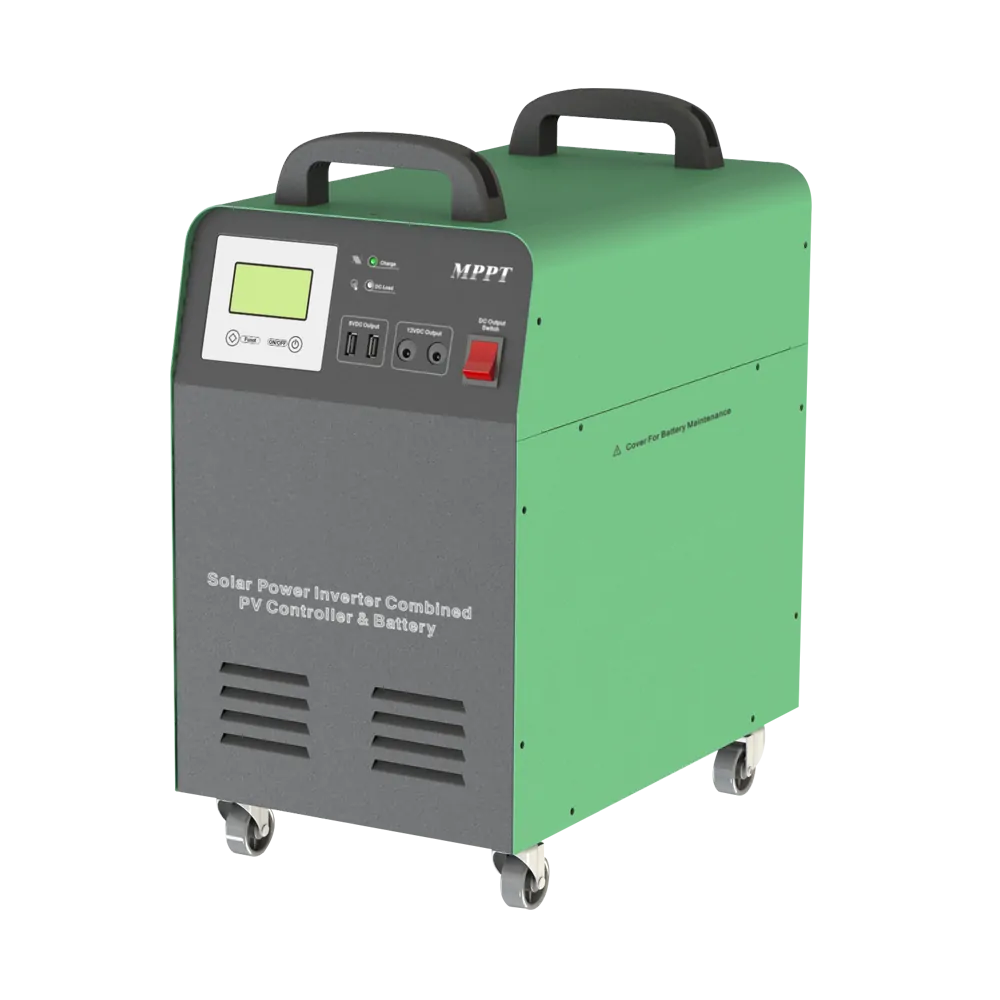

MAIN FEATURE
●Pure sine wave output
●Built in Gel battery 55AH /100AH
●PV input 18~150VDC/34~150VDC
●Convenient and practical 5VDC-USB output port and 12VDC output port
●Digital LCD and LEDs for visualization of operation status of the equipment
●The mains supply mode/battery mode can be set for flexible
●MPPT Controller greatly improving the charging efficiency more than 20%
●Overcharge protection and over discharge protection for a longer battery life
●Safe and reliable with intelligent exhaust fan control
| Product Specifications | ||||||
| Model:AL | 0.3KW/12V | 0.5KW/12V | 1KW/12V | 1KW/24V | 1.5KW/24V | |
| Inverter | Battery Voltage | 12V | 24V | |||
| In-built Battery Specification | 1*55AH/12V | 100AH/12V | 2*55AH/12V、 2*100AH/12V | 2* 100AH/12V | ||
| Rated Power | 300W | 500W | 1000W | 1000W | 1000W | |
| Output Voltage | 110/220VC | |||||
| Output Frequency | 50/60Hz | |||||
| Output Waveform | Pure Sine Wave | |||||
| Chorge By A Mains Supply | Input Voltage | 110/220VAC--*(* means an optional function) | ||||
| Charge Current | 10A(MAX) -*(‘*' means an optional function) | 10A(MAX) -*(‘*' means an optional function) | ||||
| Solar Input | Maximum Photovoltaic Voltage | ≤25V | ≤50V | |||
| Charge Voltage | 10-25V | 20-50V | ||||
| Rated Charge Current(A) | 30A | |||||
| Maximum Power(Wp) | 360Wp | 720Wp | ||||
| Voltage Of Overcharge Protection | 14.2V | 28.4V | ||||
| Voltage Of Overcharge Recovery | 14.0V | 28.0V | ||||
| Voltage Of Floating Charge | 13.7V | 27.4V | ||||
| DC Output | Voltage Of High-voltage Protoction | 16V | 32V | |||
| Voltage Of Overcharge Recovery | 15.2V | 30.4V | ||||
| Voltage Of Low Voltage Recovery | 12.6V | 25.2V | ||||
| Voltage Of Low Voltage Protection | 11V | 22V | ||||
| 5VDC USB Output Port | 2 ones/MAX 2A | |||||
| 12VDC Output Port | 2 DC ports + backboard 12V terminal block (MAX 8A) | |||||
| Starting Temperature Of The Exhaust Fan | >45°C | |||||
| Ambient Temperature For Operation | 0-40°C | |||||
| Ambient Temperature For Storage | -25~55°C | |||||
| Operation/Storage Conditions | 0-90% (no condensation) | |||||
| Extemal Dimensions: DxWxH (mm) | 343*225* 443 | 423*260*453 | 513*310*493 | |||
| Packing Dimensions: DxWxH (mm) | 420*290* 490 | 520*370*520 | 610*420*550 | |||
