The main feature of portable solar power system:
1. This is an energy storage system integrating inverter, controller and battery, which is more convenient to use and saves space.
2. The built-in battery type can choose gel battery/lithium battery, etc.
3. The cycle time of the lithium battery can reach 4000 times, the discharge rate: 90%, and the service life is more than 10 years. ; The cycle time of the colloidal battery can reach 600-4000 times, the discharge rate: 70%-90%, and the service life is as long as 3-5 years.
4. The built-in controller can choose MPPT/PWM two types.
5.Excellent performance because of an MCU intelligent control technology.
6.Convenient and practical 5VDC USB output port and 12VDC output port
7.Overall automatic nrotation and alarmsIncluding AC output over load protectionshort circuit protection etc.
2. The built-in battery type can choose gel battery/lithium battery, etc.
3. The cycle time of the lithium battery can reach 4000 times, the discharge rate: 90%, and the service life is more than 10 years. ; The cycle time of the colloidal battery can reach 600-4000 times, the discharge rate: 70%-90%, and the service life is as long as 3-5 years.
4. The built-in controller can choose MPPT/PWM two types.
5.Excellent performance because of an MCU intelligent control technology.
6.Convenient and practical 5VDC USB output port and 12VDC output port
7.Overall automatic nrotation and alarmsIncluding AC output over load protectionshort circuit protection etc.
-
AL
-
SNADI
Output voltage
110/220VAC
Output frequency
50/60Hz
Rated charge current
30A
Operation/storage conditions
0-90%(no condensation)
Portable design with handle
500W-1500W basic solar system for home Solar charge and grid power charge is alternative
Available for various home appliance Pure sine wave output, stable and good for loads

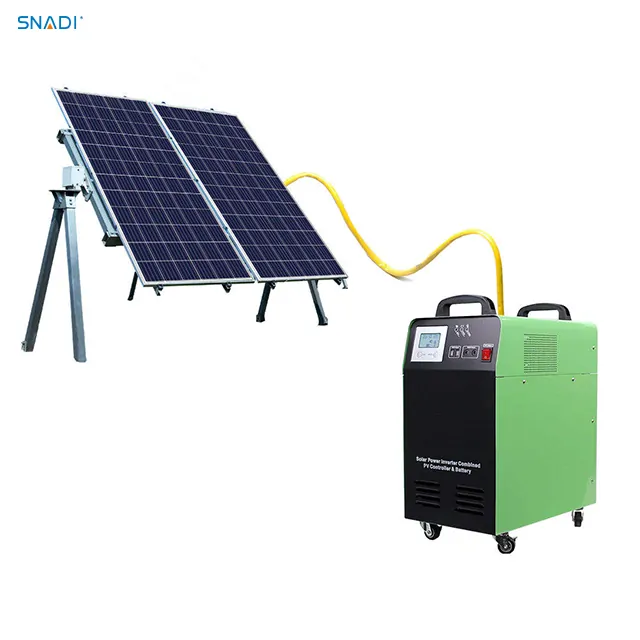

1kw Off Grid Portable Solar Energy System for Camping
| Model | AL-300 | AL-500 | AL-1000-12 | AL-1000-24 | AL-1500 | |
| Inverter | Battery Voltage | 12V | 24V | |||
| In-built Battery Specification | 1*55AH/12V | 1*100AH/12V | 2*55AH/12V | 2*100AH/12V | ||
| Rated Power | 300W | 500W | 1000W | 1000W | 1500W | |
| Output Voltage | 110/120/220/230/240VC | |||||
| Output Frequency | 50/60Hz | |||||
| Output Waveform | Pure Sine Wave | |||||
| Chorge By A Mains Supply | Input Voltage | 73~138/145~275VAC | 95~125VAC | 170~250VAC | ||
| Charge Current | 15A(MAX) | |||||
| Solar Input | Voltage Range | 18~150V | 34~150V | |||
| Rated Charge Current(A) | 30A | |||||
| Maximum Power(Wp) | 420Wp | 840Wp | ||||
| Voltage Of Overcharge Protection | 14.2V | 28.4V | ||||
| Voltage Of Overcharge Recovery | 14.0V | 28.0V | ||||
| Voltage Of Floating Charge | 13.7V | 27.4V | ||||
| DC Output | Voltage Of High Voltage Protoction | 17V | 34V | |||
| Voltage Of High Volatge Recovery | 14.5V | 29V | ||||
| Voltage Of Low Voltage Recovery | 12.5V | 25V | ||||
| Voltage Of Low Voltage Protection | 11V | 22V | ||||
| 5VDC USB Output Port | 2 Units/MAX 2A | |||||
| 12VDC Output Port | 2 DC ports + backboard 12V terminal block (MAX 8A) | |||||
| Starting Temperature Of The Exhaust Fan | >45°C | |||||
| Ambient Temperature For Operation | 0-40°C | |||||
| Ambient Temperature For Storage | -25~55°C | |||||
| Operation/Storage Conditions | 0-90% (no condensation) | |||||
| Extemal Dimensions: DxWxH (mm) | 343*225* 443 | 423*260*453 | 513*310*493 | |||
| Packing Dimensions: DxWxH (mm) | 420*290* 490 | 520*370*520 | 610*420*550 | |||
| Net Weight(KG) | 25 | 26.7 | 43 | 46 | 84 | |
| Gross Weight(KG) | 25.6 | 26.8 | 45 | 47.6 | 88 | |
FAQ:
Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
