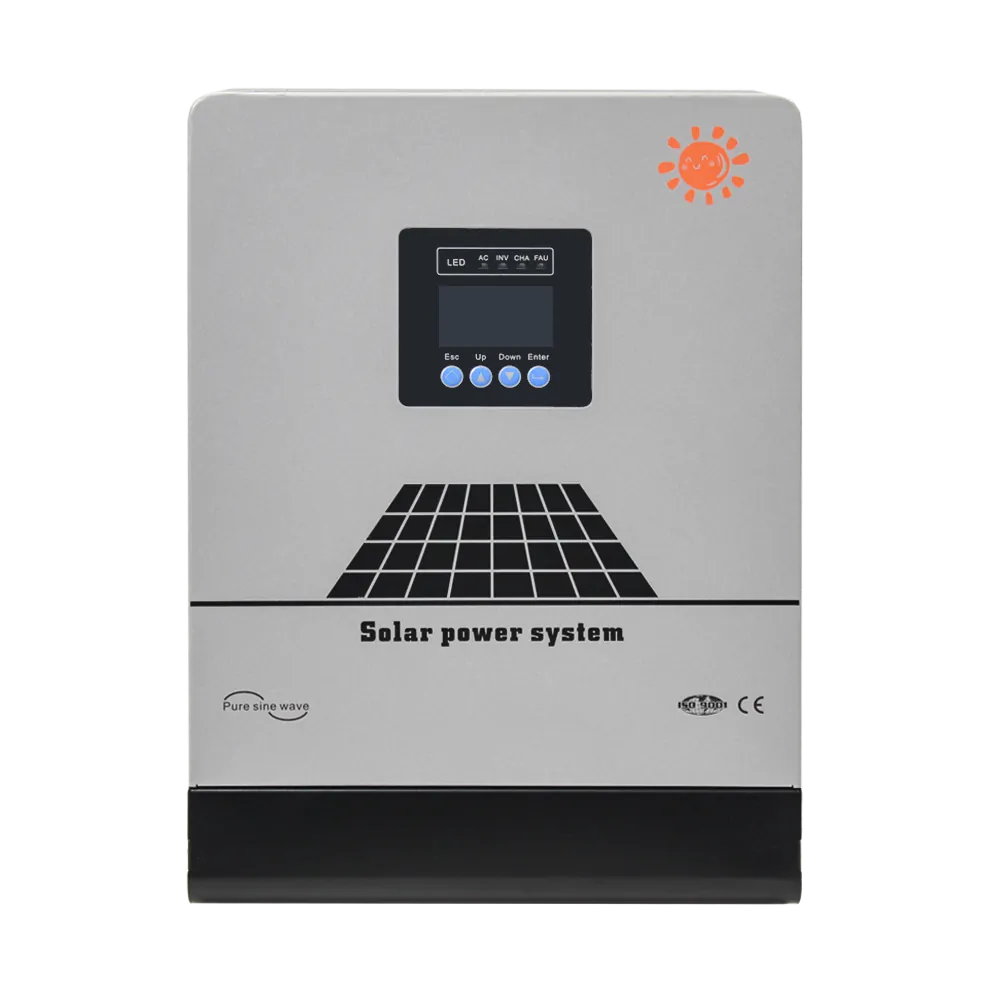

MPPT High Frequency Hybrid Solar Inverter

PRODUCT MODEL
3.5KVA、5.5KVA、10KVA、12KVA

PRODUCT FEATURE

Overcharge protection and overdischarge protection for a longer batter life
LCD and LEDS for visualization of operation status of the equipment
Solar array and battery connrnon-anode systerm input;
Suitable for outdoor, RV life and home, etc

Customized production that meets your needs

Inquire Now

Product Description

MAIN FEATURES

◆Pure Sine Wave Inverter

◆Configurable input voltage range for home appliances and personal computers via LCD setting

◆Configurable battery charging current based on applications via LCD setting

◆Configurable AC/Solar Charger priority via LCD setting

◆Compatible to mains voltage or generators power

◆Auto restat while AC is recovering

◆Overload/ Over temperature/short circuit protection

◆Smart battery charger design for optimized battery performance

◆Cold start function

Product Specifications
Model：NKH-		NKH-3.5KVA	NKH-5KVA	NKH-10KVA	NKH-12KVA
Rated Power		3KW	5KW	8KW	10KW
Input	Voltage	208VAC/220VAC/230VAC/240VAC
	Selectable Voltage Range	170-280VAC(For Personal Computers)
		90-280VAC(For Home Appliances)
	Frequency Range	50Hz/60Hz(Auto sensing)
Output	AC Voltage Regulation (Batt .Mode)	208VAC/220VAC/230VAC/240VAC ±5%
	Surge Power	6KW	10KW	16KW	20KW
	Efficiency (Peak)PV to INV	97%
	Efficiency (Peak)Battery to INV	94%
	Transfer Time	10 ms
	Overlord Capacity	1min@102%-110% Load, 10s@110%-130% Load, 3s@130%-150% Load 02s@150% Load
Battery &AC Charge	Battery Voltage	24VDC	48VDC
	Floating Charge Voltage	27VDC	54VDC
	Overcharge Protection	32VDC	64VDC
	Maximum Charge Current	60A	80A	160A
	Maximum PV Array Power	1500W	5500W	11000W
PV Charge	MPPT Range Operating Voltage	30-115VDC	120-430VDC
	Maximum PV Array Open Circuit Voltage	145VDC	450VDC
	Maximum Charge Current	60A	80A	160A
	Maximum Efficiency	99%
AC+PV Charge	Maximum Charge Current	120A	80A	160A
Physical	Dimension D”W”H(mm)	439320128		446320128
	Net Weight(kg)	8	9.2	20
	Communication interface	USB/RS232/GPRS/WIFI
Opera Ting Environment	Humidity	5% to 95% Relative Humidity(Non-condensing)
	Operating Temperature	0°C-55°C
	Storage Temperature	-15°C-60°C
