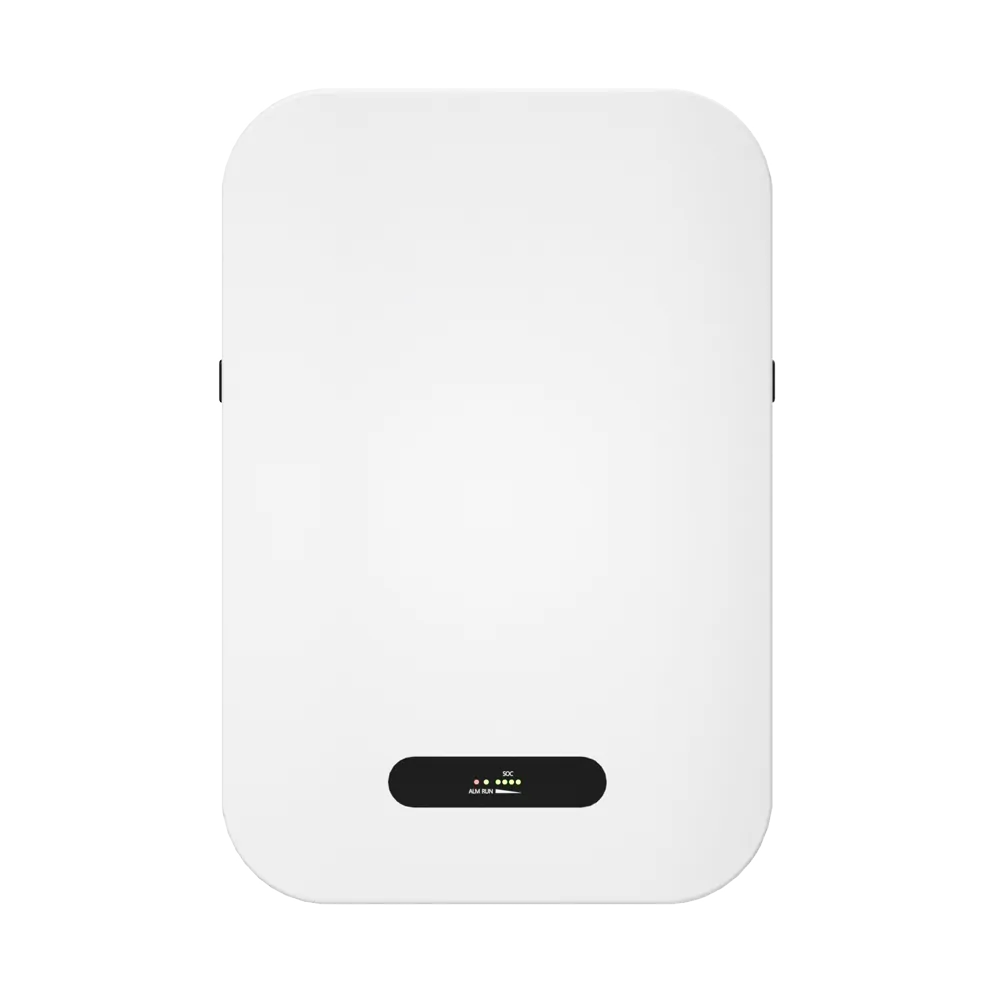

Rechargeable Li Ion Battery

PRODUCT MODEL
51.2V 100Ah

PRODUCT FEATURE

Big discharge current, Suitable for solar system
Smart BMS system to optimize the eormance
RS485/CAN compatible with different brand of solar inverter

Customized production that meets your needs

Inquire Now

Product Description

Product Specifications
Items	Specifications	Remark
Nominal Capacity	100Ah	0.2C Standard discharge
Minimum Capacity	98Ah
Nominal Voltage	3.2V	Mean Operatian Voltage
Delivery Voltage	≥3.2V	Within 10 days from Factory
Charge Voltage	3.65±0.03V	By standard charge method
Standard Charging Method	23±3°C， 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to≤0.02C
Charge Current	0.2C,20A	Standard charge, charge time about 7h(Ref)
	0.5C,50A	Rapid Charge, charge time about: 2h(Ref)
Standard Discharging Method	0.2C constant current discharge to2.5V
Cell Internal Impedance	≤2mΩ	Internal resistance measured at AC 1KHZ after 50% charge
Maximum Charge Current	0.5C,50A	For continuous charging mod
Maximum Discharge Current	1C,100A	For continuous discharging mode
Operation Temperature and relative humidity Range	Charge: 0.2C(0-10°C) 60±25%R.H.0.5C(10-45°C)	Charge at a very low temperature such as blew 0°C,will
	Discharge:0.2C(-15~15°C)60±25%R.H.1C(15-60°C)	be get a lower capacity and reduce cycle life of the battery
Storage a long temperature time for a long time	0-45°C60±25%R.H.	Do not storage exceed half year. Must charge once when storage for half year must charge the battery which with protect circuit when storage for three months

How Can We Help You?

If you have any questions or requirements, please feel free to contact our customer service team. Our professional team will provide you with detailed product information, answer your questions, and tailor the best solution to meet your needs.

WhatsApp/Tel：+86 18039293535

E-mail：exportdept@snadi.com.cn
