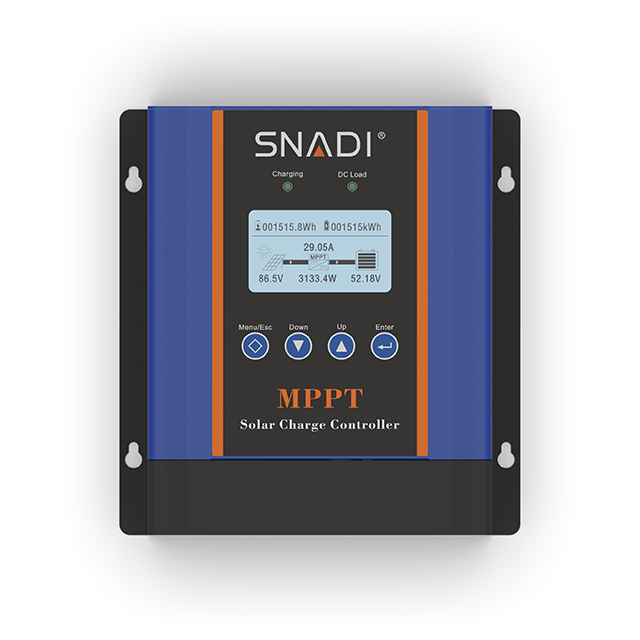

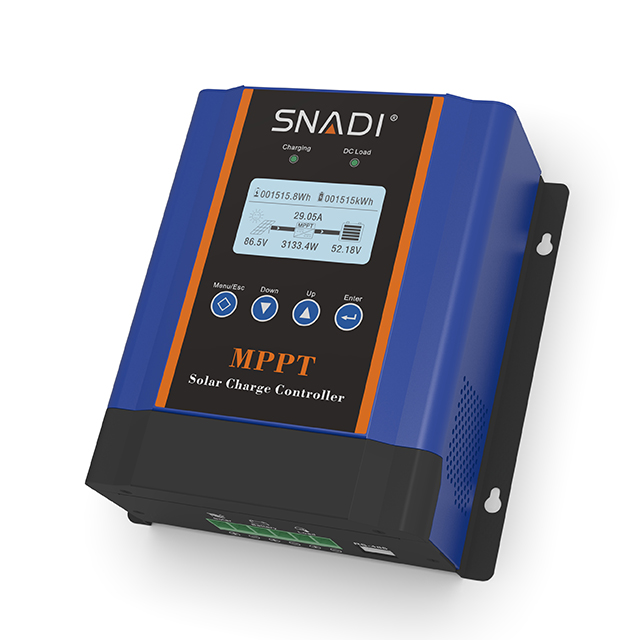

SNADI CM-MPPT Solar Charge Controller

Name: SNADI CM-MPPT Solar Charge Controller
Brand: SNADI
Rating: 5.0 (33 reviews)

CM-MPPT Solar Charge Controller advanced MPPT technology with up to 97% efficiency. Auto voltage detection (12V/24V/48V) and customizable charge/discharge settings. Supports lead-acid and lithium batteries. Features intelligent cooling, full protection, and RS485 communication for remote monitoring.

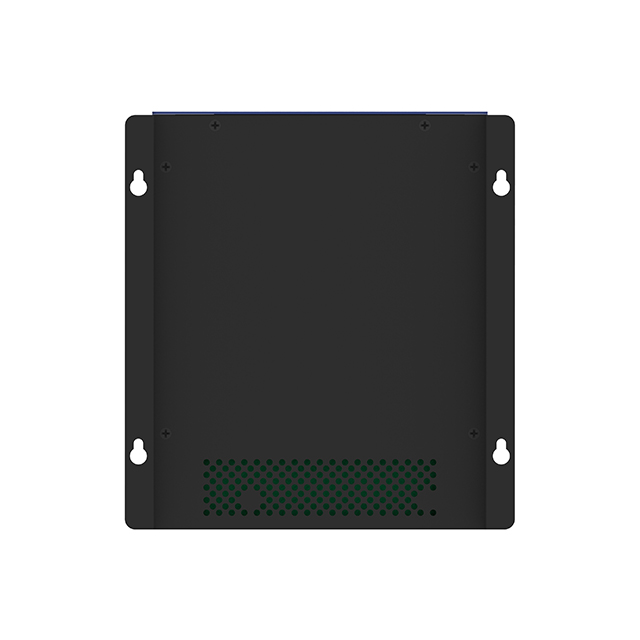

●Excellent heat dissipation design and intelligent controlled cooling fan
●12VDC/24VDC/48VDC automatic identification
●Charging voltage and discharge voltage can be set according to different requirements
●Innovative maximum power point tracking technology,the conversion rate of up to 97%
●Quick scan of the entire l-V curve.Efficient track the maximum power point
●Three types of lead-acid battery,sealed,colloid,open type battery and lithiumbattery series charging procedures are optional
●With the functions of over charge,over discharge,overload and short circuitautomatic protection

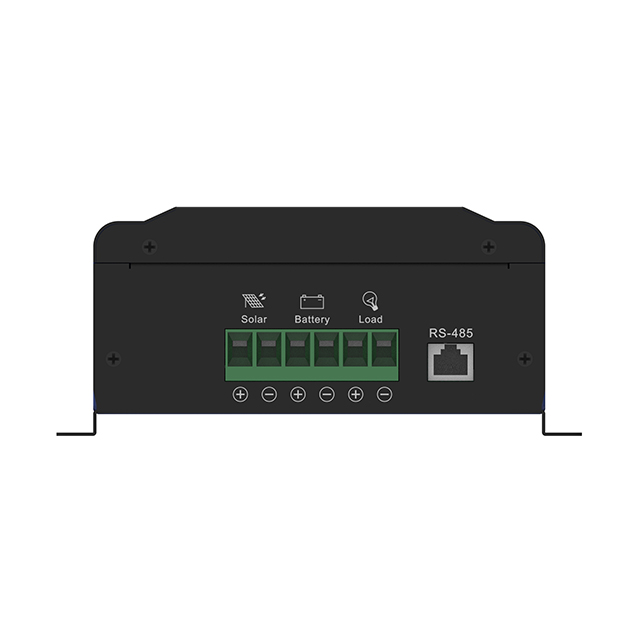

●With RS485 communicate interface.lt can communicate with multiple and the uppercomputers,which is convenient to check the operating parameters of the controller

Customized production that meets your needs

Model：30A、 40A、50A、60A、80A、100A


Availability:



Inquire

Model:
30A、 40A、50A、60A、80A、100A
Brand:
SNADI

Product Description

CM-MPPT Solar Charge Controller advanced MPPT technology with up to 97% efficiency. Auto voltage detection (12V/24V/48V) and customizable charge/discharge settings. Supports lead-acid and lithium batteries. Features intelligent cooling, full protection, and RS485 communication for remote monitoring.

◆Excellent heat dissipation design and intelligent controlled cooling fan

◆12VDC/24VDC/48VDC automatic identification

◆Charging voltage and discharge voltage can be set according to different requirements

◆Innovative maximum power point tracking technology,the conversion rate of up to 97%

◆Quick scan of the entire l-V curve.Efficient track the maximum power point

◆Three types of lead-acid battery,sealed,colloid,open type battery and lithiumbattery series charging procedures are optional

◆With the functions of over charge,over discharge,overload and short circuitautomatic protection
◆With RS485 communicate interface.lt can communicate with multiple and the uppercomputers,which is convenient to check the operating parameters of the controller

Model			CM-4830A	CM-4840A	CM-4850A	CM-4860A	CM-4880A	CM-48100A
Charging Mode			MPPT Automatic Maximum Power Point Tracking
Charging Method			Three stages:Constant Current (MPPT), Balanced Charging, Floating Charge
System Type	12/24/48V		Automatic Identification/Manual Setting
System Identification Voltage Range	12V System		9~15VDC
	24V System		18~30VDC
	48V System		36~60VDC
Soft Start Time	12/24/48V		≤10s
Dynamic Response Recovery Time	12/24/48V		≤500us
Static Power	12/24/48V		≤2W
Machine Efficiency	12/24/48V		≥96.5%
PV Module Utilization	12/24/48V		≤99%
Input Characteristics	MPPT Operating Voltage Range	12V System	18~150VDC
		24V System	34~150VDC
		48V System	65~150VDC
	Maximum Solar Panel Input Power	12V System	420W	570W	700W	900W	1100W	1350W
		24V System	840W	1130W	1400W	1700W	2200W	2750W
		48V System	1650W	2270W	2800W	3400W	4400W	5400W
Output Characteristics	Optional Battery Type(Default is lead-acid maintenance-free battery)	12/24/48V	Lead-acid maintenance-free Battery,Gel Battery,Lithium Battery (Can also be customized for other types of battery)
	Current Limiting Protection	12/24/48V	32A	42A	52A	62A	82A	102A
	Temperature Accuracy	12/24/48V	±0.02%/°C
	Temperature Compensation	12/24/48V	14.2V-(Maximum Temperature -25°C)/°0.3
	Output Regulation Accuracy	12/24/48V	≤±15%
Protection	Input Low Voltage Protection		Reference Input Characteristics
	Input High Voltage Protection		Reference Input Characteristics
	Short Circuit Protection		After 5 trial starts will enter the protection state,Restart Recovery
	Temperature Protection		90°C
	Temperature Rise Protection		Reduce Power Output When Exceed 85°C
Other Parameters	Noise		≤50dB
	Heat Dissipation Method		Forced air cooling.fan speed is adjusted by temperature
	Class Of Protection		IP21
	Humidity		0~90%RH(No condensation)
PV Module Configuration	System Battery Voltage		PV module load voltage (Recommended Value)
	12V System		18~60V(30V module1 string, 36V module1 string)
	24V System		36~72V(30V module2 string, 36V module2 string)
	48V System		72~144V(30V module3 string, 36V module3 string)
