1KW、1.5KW、2KW、3KW、4KW、5KW、6KW、8KW、10KW
SNADI

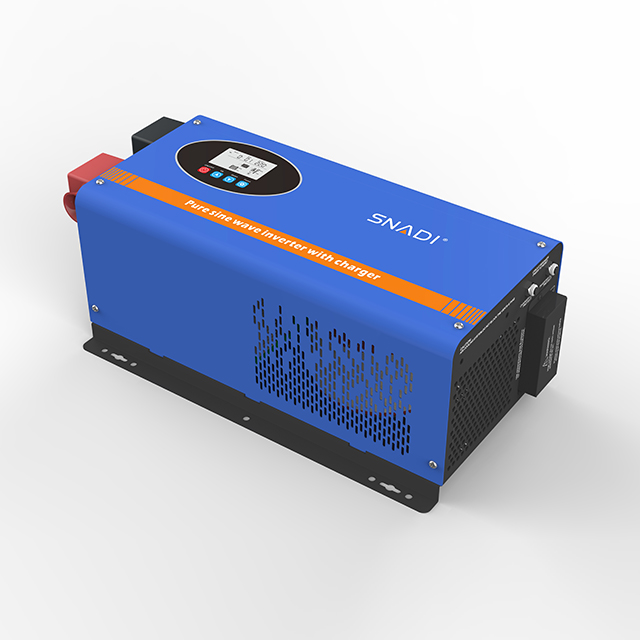

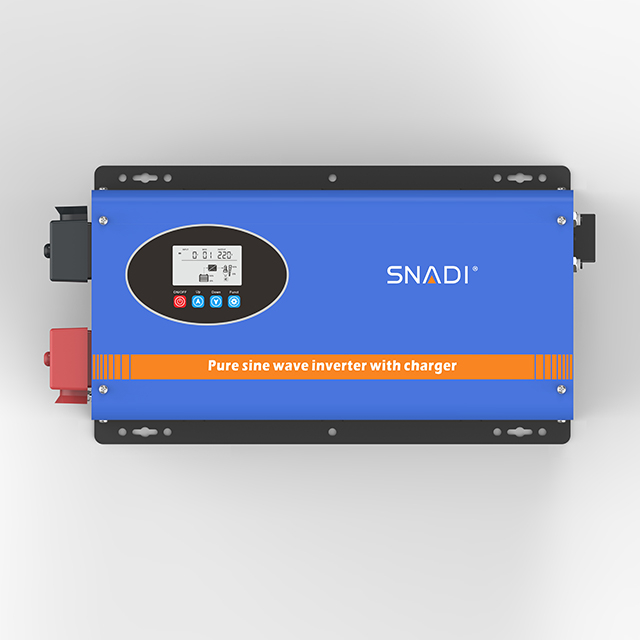

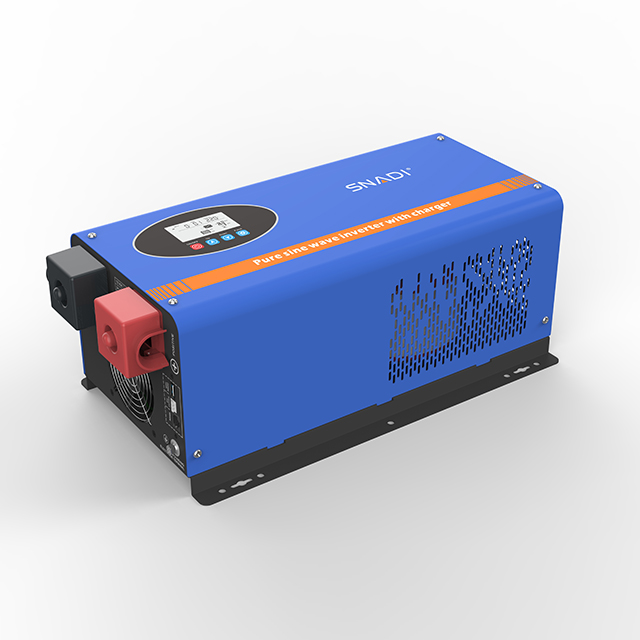

SNADI FT Solar Inverter is a reliable and efficient solution for clean and stable power. With a built-in charger and easy-to-use interface, it's perfect for off-grid and backup power systems.
●Pure sine wave
●Lithium battery activation function Utility| Model | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | |
| Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | |
| Battery | Rated Voltage | 12/24/48VDC | 24/48VDC | 48VDC | 48/72/96VDC | |||||
| Charge Current | 30A(default) -CO-C6 | |||||||||
| Battery Type | U0~U7 | |||||||||
| Input | Voltage Range | 85~138/170~275VAC | ||||||||
| Frequency | 45~65Hz | |||||||||
| Output | Voltage Range | 100/110/120VAC 200/210/220/230/240VAC | 220/230/240VAC | |||||||
| Frequency | 50/60Hz±1%(Inversion mode) | |||||||||
| Output Wave | Pure Sine Wave | |||||||||
| Conversion Time | ＜10ms(Typical load) | |||||||||
| Efficieny | ＞85%（80% resistive load） | |||||||||
| Overload | 110~120%60s;120~130/10s | |||||||||
| 130~150%/2s;＞150%/500ms | ||||||||||
| Protection Function | Battery overvoltage protection, battery undervotage protection, overload, protection, short circuit protection, overtemperature protection, etc. | |||||||||
| Ambient Temperature For Operation | 0~40℃ | |||||||||
| Ambient Temperature For Storage | -15~50℃ | |||||||||
| Operation/Storage Ambient | 0~90% No Condensation | |||||||||
| Net Weight(KG) | 14.2 | 15 | 17 | 19 | 25 | 29 | 32 | 49 | 52 | |
| Gross Weight(KG) | 15 | 17 | 19 | 22 | 27 | 31 | 35 | 55 | 58 | |
