8KW/10KW
SNADI

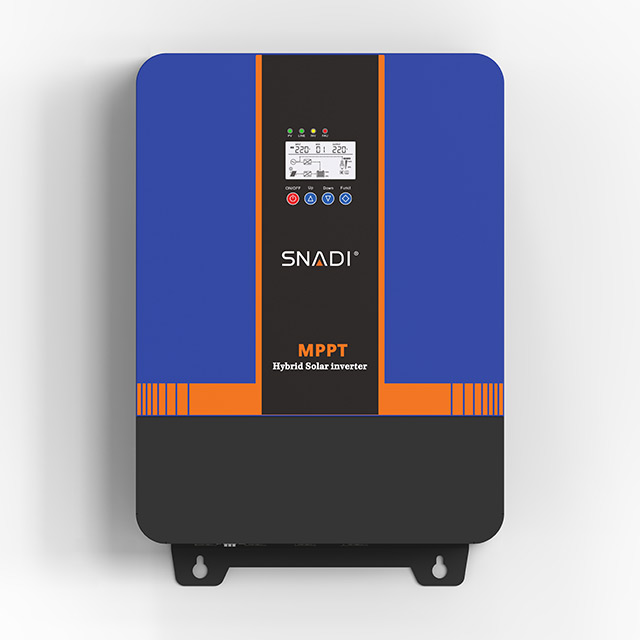

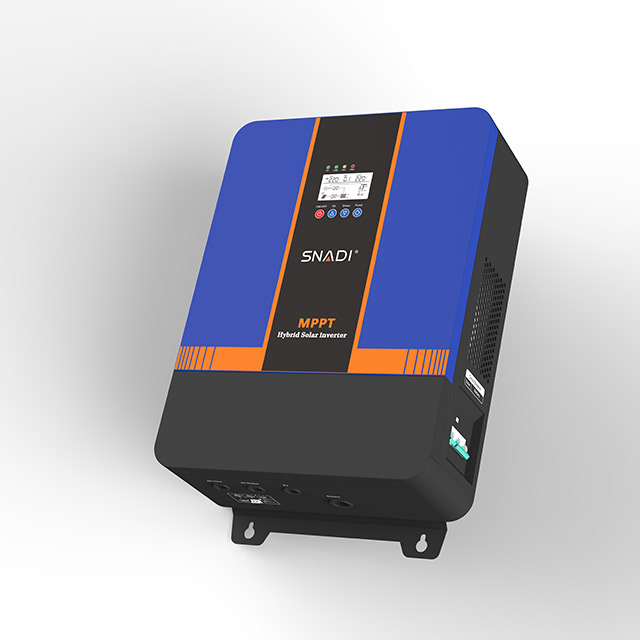

SNADI's MPPT hybrid solar inverter is a high-performance and reliable solution for residential and commercial solar energy systems. With advanced maximum power point tracking (MPPT) technology.
MAIN FEATURES
●Pure sine wave 200/210/220/230/240VAC
| Model | NKM-8KW | NKM-10KW | |
| Power Rating | 8000W | 10000W | |
| Battery | Rated Voltage | 48/72/96VDC | |
| AC Charge Current | 0~40A | ||
| Battery Type | Can be set | ||
| Input | Voltage Range | 85~138/170~275VAC | |
| Frequency | 45~65Hz | ||
| Output | Voltage Range | 220V(can be set);200/210/220/230/240VAC | |
| Frequency | 50/60Hz±1%(Inverter mode) | ||
| Output Wave | Pure Sine Wave | ||
| Switching Time | <10ms(Typical load) | ||
| Efficiency | >85%(80% Resistive load) | ||
| Overload | 110~120%(60s;120~130%)/10s | ||
| 130~150%/2s;>150%/500ms | |||
| Protection | Battery overvoltage/low voltage,overload,short circuit protection,overtemperature protection,etc. | ||
| Solar Controller | MPPT Voltage Range | 48VDC:65~150VDC | |
| Max.PV Input Power | 48VDC/60A:3400W | ||
| 48VDC/100A:5300W | |||
| Rated Charge Current | 100A(Max) | ||
| MPPT Efficiency | ≥99% | ||
| Average Charging Voltage(lead acid battery) | 48V:56.8VDC | ||
| Floating Charge Voltage | 48V:55VDC | ||
| Operating Ambient Temperature | 0~40℃ | ||
| Storage Ambient Temperature | -15~50℃ | ||
| Operating/Storage Environment | 0~90℃ No Condensation | ||
| Dimensions:WDH(mm) | 582*452*252 | ||
| Packing Size: WDH(mm) | 650*525*315 | ||
