5KW、10KW、15KW、20KW
SNADI

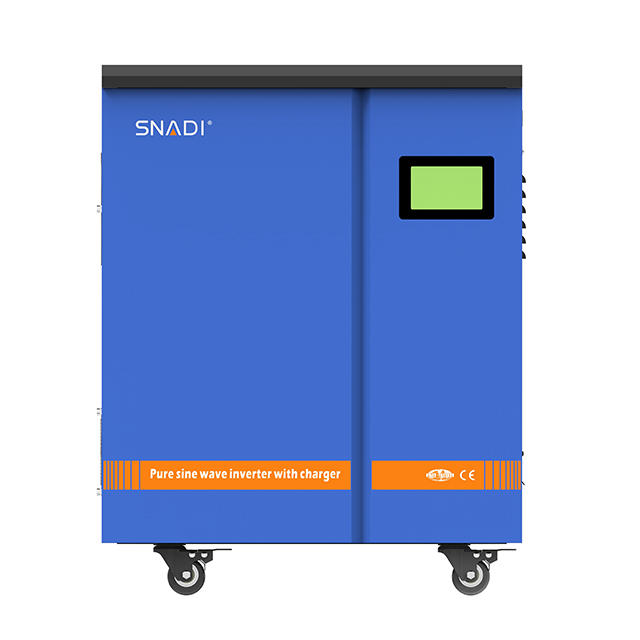

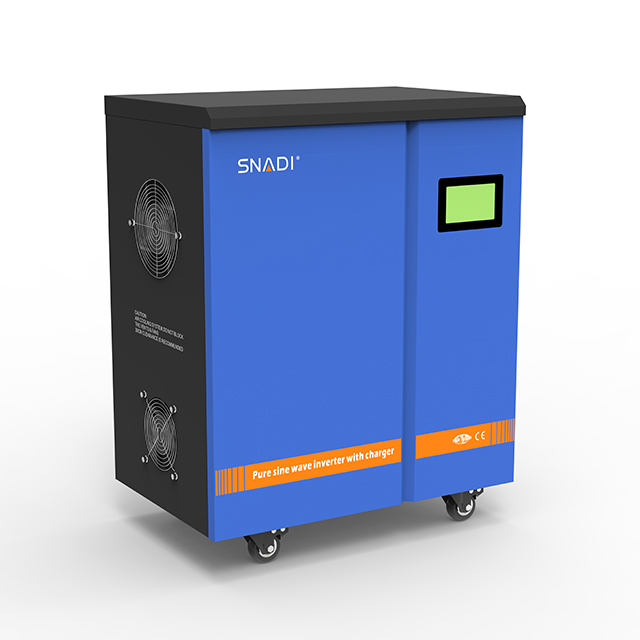

SNADI's Single-phase IGBT Low Frequency Inverter is a powerful and reliable solution for a variety of applications. With advanced IGBT technology and a low frequency design, it delivers stable and efficient performance. Perfect for powering sensitive electronics, motors, and other equipment.
●Pure sine wave 110VAC or 220VAC
●Lithium battery activation function Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave - Power factor 1.0
●LCD real-time display of the device parameters, running state at a glance
●Detachable dust cover for harsh environment
●Low frequency(Built in ring transformer)
●Support multiple output priority: SBU, SUB

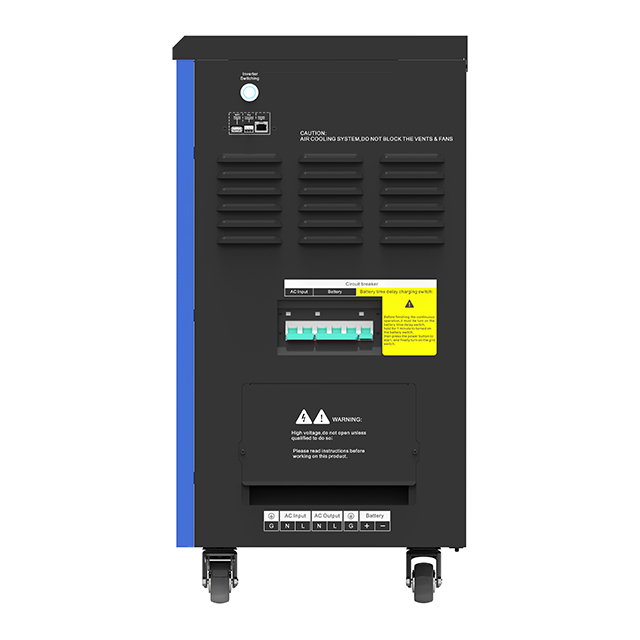

●Communication interface: RS232/RS485/Dry contact
●EQ function to optimize battery performance and extend lifecycle
Customized production that meets your needs
| Model | SN-5KW | SN-10KW | SN-15KW | SN-20KW | |
| Rated Power | 5000W | 10000W | 15000W | 20000W | |
| Battery | Rated Voltage | 96/192VDC | 192/220/240VDC | ||
| Charge Current | 10~20A | ||||
| Low Voltage Protection | 84/168VDC | 168VDC | |||
| Charging Voltage | 96VDC;108VDC 192VDC;217VDC | 192VDC;217VDC 220VDC;248VDC 240VDC;276VDC | |||
| Input | Voltage Range | 88~132/176~264VAC | |||
| Frequency | 45~65Hz | ||||
| Output | Voltage Range | 110/220VAC±5%(Inversion mode) | |||
| Frequency | 50/60Hz±1%(Inversion mode) | ||||
| Output Wave | Pure Sine Wave | ||||
| Conversion Time | ＜10ms(Typical load) | ||||
| Efficiency | ＞85%(100% Resistive Load) | ＞90%(100% Resistive Load) | |||
| Overload | 110~120%/60s;120~130%/10s 130~150%/2s;＞150%/500ms | ||||
| Protection Function | Battery overvoltage protection, battery undervotage protection, overload, protection, short circuit protection, overtemperature protection, etc. | ||||
| Ambient Temperature For Operation | 0~40℃ | ||||
| Ambient Temperature For Storage | -15~50℃ | ||||
| Operation/Storage Ambient | 0~90% No Condensation | ||||
| Dimensions: D*W*H(mm) | 555*368*695 | 655*383*795 | |||
| Gross Weight(KG) | 80 | 110 | 150 | 170 | |
