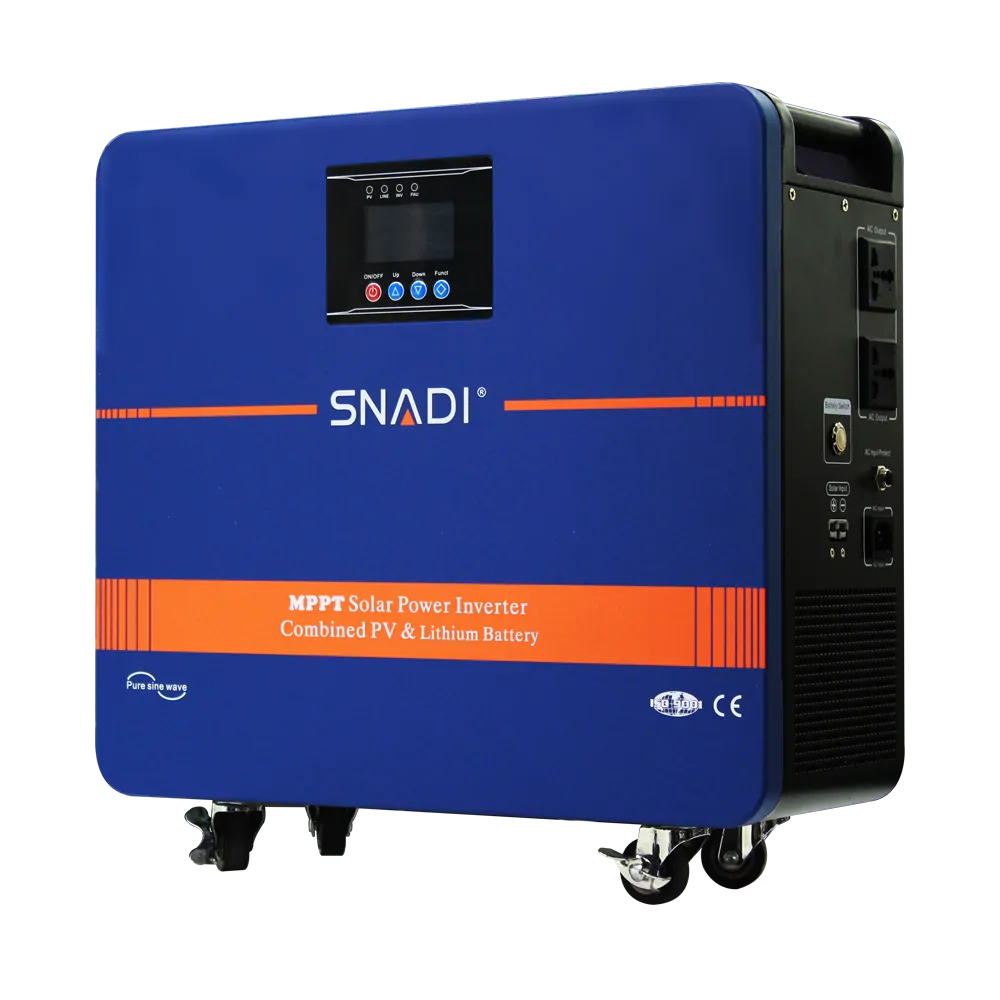

AL-S1200
SNADI
MAIN FEATURES
◆Excellent performance because of an MCU intelllgent control technology;
◆A wide range of applicable loads because of pure sine wave AC output;
◆Convenient and practical 5VDC USB output port and 12VDC output port;
◆Solar array and battery connrnon-anodesystern input;
◆Charge by mains supply for flexible conflguration (optional function);
◆Overcharge protection and overdischarge protection for a longer battey life;
◆LCD and LEDS for visualization of operation status of the equipment
◆Overall automatic protection and alarms Including AC output over load protection, short circuit protection ,etc.
| Product Specifications | ||||||
| Model: AL | AL-S1200 | |||||
| Inverter | Battery Voltage | 25.6V | ||||
| In-built Battery Specification | 50AH/25,6V | |||||
| Rated Power | 1200W | |||||
| Output Voltage | 110/120/220/230/240VAC | |||||
| Output Frequency | 50/60Hz | |||||
| Output Waveform | Pure Sine Wave | |||||
| Input Voltage Range | 72-138/145-275VAC | |||||
| Input Frequency | 45~65Hz | |||||
| MPPT Charge | Maximum Photovoltaic Voltage | ≤150V | ||||
| PV Input Range Voltage | 34-150V | |||||
| Rated Charge Current | MPPT 30A | |||||
| Maximum Power | 840Wp | |||||
| Voltage Of Floating Charge | 28.4V | |||||
| MPPT Efficiency | ≥97% | |||||
| DC Output | Voltage Of High-voltage Protection | 34V | ||||
| Voltage Of High Voltage Recovery | 30V | |||||
| Voltage Of Low Voltage Recovery | 26V | |||||
| Voltage Of Low Voltage Protection | 22.4V | |||||
| 5VDC USB Output Port | 2 Units/MAX 2A | |||||
| 12VDC Output Port | 2 Units/MAX 2A | |||||
| Other | Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | ||||
| Ambient Temperature For Operation | 0~40°C | |||||
| Ambient Temperature For Storage | -25~55°C | |||||
| Operation/Storage Conditions | 0-90% (no condensation) | |||||
| External Dimensions: DxWxH (mm) | 485*202*406 | |||||
| Packing Dimensions: DxWxH (mm) | 552*277*477 | |||||
