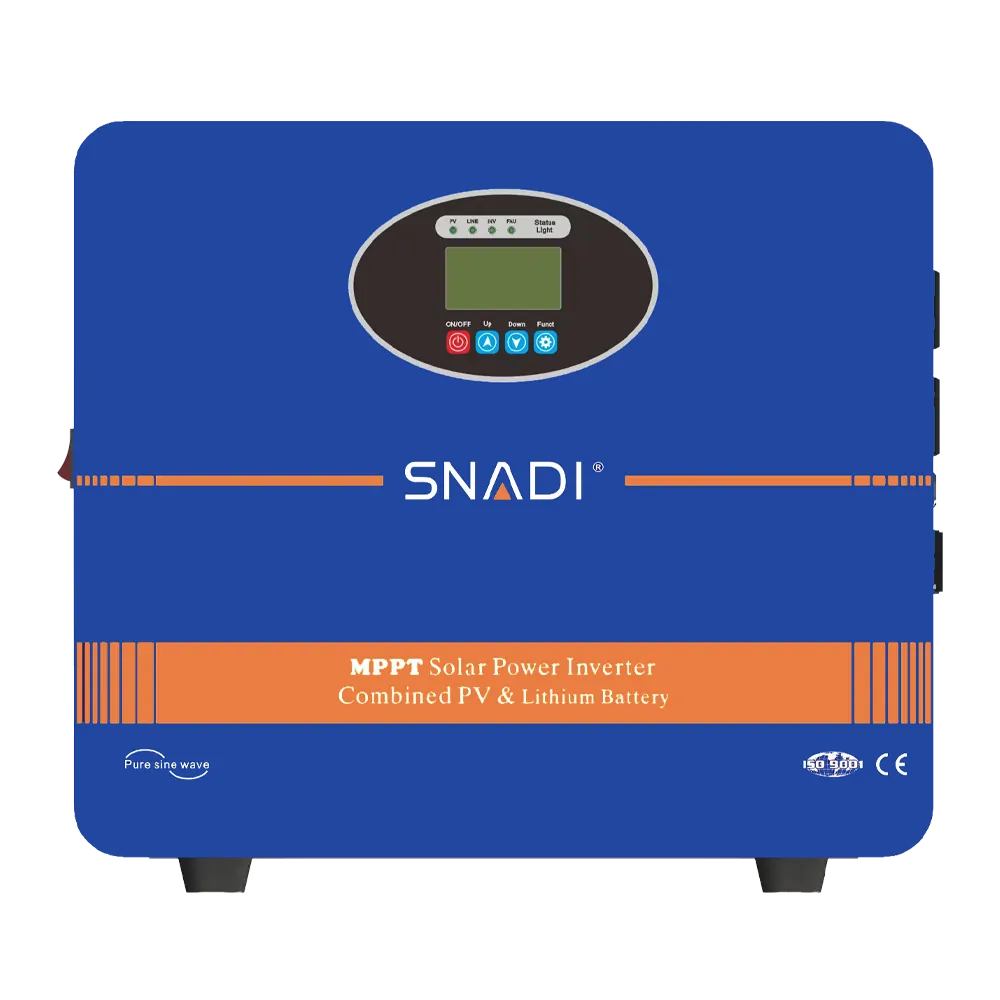

AL-S600、AL-S1200、AL-S2200、AL-S3500、AL-S5000、AL-S10000
SNADI
MAIN FEATURE
◆Excellent performance because of an MCU intelllgent control technology;
◆A wide range of applicable loads because of pure sine wave AC output;
◆Convenient and practical 5VDC USB output port and 12VDC output port;
◆Solar array and battery connrnon-anodesystern input;
◆Charge by mains supply for flexible conflguration (optional function);
◆Overcharge protection and overdischarge protection for a longer battey life;
◆LCD and LEDS for visualization of operation status of the equipment
◆Overall automatic protection and alarms Including AC output over load protection, short circuit protection ,etc.
| Model: AL | AL-S600 | AL-S1200 | AL-S2200 | AL-S3500 | AL-S5000 | AL-S10000 | |
| Inverter | Battery Voltage | 12.8V | 25.6V | 51.2V | |||
| In-built Battery Specification | 50AH/12.8V | 50AH/25,6V | 100AH/25.6V | 100AH/51.2V | 100AH/51.2V | 200AH/51.2V | |
| Rated Power | 600W | 1200W | 2200W | 3500W | 5000W | 10000W | |
| Output Voltage | 110/120/220/230/240VAC | 220/230/240VAC | |||||
| Output Frequency | 50/60Hz | ||||||
| Output Waveform | Pure Sine Wave | ||||||
| Input Voltage Range | 72-138/145-275VAC | 85-138/170-275VAC | 170-275VAC | ||||
| Input Frequency | 45-65Hz | ||||||
| MPPT Charge | Maximum Photovoltaic Voltage | ≤150V | |||||
| PV Input Range Voltage | 18-100V | 35-150V | 65-150V | ||||
| Rated Charge Current | 30A | 60A | |||||
| Maximum Power | 420Wp | 840Wp | 1600Wp | 3400Wp | |||
| Voltage Of Floating Charge | 14.2V | 28.4V | 56.8V | ||||
| MPPT Efficiency | ≥97% | ||||||
| DC Output | Voltage Of High-voltage Protection | 17V | 34V | 68V | |||
| Voltage Of High Voltage Recovery | 15V | 30V | 60V | ||||
| Voltage Of Low Voltage Recovery | 13V | 26V | 52V | ||||
| Voltage Of Low Voltage Protection | 11.2V | 22.4V | 44.8 V | ||||
| 5VDC USB Output Port | 2 Units/MAX 2A | ||||||
| 12VDC Output Port | 2 Units/MAX 2A | ||||||
| Other | Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | |||||
| Ambient Temperature For Operation | 0~40℃ | -20~50℃ | |||||
| Ambient Temperature For Storage | -25~55°C | ||||||
| Operation/Storage Conditions | 0-90% (no condensation | ||||||
| External Dimensions: DxWxH (mm) | 460*182*397 | 485*202*406 | 500*229*464 | 577*350*644 | 627*405*664 | 780*447*724 | |
| Packing Dimensions: DxWxH (mm) | 527*267*470 | 552*277*477 | 570*310*535 | 665*450*825 | 715*505*845 | 875*545*922 | |
| Net Weight (KG) | 13 | 26 | 41.5 | 77 | 112 | 153 | |
| Gross Weight (KG) | 15 | 27.5 | 43 | 97 | 137 | 182 | |
