The global shift toward energy autonomy has placed off grid solar solutions at the forefront of the renewable revolution. For those living in remote areas or operating critical infrastructure where the utility grid is non-existent, the reliability of energy storage systems is paramount. At the heart of this reliability lies a sophisticated electronic component that functions as the neurological center of the energy storage unit. Understanding the intricacies of the battery management system solar integration is essential for ensuring safety, efficiency, and a high return on investment for any independent power project.
What is a BMS in a Solar Energy System
A battery management system is a specialized electronic regulator that monitors and manages the state of a rechargeable battery pack. In the context of solar energy, its primary role is to act as a safeguard between the raw energy harvested from photovoltaic panels and the sensitive chemical cells within the storage unit. Unlike basic power regulators, a solar-specific management system is designed to handle the intermittent nature of sunlight, where charging currents can fluctuate rapidly based on cloud cover or time of day.
The management unit serves as a critical interface that performs constant data acquisition. It measures the voltage of individual cells, the total current flowing in or out of the pack, and the internal temperature at multiple points. By processing this data in real time, the system can calculate the state of charge and the state of health of the battery. This ensures that the user always has an accurate reading of how much energy is available and how much the battery has degraded over time. For off grid users, this data is the difference between having continuous power and being left in the dark unexpectedly.
Why SNADI Standard BMS Differs from Solar Specific BMS
Standard management systems found in consumer electronics are often designed for stable, predictable charging cycles. However, a battery management system solar configuration must be more robust. It is engineered to manage high surge currents from powerful off-grid inverters and to integrate seamlessly with solar charge controllers. These systems often feature advanced communication protocols such as RS485 or CAN bus to talk directly to the inverter, ensuring that the entire power plant operates as a single, cohesive unit rather than a collection of separate parts.
Why Your Solar Investment Depends on a High Quality BMS
Investing in high quality photovoltaic panels and lithium cells is only half the battle. Without a professional grade management system, those expensive components are vulnerable to premature failure. The longevity of a lithium iron phosphate battery, which is the gold standard for off grid storage, is directly tied to how well its cells are managed during every charge and discharge cycle.
Protecting Against Overcharge and Deep Discharge
Lithium cells are highly sensitive to voltage extremes. Overcharging can lead to chemical instability, while deep discharging can cause permanent capacity loss or even render a cell completely dormant. A high quality battery management system solar unit will automatically disconnect the load if the voltage drops below a safe threshold and stop the charging process once the cells reach their peak capacity. This automated protection is vital for off grid systems that often operate unattended for long periods.
Thermal Management: Preventing Thermal Runaway in Outdoor Solar Installations
Off grid energy storage is frequently housed in outdoor enclosures or non-climate-controlled sheds. High ambient temperatures combined with the heat generated during rapid charging can lead to thermal runaway, a dangerous condition where a battery enters an uncontrollable self heating cycle. Modern management systems include multiple thermal sensors and can trigger cooling fans or reduce power throughput to maintain a safe operating temperature. If temperatures exceed critical limits, the system will execute an emergency shutdown to prevent fire or explosion.
Cell Balancing
In any large battery pack, individual cells will naturally develop slight differences in their voltage and capacity over time. If left uncorrected, the weakest cell in the pack will limit the performance of the entire system. A battery management system solar unit performs cell balancing by bleeding off excess energy from higher voltage cells or redistributing it to lower voltage ones. This ensures that every cell is used to its full potential and can extend the operational lifespan of the battery pack by more than 30 percent compared to unmanaged systems.

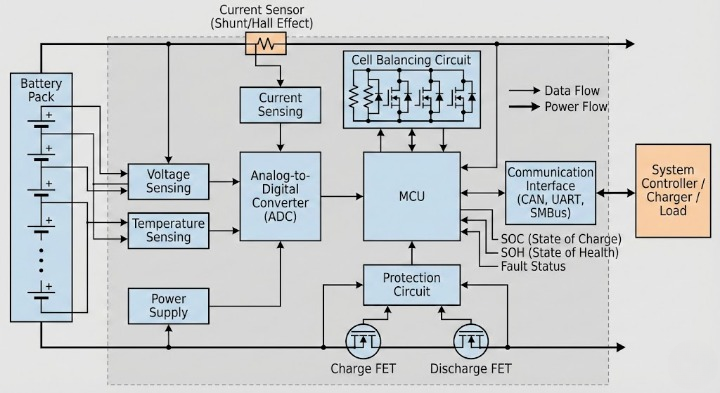

Key Components of a Solar Battery Management System
To perform its complex tasks, the management system relies on a suite of hardware and software components working in harmony.
Monitoring Sensors
These are the primary data collection tools. High precision shunts measure current flow, while voltage dividers monitor the potential across each cell series. SNADI Solar's advanced units also incorporate humidity and gas sensors for industrial scale energy storage cabinets to provide an extra layer of environmental monitoring.
Communication Interfaces
The ability to transmit data is what makes a management system smart. SNADI's off grid batteries utilize RS485, RS232, or CAN communication ports to link with the inverter. In recent years, wireless options like WiFi and Bluetooth have become popular, allowing users to check their battery status via a smartphone application without needing to physically access the battery enclosure.
Safety Disconnects and Protection Circuits
These are the physical switches, often in the form of MOSFETs or heavy duty relays, that can instantly break the circuit in the event of a fault. These components must be rated to handle the peak surge currents required by large appliances like well pumps or air conditioners frequently used in off grid living.
Comparison of Energy Storage Management Features
| Feature | Basic Protection Circuit | Advanced Solar BMS | Industrial ESS Cabinet |
| Cell Voltage Monitoring | Total Pack Only | Individual Cell Level | Multi-Point Cluster Level |
| Overcurrent Protection | Fixed Fuse | Adjustable Software Limit | Multi-Stage Breakers |
| Communication Protocols | None | RS485 / CAN / BT | Modbus / IEC 61850 |
| Balancing Method | Passive | Active and Passive | High-Current Active |
| Thermal Safety | None | NTC Thermistors | HVAC Integration |
| Fire Suppression | Manual | Optional | Integrated Automatic |
Data Source: Based on 2025 Industry Standards for Lithium Iron Phosphate Storage Systems.
Types of BMS for Different Solar Scenarios
The choice of management architecture depends heavily on the scale and voltage of the solar project.
Centralized vs Distributed BMS for Residential Solar
In a centralized architecture, a single controller manages all cells in a battery pack. This is cost effective and common for 12V or 24V home systems. Distributed or modular systems, however, utilize a master slave configuration. Each battery module has its own local controller, which reports to a master unit. This is the preferred method for stacked energy storage systems where users might start with 5kWh of storage and expand to 30kWh over time.
High Voltage BMS for Commercial and Industrial Storage
Commercial operations often require higher voltages, such as 384V or even 760V, to reduce energy loss over long cable runs. These systems require specialized high voltage management units that can handle the increased electrical stress and provide the isolation needed to protect low voltage communication equipment from the high voltage power lines.
Smart BMS with Integrated Cloud Monitoring
For remote off grid sites, physical maintenance visits are expensive. Smart systems now upload performance data to cloud based platforms. This allows engineers to diagnose issues remotely, update firmware to improve efficiency, and receive instant alerts if a battery requires attention.
How to Choose the Right BMS for Your Solar Project
Selecting the correct management system is as important as choosing the right battery chemistry.
Compatibility with Hybrid Inverters
The management system and the inverter must speak the same language. If you are using a specific brand of off grid inverter, such as those utilizing Pylon or Voltronic protocols, the battery management system solar unit must be programmed with the corresponding library to ensure they can synchronize charging parameters.
Scalability for Future Battery Expansion
If you plan to add more capacity in the future, ensure the management system supports parallel or series expansion. Some systems are limited to 15 or 16 units in parallel, which is usually sufficient for residential use but might be a bottleneck for growing commercial needs.
Certification Check: Ensuring Global Safety Standards
Safety should never be compromised. Always look for systems that have undergone rigorous testing and carry certifications such as IEC 62619, UL 1973, or UN 38.3. These certifications guarantee that the management system has been tested under extreme conditions and will perform reliably in real-world scenarios.
Conclusion
As we look toward 2026, the focus of off grid technology is shifting toward data driven optimization. By collecting years of cycle data, modern management systems can now offer predictive analytics. Instead of simply reacting to a low voltage event, the system can analyze historical sunlight patterns and current consumption to warn the user 24 hours in advance if they need to reduce their load to avoid a shutdown. This level of foresight is transforming off grid living from a survivalist challenge into a seamless, modern experience.
By focusing on the critical role of the battery management system solar unit, off grid enthusiasts and industrial operators can build power systems that are safe, efficient, and built to last for decades. The brain of the battery is truly the heart of energy independence.
✉️Email: exportdept@snadi.com.cn
Website:
☎️WhatsApp / WeChat: +86 1803929353
FAQ
Q1: Why is a solar specific BMS more effective than a standard battery management system?
A solar-specific BMS is engineered to handle the intermittent nature of sunlight and high surge currents from off grid inverters. It uses advanced protocols like RS485 or CAN bus to sync with the entire system, ensuring stable performance despite fluctuating charging cycles.
Q2: How does cell balancing improve the long term ROI of an off grid solar investment?
Cell balancing prevents the weakest cell from limiting the capacity of the entire pack. By redistributing energy and maintaining uniform voltage across all units, it can extend the operational life of expensive lithium batteries by more than thirty percent, reducing replacement costs.
Q3: What safety features prevent thermal runaway in outdoor solar storage installations?
Modern systems utilize multiple thermal sensors to monitor internal temperatures. If critical limits are reached, the system triggers cooling mechanisms or executes an emergency shutdown to prevent fire risks caused by high ambient heat or rapid charging cycles.
Q4: How does a BMS help users manage power availability in remote off grid sites?
High quality systems provide accurate data on state of charge and state of health. Smart units now offer predictive analytics that analyze historical patterns to warn users in advance if they need to adjust their energy load, ensuring power is never lost unexpectedly.
Q5: Can an existing solar battery system be expanded using modular BMS architecture?
Yes, modular or distributed BMS architectures allow for scalability. Users can start with a basic storage capacity and add more battery modules over time, as the master slave configuration enables the controller to manage multiple units as a single cohesive energy source.
