A set of three high-efficiency SNADI monocrystalline solar panels for residential and commercial renewable energy systems.

Higher powern generation better LCOE

 N type with very Lower LID

Better Temperature Coefficient

Better low irradiance response

Double electroluminescence(EL) tests, Carefully inspected before and after lamination to guarantee fault free modules

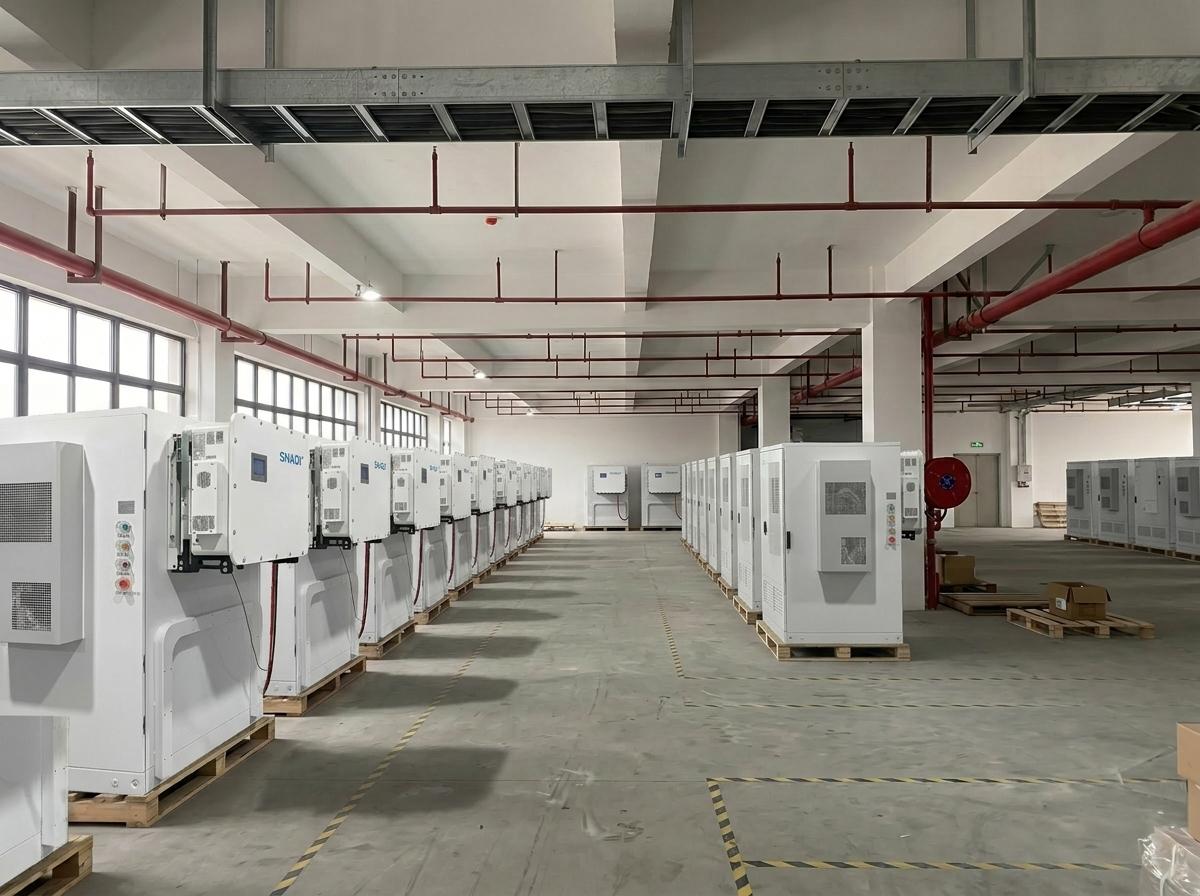

SNADI Integrated Solar Storage Hybrid ESS System: An all-in-one commercial energy storage solution with hybrid inverter and battery system.

Combining high power and high capacity

Multi energy complementarity and flexible configuration

It can integrate various energy sources such as photovoltaic powergeneration, diesel generators, and mains power, and achieve intelligentscheduling through an energy management system (EMS)

Intelligent management and optimization

The power output can meet the demand of large-scale loads, suchas small and medium-sized factories, commercial complexes, orcommunity power supply

Fast response and seamless switching

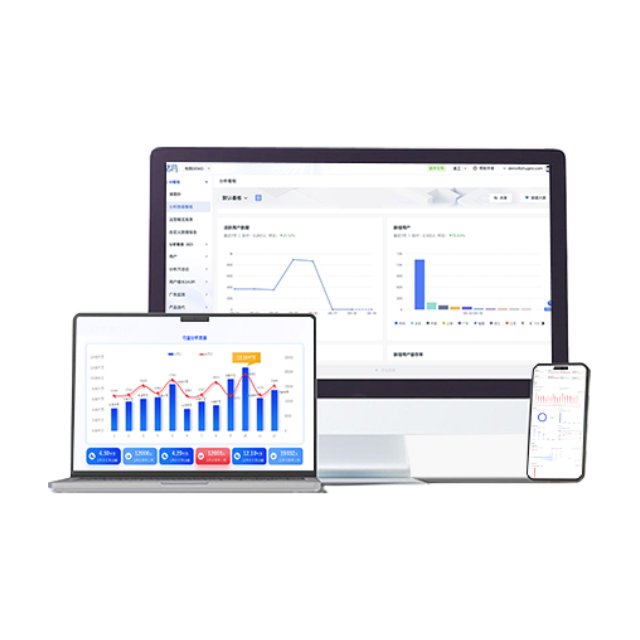

Smart solar energy remote monitoring system displaying data analytics dashboards on a desktop, laptop, and smartphone.

Real-time monitoring for optimized energy yield

Seamless multi-terminal access across PC, laptop, and smartphone

Intelligent data analytics for lower O&M costs and higher ROI

Instant fault alerts and smart remote troubleshooting

Remote configuration and smart control to ensure system stability


SNADI/SNAT Solar 125KW-241KWh Integrated Solar Storage Hybrid Power System （Support customization）
Solar Panel
Model590W
Maximum Power（Wp）590
Open Circuit Voltage(Voc)(V)51.02
Short Circuit Current (Isc)（A）14.47
Quantity(Pcs)300
Size(mm)2278*1134*30
Weight(KG)28.4
Warranty time10 Years
Solar Storage System
ModelSNT125-241KWH-PV250
Photovoltaic Parameters
Maximum Input Power250.0KW
Maximum Input Voltage1000V
MPPT Rated Voltage180~950V
Starting Voltage200V
Maximum Input Current40A*8
Maximum Short-circuit Current55A
Number Of MPPT8 groups
Number Of Input Strings Per MPPT Channel2*8=16 Route
Photovoltaic MPPT Efficiency99%
AC Communication Parameters(grid connected end)
Rated Output Power125.0KW
Maximum Output Power125.0KW
Maximum Charging Power125.0KW
Mixed Output Power137.0KW
Rated Voltage380/400V,3L/N/PE
Rated Frequency50/60Hz
Maximum Output Current198A
Maximum Three-phase Unbalanced Output0~97%
Maximum Bypass Current300A
Total Harmonic Distortion Of Current<3%
AC Communication Parameters(off grid end)
Rated Output Power125.0KW
Rated Output Voltage380/400V,3L/N/PE
Rated Output Frequency50/60Hz
Maximum Output Single-phase Apparent Power40KW
Off Grid Switching Time10ms
Conversion Efficiency98.00%
Battery Parameters
Battery Parameters Operating Voltage Range672-864.0V
Battery TypeLithium iron phosphate LifePO4
Battery ModelSF-T768V 314AH
Rated Charging/Discharging Current300A/300A
Charging Power125.0KW
Battery Count Setting15
Single Pack Battery Capacity16.076KWH
Rated Capacity241.0KWH
Basic Parameters
Temperature Control System Air-cooled Air Conditionerair-cooled air conditioner
Passive FirefightingHot aerosol fire extinguishing device/detector
Working Temperature range-25~60°C (>45 derating)
Working Altitude<3000m
Noise Emissions<30~60dB
Protection LevelIP54
Relative Humidity Range0~95°C (No condensation)
Size (W*H*D)(mm)1200*1100*2200
Packaging Weight2600KG
Human Computer Interaction ModeLCD/APP
Cloud Based Communication MethodWi-Fi
Display Interfaceliquid crystal, LCD, RS485, CAN
CertificationUN38. 3 MSDS CE
Safety StandardsIEC62109-1/-2
EMC StandardEN61000-6-1/-3,IEC61000
Well Network StandardNRS97,G98/G99, EN50549-1, C10/C11, as 4777, VDE-AR-N4105, VDE0126, IEC62040

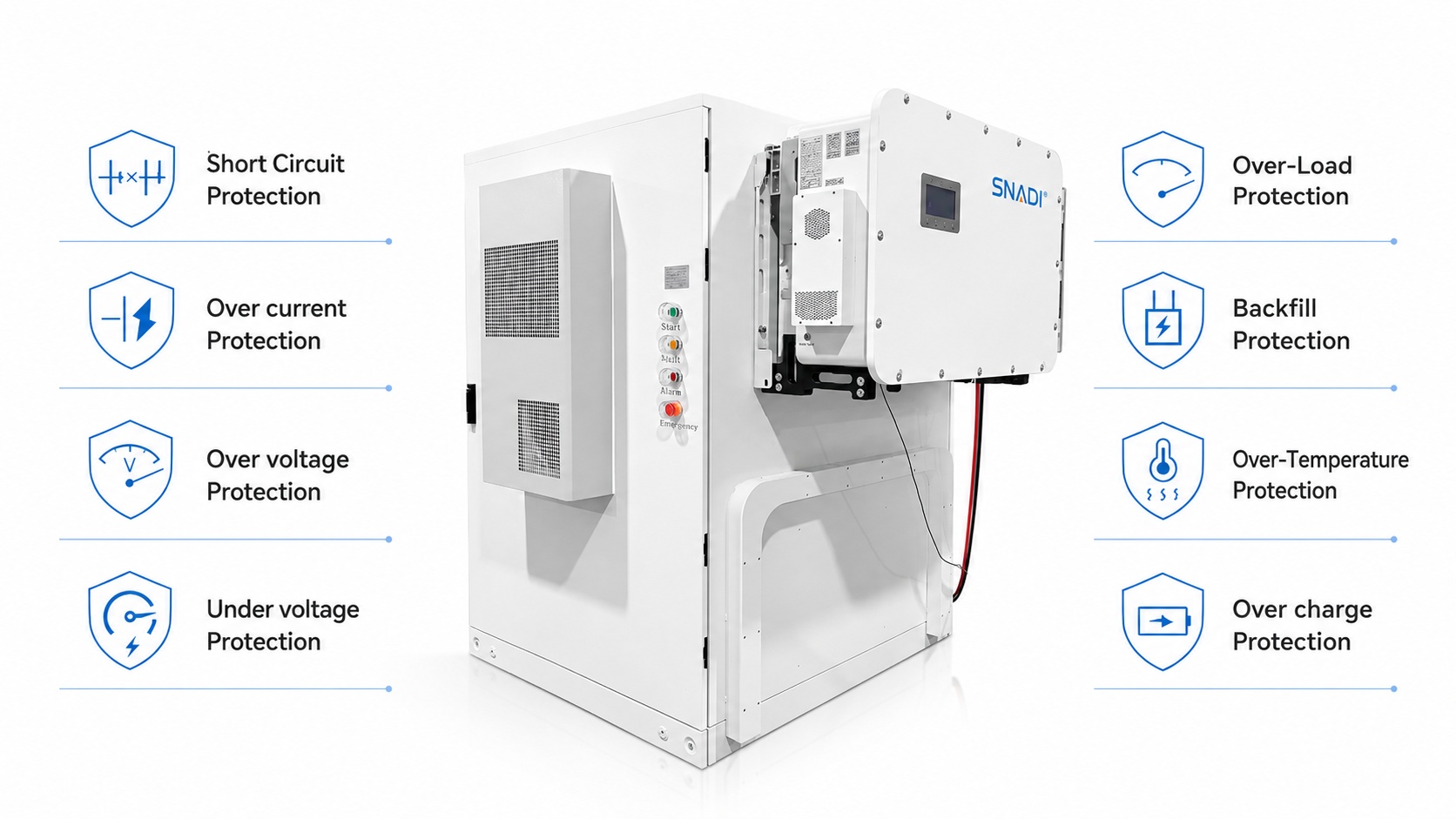

Comprehensive 360° Protection

Help You Control Every Detail. Details reflect quality

Short Circuit Protection

Over current Protection

Over voltage Protection

Under voltage Protection

snadi-integrated-solar-storage-hybrid-ess-system

Over Load Protection

Backfil Protection

Over Temperature

Protection

Over Charge Protection
