Should I Choose an Off-Grid or Hybrid Solar Inverter for My Project?

For a factory, farm, cold storage site, telecom station, or remote commercial project, the inverter decision is not just about solar conversion efficiency. It determines what happens when the utility voltage sags, a pump starts, the battery reaches a low state of charge, or the generator needs to take over.

That is why the choice between a solar inverter off grid system and a hybrid inverter should start with the site. A site with dependable grid access and useful export credits has very different priorities from a rural feeder that drops several times a week or a location with no grid connection at all.

This guide compares the two architectures from an engineering and project-cost perspective, with particular attention to motor starting current, battery dependence, generator integration, grid-export rules, and system sizing for Latin American applications.

Energy Security and Unstable Grids Across Latin America

Power quality varies widely across Latin America. Industrial corridors can face momentary voltage sags and supply interruptions, while rural and remote sites may depend on long distribution feeders or operate without utility service. For automated production, refrigeration, pumping, and communications equipment, even a short interruption can create a much longer operational recovery period.

One industry report on Mexican industrial corridors states that 91% of industrial park operators surveyed had experienced power-supply disruptions, with voltage sags affecting machine uptime during high demand periods.

Electricity cost is the other side of the decision. Under Mexico's Comisión Federal de Electricidad (CFE) medium-voltage tariffs such as GDMTO and GDMTH, demand-related charges are tied to measured peak demand. For commercial users, controlling a short power peak can therefore matter almost as much as reducing total kWh consumption.

At remote sites, diesel creates a different cost structure. Fuel price is only one component; transport, storage, maintenance, oil changes, engine wear, and difficult access all add to the delivered cost of electricity. The original source used a levelized diesel-electricity range of $0.35-$0.65/kWh for remote applications.

The practical question is therefore simple: does the project need to remain connected to the utility and use it as part of the energy strategy, or does it need to operate as its own power system?

Solar Inverter Off Grid vs Hybrid Systems

What Defines an Off-Grid Solar Inverter System?

An off-grid inverter acts as the voltage source for the local AC system. Instead of waiting for a utility waveform to follow, it creates the AC voltage and frequency that the loads use. In most Latin American projects that means supplying a stable 50 Hz or 60 Hz output from PV and battery power, with a generator or auxiliary AC source available when needed.

Standalone Voltage Source vs Grid-Synchronous Operation

A conventional grid-tied inverter synchronizes to the utility. It measures grid voltage and phase, then injects current into that existing waveform. If the utility disappears, antiislanding protection shuts the inverter down so it does not energize a line that should be de-energized. Standards such as UL 1741 and IEEE 1547 address this behavior for grid interactive equipment.

An off-grid inverter works differently. It must maintain the AC waveform itself while loads change. That is especially important with pumps, refrigeration compressors, variable frequency drives, PLCs, communications equipment, and other loads that do not tolerate unstable voltage. For sensitive equipment, buyers should check the manufacturer's stated total harmonic distortion (THD) rather than relying only on the phrase “pure sine wave.”

Integrated MPPT Tracking and Battery Management Communication

Current all in one units often combine the inverter stage, MPPT solar charge controller, AC charger, and transfer functions in one enclosure. That reduces external wiring, but it also makes specification details more important because the PV input window, charge current, battery protocol, and AC transfer behavior are tied to the same platform.

The MPPT controller continuously adjusts the PV operating point so the array can deliver available power as irradiance and temperature change. The SNADI NKM Low Frequency Solar Inverter (1 kW-6 kW), for example, is listed with a built-in 100A MPPT controller and battery communication options. For lithium iron phosphate (LiFePO4) systems, RS485 or CAN communication can allow the inverter and BMS to exchange state-of-charge, voltage, temperature, and protection information.

Five Technical and Financial Differences Solar Buyers Must Evaluate

1. Grid Interaction, Export Rules, and Net Metering Reality

The main commercial advantage of a hybrid inverter is that it can remain part of a grid-connected energy system. Depending on local rules and the inverter certification, surplus PV can be exported, batteries can be charged and discharged around tariff periods, and critical loads can be backed up during outages.

Those economics depend on regulation. Brazil's distributed solar market passed 40 GW by 2025, according to the U.S. Energy Information Administration citing ANEEL data. Brazil's Law 14,300/2022 also introduced a framework that phases in distribution system charges for exported distributed generation energy through 2029.

For the project owner, that means export value should not be treated as permanent. If self-consumption is worth more than export credit, storage and load scheduling become more important.

Mexico also requires interconnection approval for grid-export systems. Project timelines vary by utility process, system size, location, and documentation. If a site cannot export or the project must operate independently of the public grid, an off-grid architecture avoids designing the business case around energy export. It does not, however, remove local electrical permitting or installation requirements.

2. Battery Storage Reliance and Black-Start Mechanics

A dedicated off-grid system normally needs a battery because PV output can change faster than the load. A cloud edge, compressor start, or pump start can create a short power imbalance that the battery absorbs. Some inverters support daytime battery-less operation, but that mode should not be treated as equivalent to a battery-backed system for industrial or commercial loads.

Black-start capability matters after a deep discharge or full shutdown. The inverter must be able to restart its controls and re-establish the DC and AC buses using an available energy source. On a remote project, confirm exactly how the model restarts: from PV, from battery, from generator AC, or from a defined combination of these sources.

A hybrid platform can be more flexible when the grid is dependable. Some systems can be installed first as grid-connected PV and later expanded with batteries. That can spread capital expenditure across phases, but the battery interface and expansion limits should be checked before the first purchase.

3. Surge Tolerance and Inductive Load Management

Motor starting is one of the most common reasons an inverter that looks adequate on paper performs poorly in the field. Well pumps, refrigeration compressors, conveyors, grain mills, workshop tools, and air-conditioning equipment can draw several times their running current during startup.

A motor may briefly require roughly 2.5 to 4 times its running power, depending on motor type, mechanical load, starting method, cable length, and voltage. That is why continuous kW is only half of the inverter sizing exercise.

High-frequency inverter designs are compact and efficient, but surge performance varies widely by manufacturer. Low-frequency transformer based inverters are often selected for projects with heavy inductive loads because their transformer and power stage can tolerate short duration overloads better. The SNADI FT Low Frequency Inverter (1 kW-12 kW) is positioned for this type of application. Buyers should verify the actual overload percentage and duration on the datasheet rather than assuming every low-frequency model has the same surge capability.

4. Generator Pairing via Dry Contact and Transfer Switches

For isolated sites, the generator is usually backup rather than the main energy source. A useful off-grid inverter should therefore do more than accept generator AC; it should coordinate when the generator starts, when the battery charges, and when the generator stops.

Many off-grid inverters provide a programmable dry contact relay. The contact can be configured around battery voltage or state of charge and then connected to the generator controller or automatic transfer system. Once generator voltage and frequency are stable, the inverter can pass power to the loads and use its charger to recover the battery bank.

The exact start/stop thresholds should match the battery chemistry, BMS limits, generator rating, and desired reserve. A setting such as 20% SoC may be suitable for one project and too deep for another, so it should be treated as a commissioning parameter, not a universal rule.

5. Capital Expenditure vs Long-Term Operating Cost

The inverter price is only one line in the project budget. Battery capacity, PV oversizing, generator size, switchgear, protection devices, installation labor, communications, and local compliance can change the economics more than the difference between two inverter models.

A hybrid system can reduce day-one cost if the project starts with little or no battery storage. In exchange, the business case remains tied to utility availability, tariffs, demand charges, and export policy.

An off-grid system usually requires more storage capacity at the beginning, but it can replace a large share of generator runtime where diesel is expensive to deliver and maintain. The original article used a 2.5-4 year payback range for solar-plus-storage against high-cost remote diesel generation. Actual payback should be calculated from the site's fuel consumption, delivered fuel cost, solar resource, battery replacement assumptions, maintenance, financing, and load profile rather than treated as a standard regional figure.

Financial and Operating Risk Comparison Summary

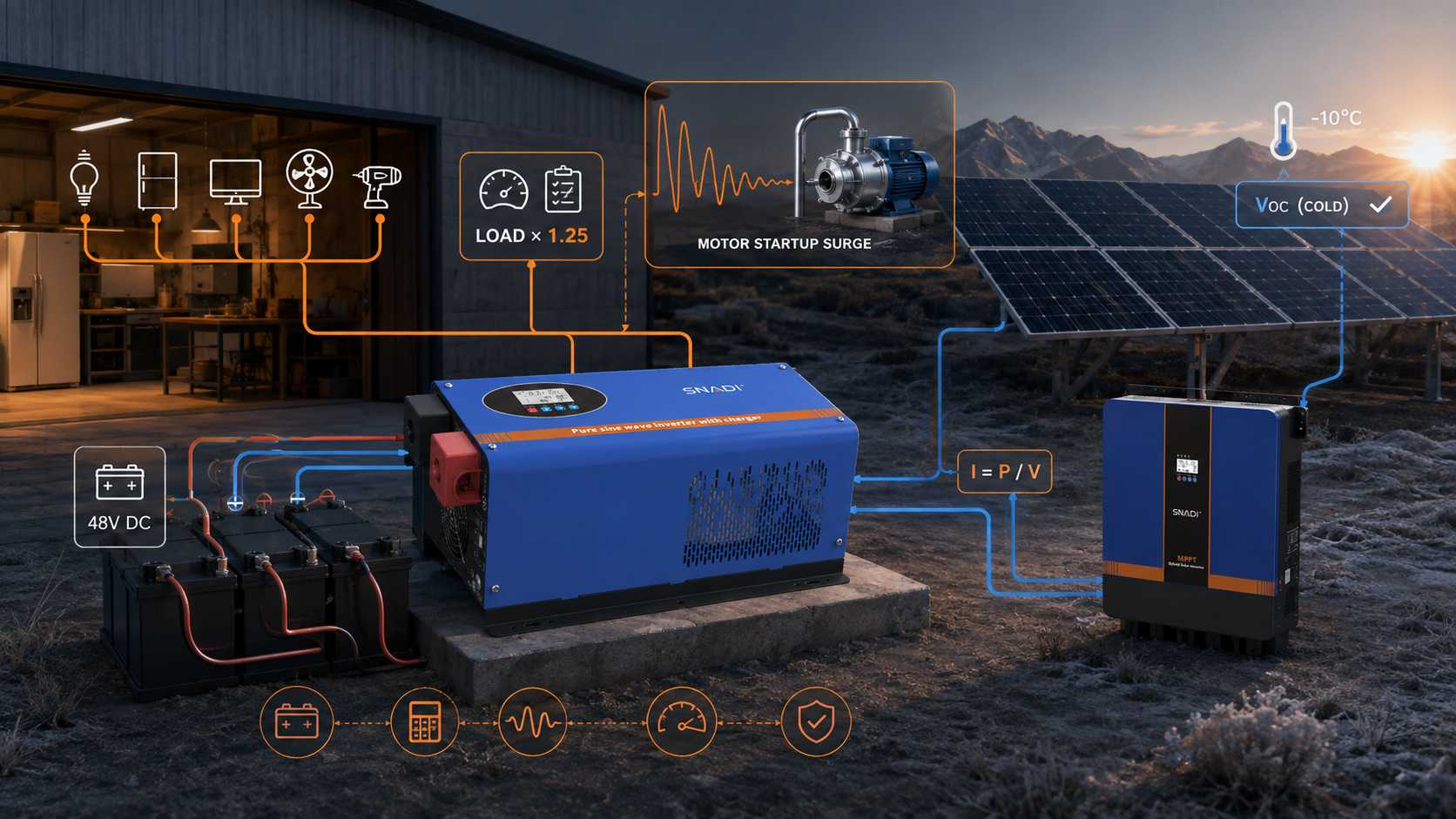

How to Size an Off-Grid Inverter: Three Field Formulas

Off-grid sizing should be based on the loads that actually run together, not on the sum of every nameplate in the building. The goal is to cover continuous demand, short motor surges, and battery/PV operating limits without buying unnecessary capacity.

Step 1: Calculate Continuous Running Watts and Peak Motor Surge

Start with a load schedule. Separate resistive or electronic loads from motors and compressors, then identify which loads can operate at the same time.

Continuous Inverter Size (W) = Sum of Simultaneous Running Watts x 1.25

The 1.25 factor gives a 25% operating margin so the inverter is not expected to remain at full nameplate output continuously. For hot equipment rooms, high altitude, or restricted ventilation, manufacturer derating requirements may require additional margin.

Surge Inverter Rating (W) = Base Running Watts + Largest Single-Motor Starting Surge

Practical Field Example

· Lighting, network equipment, and fans: 1,200 W

· Two milk chillers: 1,500 W each, 3,000 W total

· One 1.5 HP deep-well pump: 1,100 W running; example 3x starting factor = 3,300 W

Continuous demand = (1,200 + 3,000 + 1,100) x 1.25 = 6,625 W.

Peak surge demand = (1,200 + 3,000) + 3,300 = 7,500 W.

An 8 kW or 10 kW low-frequency inverter can therefore be a reasonable starting point for this example, provided the selected model's surge rating covers the motor start. The SNADI NKM 8 kW-10 kW Solar Inverter is one product reference for this power range. Final sizing should still be checked against its datasheet and the real motor start current.

Step 2: Select the DC Bus Architecture

Battery bus voltage directly affects current, cable size, protection hardware, and resistive loss.

P = V x I    therefore    I = P / V

Conductor Power Loss = I² x R

For a 5,000 W DC load, the idealized current is approximately 416.7 A at 12 V, 208.3 A at 24 V, and 104.2 A at 48 V. Real inverter input current will be higher because conversion is not 100% efficient.

That current difference is why higher power off-grid systems commonly move to 48 V or higher DC architectures. Lower current simplifies cable and busbar design and reduces I²R loss. Cable size must still be selected from the actual current, run length, allowable voltage drop, conductor temperature rating, and local electrical code.

For projects above roughly 2 kW, a 48V off grid solar inverter with MPPT is often a more practical starting point than 12 V. Treat that as a design preference rather than a universal rule; the final DC voltage should follow the selected inverter and battery platform.

Step 3: Size the MPPT PV Array and Check Cold-Morning Voc

Cold weather raises PV open circuit voltage. This matters in the Mexican highlands, the Andes, and other locations where morning temperatures can be far below the 25°C standard test condition used on module labels.

Voc(cold) = Voc(STC) x [1 + (Delta T x gammaVoc / 100)]

· Delta T = Tmin - 25°C

· gammaVoc = the module's Voc temperature coefficient

SNADI/SNAT Solar Engineer's Tip:

Suppose six 550 W modules each have a 49.8 V STC Voc. The nominal series string Voc is 298.8 V. In cold conditions, that value rises. If the inverter's absolute maximum PV input is only 300 V, the design has essentially no cold weather margin.

Use the actual module temperature coefficient and the project's minimum design temperature. Keep the corrected string Voc below the inverter's absolute maximum input, with additional design margin where the manufacturer's instructions or local engineering practice require it. The important point is not the example number; it is that STC Voc alone is not enough for string design.

Practical Latin American Applications

Agricultural Pumping and Cold Storage in Rural Regions

Agricultural sites often combine two difficult load types: motors and refrigeration. Long rural feeders can also add voltage drop, especially during motor starts. Where grid quality is poor, an off-grid or grid independent solar storage system can give pumps and cold rooms a more controlled power source.

The design should start with pump starting current, compressor cycling, irrigation schedule, nighttime load, and the number of low-solar days the battery must cover. In many projects, reducing simultaneous motor starts can lower inverter and battery requirements more effectively than simply buying a larger inverter.

Commercial Continuity in Peri-Urban Industrial Parks

For plants in cities such as Monterrey, Querétaro, São Paulo, or Medellín, the grid may be available most of the time but still expensive or imperfect. That is where a hybrid system is usually more relevant than a fully isolated architecture.

The battery can be charged from midday solar and discharged during higher-cost or high-demand periods. Peak shaving is valuable when the tariff includes demand components because the objective is to reduce the highest measured kW interval, not only total monthly energy consumption. Backup functions can also be assigned to a critical-load panel rather than the entire facility, which often produces a more practical storage requirement.

Island and Off-Grid Hospitality Facilities

Remote hotels and hospitality sites have an additional concern: generator noise and fuel logistics are part of the guest experience as well as the operating budget. Solar plus storage can shift the generator from continuous duty to backup duty when the PV array and battery are correctly sized.

Do not size these systems from room count alone. Air-conditioning diversity, kitchen loads, water pumping, laundry equipment, refrigeration, occupancy pattern, and seasonal solar resource all affect the result. Generator charging power should also be coordinated with the battery's allowable charge rate so backup runtime is not longer than necessary.

Selecting the Right Architecture for Your Project

Choose the architecture from the site's operating constraints.

If the utility is dependable enough to remain part of the energy strategy and the project benefits from self consumption, demand management, or approved export, a hybrid inverter usually provides more flexibility.

If the site has no grid, an unreliable rural feeder, or heavy inductive loads that must keep running without utility support, a dedicated off-grid system is often the better fit. In that case, pay close attention to motor surge, battery autonomy, generator controls, PV input limits, and the DC bus design.

The most important distinction is not “newer” versus “older” inverter technology. It is whether the system must follow a utility grid or create its own stable power system. Once that is clear, the rest of the sizing work becomes much more straightforward.
