Solar System Monitoring Device: How To Track Production, Battery Status And Faults

A solar system can fail financially long before it shuts off. It can lose money quietly: one string underperforms, a CT is installed backward, a battery never reaches the reserve setting, WiFi drops for weeks, or exported energy rises while the customer buys expensive evening power. That is why a solar system monitoring device belongs in the financial control plan, not just on the app screen.

In Latin America, IEA links higher retail prices to distributed solar PV growth, which raises the need to track production, consumption, and storage behavior.  As these systems move from simple PV to hybrid inverter and battery designs, monitoring becomes the difference between an installed system and a managed asset.

What Is a Solar System Monitoring Device?

A solar system monitoring device collects operating data from the PV array, inverter, battery, meter, and sometimes loads or weather sensors. The device may be built into the inverter, added as a WiFi or GPRS dongle, connected through a smart meter or CT, or provided by a third party platform.

A basic app that shows today's kWh is useful, but a stronger setup shows PV production, load consumption, battery state of charge, grid import and export, inverter faults, and historic performance trends. DOE FEMP says PV system monitoring lets owners identify and address performance challenges in real time.

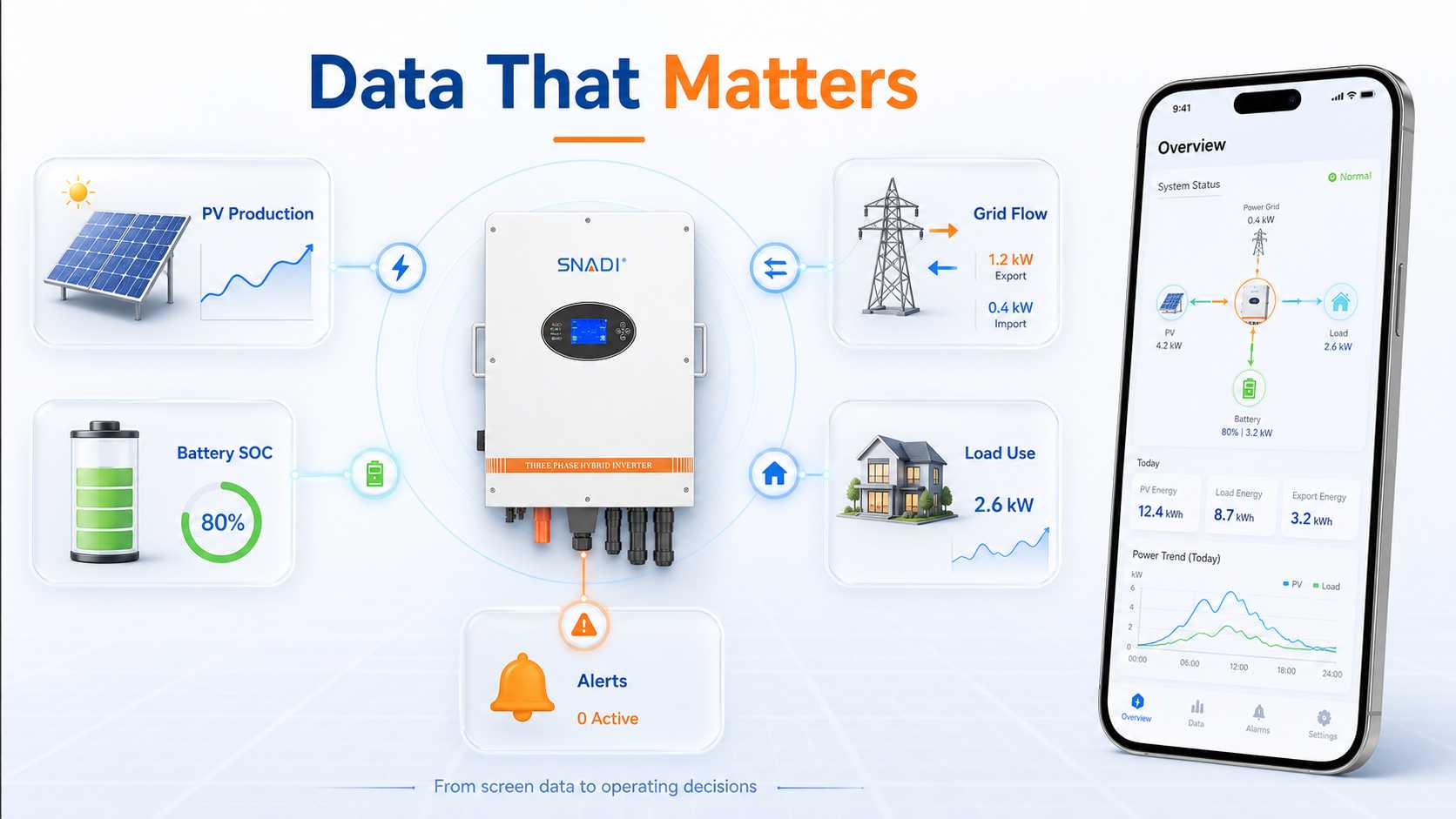

What Data Should It Track?

A buyer should ask for data that helps people make decisions:

· PV production in kW and kWh.

· Home or facility consumption.

· Grid import and export.

· Battery state of charge, charge rate, discharge rate, and backup reserve.

· Inverter temperature, fault codes, and operating mode.

· Internet connection status.

· Monthly production compared with expected production.

· Alerts for low production, battery abnormality, communication failure, or overload.

DOE FEMP lists reports, alarms, maintenance tickets, and financial calculations among PV monitoring platform features.  For a small commercial buyer, the financial view matters. If the platform can connect measured kWh to tariff periods, it can show whether a battery is really reducing peak import or only charging and discharging at the wrong hours.

Why Monitoring Changes ROI and Service Risk

Monitoring protects value in three practical ways. First, it protects production. A shaded string, dirty array, failed connector, or tripped breaker can cut output without being obvious on the monthly bill. Second, it protects storage value. If the battery charge window or reserve setting is wrong, the site may still buy evening power or lose backup during an outage. Third, it protects service time. Installers can diagnose many problems remotely before sending a technician.

For many C&I systems, that subscription is small compared with one month of lost production or one unnecessary truck roll to a remote site.

Device Types: Inverter, Meter, Panel, and IoT Monitoring

A homeowner who mainly wants battery status can often use inverter-based monitoring. A commercial site that wants peak shaving needs metering or CT data. A campus or multi-roof building may need multiple device layers.

How SNADI/SNAT Solar Supports Monitoring Oriented Systems

SNADI/SNAT Solar is best positioned here as a supplier of inverters, lithium batteries, residential ESS, and commercial ESS for residential, small commercial, and C&I applications. Monitoring depends on ports, communication options, battery protocol support, and the ability to see operating modes. SNADI/SNAT Solar's ES IP54 On/Off Grid Solar Inverter(EURO) supports optional WiFi/GPRS remote mobile tracking and real-time system status through a smart LCD. It also provide USB/RS485 communication and dry node control, which matter for hybrid systems that need BMS communication, remote troubleshooting, or generator control.

Setup Checklist for Home, Off-Grid, and C&I Buyers

Before choosing a solar system monitoring device, check:

· Inverter brand, model, firmware, and supported communication ports.

· Battery BMS protocol: RS485, CAN, or another supported option.

· Whether the system needs a smart meter, CT, or both.

· Internet method: WiFi, Ethernet, 4G/GPRS, or local display only.

· Who receives alarms: owner, installer, distributor, or O&M team.

· Whether data can be exported for reports.

· Whether the platform shows grid import/export and load consumption, not only PV output.

· Data retention period and subscription cost.

· Cybersecurity and account access control.

· Whether monitoring stays powered during an outage.

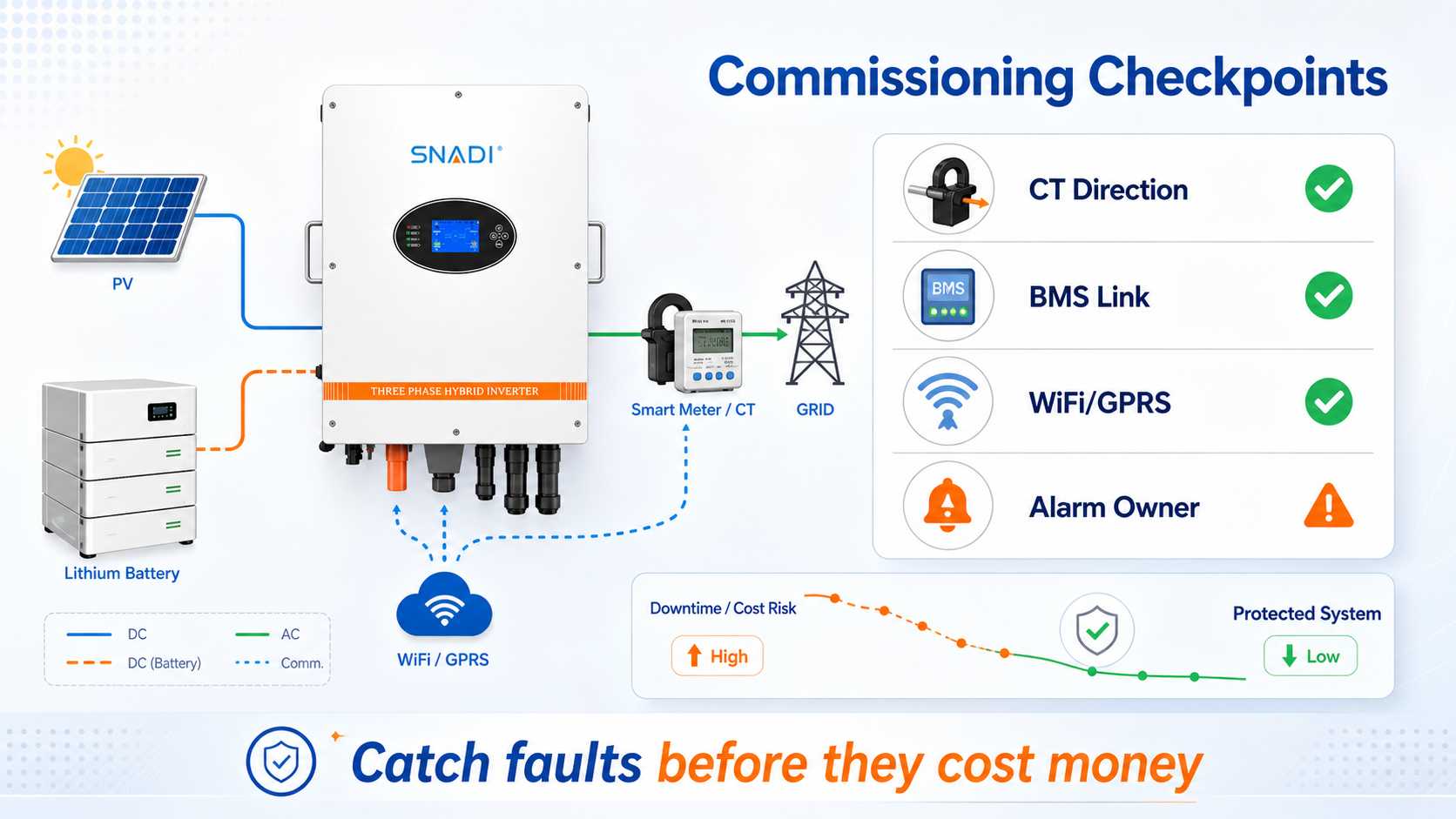

SNADI/SNAT Solar Engineer's Tip: During commissioning, test the monitoring with a controlled load. Turn on a known load, check whether consumption rises in the app, then check grid import/export direction. Many "bad battery" complaints start as a reversed CT or an untested meter setting.

Common Faults Monitoring Can Catch

A useful platform can reveal low PV production, a battery that is not charging, discharge at the wrong time, grid export during high-load periods, communication dropout, inverter overload, and unexpected nighttime consumption. For off-grid systems, it can also warn the owner before the battery reaches a low state of charge.

Monitoring also improves warranty conversations. If the installer can show voltage, current, fault codes, temperature, and event history, the service process becomes faster and less emotional. Buyers should ask whether the installer can remotely access the system with permission and whether the owner can still export data independently.

Trade Offs: More Data Is Not Always Better

A panel level platform can be useful on shaded or complex roofs, but it may be more detail than a simple off-grid cabin needs. A free inverter app may be enough for a small home, but not enough for a commercial cold room that needs alarm escalation. A third party platform may solve multi brand reporting, but it adds another account, another integration point, and another subscription.

The right solar system monitoring device is the one that supports the operating risk. For a home battery, that means SOC, reserve, grid status, and backup behavior. For a C&I site, that means demand, downtime, alarms, and service records. For a campus, that means reports that finance, facilities, and sustainability teams can all use.

Practical Recommendation

A solar system monitoring device is worth specifying before installation, not after a problem appears. It should be part of the inverter, battery, meter, and service design.

For SNADI/SNAT Solar buyers, the practical configuration is a monitoring-compatible hybrid or off-grid inverter, a LiFePO4 battery with BMS communication, a meter or CT where import/export data matters, and a clear alarm process. That combination lets homeowners, installers, and C&I buyers see whether the system is producing, storing, discharging, and backing up the loads it was purchased to protect.
