The transition toward energy independence relies heavily on the bridge between raw power and usable electricity. Thinking by SNADI/SNAT Solar, for those operating within the off grid sector, the dc to ac inverter solar panel configuration is the heartbeat of the entire installation. As we move through 2026, the technology governing these devices has shifted from simple conversion to intelligent energy management. Selecting the right hardware requires a deep understanding of electrical physics, load dynamics, and environmental resilience.
Why Your Solar Panel System Requires a DC to AC Inverter
Solar modules generate electricity via the photovoltaic effect, which produces Direct Current. However, the vast majority of modern household appliances and industrial tools are designed to run on Alternating Current. Without a high quality conversion layer, the energy harvested from the sun remains trapped in a form that cannot power your life.
The Science: Converting Photovoltaic DC to Usable Home AC
The conversion process involves complex power electronics. The SNADI/SNAT inverter takes the relatively steady DC voltage from the panels or battery bank and uses high speed switching transistors to create a wave pattern. This pattern must mimic the 50Hz or 60Hz frequency of the utility grid to ensure compatibility. In an off grid context, the inverter also acts as the primary voltage regulator, ensuring that dips in solar production do not result in brownouts for connected devices.
Energy Loss Management: Maximizing Conversion Efficiency
No conversion is perfect. Every time energy changes form, a portion is lost as heat. In 2025, average inverter like SNADI/SNAT Solar efficiencies for premium off grid models reached 98.2 percent. Lowering this loss is critical because every watt wasted in the inverter is a watt that must be overcompensated for by adding more solar panels. High efficiency is achieved through superior copper windings in transformers and advanced semiconductor materials that reduce switching resistance.
4 Essential Types of Solar Inverters You Must Know
Understanding the architecture of your system is the first step in hardware selection. Each type offers distinct advantages depending on the scale and location of the project.
String Inverters: The Cost Effective Solution for Standard Roofs
String inverters are the workhorse of the industry. They connect a series of solar panels into a single input. This is highly efficient for large arrays where all panels face the same direction and experience no shading. Because the components are centralized, maintenance is simpler and the initial cost per watt is the lowest among all categories.
Microinverters: Maximizing Power for Shaded Areas
For complex roofs with multiple angles or nearby trees, microinverters are installed behind each individual panel. This prevents a single shaded module from dragging down the performance of the entire string. While the cost is higher, the granular level of control often results in a higher total energy yield over the twenty year lifespan of the system.
Hybrid Inverters: Seamless Integration with Battery Storage
Hybrid models are the gold standard for SNADI/SNAT ESS solutions. These devices manage energy from the panels, the battery bank, and even a backup generator simultaneously. They eliminate the need for separate charge controllers by integrating the MPPT logic directly into the inverter chassis. This reduces the number of failure points and simplifies the installation footprint.
Power Optimizers: The Middle Ground of Performance and Cost
Optimizers are DC to DC converters attached to each panel that work in tandem with a central string inverter. They provide the panel level monitoring and shade mitigation of microinverters while keeping the heavy AC conversion hardware in a single, protected location.
Pure Sine Wave vs. Modified Sine Wave
The quality of the AC output is defined by its waveform. While cheaper options exist, the long term health of your appliances depends on this choice.
| Performance Metric | Pure Sine Wave Inverter | Modified Sine Wave Inverter |
| Output Quality | Identical to utility power | Stepped, blocky approximation |
| Device Safety | Safe for all electronics | May damage sensitive circuits |
| Motor Efficiency | Motors run cool and quiet | Motors run hot and noisy |
| Total Harmonic Distortion | Usually under 3 percent | Often exceeds 30 percent |
| Best Use Case | Medical gear, laptops, pumps | Simple tools, basic lighting |
How to Size Your DC to AC Inverter for Solar Panels
Sizing is a balance of capacity and safety. An undersized unit will shut down under stress, while an oversized unit will operate at low efficiency and waste battery power.
Step 1: Calculating Total Load Requirements
List every device you plan to run simultaneously. Sum their rated wattage. For example, if you run a 1000W microwave, a 200W television, and 300W of lighting, your base load is 1500W.
Step 2: Matching Inverter Capacity with Solar Array Output
The industry standard for 2026 recommends a 1.2 to 1 ratio. This means if you have a 5kW solar array, a 6kW inverter is often ideal. This allows the system to handle peak production periods without clipping the energy output, ensuring you capture every possible watt during the solar noon.
Step 3: Considering Surge Power for Inductive Loads
Any device with a compressor or motor, such as a water pump or air conditioner, requires a massive burst of energy to start. This is known as surge power or inrush current. A high quality dc to ac inverter solar panel must be able to handle surges of 2 to 3 times its continuous rating for several seconds to prevent system crashes during motor startup.
Key Features to Look for in 2025
The Skyscraper Edge in power electronics involves several breakthrough technologies that have become standard requirements for high tier providers.

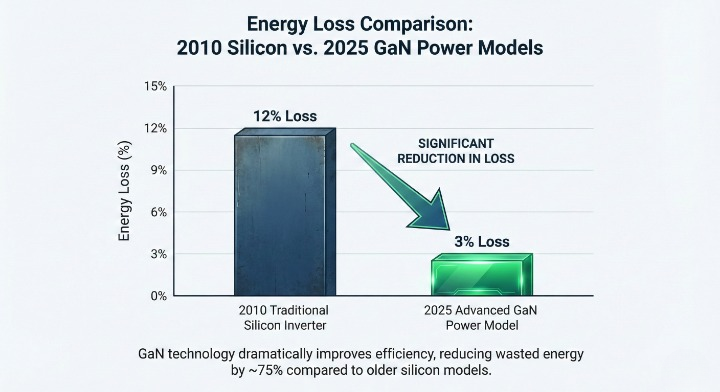

Gallium Nitride Technology: GaN semiconductors allow inverters to operate at higher frequencies with less heat. This leads to smaller, lighter units with significantly higher reliability in hot climates.
Smart App Monitoring: Modern users require real time data. Look for units with integrated Bluetooth or WiFi that provide historical yield data and fault alerts directly to a smartphone.
IP65 Waterproof Rating: For outdoor installations, an IP65 rating ensures the internal components are protected against dust and low pressure water jets, which is vital for coastal or desert environments.
Rapid Shutdown Compliance: Safety standards are tightening globally. Integrated rapid shutdown features allow the system to be de energized in seconds, protecting emergency responders during a fire.
Installation & Safety Standards
Professional installation is not just a recommendation by SNADI/ SNAT Solar; it is a financial safeguard. Poorly crimped DC connections are a leading cause of electrical fires in solar installations. Furthermore, 2026 safety codes in many regions now require specific grounding configurations and arc fault protection. Investing in a professional setup reduces maintenance costs over time by ensuring the hardware operates within its thermal design limits.
Solar for Health Initiative in Zimbabwe, October 2024
In October 2024, the United Nations Development Programme completed a major electrification project for 100 rural clinics in Zimbabwe. These clinics required a stable dc to ac inverter solar panel setup to power vaccine refrigerators and surgical lighting.
The project faced extreme environmental challenges, including ambient temperatures exceeding 40 degrees Celsius and high dust levels. By deploying high efficiency pure sine wave inverters with advanced thermal management, the initiative achieved a 99.8 percent uptime rate over the first six months of operation. This allowed for the safe storage of over 50000 doses of life saving vaccines. The success of this project highlights that when the right conversion technology is paired with rugged engineering, solar energy can provide utility grade reliability in the most remote corners of the globe.
Conclusion
Selecting a dc to ac inverter solar panel is the most critical decision in your energy strategy. By prioritizing pure sine wave output, sizing for surge loads, and seeking out GaN based efficiency, you ensure that your investment provides clean, stable power for decades. As we move further into 2026, the focus remains on resilience and intelligent management.
✉️Email: exportdept@snadi.com.cn
Website:
FAQ
Most residential and commercial installations perform best with a ratio between 1.1 and 1.3. This balance ensures high production during low light hours while preventing excessive energy clipping during peak sunlight periods.
2. Why should I choose a hybrid inverter over a standard string inverter?
3. How does MPPT efficiency impact my total solar energy yield?
4. What safety certifications are required for solar inverters in 2026?
5. How does temperature affect the performance of a solar inverter?
