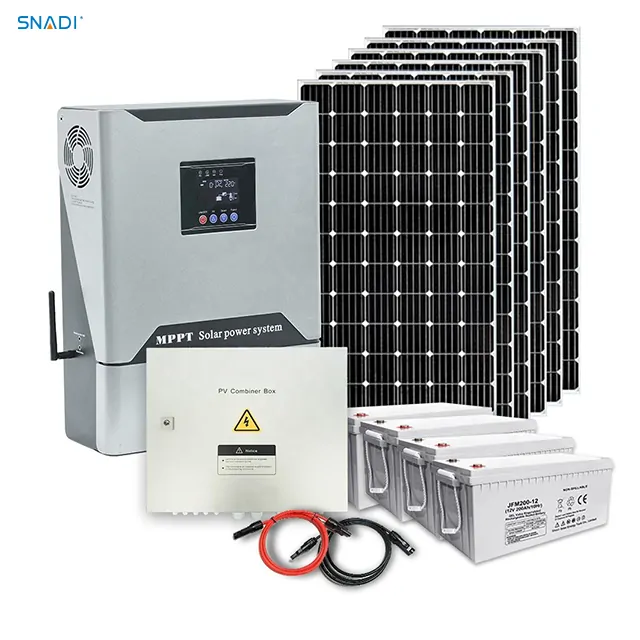

MKM-5kw solar system
-
SNADI
Model Number
Battery Type
Mounting Type
Ground Mounting, Roof Mounting
Application
Solar power is harnessed using Solar Photovoltaic (PV) technology that converts sunlight
(Solar radiation) into electricity by using semiconductors.
When the sun hits the semiconductor within the PV cell, electrons are freed and bus bars
collect the running electrons which results in electric current.
When we place Solar panels connected in a calculated manner in the sunlight, they start
producing current and voltage in the form of Direct current (DC) but in most of the countries in the world appliances and equipment runs on Alternative current (AC) so we need to connect to all Solar panels to an Inverter which then converts DC into AC for home use.
- MC4 junction box
PV array combiner box
- Number of PV input array: 6
- Max input pv current each array: 16A
- Max output current: 96A, 600Vdc
- Lighting Protection, it reduces solar cable
IP65
Battery
- 12V/200Ah
- 54kg
- Silver-coated copper terminals, brass insert
maintenance-free
-Double CPu intelligent control technology
-Smart fan control, safe and reliable
-The pure sine wave output
-LED real-time display
-Built-in MPPT controller
-Buill-in GPRsWiFl wireless network module
Q1: What is your minimum quanlity order?
A: One set.
Q2: Are you trading company or manufacturer ?
A:We are a manufacturer in China. We have own factory in Foshan.
Q3: What is your term of payment?
A: 30% TT for deposit, balance before the shipping.
Q4:Can you supply the sample?
A: Yes. we can supply the sample order for testing .
Q5: When you can delivery the goods?
A: Sample order 3-5 days ,mass order usually 15-25 days according to the quantity.
Q6: Is this instalation easy?
A: Yes , We will provide install drawing and user manual ,and you can make a video call to get technical support.
Q7: Can you customized it for us?
A: Yes ,we can customize the logo ,color ,size ...
