The solar charge controller supplies power to the solar inverter load. This article will give a certain introduction to the solar charge controller, I hope it will be helpful to everyone.

  • Features of solar charge controller.

  • All solar charge controller products of our company.

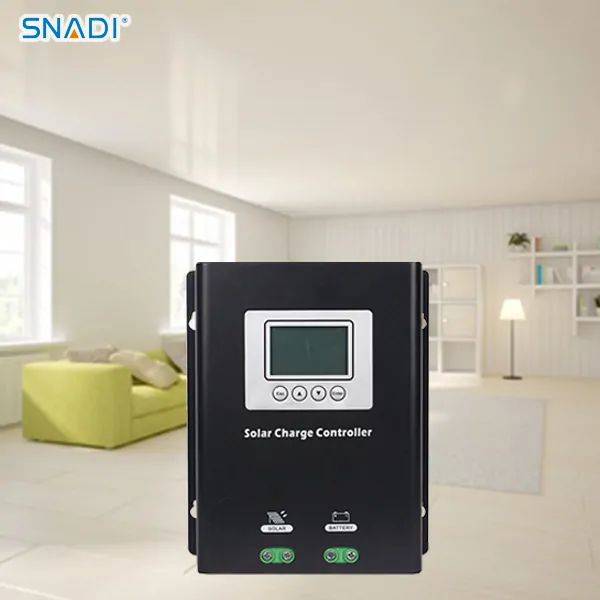

Features of Solar Charge Controller

Features of solar charge controller.

1. The solar charge controller adopts single-chip microcomputer and special software to realize intelligent control;

2. The solar charge controller utilizes the accurate discharge control of the battery discharge rate characteristic correction. ;

3. The solar charge controller has automatic control of overcharge, overdischarge, electronic short circuit, overload protection, etc., and unique anti-reverse connection protection; the above protection will not damage any parts, and will not burn insurance; it is connected in series between the battery circuits A fuse is installed to effectively protect the battery from overcurrent;

4. The solar charge controller adopts series PWMcharging main circuit;

7. The solar charge controller cancels the potentiometer adjustment control set point, uses E-square memory to record each work control point, and digitally sets it to eliminate the accuracy and reliability factors such as potentiometer vibration deviation, temperature drift, and so on;

8. The solar charge controller adopts digital LED display and setting. All settings can be completed by one-key operation. It controls the working status of the whole system and protects the battery from overcharging and overdischarging, which is extremely convenient and intuitive. Other additional functions such as light control switch and time control switch are optional options for the controller.

9. Discharge protection

If the battery is not protected from discharge, it will also be damaged. When the voltage reaches the set minimum discharge voltage, the controller will automatically cut off the load to protect the battery from over-discharge. When the battery charge reaches the restart voltage set by the controller, the load will be switched on again.

10. Charging mode

The deterioration of the battery performance in the adaptive three-stage charging mode is in addition to the aging of the battery's normal service life. The charging time of three stages can be automatically set according to the difference between the new and old batteries, and the corresponding charging mode is automatically used to avoid power supply failure of the battery, and achieve a safe, effective, and full-capacity charging effect.

All solar charge controller products of our company.

Foshan SNAT Energy Electric Technology Co., Ltd. was established in 2004. It adopts digital design and is suitable for various loads. The company's main products are: solar generators, solar inverters, solar charge controllers and other solar products. For example, solar charge controllers include CM-MPPT high-voltage solar charge controllers, CM-MPPT solar charge controllers, CP-wall-mounted solar charge controllers, and SCP-PWM solar charge controllers.

If you are interested in our solar charge controller, you can contact us to communicate, we will provide you with the best solar charge controller products and services. I wish you success in your work and good health.
