2KW/3KW/4KW/5KW/6KW
SNADI

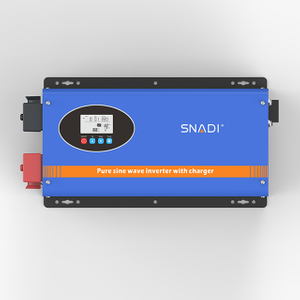

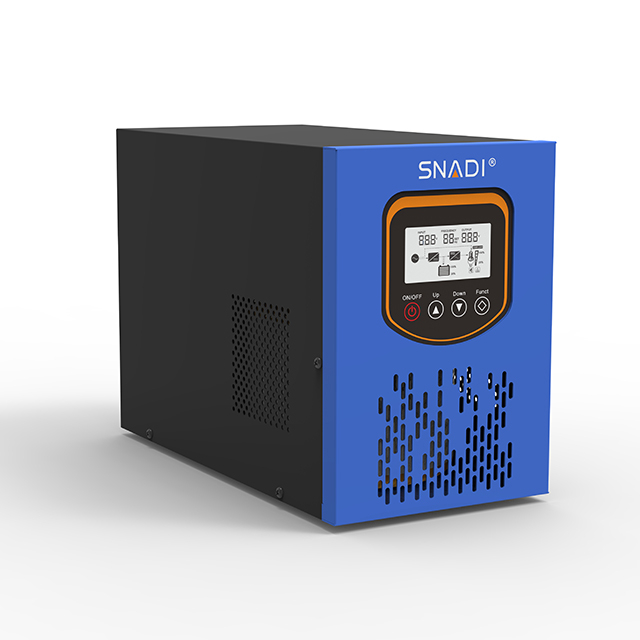

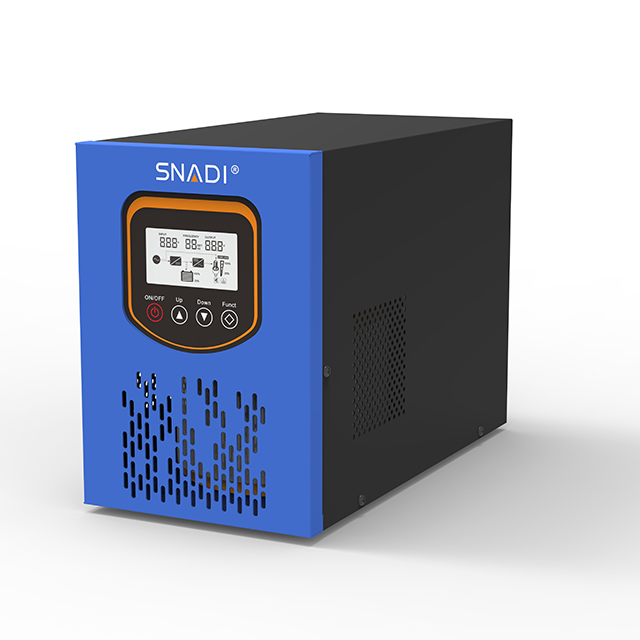

SNADI FTB Solar Inverter provides clean and stable power with minimalharmonic distortion. Its built-in charger and user-friendly design make it an ideal choice foroff-grid and backup power systems.
●Pure sine wave
●Lithium battery activation function Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave - Power factor 1.0

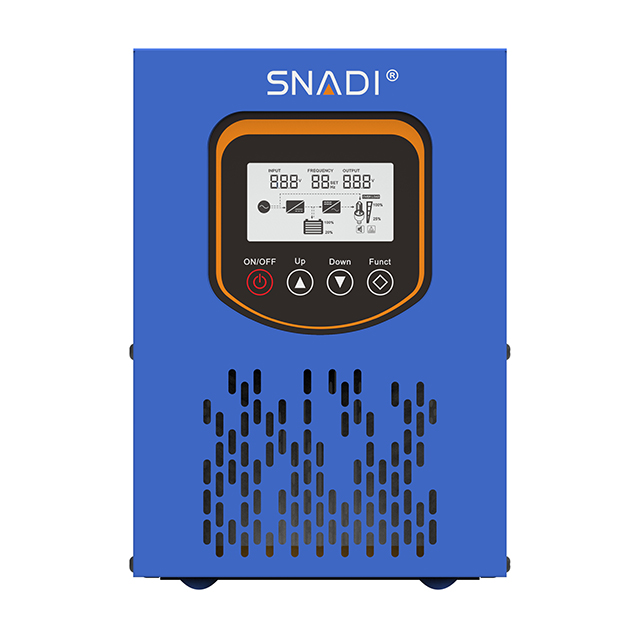

●LCD real-time display of the device parameters, running state at a glance
●Detachable dust cover for harsh environment
●Low frequency(Built in ring transformer)
●Support multiple output priority: SBU, SUB

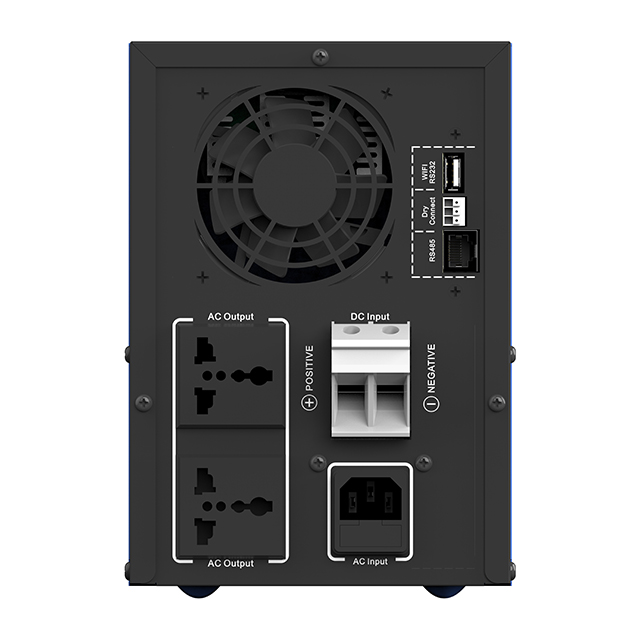

●Communication interface: RS232/RS485/Dry contact
●EQ function to optimize battery performance and extend lifecycle
| Model | 0.5KW | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Rated Power | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Battery | Rated Voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | 48VDC | ||||
| Input | Voltage Range | 75~138/145~275VAC | |||||||
| Frequency | 45~65Hz | ||||||||
| Output | Voltage Range | 100/220VAC±5%(Inversion mode) | |||||||
| Frequency | 50/60Hz±1%(Inversion mode) | ||||||||
| Output Wave | Pure Sine Wave | ||||||||
| Conversion Time | ＜10ms(Typical load) | ||||||||
| Efficieny | ＞85%（80% resistive load） | ||||||||
| Overload | 110~120%60s;120~130/10s | ||||||||
| 130~150%/2s;＞150%/500ms | |||||||||
| Protection Function | Battery overvoltage protection, battery undervotage protection, overload, protection, short circuit protection, overtemperature protection, etc. | ||||||||
| Ambient Temperature For Operation | 0~40℃ | ||||||||
| Ambient Temperature For | -15~50℃ | ||||||||
| Operation/Storage Ambient | 0~90% No Condensation | ||||||||
| Product Size:L*W*H(mm) | 302*122*188 | 316*149*215 | 432*210*330 | 551*215*344 | |||||
| Package Size:L*W*H(mm) | 375*195*260 | 410*215*280 | 498*305*402 | 622*315*416 | |||||
| Net Weight(KG) | 5.8 | 8.2 | 16 | 18.5 | 20.7 | 25 | 32 | 32 | |
| Gross Weight(KG) | 7 | 9 | 23 | 25.5 | 27.5 | 37 | 42 | 35 | |
