SNADI FTS Solar Inverter(Split Phase)

Home » Products » Solar Power Inverter » SNADI FTS Solar Inverter(Split Phase)

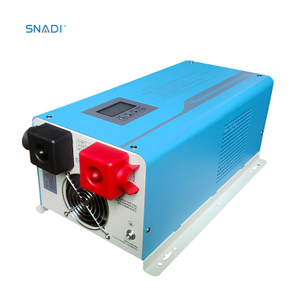

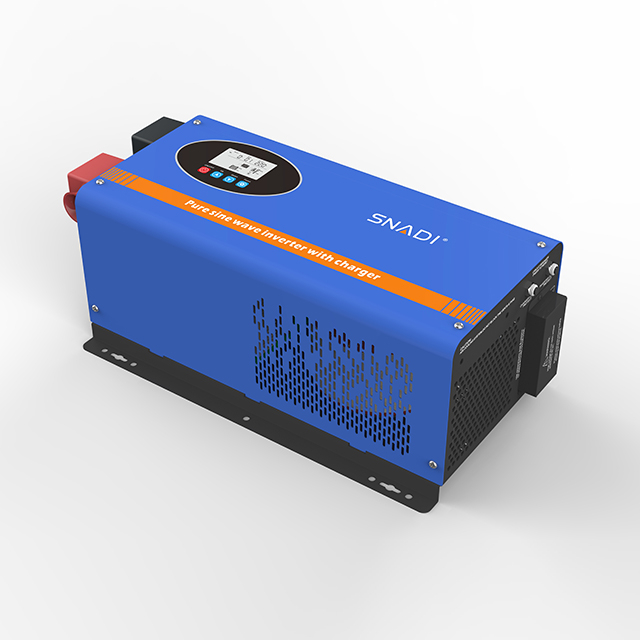

SNADI FTS Solar Inverter(Split Phase)

Name: SNADI FTS Solar Inverter(Split Phase)
Brand: SNADI
Rating: 5.0 (94 reviews)

Pure sine wave inverter (110V/220V) with LiFePO4 support, utility battery activation, LCD display, EQ function, SBU/SUB priority, RS232/RS485 interface, and dust cover for harsh environments.

●Pure sine wave 110VAC/220VAC
●Lithium battery activation function Utility

●Compatible work with LiFePO4 battery via RS485

●Pure Sine Wave -Power factor 1.0

●LCD real-time display of the device parameters, running state at a glance

●Detachable dust cover for harsh environment

●Low frequency(Built in ring transformer)

●Support multiple output priority: SBU,SUB

●Communication interface:RS232/RS485/Dry contact

●EQ function to optimize battery performance and extend lifecycle


Availability:



Inquire

Model:
2KW/3KW/4KW/5KW/6KW
Brand:
SNADI

Product Description

Pure sine wave inverter (110V/220V) with LiFePO4 support, utility battery activation, LCD display, EQ function, SBU/SUB priority, RS232/RS485 interface, and dust cover for harsh environments.

●Pure sine wave 110VAC/220VAC
●Lithium battery activation function Utility

●Compatible work with LiFePO4 battery via RS485

●Pure Sine Wave -Power factor 1.0

●LCD real-time display of the device parameters, running state at a glance

●Detachable dust cover for harsh environment

●Low frequency(Built in ring transformer)

●Support multiple output priority: SBU,SUB

●Communication interface:RS232/RS485/Dry contact

●EQ function to optimize battery performance and extend lifecycle

Model		FTS-2KW	FTS-3KW	FTS-4KW	FTS-5KW	FTS-6KW
Rated Power		2000W	3000W	4000W	5000W	6000W
Battery	Rated Voltage	12/24/48VDC	24/48VDC			48VDC
	AC Charge Current	30A(default)
	Battery Type	can be set
Input	Voltage(HOT1-HOT2)	170~275VAC
	Frequency	45~65Hz
Output	Voltage/Power(HOT1-HOT2)	220VAC/2KW	220VAC/3KW	220VAC/4KW	220VAC/5KW	220VAC/6KW
	Voltage/Power (N-HOT1)	110VAC/1KW	110VAC/1.5KW	110VAC/2KW	110VAC/2.5KW	110VAC/3KW
	Voltage/Power(N-HOT2)	110VAC/1KW	110VAC/1.5KW	110VAC/2KW	110VAC/2.5KW	110VAC/3KW
	Frequency	50/60Hz±1% (Inverter mode)
	Output Wave	Pure Sine Wave
	Conversion Time	<10ms(typical load)
	Efficiency	>85%(80% Resistance load)
	Overload	110~120%/60s;120~130%/10s 130~150%/2s;>150%/500ms

	Protection	Battery overvoltage/low voltage,overload,short circuit protection,overtemperature protection,etc.
Operating Ambient Temperature		0~40℃
Storage Ambient Temperature		-15~50掳C
Operating/Storage Ambient		0~90% No condensation
Machine Size:LWH(mm)		486247179		563307189
Package Size:LWH(mm)		550310230		640370240
Net Weight/Gross Weight(KG)		17/18	20/22	24/28	27/31	31/35
