How Does A DC To AC Inverter Work for Solar And Battery Systems?

Industrial facilities across Latin America understand the financial reality of grid instability. When a distribution feeder drops in Monterrey or São Paulo, packaging lines stop, chillers lose temperature, and backup diesel generators kick on at operating costs between $0.40 and $0.65 per kilowatt hour.

Solar arrays and battery banks provide clean energy, but both output direct current. Industrial compressors, variable frequency drives, water pumps, and office servers demand alternating current. Bridging that physical divide requires a direct current to alternating current inverter.

In commercial procurement, engineers call this hardware a DC to AC inverter or DC to AC converter. The device takes constant, unidirectional DC electricity from solar modules or battery banks and transforms it into alternating current matching the voltage, frequency, and waveform of your local grid. Getting this conversion architecture right determines whether your equipment runs reliably for years or trips offline the moment an induction motor starts under load.

What Is a Direct Current to Alternating Current Inverter?

Direct current flows in a single direction at a steady voltage. Solar cells generate DC when sunlight strikes silicon wafers, and chemical battery banks store energy in that same unidirectional format.

Alternating current changes direction at fixed intervals, cycling 50 or 60 times per second (50 Hz or 60 Hz) depending on regional utility standards. Transmission networks rely on AC because high voltage power travels across long distances with minimal resistive line loss before local transformers step it down for on site distribution.

In electrical engineering, converter is a broad term for any hardware that changes electrical characteristics, whether AC to DC, DC to DC, or DC to AC. An inverter refers specifically to equipment that converts direct current into alternating current.

When an electrical contractor sources a power inverter from DC to AC, they are placing a bridge between the supply and the service panel:

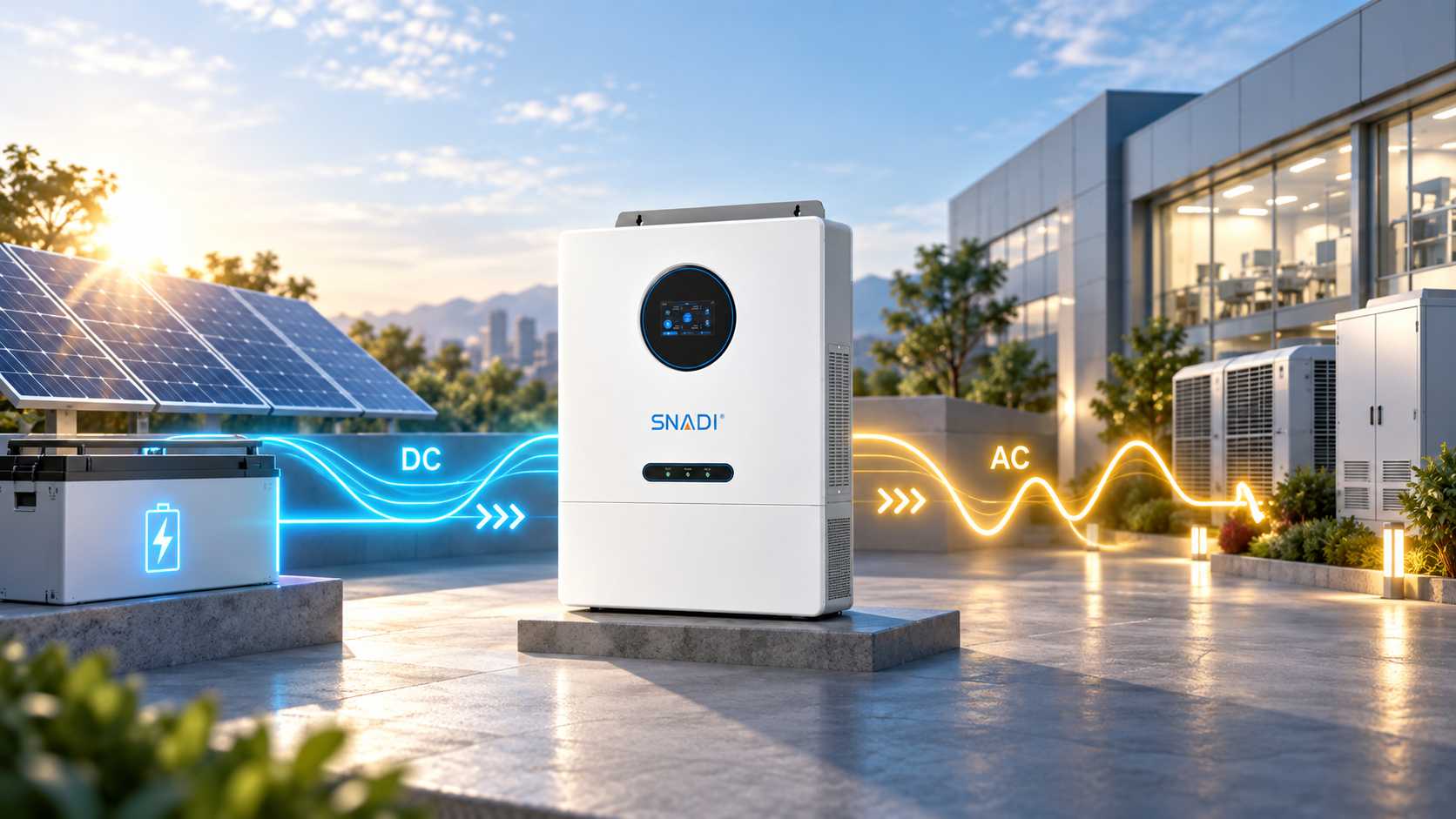

Solar Panels or Battery Bank (DC Power) → DC to AC Inverter → Distribution Panel (AC Power) → AC Machinery

Without this conversion stage, power generated by solar arrays remains unusable for standard commercial loads, refrigeration systems, and office electronics.

How Does a DC to AC Inverter Work?

Converting a flat DC input into a clean AC waveform requires solid state switching, microprocessor control, and magnetic filtering working together in milliseconds.

DC Input and Voltage Regulation

The electrical flow enters through DC input terminals connected to a battery bank (typically nominal 12V, 24V, or 48V DC) or a high voltage solar string (often 60V to 500V DC). Because raw solar generation shifts with passing clouds, internal input circuits stabilize the incoming voltage. In battery backed systems, large DC bus capacitors absorb sudden voltage dips caused by motor startups, keeping the internal rail voltage steady.

Switching and Waveform Generation

To convert direct current to alternating current, the unit routes DC through rapid solid state switches, usually Metal Oxide Semiconductor Field Effect Transistors (MOSFETs) or Insulated Gate Bipolar Transistors (IGBTs). These transistors form an H bridge circuit made of four switching elements.

An internal digital signal processor opens and closes opposite pairs of transistors thousands of times per second using pulse width modulation:

• Transistors 1 and 4 close, sending current through the load in a positive direction.

• All switches briefly turn off during a microsecond dead time to stop short circuit cross conduction.

• Transistors 2 and 3 close, reversing current through the load in a negative direction.

By continuously varying the timing of these high frequency pulses, the control board builds the outline of an alternating AC wave.

AC Output and Filtering

The signal exiting the H bridge consists of sharp, pulsed square waves with high harmonic distortion. Sending this raw output into motors or microprocessors causes severe overheating and equipment breakdown.

The output stage directs the pulsed power through an inductive capacitive (LC) filter. Inductors smooth current spikes while capacitors absorb voltage peaks, rounding the jagged pulses into a smooth sine wave. For systems running on low voltage battery rails, an internal step up transformer or high frequency boost stage lifts the output to regional standards, such as 120V split phase or 230V single phase at 50 Hz or 60 Hz.

Why Do Solar Power Systems Need DC to AC Conversion?

Solar modules produce direct current whenever sunlight hits their photovoltaic cells. Real commercial operations, however, run on alternating current.

Across Latin America, distributed solar generation has grown fast as commercial operators fight rising utility rates. In Brazil, distributed generation capacity passed 32 GW according to the ANEEL Open Data Portal. Most of those installations require a reliable DC to AC conversion stage to offset expensive grid tariffs.

In field practice, solar systems handle conversion through two primary paths:

Direct Solar Conversion (Grid Tied)

Solar Panels (DC) → Solar DC to AC Inverter → Building Distribution Panel → AC Loads and Grid

The inverter locks onto utility grid voltage and frequency, feeding solar power directly into facility circuits and exporting excess energy where regulations allow.

Battery Integrated Conversion (Off Grid or Hybrid)

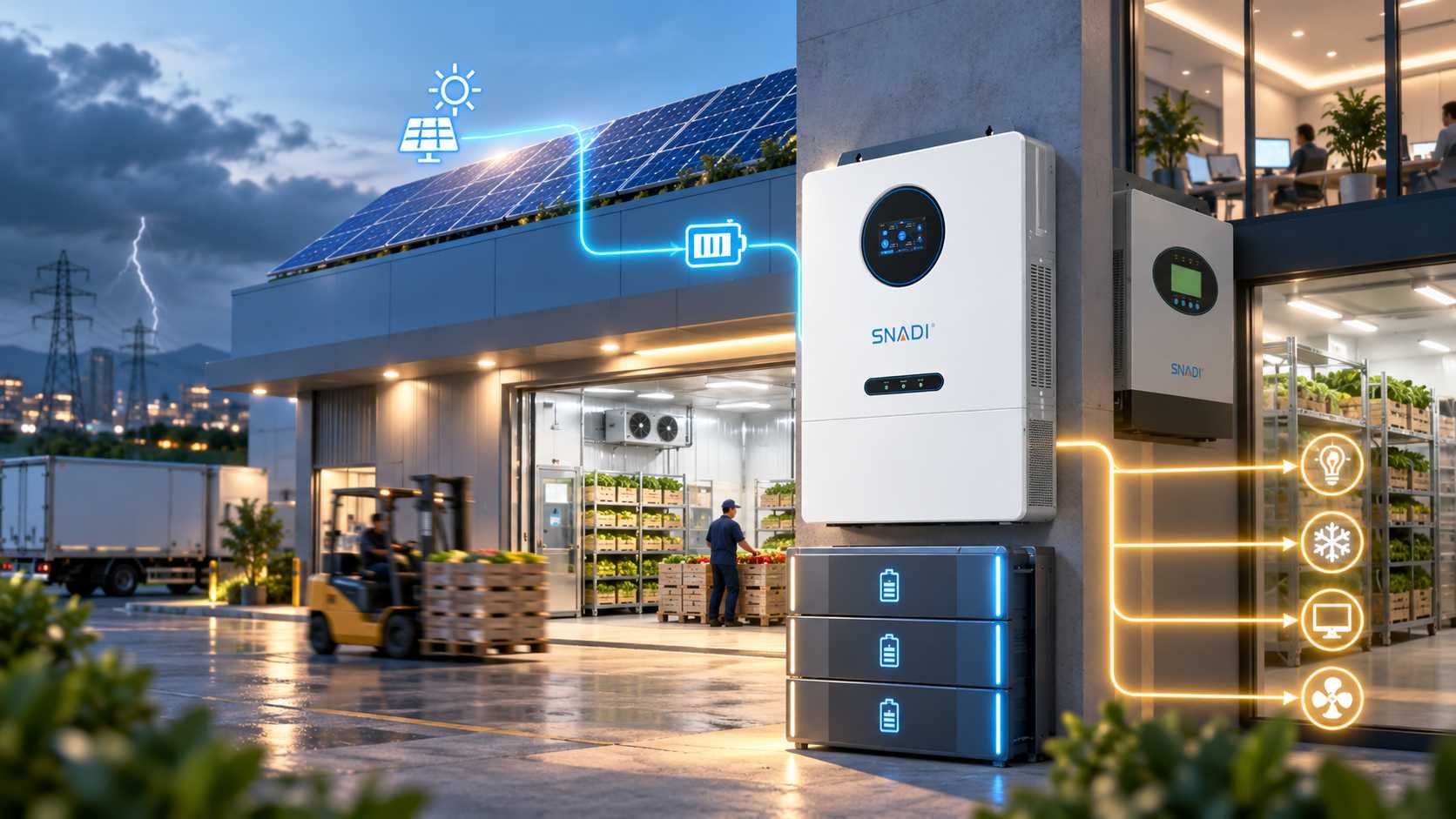

Solar Panels (DC) → MPPT Charge Controller or Hybrid Stage → Battery Bank (DC Storage) → Inverter Stage → Critical AC Loads

During outages or expensive tariff hours, stored DC battery power enters the inverter, converts to AC, and keeps operations running without interruption.

Types of Direct Current to Alternating Current Inverters

Inverters fall into three categories defined by the shape of the AC wave they deliver. Using the wrong waveform causes motor buzzing, excess heat, and premature component breakdown.

Pure Sine Wave Inverter

A pure sine wave inverter produces an output waveform identical to or cleaner than utility grid electricity. Voltage alternates in a smooth curve. Pure sine wave models cost more to build, but they eliminate motor hum, reduce operating temperatures, and protect sensitive power supplies.

Modified Sine Wave Inverter

A modified sine wave inverter outputs a stepped wave that flips to positive peak, pauses at zero volts, flips to negative peak, and repeats.

These units are cheaper to produce, but their total harmonic distortion often exceeds 20% to 30%. That distortion forces AC motors to draw extra current, generating heat that can burn out pump windings in months. They also create line noise in audio equipment and can destroy laser printers or battery chargers.

Square Wave Inverter

A square wave inverter flips directly between positive and negative voltage without pausing or wave shaping.

These units are obsolete in modern solar engineering. They harm almost all modern AC electronics and motors, making them suitable only for basic resistive heaters or incandescent emergency bulbs.

DC to AC Inverter Efficiency: How Much Power Is Lost?

Every conversion stage loses some energy as heat through semiconductor switching and magnetic cycling in transformers.

The basic relationship follows this rule:

AC Output Power (Watts) = DC Input Power (Watts) × Inverter Efficiency

If a cold room draws 1,800 Watts of continuous AC power through an inverter operating at 92% efficiency, the calculation shows the required DC input:

Required DC Input = 1,800 Watts / 0.92 = 1,956.5 Watts

On a 48V nominal battery bank, that draw equals roughly 40.8 Amps DC (1,956.5 Watts / 48V). The remaining 156.5 Watts dissipates inside the inverter housing as thermal waste.

Four operating factors determine true efficiency in commercial field work:

• Operating Load Percentage: Inverters reach peak efficiency (normally 93% to 96%) when running at 40% to 80% of rated capacity. Operating below 15% load drops efficiency below 70% due to baseline internal power consumption.

• Ambient Temperature and Thermal Derating: In northern Mexico or the Brazilian interior, ambient plant temperatures often hit 40°C to 45°C. As internal power switches heat up, resistance rises, forcing the unit to throttle output power to protect internal parts.

• DC System Voltage: Higher DC rails such as 48V or high voltage 300V strings suffer far lower resistive heat losses than 12V or 24V circuits delivering the same wattage.

• Idle Power Consumption: An inverter left switched on draws 15W to 60W just powering its processor, sensors, and cooling fans, which will drain smaller battery banks overnight if not managed.

How to Choose the Right DC to AC Inverter

Specifying an inverter requires sizing for peak motor startup surges and apparent power.

Checklist for Accurate System Sizing

Calculate Total Continuous Load and add up the running wattage of all equipment operating at the same time:

• Facility LED Lighting: 250W

• Commercial Refrigeration Compressor: 800W

• Office Computers and Network Gear: 450W

• Ventilation Blowers: 400W

Summed continuous requirement equals 1,900W. Adding a 25% safety overhead indicates a minimum continuous rating of 2,500W.

Account for Inductive Surge Power

Motors, pumps, and compressors draw starting surge currents three to six times higher than their continuous running ratings. A 1,000W refrigerator compressor can demand 3,500W to 5,000W for 100 to 300 milliseconds while breaking rotor inertia. If the inverter cannot supply that peak surge, its internal protection trips, shutting down the AC panel.

Match DC Input Voltage to System Size

Using low DC voltage on high wattage loads forces high current through conductors:

12V DC: Suitable only for small loads under 1,000W such as mobile cabins or basic monitoring boxes.

24V DC: Recommended for loads between 1,000W and 3,000W.

48V DC: The commercial baseline for installations from 3,000W to 15,000W. Delivering 5,000W at 48V requires roughly 110 Amps DC, whereas a 12V bank would pull over 450 Amps, demanding heavy copper cabling and raising fire risks.

Confirm AC Output Voltage and Frequency

Match your local service specifications:

Mexico, Colombia, Panama, and Ecuador: 120V single phase or 120V/240V split phase at 60 Hz.

Chile, Argentina, Uruguay, and parts of Brazil: 220V or 230V single phase at 50 Hz or 60 Hz.

Field Sizing Rule for Inductive Loads

Never size an inverter using Watts alone when motors are involved. Calculate Apparent Power in Volt Amperes (VA). Most commercial compressors operate with a Power Factor between 0.75 and 0.85. A 2,200W commercial pump with a 0.8 Power Factor actually demands 2,750 VA from the inverter switching components. Always make sure your inverter continuous VA rating clears the total apparent power of your active inductive loads.

What Configuration Do You Need?

Connecting solar modules to an inverter requires an architecture matched to your facility goals. Solar strings cannot connect directly to battery inverter terminals without proper voltage management.

Solar Systems Without Battery Storage

In grid tied systems, solar arrays connect directly to a grid following solar inverter equipped with Maximum Power Point Tracking (MPPT):

Solar Panels (High Voltage DC) → Solar Inverter → Facility AC Panel → Utility Grid

The inverter adjusts internal impedance to draw maximum power from the sun, converting DC into synchronized AC electricity. Under utility safety codes like IEEE 1547, the unit shuts down within milliseconds if grid power drops to protect line crews from backfeed.

Solar Systems With Battery Storage

For Latin American facilities handling blackouts or peak tariff spikes, storage is essential. Under Mexican Federal Electricity Commission (CFE) commercial and industrial rate structures such as GDMTO and GDMTH tariffs, peak capacity and energy fees raise operating costs during afternoon and evening windows CFE Industrial Electricity Tariffs Official Schedule. Storing solar DC in batteries and converting it to AC during peak rate periods cuts utility bills significantly.

Commercial installations use two equipment options:

Dedicated Off Grid Inverters:

The PV string connects to an MPPT charge controller that charges a 48V battery bank, and the inverter pulls DC from storage to supply isolated AC power. Units like the SNADI/SNAT NKH Off Grid Hybrid Solar Inverter (1.2 kW to 12 kW models) integrate the MPPT controller, battery charger, and pure sine wave inverter in one enclosure capable of operating with or without batteries.

Split Phase Hybrid Inverters:

For commercial sites needing 120V/240V dual line service for motors and air conditioning, integrated units like the SNADI/SNAT AS Split Phase Hybrid Solar Inverter (7 kW to 12 kW) coordinate solar generation, battery storage, and utility grid power, switching to islanded backup in under 10 milliseconds during outages.

·

Common Applications of DC to AC Inverters

Commercial Peak Shaving and Backup: Providing stable AC power to supermarkets, bakeries, and distribution centers during outages, replacing noisy diesel generators with silent battery storage.

Agricultural Wells and Processing: Running irrigation pumps, ventilation fans, and cold rooms in rural areas outside utility service boundaries.

Residential Solar and Energy Storage: Converting rooftop solar and 48V lithium battery power into standard 120V or 230V household electricity during blackouts.

Mobile Service Trucks and Marine Vessels: Converting 12V or 24V auxiliary power into standard AC electricity for field tools, communications, and refrigeration.

Remote Telecom Towers: Delivering clean AC electricity to radio repeaters and mountain weather stations using solar arrays and 48V battery banks.

Build the Right Solar Power System with SNAT Solar

Selecting power conversion hardware requires balancing real operational demands: varying DC source voltages, heavy motor inrush surges, battery storage chemistry, and local utility standards. Across Latin America, system longevity depends on equipment built to endure grid instability, lightning surges, and high ambient temperatures.

SNADI/SNAT Solar manufactures solar inverters, hybrid inverters, off grid power units, and battery storage systems designed for residential, commercial, and agricultural operations. Whether you are building an off grid pumping station, upgrading a commercial plant for peak demand savings, or stocking reliable equipment for regional distribution, our engineering team provides complete sizing support.

Review the full range of SNADI/SNAT Solar Inverters and Storage Products to examine technical specifications, or reach out to our engineering team with your continuous load profile, motor surge demands, and target backup duration for a tailored configuration.
