Choosing the wrong inverter type can turn a solar project into an expensive compromise. A homeowner may buy a grid-tie inverter and then learn it will not run during outages. A shop may choose a small battery inverter that cannot start a refrigerator. A factory may need peak shaving but receive a solar only proposal. The correct choice starts with system goal, load profile, grid condition and battery plan.
The U.S. Department of Energy explains that an inverter converts DC electricity from solar panels into AC electricity used by the grid. DOE describes an inverter as a power electronic device that converts DC electricity generated by solar PV panels into AC electricity. The definition is simple; the buying decision is not.

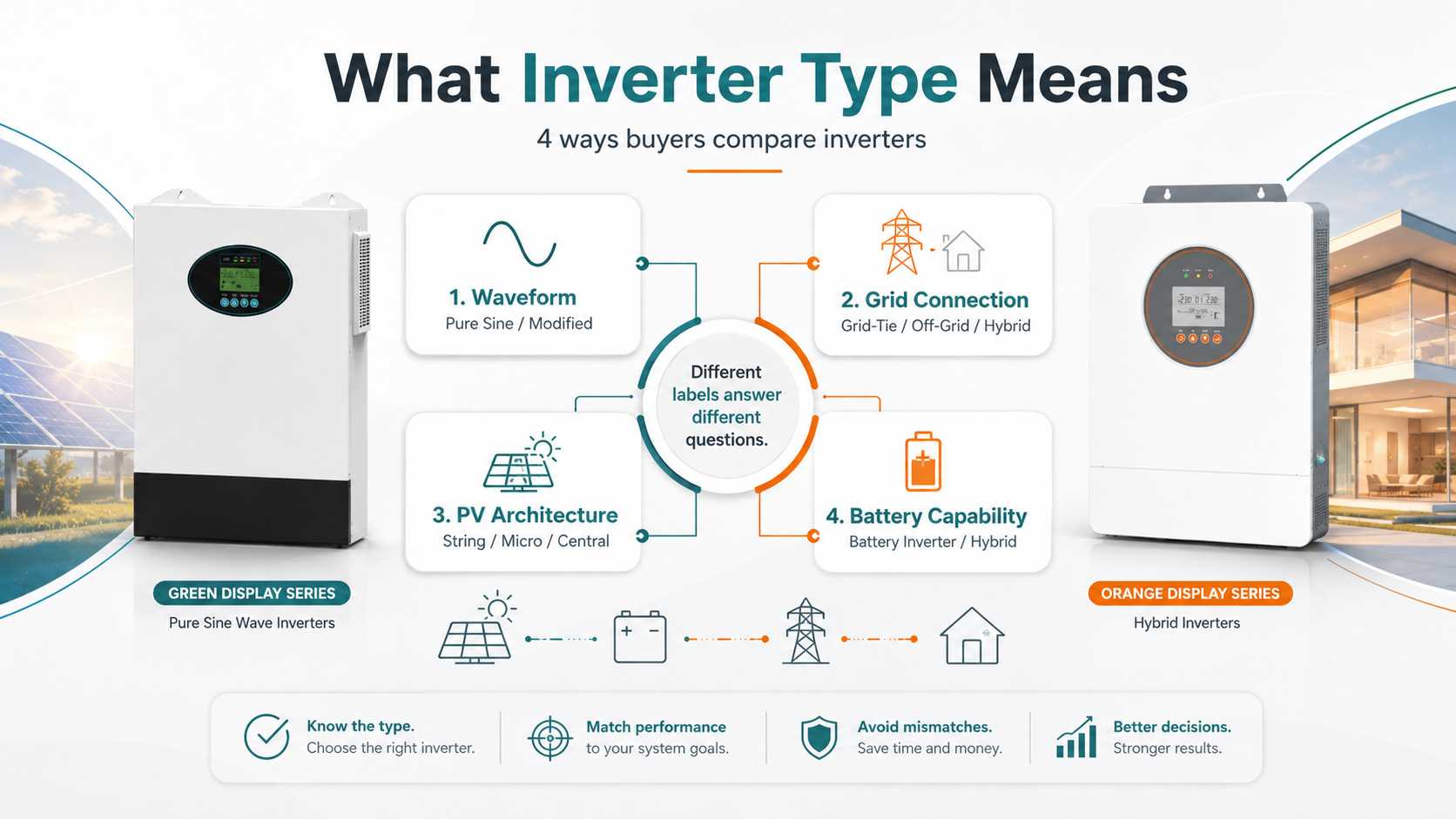

What inverter type means
Inverter type can mean four different things. It can mean output waveform, such as pure sine wave or modified sine wave. It can mean grid connection, such as grid-tie, off-grid or hybrid. It can mean PV architecture, such as string inverter, microinverter or central inverter. It can also mean battery capability, such as battery inverter or hybrid solar inverter. Comparing these in one flat list causes confusion.
IEA expects global renewable power capacity to double by 2030, with solar PV accounting for almost 80% of the global increase. As solar and storage adoption grows, buyers increasingly need inverters that convert power, monitor system status, communicate with batteries and handle backup or grid interaction.
Inverter types by waveform
A pure sine wave inverter produces AC power suited to sensitive electronics, motors, medical devices, refrigeration and most household or commercial loads. A modified sine wave inverter can be cheaper, but it can create heat, noise or poor operation in some loads. For backup systems, off-grid homes and small commercial sites, pure sine wave output is usually the safer basis for quote comparison.
SNADI/SNAT FT low frequency inverter supports pure sine wave output, adjustable output voltage and frequency, LCD status display, RS485, dry contact, cooling, protection and alarm functions. That makes low frequency pure sine wave products relevant when motor loads or backup reliability shape the purchase.
Inverter types by solar architecture
DOE describes central inverters, string inverters and microinverters as solar inverter types, and notes that battery storage can interact with solar through DC or AC conversion. A string inverter connects a group of panels to one inverter. A microinverter places conversion at each panel. A central inverter fits larger projects. For most residential, small commercial and C&I storage buyers, the more urgent decision is often grid-tie versus off-grid versus hybrid.
Inverter types by grid and battery connection
A grid tie inverter is designed for grid connected PV and may shut down during outages unless the system includes approved backup capability. An off-grid inverter supports loads without grid dependence. A hybrid inverter manages PV, battery, grid or generator inputs and can support backup when designed with the correct electrical architecture. A battery inverter may be used when batteries are added to an existing solar system.
SNADI/SNAT Solar provides hybrid, off-grid and low-frequency solar inverters for home, C&I and remote power systems, with 1KW-60KW options. The SNADI/SNAT Solar NKH Series is positioned as a 1.2KW-12KW off-grid hybrid solar inverter with MPPT solar charging and pure sine wave output. The SNADI/SNAT Solar ES Series is listed as a 6.2KW/12KW hybrid inverter with pure sine wave output, a 100A MPPT charger, optional WiFi/GPRS tracking and parallel scaling up to six units. NKH 12KW solar inverter support discussing 12 kW rated output, 24 kVA surge power, dual MPPTs, 60-450 V MPPT operating range, 500 V maximum PV open-circuit voltage, 48 V battery voltage, RS232/RS485/CAN interfaces and built-in WiFi monitoring.
For a weak grid house, clinic or small workshop, the label "hybrid" is only useful if the design also defines battery capacity, critical-load circuits and operating priority. A 12 kW inverter can still perform poorly if the buyer connects every appliance to the backup panel and expects long runtime from a small battery bank. A better design separates refrigeration, lighting, communications, security and selected outlets from non-critical loads. That makes backup time easier to estimate and prevents avoidable overload trips.
For commercial buyers, communication is part of the inverter type discussion. LiFePO4 batteries need BMS coordination, parallel battery settings and clear protection behavior. Local BL battery manuals support BMS protection, RS485/RS232/CAN communication options, parallel module settings and routine recharge after storage. Those details affect commissioning and service because an inverter that can power the load but cannot communicate well with the battery may produce nuisance alarms or conservative charging behavior.
Inverter type comparison
Inverter type | Best fit | CAPEX impact | Operating value | Buyer risk |
Pure sine wave inverter | Sensitive loads, motors, backup | Medium | Cleaner AC for common appliances and commercial loads | Still needs correct surge sizing |
Modified sine wave inverter | Simple low-cost loads | Low | Basic conversion | Can cause heat or poor operation in some equipment |
Grid-tie inverter | Solar bill reduction with stable grid | Medium | High efficiency grid-connected PV | Usually no outage backup alone |
Off-grid inverter | Remote sites, weak-grid backup | Medium | Runs loads from battery/PV/generator | Battery sizing and generator logic matter |
Hybrid inverter | Solar plus storage and backup | Medium to high | PV, battery, grid/generator coordination | Needs BMS communication and load separation |
Central inverter | Large PV plants | High | Scale and centralized service | Not typical for residential or small C&I backup |
SNADI/SNAT Solar Engineer's Tip
Do not compare "pure sine wave" and "hybrid" as if they are the same category. Pure sine wave is waveform quality. Hybrid is system architecture. A good hybrid inverter should also produce suitable waveform quality, but the labels answer different questions.

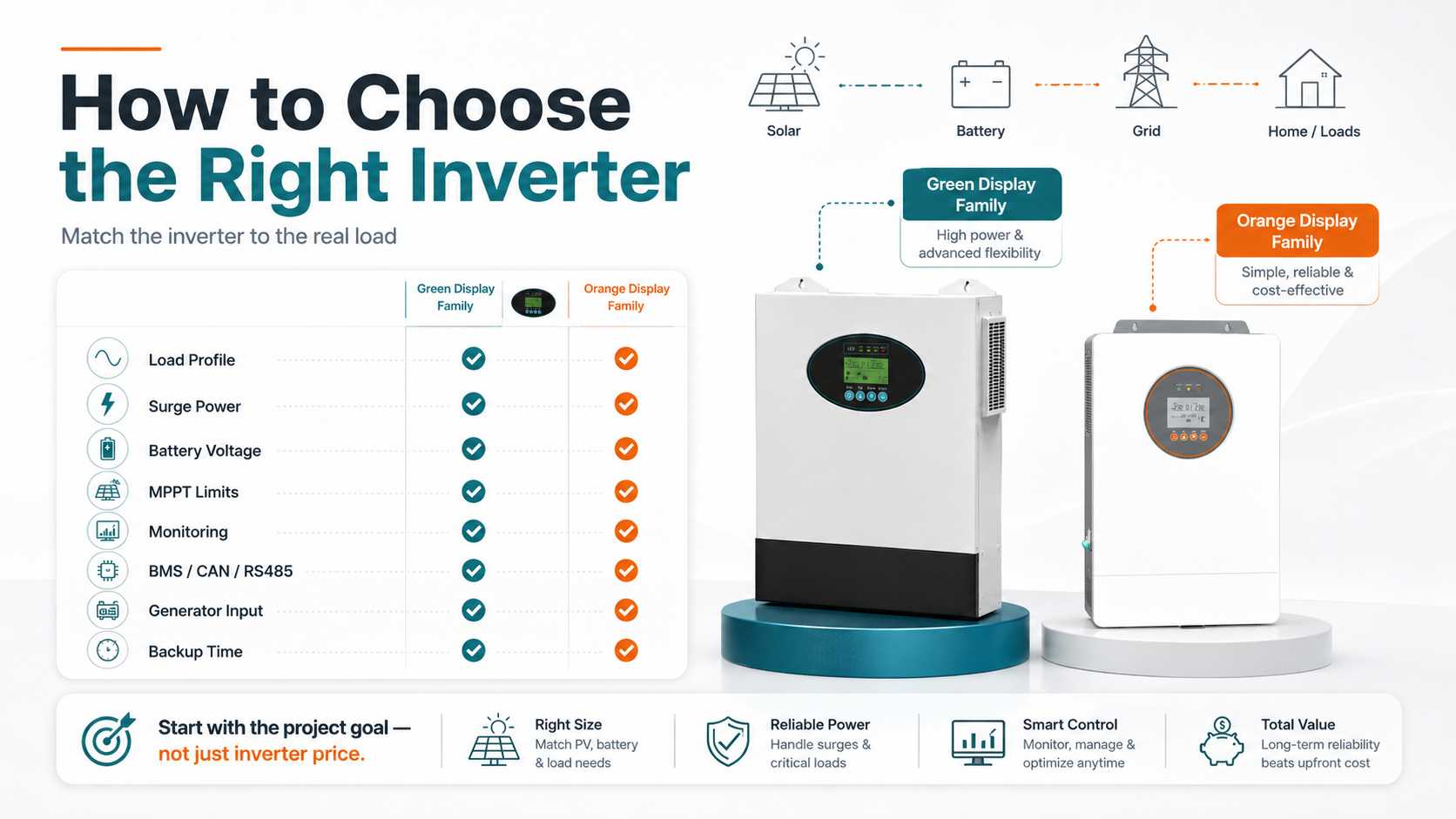

What buyers should check before choosing
Start with whether the system needs grid export, backup power, off-grid operation, peak shaving or only bill reduction. Then list running loads, motor surge loads, battery voltage, required backup time, PV array voltage, MPPT current, monitoring needs and local interconnection rules. For LiFePO4 batteries, check BMS protocol, RS485/CAN support and parallel battery settings. Local ES and AS manuals also support checking battery type, breaker sizing, polarity, cable torque, AC input/output wiring and qualified installation.
Ask suppliers to explain three operating modes in plain terms: normal sunny day operation, grid-outage operation and low battery recovery. If the site uses a generator, ask how the inverter handles generator input, charging current and transfer behavior. If the site has motors, pumps or compressors, ask for surge headroom instead of only rated power. If the site uses monitoring, ask whether alarms can be reviewed remotely and whether the installer will keep access after handover.
The financial comparison should not stop at inverter price. A cheaper inverter type may raise OPEX if it needs extra site visits, cannot start the target load, or requires later replacement when the buyer adds batteries. A higher cost hybrid inverter may be justified when it reduces diesel runtime, protects refrigeration or keeps office systems running during grid instability. The value case should be written around the buyer's real loads and outage cost.
Each inverter type solves a different problem. Grid-tie may give the cleanest solar only economics. Off-grid may solve weak grid sites. Hybrid may justify higher CAPEX when backup, peak shaving or self consumption matters. Low frequency pure sine wave inverters can fit surge heavy loads. The right inverter type is the one that matches the project goal and can be verified through electrical design, not the one with the broadest label.
