Many buyers search for "mppt controller" because they know the part sits between solar panels and a battery, but they are not sure what size to buy. The spelling is usually wrong; the engineering risk is more serious. If the controller is undersized, the system clips solar power. If PV open circuit voltage is too high, the controller can be damaged. If battery chemistry is set wrong, battery life and warranty can suffer.
EIA explains that a PV cell converts sunlight directly into electricity. An MPPT controller sits after that PV array and manages how the DC power charges the battery. It tracks the array's working point, converts PV voltage into usable battery charging current, and follows charging logic that should match the battery type.
Confirm the battery bank voltage
Start with battery voltage because it shapes controller output current. A 1000 W PV array charging a 12 V battery needs much more current than the same array charging a 48 V battery. That higher current means larger conductors, stronger terminals and more heat. For B2B buyers, this is not a small detail because cable, protection and labor cost affect installed CAPEX.
SNADI/SNAT Solar lists the CM MPPT Solar Charging Controller in 30A, 40A, 50A, 60A, 80A and 100A models with automatic 12V/24V/36V/48V recognition, RS485 and LCD monitoring. SNADI/SNAT Solar also indicates CM-80/100 labeling for 12V/24V/36V/48V systems, supporting the use of that product family for multi-voltage off-grid battery designs.
Estimate controller output current

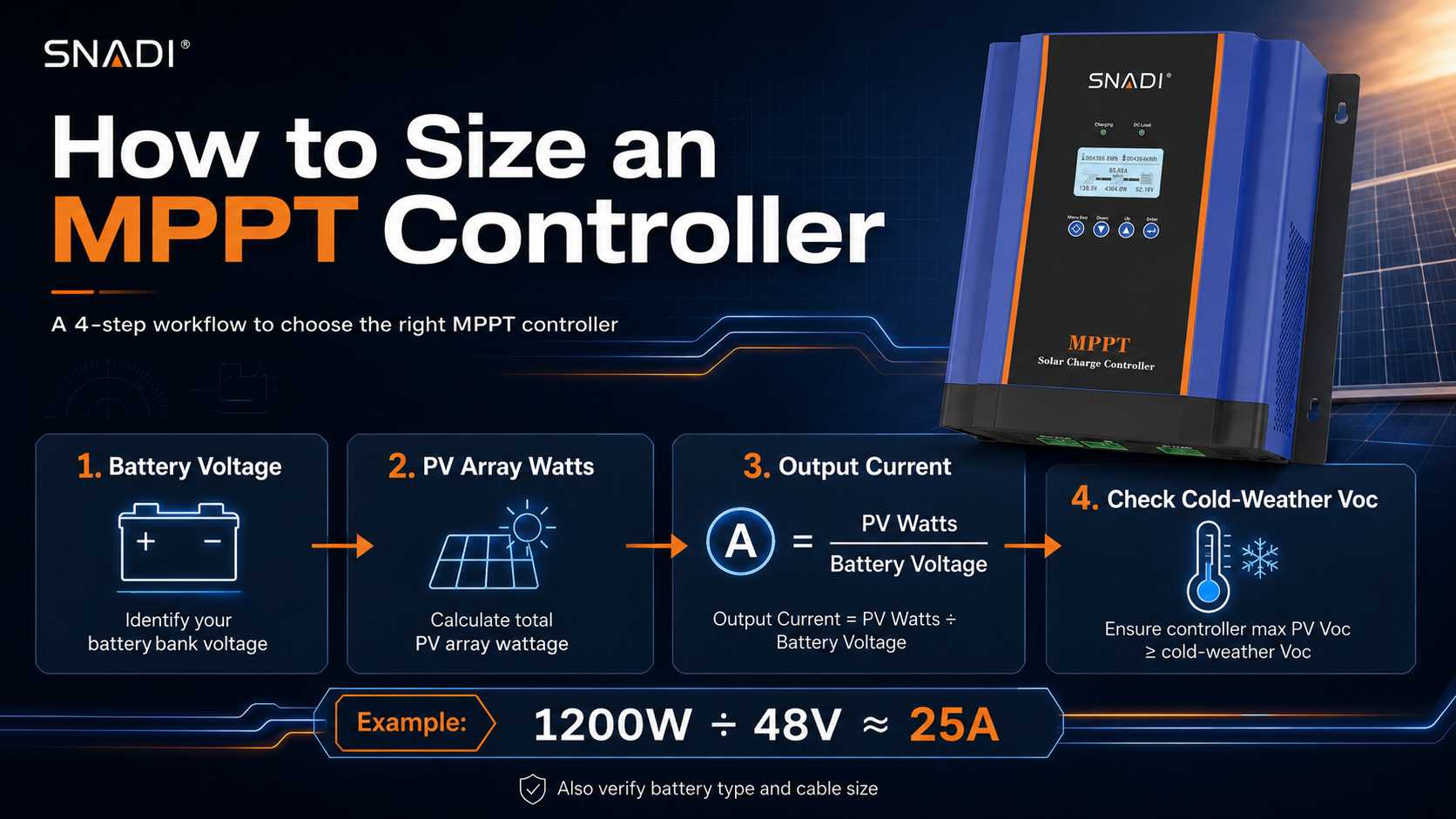

A practical first estimate is:
Controller output current = PV array watts / battery bank voltage
This is not the final engineering design, but it shows why voltage matters. A 1200 W array on 12 V points toward roughly 100 A before losses and safety margin. The same 1200 W array on 48 V points toward roughly 25 A. Buyers should then check the controller datasheet, local code, ambient temperature, cable length and derating.
Data.gov describes PVWatts as a tool for estimating electricity production and energy value from grid-connected PV systems. Even when the final system is off-grid, production modeling helps the buyer check whether the array size is realistic for the daily load and battery recharge target.
For a small shop, the financial effect is usually hidden in battery replacement and service visits. A controller that is too small may clip PV output during strong sun, so the battery enters evening load hours with less charge than expected. A controller with weak monitoring may force the installer to visit the site just to learn that the PV disconnect was left open or the battery setting was wrong. These are not dramatic design errors, but they still reduce payback of the system because they turn cheap solar energy into manual troubleshooting.
For a remote pump or telecom cabinet, the buyer should write down the load profile before choosing the controller. A 300 W daytime load with a small night standby load may need a different PV to battery ratio than a 1000 W intermittent motor load. The controller rating should leave room for the real charge current, but the battery and inverter still decide whether the system can start the load. This is why a controller quote should be reviewed with the battery bank, inverter surge rating and cable distance, not as an isolated accessory.
Check PV input voltage and cold weather Voc
PV open circuit voltage rises in cold weather. That means a string that looks safe at standard test conditions may exceed the controller's maximum input voltage on a cold morning. The buyer should check the module Voc, number of modules in series, temperature coefficient and the controller's absolute PV input limit.
SNADI/SNAT Solar's CM page lists MPPT operating voltage ranges for 12 V, 24 V and 48 V systems and shows maximum solar panel input power values by controller size.
Match battery chemistry and charging logic
Battery chemistry changes charging settings. Lead-acid, AGM, gel and LiFePO4 batteries do not use the same charge voltage, low voltage protection or temperature behavior. A buyer should not copy settings from an online forum. The controller settings should match the battery manufacturer's manual and, where applicable, the BMS communication requirements.
SNADI/SNAT Solar NKH is a 1.2KW to 12KW off-grid hybrid inverter with integrated MPPT controller and pure sine wave output. For a compact off-grid system, an NKH inverter may reduce the need for a separate controller because the MPPT function is built into the inverter. For distributed DC charging, telecom backup, sheds, farms or modular battery banks, a separate CM MPPT controller can still make sense.
MPPT vs PWM Controller
Decision factor | MPPT controller | PWM controller | Buyer impact |
PV voltage flexibility | Can use higher PV voltage within controller limits | Usually closer to battery voltage | MPPT can reduce cable loss in some layouts |
Energy harvest | Tracks array working point | Pulls array toward battery voltage | MPPT usually gives better yield in larger systems |
CAPEX | Higher controller cost | Lower controller cost | PWM may fit very small low budget systems |
Battery protection | Depends on settings and product quality | Depends on settings and product quality | Wrong settings damage either system |
Monitoring | Often LCD/RS485/app capable | Often simpler | MPPT can support better service workflow |
DOE's PV performance report defines performance ratio as measured production divided by modeled production during available timesteps. That concept is useful after installation: if the array, controller or wiring is not performing, measured energy should be checked against an expected baseline.
SNADI/SNAT Product Selection Logic
For a standalone solar charge controller article, the main product fit is the CM MPPT controller. SNADI/SNAT Solar's CM page supports 30A to 100A models, automatic multi-voltage recognition, LCD tracking, RS485 and protection functions.
Wiring And Installation Checklist
1. Connect the battery before PV if the product manual requires that sequence.
2. Add a fuse or breaker near the battery.
3. Confirm PV string Voc under cold conditions.
4. Match conductor size to current and cable distance.
5. Keep controller ventilation clear.
6. Set battery chemistry before normal operation.
7. Label PV disconnect, battery disconnect and load circuits.
8. Record normal PV voltage, battery voltage and charging current during handover.
Keep a handover record. Write down expected PV voltage range, normal charging current on a sunny day, battery type setting, controller model, firmware or setting profile, and who may change parameters. If the buyer calls six months later with weak backup time, that baseline helps the service team decide whether the issue is panel soiling, battery aging, load growth, a loose terminal or a changed setting. Without a baseline, every service call starts from zero.
SNADI/SNAT Solar Engineer's Tip
Do not size an MPPT controller only by the panel wattage printed on a quotation. Check battery voltage, controller current limit, PV Voc, ambient temperature, battery chemistry and cable length. Most MPPT failures start as a sizing or wiring decision that was treated as a small accessory issue.
Final buyer check
An mppt controler search usually means the buyer needs an MPPT controller sizing answer, not a product list. Start with battery voltage, calculate controller current, verify PV input voltage, match battery chemistry and review protection. For SNADI/SNAT Solar, the CM MPPT controller is the direct product fit, while NKH and ES IP54 are better choices when the buyer wants an inverter with integrated MPPT and AC backup logic. The right decision reduces wasted PV energy, protects the battery and lowers future service cost.
