Solar Energy Monitoring Systems: Features, Metrics And Selection

A solar asset can look fine from the street while losing money every day. One inverter may be offline. A CT may be installed backward. A battery may sit at the wrong reserve level. A store owner may receive alerts but have no idea who should respond. Solar energy monitoring systems exist to turn those hidden issues into production, consumption, inverter, battery and fault data that someone can act on.

DOE FEMP recommends that PV monitoring platforms consider calibration and servicing, stakeholder information sharing, data presentation, nonproprietary service access, data backup, cybersecurity and uninterruptible power supply for the monitoring system. That list shows why monitoring is an operating process, not just an app. It is an operating process.

What Should Be Visible?

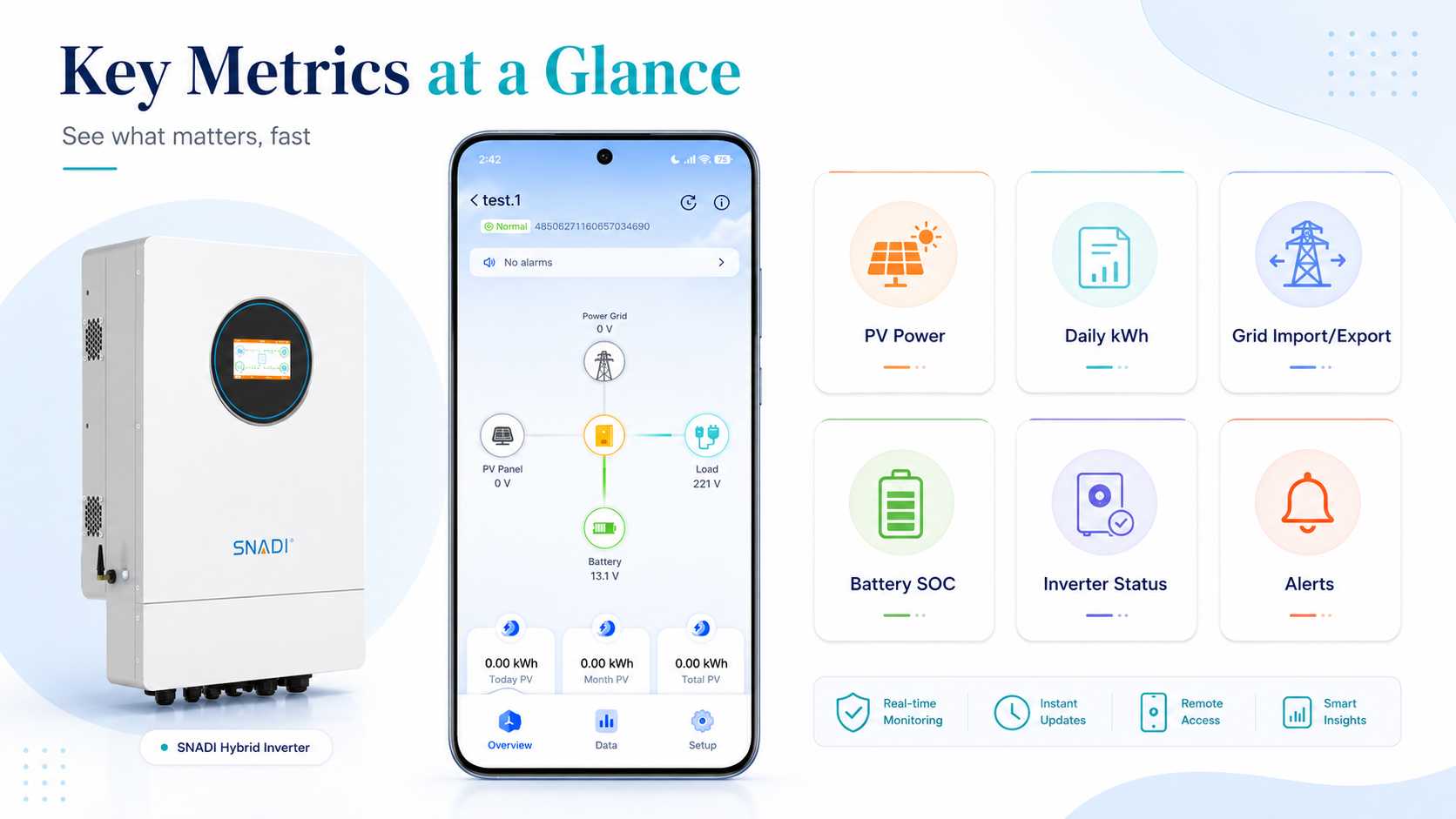

A useful monitoring system should show current PV power, daily kWh, historical production, building consumption, grid import/export, inverter status, fault codes, battery SOC, charge/discharge power and alert history. For commercial solar, the owner may also need performance ratio, availability, site comparison, event logs and monthly reports.

DOE's PV performance report uses measured production, modeled production and availability to evaluate system performance. In buyer terms, monitoring should answer three questions: did the system produce, did it produce what the model expected, and did anyone respond when it did not?

Residential And Off-Grid Monitoring Workflow

For homes, clinics, small shops and off-grid sites, monitoring should focus on practical decisions. Is the battery charging during the day? Is the inverter in the expected mode? Which load is draining backup capacity? Is the generator starting too often? A monitoring screen is useful only if the buyer understands what action follows the signal.

C&I Monitoring Workflow

For C&I sites, monitoring should be tied to a person, a response time and a financial target. A factory may need a battery to discharge during a demand peak. A cold storage site may need backup SOC preserved overnight. A hotel may need fault alerts routed to both maintenance and the installer. A dashboard that does not drive action has limited value.

SNADI/SNAT Solar's 125kW/241kWh system lists 125kW output, 241kWh rated capacity, EMS control, APP/LCD interaction, Wi-Fi cloud communication, RS485/CAN display interface and 10 ms off-grid switching time. For commercial solar energy monitoring systems, this product supports discussing EMS, remote monitoring, fault alerts and C&I backup or peak-shaving workflows.

A commercial monitoring plan should separate three dashboards. The owner needs a financial dashboard: energy produced, peak reduced, battery discharge events and outage support. The maintenance team needs a fault dashboard: inverter alarms, battery warnings, communication loss and abnormal temperature. The installer needs a service dashboard: device history, site access, firmware or setting records and evidence that a repair restored output. When one screen tries to serve all three audiences, the data may be present but the action is unclear.

For a factory using storage to reduce peak demand, the monitoring platform should show the time of discharge, the power level, the SOC before and after discharge, and whether the plant peak was lowered. For a cold room, the record should show backup readiness before night operation or storm season. For a hotel, the value may be silent backup and fast transfer for guest facing loads. The same hardware can support different buyer outcomes, so the monitoring report should be written around the business purpose.

Monitoring Options By Use Case

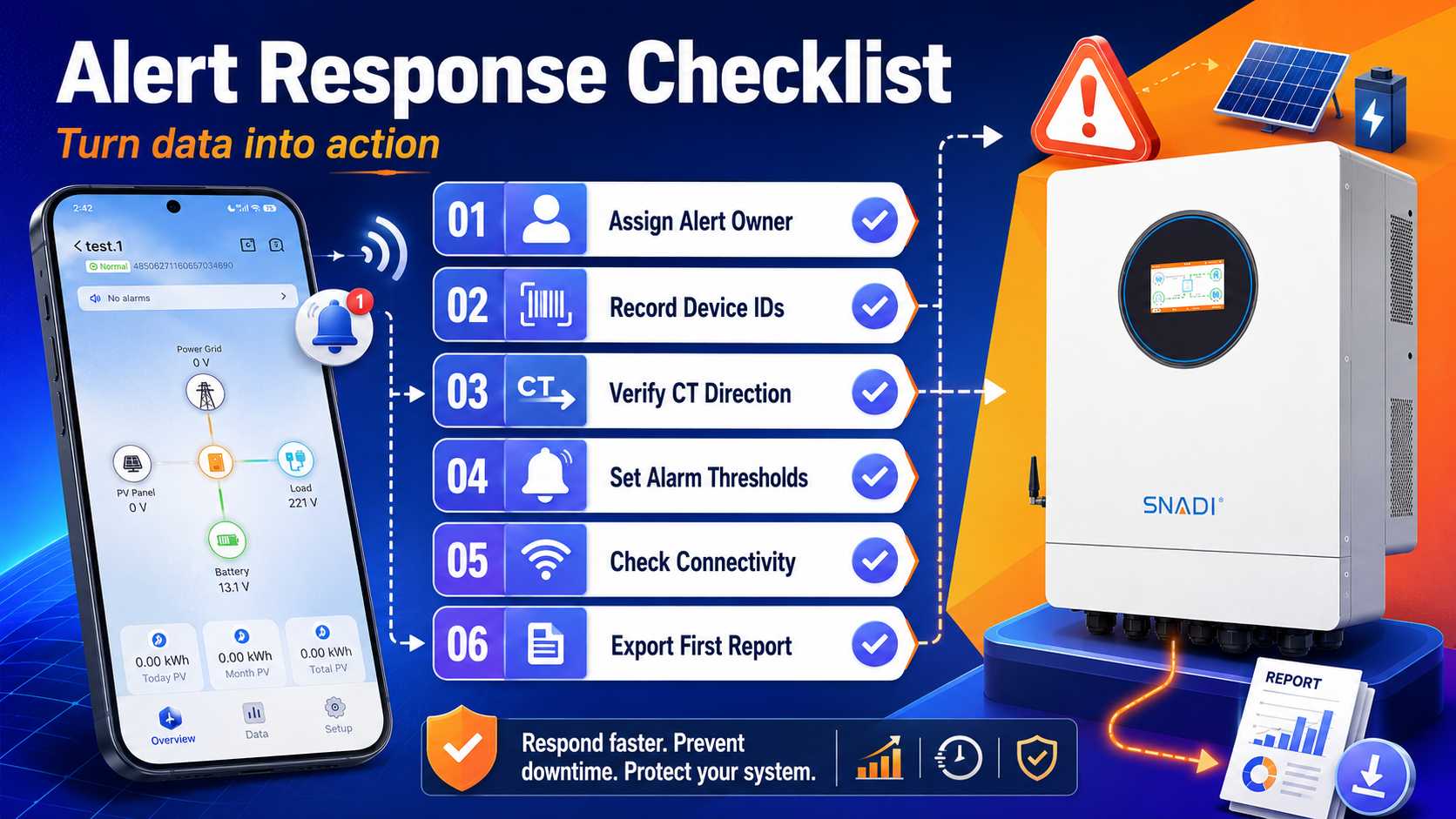

Alert Response Checklist

1. Define alert owner before commissioning.

2. Record inverter, meter and battery serial numbers.

3. Verify CT direction and meter accuracy.

4. Set alarm thresholds for low SOC, inverter fault and communication loss.

5. Confirm Wi-Fi, cellular or Ethernet reliability.

6. Export a first-month report and compare it with expected production.

7. Review alert response time during the first service meeting.

DOE FEMP states that PV systems have 20 to 30 years lifespans and that performance can be supported through proper O&M. Because of that long operating life, monitoring should be selected for maintainability, not only for the sales demo.

SNADI/SNAT Solar Engineer's Tip

Ask the installer to simulate one communication-loss alarm and one inverter-fault alarm before handover. If nobody knows who receives the alert, where it appears or how it is closed, the monitoring workflow is not ready.

Buyer Questions Before Choosing

Ask whether inverter data, smart meter data and battery data appear in one platform. Ask whether reports can be exported. Ask whether the installer keeps service access after handover. Ask whether the monitoring system can survive a short outage. Ask how cyber access is managed. For commercial sites, ask whether the platform can prove peak shaving events and backup SOC history.

Buyers should also define how reports will be reviewed. A residential owner may only check a mobile app after an outage. A commercial building manager may need a monthly PDF for finance. A distributor may need a fleet view that ranks sites by lost production. A C&I owner may want alarm records tied to service tickets. If the report is never read, even accurate data has weak business value.

Final buyer check

Solar energy monitoring systems should protect output, battery value and operating continuity. A home may need inverter and battery visibility. A remote off-grid site may need alarm routing and generator records. A factory using the SNADI/SNAT 125kW/241kWh commercial storage system needs EMS, SOC, fault alerts, peak-shaving records and clear O&M ownership. The best monitoring choice is the one that connects data to action and gives the buyer proof that the system is doing the financial job it was bought to do.
