Panel level monitoring is appealing because it promises visibility into every solar panel. The practical question is whether that visibility will reduce lost production, truck rolls or warranty friction. A simple roof with one direction and no shade may not need module-level data. A shaded roof, multi-orientation array, high-value commercial site or installer-managed fleet may recover the extra cost through faster fault location and cleaner service records.
DOE FEMP recommends considering calibration, stakeholder information sharing, reporting, nonproprietary service access, data backup, cybersecurity and UPS support when selecting PV monitoring platforms. That guidance matters because panel level monitoring is not only hardware. It is a workflow for finding, assigning and closing performance issues.
What Panel Level Monitoring Means
Panel level monitoring, also called module level monitoring, collects performance data at the individual module or module-electronics level. The data may come from microinverters, power optimizers or module-level electronics. It differs from system level monitoring, which shows the whole site's production, and inverter-level monitoring, which shows inverter status, string or MPPT behavior and alarms.
DOE explains that microinverters are smaller inverters placed on every panel and that shading or damage to one panel will not reduce power drawn from the others in the same way as a string inverter. That same design logic is why module level monitoring can be useful on roofs with shade, mixed orientations or hard to access panels.

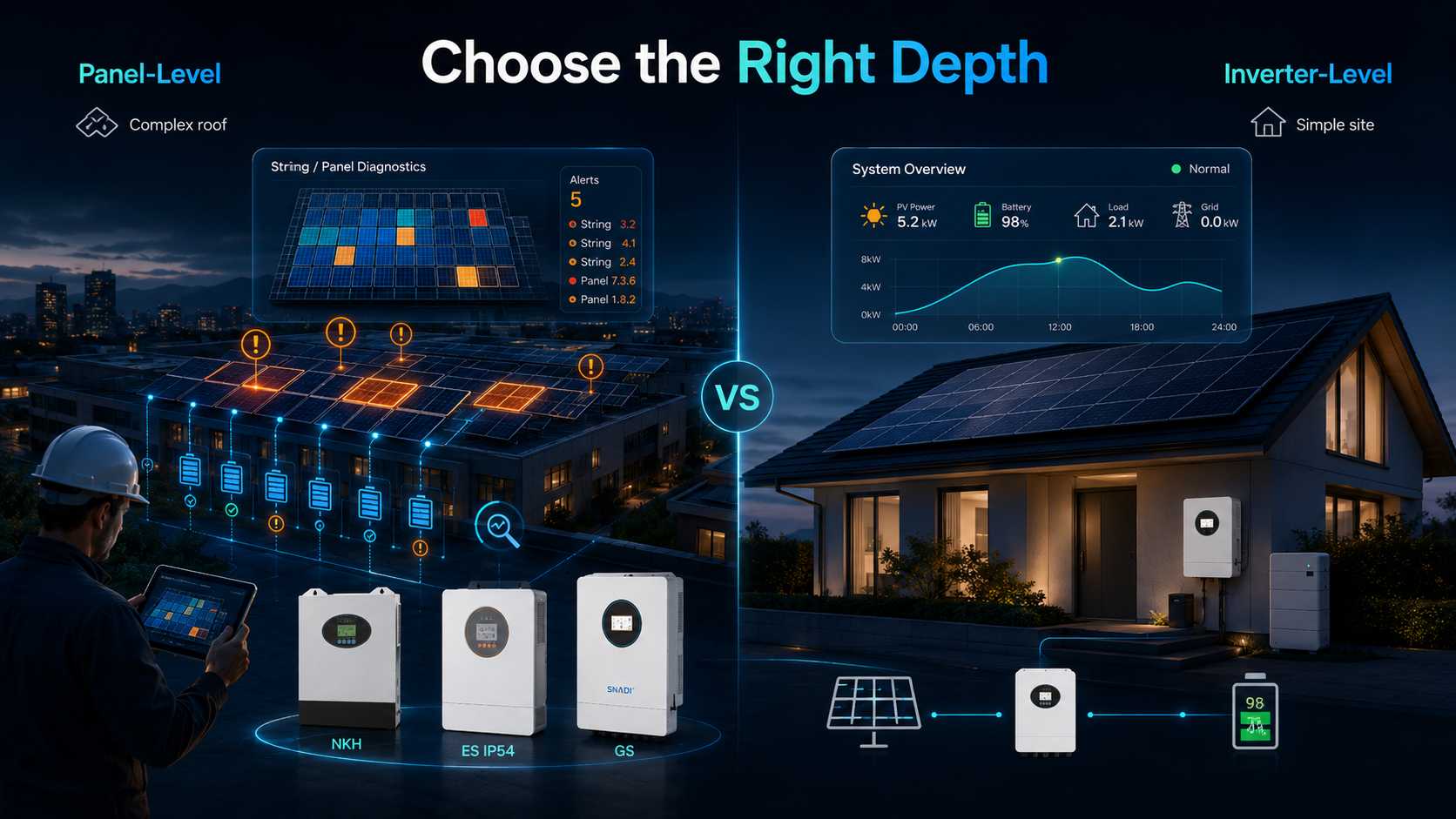

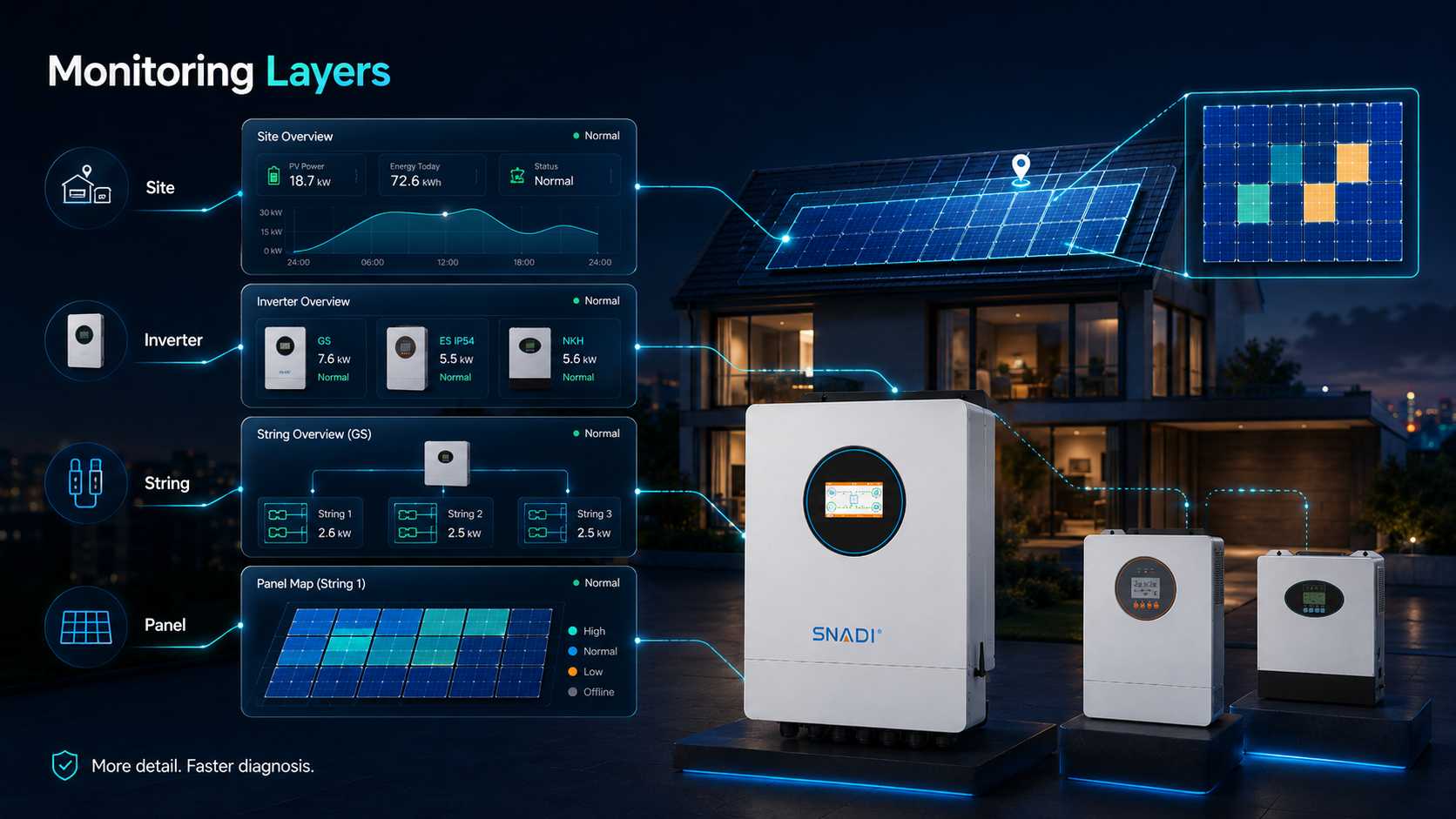

Monitoring Levels Compared
Monitoring level | What it sees | Best fit | CAPEX impact | O&M value |
System-level monitoring | Total PV output, site load and grid import/export | Simple homes and small shops | Low to medium | Confirms site-level energy value |
Inverter-level monitoring | Inverter status, MPPT behavior, alarms and operating mode | Hybrid and off-grid inverter systems | Usually built into inverter package | Good for remote service and backup checks |
String-level monitoring | String current or string fault patterns | Larger rooftops and C&I arrays | Medium | Narrows the fault area |
Panel level monitoring | Individual module or MLPE data | Shaded, complex or high-value systems | Higher | Locates module faults faster |
Fleet O&M platform | Multi-site KPIs, tickets and reports | Installers and asset managers | Higher | Prioritizes service work by loss |
When Panel-Level Data Is Worth It
Panel level data is worth considering when the system has shade, different module directions, roof obstructions, warranty-sensitive owners, high labor cost, remote access constraints or a commercial O&M contract. If the installer manages many sites, a module level alert can reduce diagnostic time. If a buyer has only a small unshaded array, the same data may be more than the owner will use.
DOE FEMP encourages monitoring services that report energy delivery and key performance metrics, send notifications and help diagnose problems automatically. A notification is useful only when it creates an action: check the module, confirm the string, assign the technician, repair the fault and verify recovered output.
How SNADI/SNAT Engineers Would Frame Product Fit
SNADI/SNAT Solar GS as a 6.5KW IP65 hybrid inverter with WiFi and RS485 communication for real-time data tracking and system control. We would recommend GS when the buyer needs outdoor hybrid inverter visibility, scalable backup capacity and clear system status rather than permodule electronics.
SNADI/SNAT Solar ES IP54 with optional WiFi remote monitoring, USB/RS485 communication and dry node control. Local ES IP54 manuals support remote monitoring options, pure sine wave output, battery setup, PV connection and RS485/dry contact interfaces. In a real design conversation, that means ES IP54 can anchor inverter and battery monitoring while panel-level monitoring is added only if the PV array itself needs module-level fault visibility.
For off-grid or weak-grid buyers, NKH should be discussed as a practical hybrid inverter with LCD, optional WiFi/GPRS and integrated MPPT behavior rather than as a panel-level platform. SNADI/SNAT Solar positions NKH as a 1.2KW-12KW off-grid hybrid inverter with integrated MPPT control, pure sine wave output, LCD monitoring and optional WiFi/GPRS.
Cost And Operating Risk
Scenario | Panel level monitoring value | Risk if not used | Better low-cost alternative |
Simple unshaded home roof | Low to medium | Whole-system loss may still be caught | Inverter monitoring plus monthly production review |
Roof with shade or mixed tilt | High | One panel or section can underperform unnoticed | Add module-level electronics where shade exists |
Commercial rooftop with service contract | High | Technician spends more time locating faults | String monitoring plus clear O&M ticket flow |
Off-grid backup system | Medium | Battery or inverter alarms matter more than module data | Inverter and battery monitoring first |
Installer fleet | High | Slow triage across many sites | Fleet dashboard and alert ownership |
IEA says variable renewables will generate almost 30% of global electricity supply by 2030, which increases the need for flexibility and grid investment.As PV fleets grow, monitoring depth becomes a service-cost decision. More data can help, but only if someone reviews it.
SNADI/SNAT Engineer's Tip
Before paying for panel level monitoring, ask who will look at the module map every month. If the answer is nobody, start with inverter-level monitoring, smart meter data and a clear alert owner. Module-level data without an O&M workflow can become unused noise.
Buyer Checklist
Check data refresh rate, alert severity, installer access, report exports, warranty evidence, cybersecurity, data backup, platform lock-in and compatibility with inverter and battery monitoring. For commercial systems, ask whether alarms can become service tickets and whether the repair can be verified from the dashboard.
Panel level monitoring can reduce troubleshooting time, but it adds hardware, communication points and platform dependence. Inverter-level monitoring can be enough when the buyer's main risk is backup status, battery SOC or inverter alarms.
Conclusion
Panel level monitoring is not automatically the best answer for every PV system. It is the right answer when module-level visibility reduces real loss, service time or warranty conflict. For SNADI/SNAT Solar systems, GS, ES IP54 and NKH provide inverter-side monitoring and control points; module-level monitoring should be added when the roof, commercial O&M model or fault-location requirement justifies it. Buyers should choose the monitoring depth that matches the financial risk of the site.
