The buyer's real question is valid: do I need clean AC power, or is a cheaper modified wave inverter enough? As SNADI/SNAT Solar engineers, we answer by checking the load list first. A phone charger is not the same as a refrigerator compressor, a medical device, a variable-speed tool or a backup system for a small clinic.
DOE explains that filters and electronics can produce a clean repeating sine wave from inverter switching, and that the sine wave is the voltage pattern the grid can use without damaging electrical equipment. This is why waveform quality matters. The inverter is not only turning DC into AC; it is deciding the quality of the AC that your loads receive.
What Pure Wave Means
The correct term is pure sine wave inverter. It means the inverter output is shaped to resemble the smooth AC waveform used by utility power. DOE describes an inverter as a power electronic device that converts DC electricity generated by solar PV panels into AC electricity.
Modified sine wave inverters can be acceptable for simple resistive loads or temporary low-budget use. Pure sine wave becomes the safer choice when loads contain motors, compressors, electronic controls, communication equipment, audio equipment, medical devices or appliances that run for many hours from backup power.

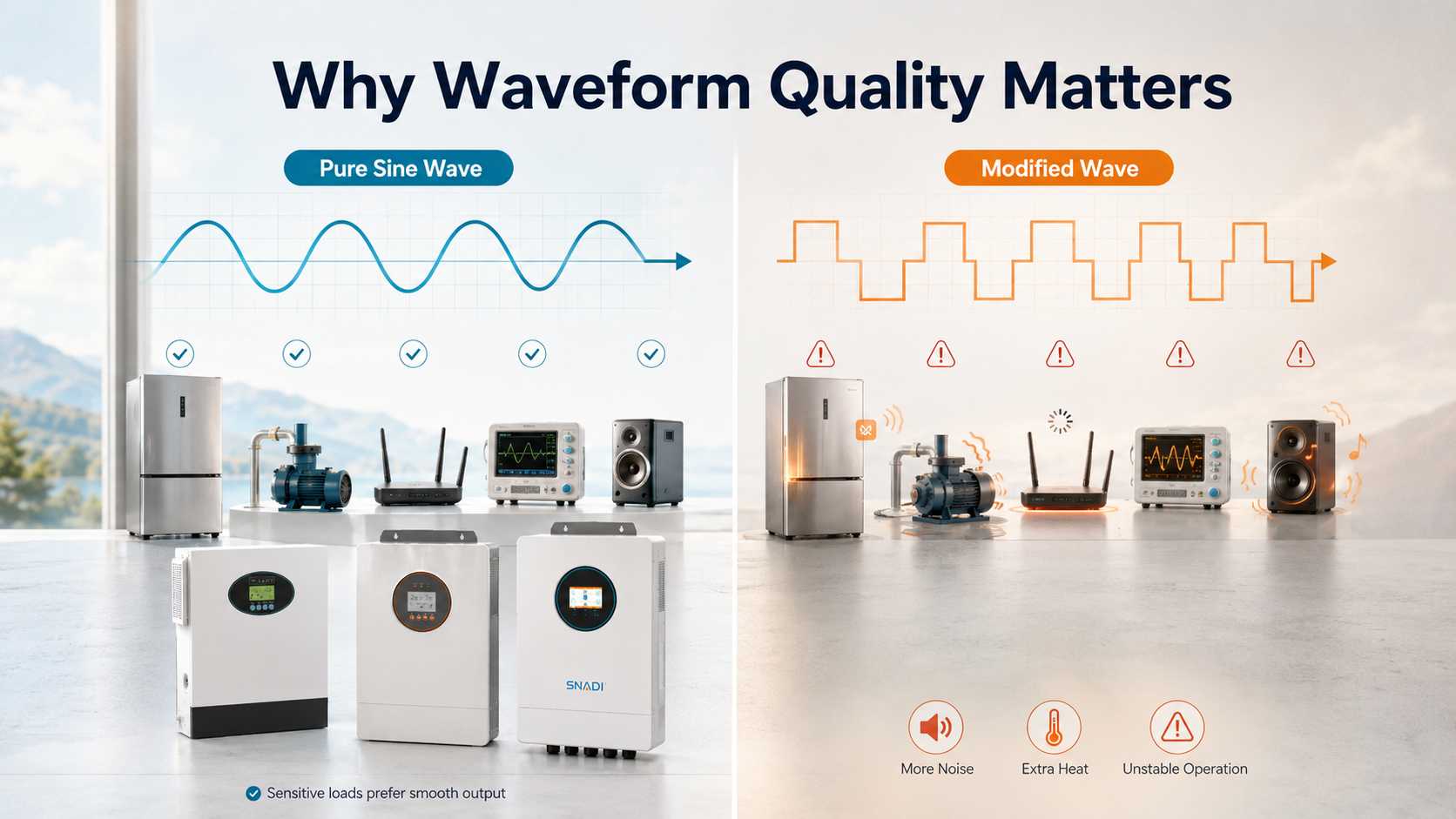

Pure Sine Wave vs Modified Sine Wave
Load type | Pure sine wave fit | Modified wave risk | Buying note |
LED lights and basic chargers | Usually works well | Often acceptable if charger supports it | Check heat and noise |
Refrigerators and freezers | Strong fit | More heat, noise or startup failure possible | Check surge watts |
Pumps and compressors | Strong fit | Higher stress and poor startup possible | Leave surge margin |
Medical and communication devices | Strong fit | Not recommended without device approval | Use clean AC and backup planning |
Audio, video and electronics | Strong fit | Buzzing, heat or unstable operation possible | Check THD and grounding |
Short term emergency use | Depends on load | May be acceptable for simple loads | Do not oversell low cost units |

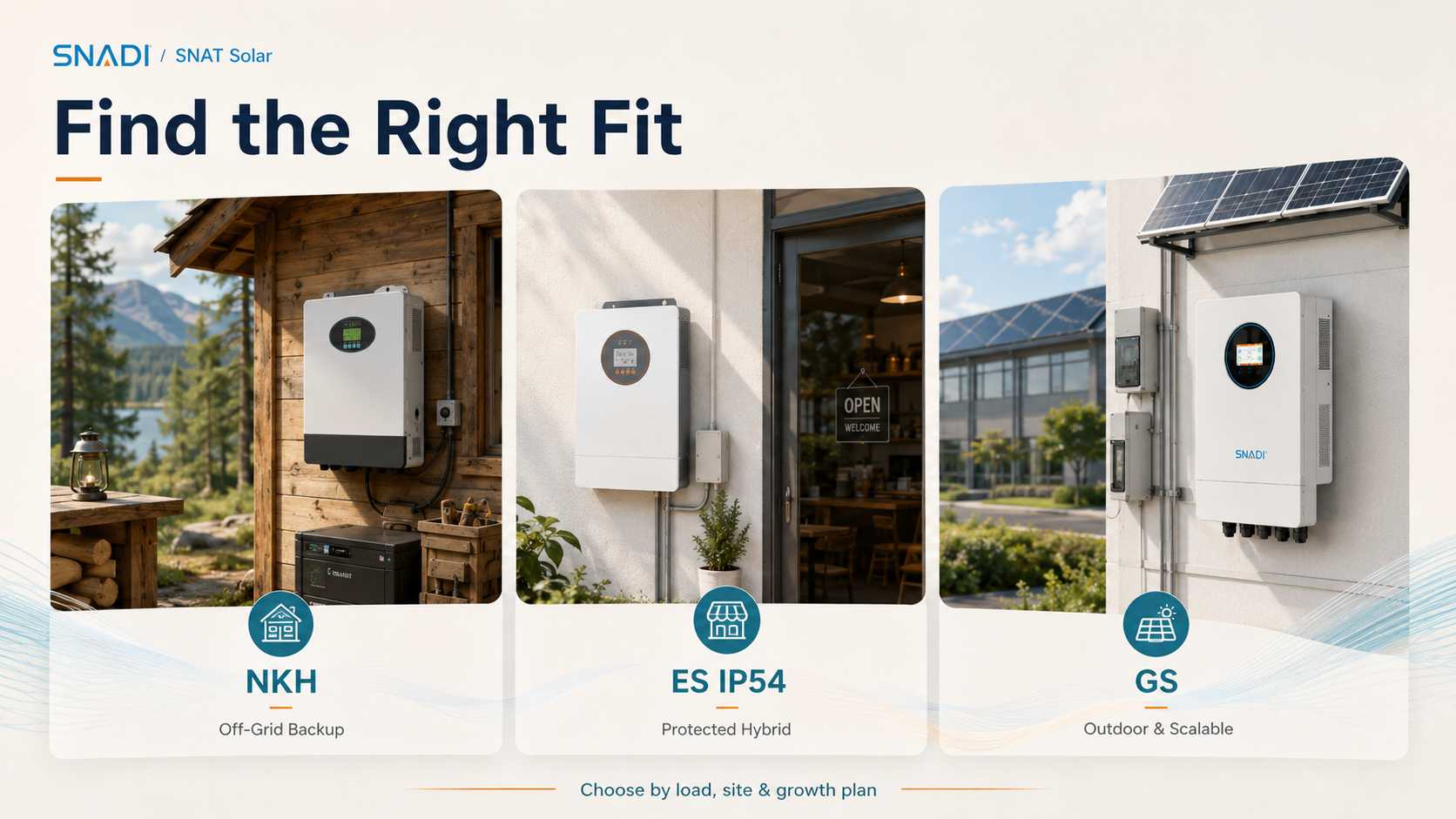

Where SNADI/SNAT Products Fit
For off-grid and weak-grid buyers, NKH is the most natural product to discuss after the load list. SNADI/SNAT Solar positions NKH as a 1.2KW-12KW off-grid hybrid inverter with pure sine wave output, integrated MPPT, LCD monitoring, optional WiFi/GPRS and overload, over temperature and short circuit protection. If the buyer has a small shop, farm, clinic or house that needs solar charging plus AC backup, NKH connects waveform, MPPT and monitoring in one off-grid architecture.
For outdoor or expandable hybrid systems, GS is better framed around durability and scale. GS is a 6.5KW IP65 hybrid inverter with 6.5KW off-grid output, 48V battery rating, THDi below 3% for linear load, WiFi/RS485/dry contact communication and up to six units in parallel. We would not recommend GS only because it has a clean waveform claim; we would recommend it when the buyer also needs outdoor protection, parallel growth and monitoring.
For homes or small businesses that want a protected on/off-grid hybrid inverter, ES IP54 fits after we confirm loads, battery plan and installation location. SNADI/SNAT Solar lists ES IP54 as 6.2KW/12KW models with pure sine wave conversion supported by the product manual, IP54 protection, optional WiFi remote monitoring, 10 ms conversion time and 500V max PV open-circuit voltage.
SNADI/SNAT Solar's also provide low-frequency FT/FTB, NKH, GS and ES IP54 families in its solar inverter portfolio. FT and NKM support pure sine wave output, settable output voltage and frequency, LCD real time status, RS485/WiFi or RS232 communication options and protection/alarm functions. That makes low frequency options relevant when a buyer has heavier surge loads and wants a transformer-based inverter discussion.
How To Size A Pure Sine Wave Inverter
First list continuous running watts. Second, identify startup surge loads. Third, match battery voltage. Fourth, estimate DC current and heat. Fifth, leave margin for future loads and hot rooms.
For example, a backup panel with a refrigerator, router, lights and a small pump may run below 2 kW most of the time, but the pump and refrigerator can create a short surge. If the inverter is selected only by continuous watts, the buyer may experience random shutdowns. If the inverter is oversized without checking battery capacity, the system may start the load but fail to provide the required backup time.
Financial Value And Trade-Offs
Pure sine wave costs more than basic modified wave products, but the value is not abstract. It can reduce device compatibility complaints, heat, acoustic noise, service calls and premature replacement risk. For a business, the value is measured by avoided interruption. If a cold room, point of sale system, clinic device or communication rack stays stable during an outage, the inverter has protected revenue or service continuity.
Modified wave may still be enough for simple temporary use. The buyer should be honest about the loads. If the load list is only basic lights and nonsensitive chargers, a higher cost hybrid system may not be needed. If the list includes motors, compressors and electronics, pure sine wave is usually the safer engineering choice.
SNADI/SNAT Solar Engineer's Tip
Ask the buyer to send appliance photos or nameplate ratings, not only a total wattage estimate. The waveform question and the surge question are linked. A pure sine wave inverter that is too small still fails; a large inverter with poor waveform can still cause load problems.
Buying Checklist
Check pure sine wave output, continuous rating, surge rating, THD where available, input voltage range, battery voltage, BMS limit, PV voltage window, transfer time, protection functions, cooling, communication and installation environment. For high power systems, require qualified installation and proper DC protection.
Conclusion
When do you need a pure sine wave inverter? Use pure sine wave for sensitive electronics, motors, compressors, medical or communication equipment and solar backup systems where AC quality affects reliability. For SNADI/SNAT Solar, NKH fits practical off-grid hybrid backup, GS fits outdoor scalable hybrid systems, ES IP54 fits protected on/off-grid residential and small commercial use, and low-frequency FT/FTB or NKM options deserve review for surge heavy loads. The right inverter is the one that matches waveform, surge power, battery capacity and the buyer's risk.
✉️Email: marketing@snadi.com.cn
Website:
☎️WhatsApp / WeChat: +86 1803929353
FAQ
It usually means pure sine wave inverter, which produces cleaner AC output closer to utility power than modified sine wave products.
Which loads need pure sine wave power?
Is modified sine wave ever acceptable?
Why can a pure sine wave inverter still fail?
Which SNADI/SNAT inverter fits off-grid backup?
When should GS or ES IP54 be considered?
