A power inverter from DC to AC is often bought after a site loses money during an outage. A shop owner wants lights, POS terminals and a refrigerator to stay on. A farm wants pumps to start without tripping protection. A small factory wants to reduce diesel generator runtime. The wrong inverter can fail all three cases even when the wattage on the box looks high enough.
The U.S. Department of Energy explains that an inverter converts DC input to AC output by rapidly switching the direction of the DC input and using filters or other electronics to form a clean repeating sine wave. That is the basic function, but it is only the starting point. The buyer question is more specific: how much continuous load, how much surge load, what battery voltage, what PV input and what AC waveform does the site need?
Why inverter selection is now a financial decision
The IEA says solar PV capacity is set to more than double between 2025 and 2030 compared with the 2019-2024 period. IEA PVPS says global cumulative installed PV capacity approached 3 TW by the end of 2025, with approximately 698 GW of new PV systems installed in 2025. More solar adoption means more buyers are asking the inverter to do more than convert electricity. It now manages PV input, battery charging, generator support, monitoring, AC load quality and sometimes peak shaving.
For Latin American homes and small businesses, this affects cash flow. If an inverter cannot start a refrigerator compressor, a freezer load or a pump, the buyer still needs diesel backup. If the inverter is oversized without reason, CAPEX rises and the system may run at weak efficiency during light loads. If the inverter is undersized, overload alarms and battery stress shorten the value of the project.
Main inverter types
A modified sine wave inverter can power simple resistive loads, but it may create heat, noise or failure risk for sensitive equipment. A pure sine wave inverter is safer for refrigerators, medical equipment, precision tools, motors, electronics and many commercial loads. An off-grid inverter supports systems without a utility grid. A grid-tied inverter exports or offsets grid power under local rules. A hybrid inverter manages PV, battery, grid or generator inputs and AC loads in one architecture.
SNADI/SNAT Solar lists hybrid, off-grid and low-frequency solar inverters for home, C&I and remote power systems, with 1KW-60KW options. The NKH Series is presented as an off-grid hybrid inverter with integrated MPPT controller and pure sine wave output for residential and off-grid power systems. Local NKH 12KW parameters support discussing 12 kW rated AC output, 24 kVA surge power, 48 V battery voltage, dual MPPT charging, 60-450 V MPPT operating range, 500 V maximum PV open circuit voltage, pure sine wave output, RS232/RS485/CAN interfaces and built in WiFi monitoring.
How to size a power inverter from DC to AC
Start with the load list. Add the running watts of loads that operate at the same time. Then add surge requirements for motors, pumps, compressors and power tools. A refrigerator may run at 300 W but need several times that for a short start. A pump may have an even higher starting spike. Size from the real load sequence, not from all possible appliances switched on at once unless the site truly operates that way.
Battery side current also matters. A 3,000 W AC load on a 48 V battery bank can draw roughly 65-75 A after inverter losses, before surge. A 12 V system at the same AC load draws far more current, creating thicker cable, higher heat and larger protection requirements. That is why small systems may use 12 V or 24 V, while larger solar backup systems often move to 48 V or higher-voltage architectures.
Load or design factor | What to calculate | Why it affects ROI | Buyer risk |
Continuous watts | Simultaneous running load | Avoids paying for idle inverter capacity | Oversizing raises CAPEX |
Surge watts | Motor and compressor starting load | Prevents nuisance trips and generator fallback | Undersizing causes shutdowns |
Battery voltage | DC current at target AC load | Affects cable size and losses | Low voltage can create high-current stress |
Inverter efficiency | Losses at normal load range | Affects battery runtime and solar value | Peak efficiency may not match daily operation |
MPPT window | PV string voltage and current | Determines PV harvest and safe operation | Bad string design can damage equipment |
Solar use: MPPT, battery and monitoring

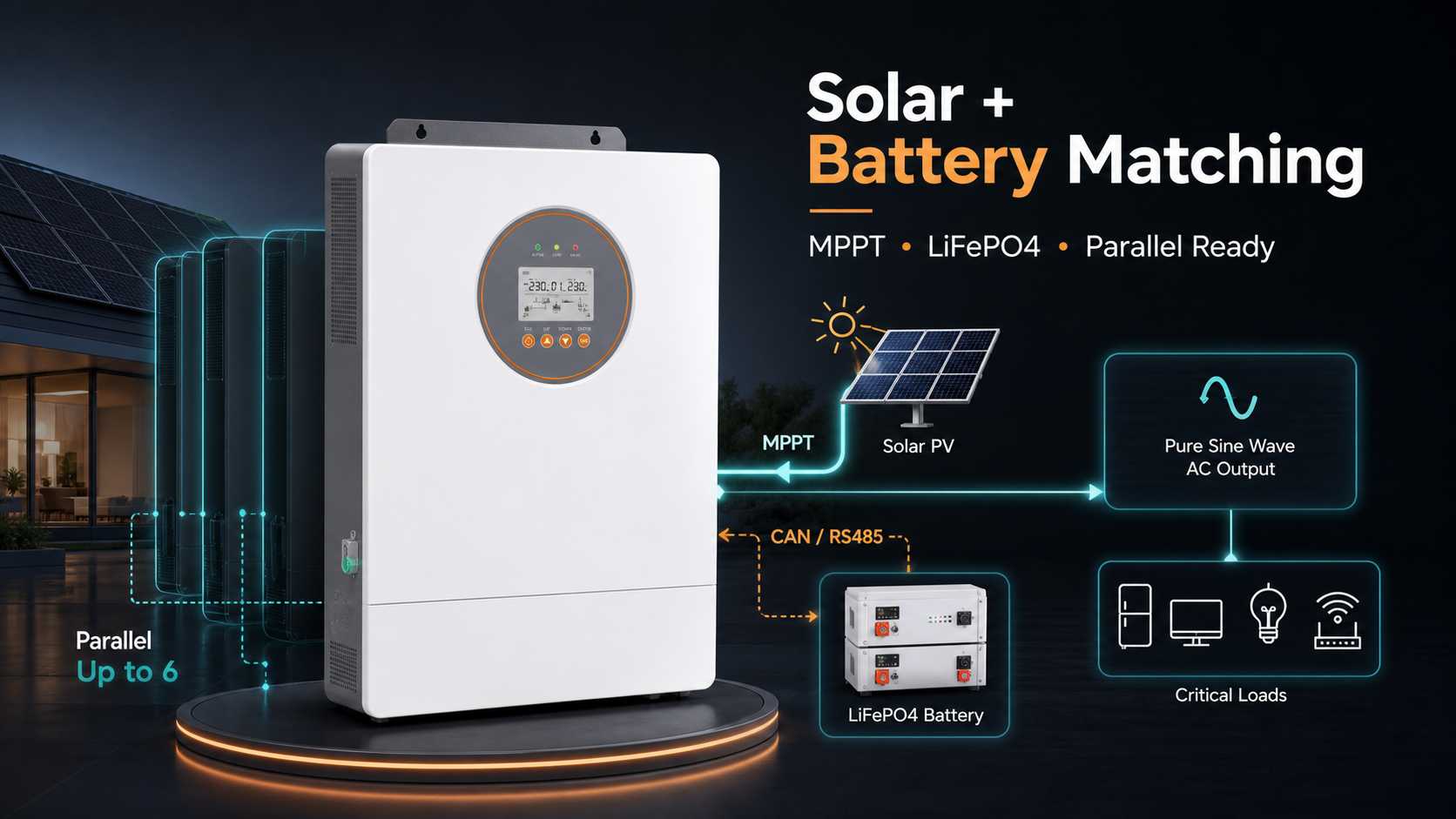

The ES Series is a 6.2KW/12KW hybrid inverter with a 100A MPPT charger, pure sine wave output, battery free operation and parallel scaling up to six units. This kind of inverter can fit a site that wants solar input now and battery operation either now or later. Local ES and AS manuals support checking battery chemistry selection, BMS communication settings, breaker sizing, battery cable torque, polarity, AC input/output separation and qualified installation.
SNADI/SNAT Solar provides BL LiFePO4 batteries in 2.5KWH, 5KWH, 10KWH and 15KWH options for solar energy storage. It supports using RS485/CAN interfaces, BMS protection, current and temperature protection, parallel pack address settings and periodic recharge during storage. For a buyer, that means the inverter and battery should be sold as a configuration, not as two unrelated devices.
Example configuration
A rural clinic may need 1.2 kW of lights, 500 W of refrigeration, 300 W of networking and 800 W of intermittent medical or office loads. The running load may sit near 2-3 kW, but compressor surge and future additions can justify a 5-6 kW inverter. If the clinic needs six hours of backup for selected loads at 2 kW average, the usable battery target is at least 12 kWh before reserve margin and conversion losses. A hybrid inverter plus LiFePO4 battery bank and critical load panel is more defensible than connecting the entire building to one oversized inverter.
For a shop with heavier HVAC or pumps, a low frequency inverter may be considered when surge loads dominate. Local FT low frequency inverter material supports pure sine wave output, adjustable output voltage/frequency, cooling, LCD status display, RS485, dry contact and protection/alarm functions. That product type can fit motor-heavy off-grid or backup applications when surge behavior matters more than compact size.
SNADI/SNAT Solar Engineer's Tip
Ask for the DC current calculation. If a supplier only states "5 kW inverter" but does not show battery voltage, cable size, breaker rating, surge assumptions and runtime target, the sizing is incomplete. AC watts are only half the story.
What buyers should check before choosing
Check waveform, rated power, surge power, battery voltage, PV input voltage, MPPT current, output voltage and frequency, cooling, protection features, communication ports and monitoring. Check whether the inverter can talk to the selected LiFePO4 battery. Check whether the system includes an external DC breaker or fuse, AC breaker, grounding and enough ventilation. Check whether the installer separates critical loads so backup capacity is not wasted on nonpriority circuits.
The trade off is not "bigger is safer." Bigger can mean higher idle consumption, higher battery current and higher upfront cost. Smaller can mean shutdowns, hot cables and poor backup value. The right power inverter from DC to AC is the one that matches the load profile, battery bank, PV array and operating risk.
