Solar lightning risk becomes real after the first storm shutdown. A hotel loses inverter output during peak occupancy. A farm pump system stops after a nearby strike. A small factory sees a monitoring fault and lower PV production after a thunderstorm. The financial loss is not only the damaged device; it is downtime, service travel, replacement delay, spoiled goods and diesel generator use.
Solar lightning protection is not a promise that lightning will never hit a site. It is a layered plan that gives fault current and surge energy a safer route away from PV modules, inverters, batteries, monitoring equipment and building wiring. The U.S. DOE PV weather guide says PV owners should identify and correct known vulnerabilities to reduce life-safety risks and improve performance during severe weather.
Does solar attract lightning?
Solar panels do not create a special attraction field, but PV arrays are exposed electrical equipment. Rooftop arrays sit high on buildings. Ground mounted arrays can cover open land. Long DC cable runs and communication wiring can bring surge energy into equipment rooms. IEA PVPS says global cumulative installed PV capacity approached 3 TW by the end of 2025, with approximately 698 GW of new PV systems installed in 2025. As more rooftops and C&I sites add PV and storage, storm resilience checks become part of asset protection.
Solar lightning damage can happen through a direct strike, a nearby induced surge, utility-side surge, ground potential rise or a communication line surge. The inverter is often the expensive failure point because it connects DC PV strings, battery circuits, AC panels and monitoring lines. Batteries can also be affected if surge paths, BMS communication, grounding and enclosure protection are weak.
Protection layers that matter
Grounding creates a reference and fault path. Bonding connects metal frames, racking, equipment enclosures and electrical components so dangerous voltage differences are reduced. DC-side surge protection devices help clamp surge energy coming from PV strings. AC-side surge protection devices help protect the inverter output and building distribution side. Data-line protection matters because RS485, CAN, Ethernet or monitoring conductors can carry damaging transient energy.
The SNADI/SNAT Solar SCB PV Combiner Box is presented for combining multiple PV strings into a single output, with IP65 protection and lightning safeguards for DC500V/1000V photovoltaic systems. For larger PV arrays, this type of combiner function helps organize string inputs, protection points and maintenance checks. It does not replace site-level grounding and bonding design.
Damage path | Protection layer | What it protects | Operating risk if missing |
Nearby lightning-induced DC surge | DC SPD at array or combiner and inverter input | PV strings and inverter DC side | Inverter fault, hidden module or cable damage |
Utility-side surge | AC SPD at distribution panel | AC output side and connected loads | Load damage and inverter AC board damage |
Ground potential rise | Grounding and bonding | Frames, racks, inverter and battery enclosure | Touch hazard and repeated device failure |
Communication-line surge | Data-line surge protection and cable routing | RS485/CAN/WiFi gateways and monitoring | Loss of monitoring and BMS communication faults |
Direct strike exposure | Lightning protection specialist design | Building, roof and array area | Fire, structural damage and extended outage |
Inverter and battery protection
SNADI/SNAT Solar lists hybrid, off-grid and low-frequency solar inverters for home, C&I and remote power systems, with 1KW-60KW options. The ES Series is listed as a 6.2KW/12KW hybrid inverter with a 100A MPPT charger, pure sine wave output, battery free operation and parallel scaling up to six units.

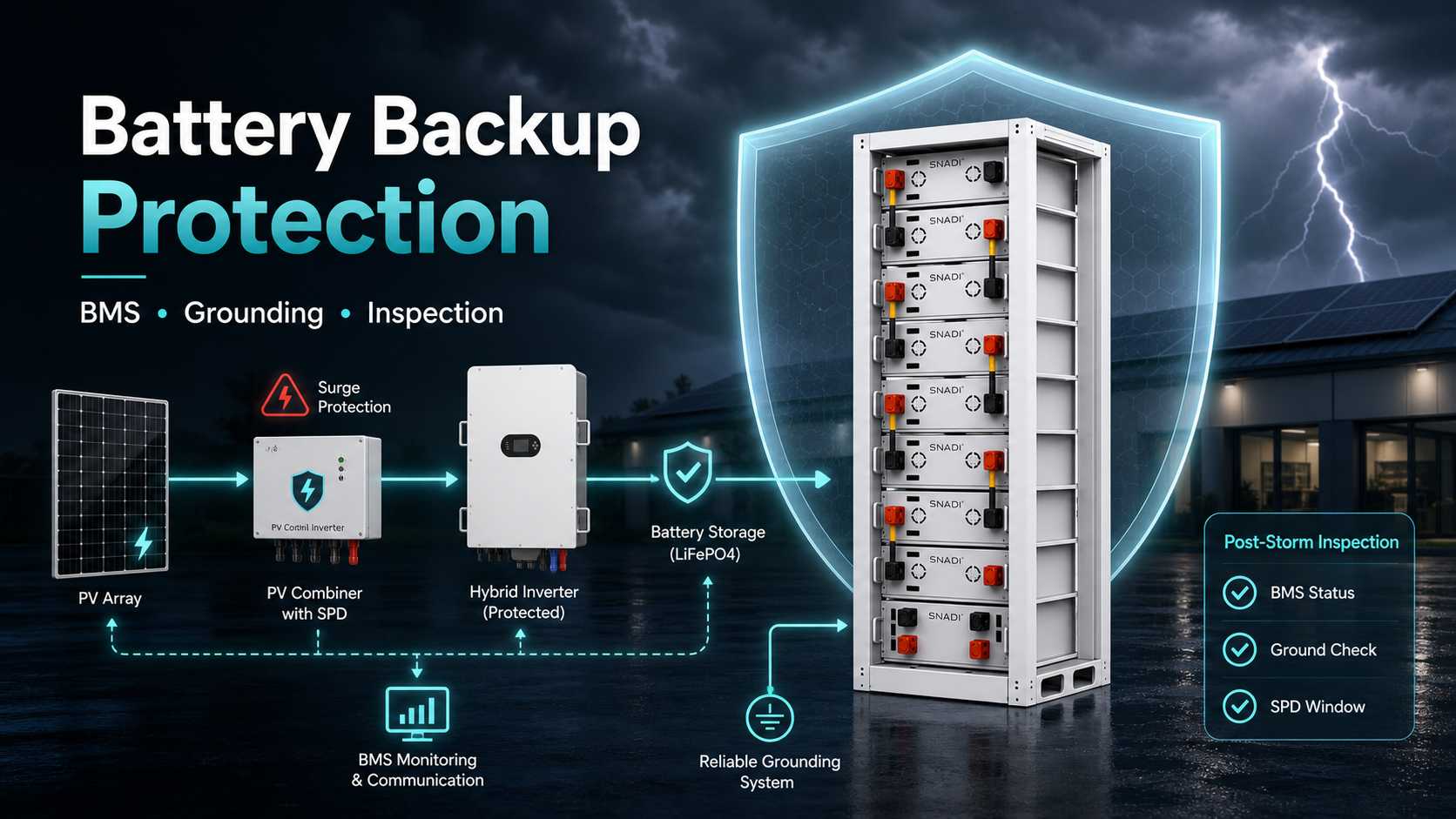

SNADI/SNAT Solar BL LiFePO4 batteries support BMS protection for voltage, current, temperature and short circuit conditions, plus RS485/CAN communication interfaces and parallel pack addressing. In storm prone areas, battery protection is not only about cell chemistry; it also depends on enclosure location, cable routing, communication protection, grounding and service procedures.
Commercial and off-grid scenarios
A rooftop hotel may need DC surge protection near the combiner, AC surge protection at the main panel, bonding across module frames and a post storm inspection plan for inverters and battery cabinets. A farm pump system may need attention to long cable runs, exposed structures and grounding electrode quality. A telecom or clinic backup system may need data line protection because loss of battery communication can shut down the system even when the battery cells are not damaged.
NREL storm guidance says prestorm checklist items also serve as regular or annual maintenance practices to reduce PV system vulnerability to weather events.That point is practical for C&I buyers because protection devices age, connections corrode and roof work can disturb bonding jumpers. A surge protection plan that is never inspected becomes a paper plan.
Post-storm inspection checklist
After a storm, do not touch damaged PV equipment until a qualified person checks the site. Look for broken glass, burned junction boxes, damaged conduits, loose racking, water ingress, inverter faults, battery alarms and SPD status windows. Compare monitoring data before and after the storm. A sudden production drop can indicate string damage even when the array looks intact from the ground.
For sites with batteries, record state of charge, BMS alarms, inverter faults and communication status. If the inverter shows repeated DC bus, insulation, overvoltage or communication faults, isolate the system according to the installation manual and local electrical rules. Do not reset alarms repeatedly without checking the cause.
SNADI/SNAT Solar Engineer's Tip

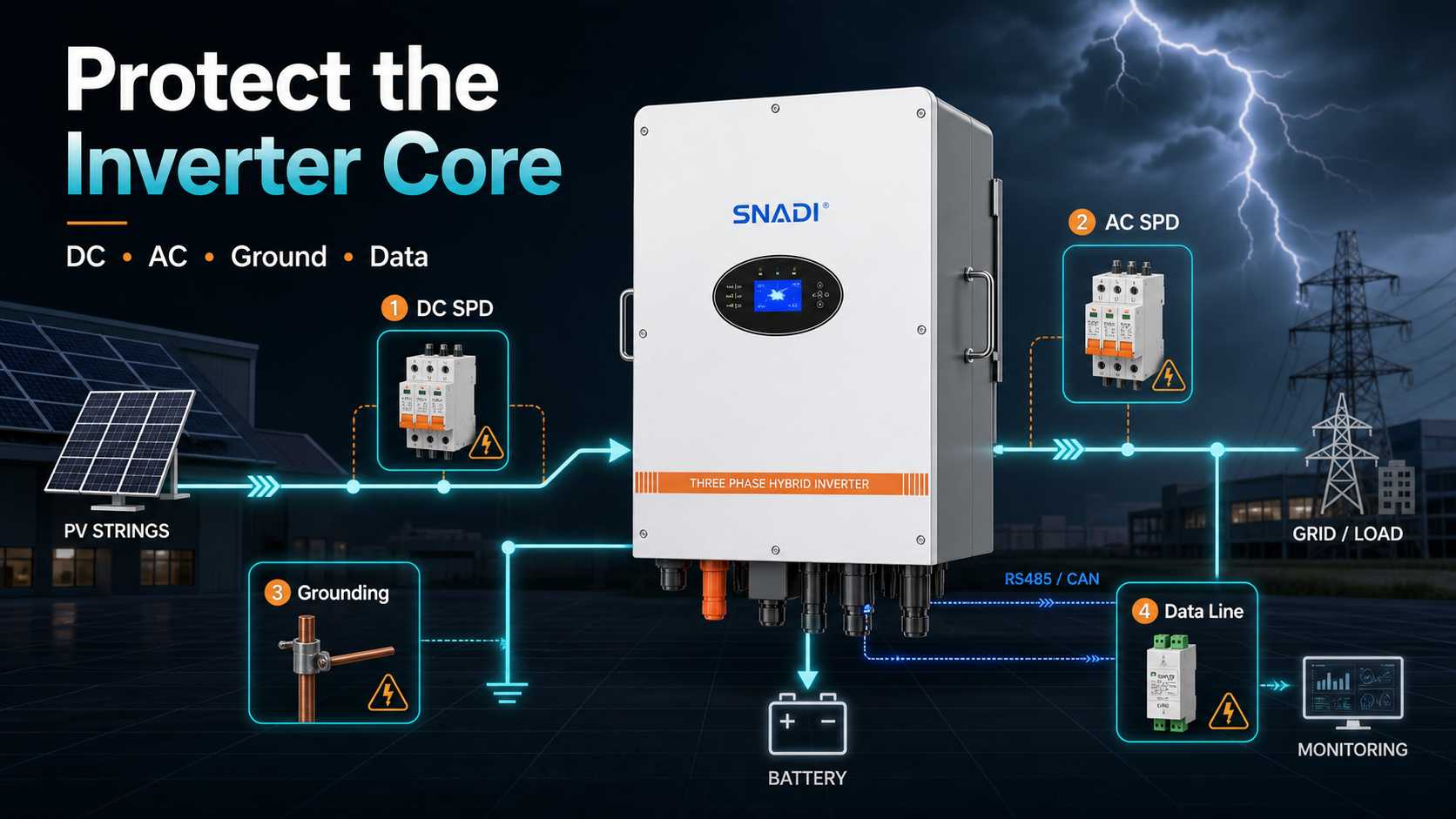

Install surge protection where energy enters the equipment, not only where it is convenient. For a PV plus storage system, check DC string entry, inverter DC input, AC distribution, generator input if used and communication lines. SPD performance depends on short leads, proper grounding and a low impedance path.
What buyers should check before choosing a protection plan
Ask whether the quote includes DC side SPD, AC side SPD, grounding electrode review, bonding inspection, data-line protection, weatherproof combiner boxes, inverter room surge strategy and post-storm service response. Ask whether the installer follows local electrical code and whether a lightning protection specialist is needed for tall, exposed, high value or insurance sensitive buildings.
A small residential system may need a simpler grounding and surge review. A cold storage site, clinic, hotel or farm irrigation system may justify stronger protection because the cost of one inverter failure or one spoiled product batch can exceed the cost of planned protection. Solar lightning protection is an operating risk decision, not only an electrical accessory.
