The controller screen shows a solar icon and a believable PV voltage, yet battery charge stays at zero. Buying a larger controller feels like a quick answer. Changing the battery profile feels even quicker. Neither action tells you whether the array has usable power, whether the battery can accept charge, or whether a protection device has opened the circuit.
A solar charger controller, manages DC energy between a PV array and a battery. It regulates charging within the electrical limits and settings of the array, controller, and battery. It does not replace the battery management system, an inverter, DC protection, or a qualified installation review.
The practical question is therefore not only what the controller does. It is which observation and rating can explain the symptom without creating another risk. The sequence below helps a buyer collect useful evidence, reject an incompatible design, and know when remote diagnosis should stop.
Start With the Symptom, Not the Product Catalog
Begin with information that can be read without opening equipment or touching live conductors. Record the exact controller model, time, weather, PV voltage, battery voltage, charging current, operating stage, temperature, and alarm code. A single zero value says little. A group of readings taken at the same moment gives a supplier or installer a starting point.
Stop operating the equipment when there is smoke, a burned smell, water entry, melted insulation, exposed conductor, unusual heat, repeated protection action, or an unfamiliar battery alarm. Photograph the display and labels from a safe position, then contact qualified support.
Real user discussions often jump straight from a zero charging value to a suspected controller failure. The same symptom can also follow a poor battery connection, an open protective device, a battery management restriction, weak PV conditions, or a setting that does not match the battery. Replacing the controller before separating these categories can add CAPEX while leaving the original fault in place.
Visible symptom | First information to check | Why it matters |
No PV reading | Weather, array isolation status, protection indication, and exact error code | The controller may have no available input or may be in protection |
PV voltage but no charging current | Battery voltage, battery state, charge stage, temperature, and alarm history | The battery may be full, limited, disconnected, or outside an allowed condition |
Charging stops too early | Battery profile, voltage at controller and battery terminals, and load changes | A setting, voltage difference, or battery protection event may be involved |
Controller runs hot or alarms | Installation location, ventilation, load history, and manual limit | Thermal protection or a site condition may be restricting operation |
Nighttime battery drain appears unusual | Controller log, other DC loads, inverter standby use, and battery monitor data | The controller may not be the only path drawing energy |
Trace the Power Path Before Blaming the Controller

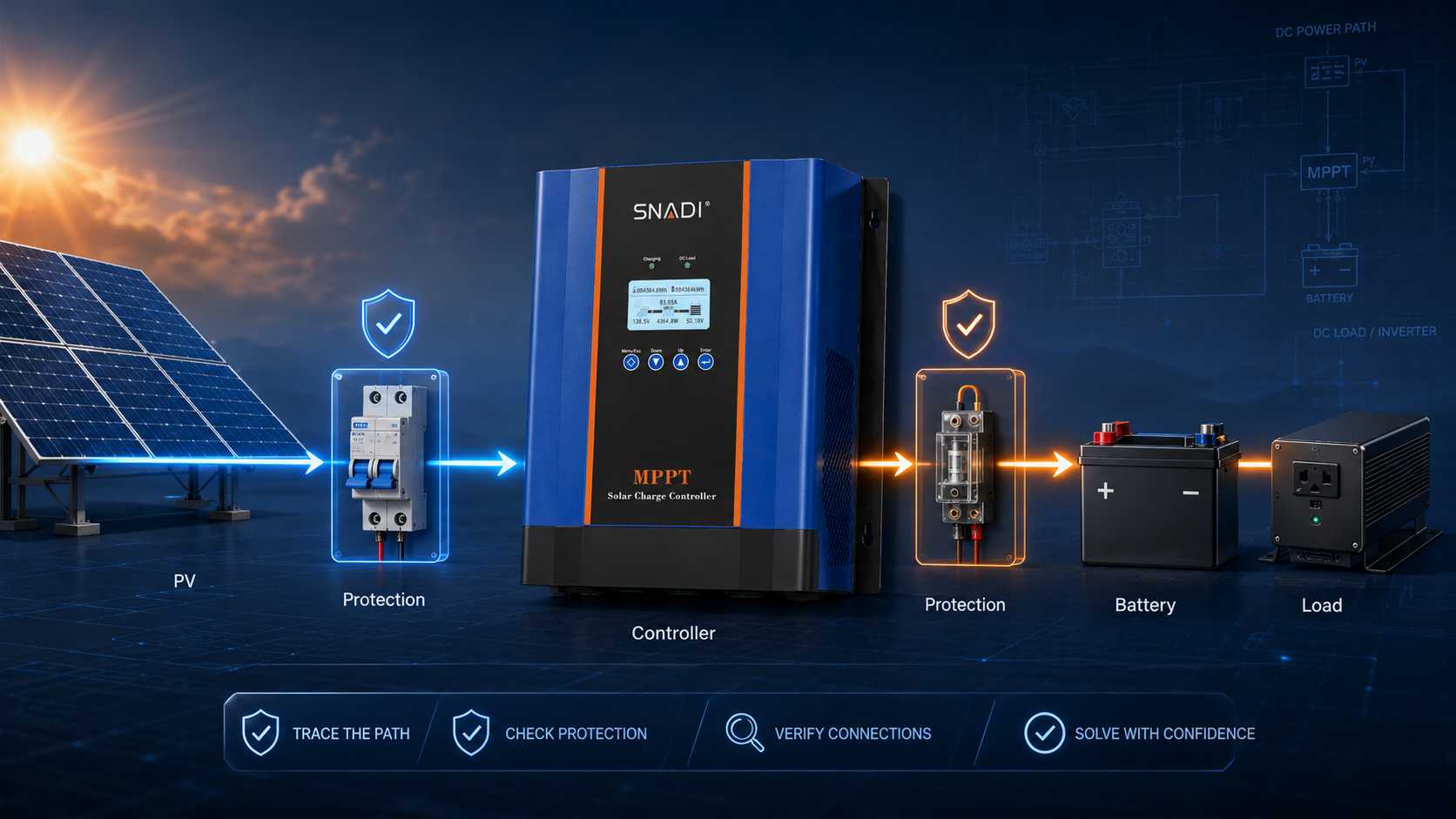

Write the system as one line: PV array, DC isolation and overcurrent protection, charge controller, battery protection, battery, and then DC loads or an inverter. A standalone solar battery charge controller belongs between the array and battery. Household AC loads normally receive power through an inverter, not through a controller load terminal.
This simple diagram prevents three common purchasing errors. First, a hybrid inverter already contain one or more MPPT inputs, so another standalone controller could duplicate a function. Second, a battery management system protects cells and can restrict charging, but it does not replace the external controller. Third, a controller display can report a local terminal value that differs from the value at the battery when a connection, cable, or protective device introduces a problem.
Ask the installer or supplier to mark every component that can interrupt charging. That list include an array disconnect, fuse, breaker, battery contactor, battery management command, controller protection state, or configured charge limit. The list is more useful than changing several settings at once because it preserves a clear cause and effect path.

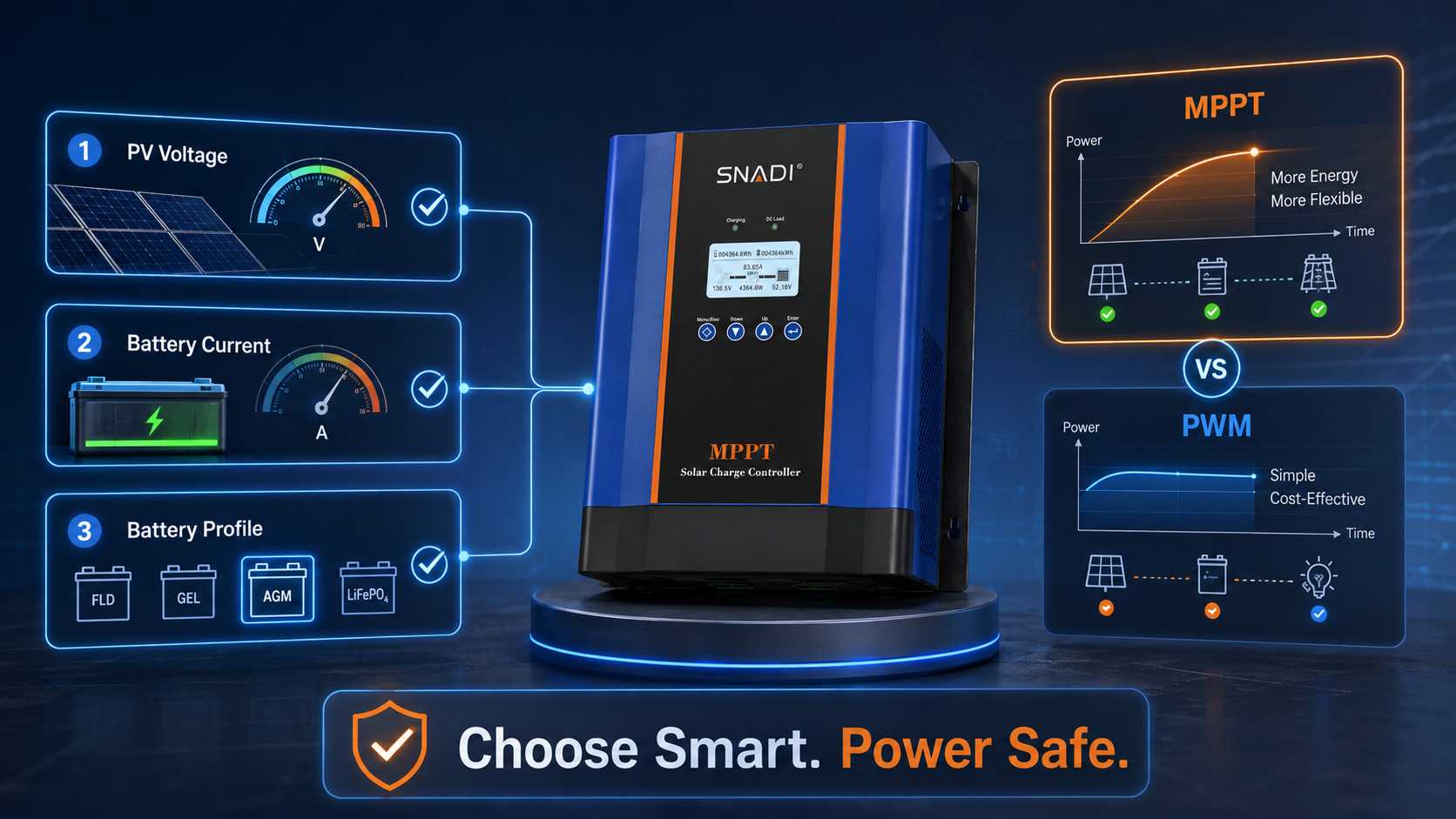

Pass Three Rating Gates Before Comparing MPPT and PWM
Gate One: PV Input Voltage Is a Boundary
Collect module Voc, module Vmp, the number of modules in series, the controller maximum PV input voltage, and the MPPT operating range. These figures answer different questions. Maximum input voltage is a boundary. The operating range is where tracking is designed to work. Vmp is a module operating value, while Voc represents an open circuit condition.
Temperature belongs in this check because module voltage can change as cell temperature changes. A string that appears acceptable from a warm weather label comparison may need a different conclusion under the design method required for the coldest expected condition. Do not treat the controller maximum as a target. Use the current module data sheet, controller manual, site conditions, and local design method.
Gate Two: Charging Current and Battery Voltage Answer Different Questions
The ampere rating usually describes the battery charging side, while the PV input has its own voltage and current conditions. Where a 75 by 15 model denotes 75 V maximum PV voltage and 15 A maximum battery charging current. The naming rule belongs to those models, but the wider lesson applies to every quotation: identify which terminals and operating condition each number describes.
A controller able to deliver more current does not mean the battery should accept that current. Battery manufacturer limits, cable design, protective devices, temperature, and the battery management system may set a lower ceiling. For solar charge controller sizing, the lowest applicable system limit governs the decision.
Gate Three: Battery Profile and Temperature Must Agree
Battery chemistry is not a menu label to guess from appearance. Lead acid charging may require bulk, absorption, float, equalization, and temperature compensation behavior according to the battery manufacturer. Lithium batteries may require different voltage limits, charge termination behavior, temperature restrictions, and communication support.
IEC 62509 applies minimum functioning and performance requirements to photovoltaic charge controllers used with lead acid batteries. That specific scope is a useful warning for procurement: a standard reference for one chemistry does not prove support for another chemistry. Lithium use must be confirmed by the exact controller documentation and battery requirements. See IEC 62509 scope for the supporting scope and technical context.
Before requesting a final controller model, send the supplier the module data sheet, proposed series and parallel arrangement, battery data sheet, battery management communication requirement, site temperature range, cable distance, and a system block diagram. This package is far more valuable than panel wattage alone.
Choose MPPT or PWM for System Fit
PWM and MPPT describe different ways of controlling the relationship between PV and battery voltage. A PWM controller connects the array more directly to the battery during charging, so array operation is pulled toward battery voltage. This can suit a small, intentionally matched system with modest energy demand and a strong reason to control equipment cost.
An MPPT solar charge controller uses DC conversion to let the array operate at a different voltage from the battery while it manages charging output. Sandia and IEA PVPS note that maximum power voltage varies with irradiance and temperature and that an MPPT algorithm adjusts voltage to seek maximum power. This supports a conditional benefit, not one fixed energy gain for every site.
Decision factor | PWM is more likely to fit when | MPPT is more likely to fit when |
PV and battery voltage relationship | The system is deliberately matched and confirmed by manuals | The array operates at a meaningfully higher voltage within controller limits |
Energy value | Daily demand is low and some missed PV opportunity has little operating cost | Limited roof area or backup demand makes charging opportunity valuable |
Cable route | The PV cable path is short and low voltage current is manageable | A higher PV operating voltage supports a practical cable design |
Budget and service | Lower controller CAPEX matters most and the design remains compatible | Added control, monitoring, and energy capture can reduce operating risk |
Growth plan | The system is fixed and small | Future array or battery changes are planned and documented |
The financial comparison should include more than purchase price. A lower cost PWM design can be sensible for a small matched battery system. It can also create higher OPEX if lost charging opportunity leads to generator use or leaves insufficient reserve after an outage. An MPPT controller costs more and adds configuration work, yet that cost may be justified where energy recovery, cable routing, monitoring, or expansion has measurable value.
Place the CM Controller
For a system designed around a separate controller, we use the SNADI/SNAT Solar CM MPPT Solar Charging Controller as the relevant product family. We lists CM 30A, 40A, 50A, 60A, 80A, and 100A choices. It also publishes different MPPT operating ranges and maximum panel input power values for 12 V, 24 V, and 48 V battery systems.
The same CM model can have different published panel power guidance as battery system voltage changes. The buyer still needs to confirm array Voc under design conditions, Vmp, string arrangement, battery chemistry, allowed charge current, communication needs, enclosure conditions, and the current manual revision.
The CM family fits when a standalone MPPT stage is part of the planned DC battery architecture. It may not be the right addition when a hybrid inverter already contains suitable MPPT inputs. In that case, check the integrated inverter limits and supported battery architecture before adding another charging path.
Turn Monitoring Into an Escalation Decision
Monitoring should produce a support package, not confidence to work on live DC equipment. Record the controller model and serial number, manual revision, date and time, weather, PV voltage, battery voltage, charge current, charge stage, controller temperature, error code, recent setting changes, and clear label photographs.
Use that package to choose one of three paths. A documented setting that is clearly within the manual may be reviewed with supplier support. A firmware, battery communication, or compatibility question belongs with the equipment suppliers. Repeated trips, damaged wiring, abnormal heat, water exposure, protection problems, or unexplained voltage differences require qualified onsite inspection.
Avoid repeated resets and random profile changes. They can remove useful evidence and introduce a second fault. A disciplined record shortens support time, protects warranty discussions, and helps the technician decide which tools and replacement parts may be needed before arriving.
Conclusion
A solar charger controler decision becomes safer when the symptom is separated from the product choice. First capture the readings. Then trace the power path. Pass the PV voltage, battery current, and battery profile gates before comparing MPPT with PWM or selecting a model.
For a standalone charging architecture, send our engineering team the PV module data sheet, string plan, battery data sheet, site temperature range, cable distance, and system block diagram. We can review whether the CM MPPT Solar Charging Controller belongs in the design and identify the model questions that must be resolved before installation.
