How Many RV Solar Panels Do I Need for My RV?

A 400W RV solar kit can look perfectly adequate on a quotation. Then the customer connects a refrigerator, laptop, water pump, coffee maker and air conditioner and discovers that the real limitation was never the panel rating.

The mistake is easy to make because panel wattage is the number buyers see first. But a 400W array tells you almost nothing about overnight runtime or whether an air conditioner will start. A practical RV solar system has to be sized around daily energy use, battery storage, inverter output, appliance surge power, usable roof area and the solar conditions the vehicle will actually see.

For distributors and installers in Latin America, bad sizing shows up later as a commercial problem. If the system is too small, the customer may still need the generator every evening or return asking why the battery runs flat. If it is too large, the buyer pays for panels and storage that spend most of their life unused.

The right question is therefore not simply, 'How many solar panels for RV use should I buy?'

It is: How much energy does the RV need each day, how long must it run without another charging source, and how quickly must solar replace that energy?

Start With Your Daily Energy Use, Not Panel Wattage

Before choosing an RV solar kit, make a load sheet.

For every appliance, record:

• running watts

• expected hours of use per day

• starting or surge power where applicable

• whether the load is necessary or optional

Daily energy is calculated in watt-hours:

Power in watts × operating hours = watt-hours per day

Consider this sample RV load profile:

These are planning examples. Actual refrigerator duty cycles, electronics consumption and pump use should be measured or taken from the manufacturer's specifications.

Separate critical loads from comfort loads

An RV refrigerator, lighting and communication equipment belong in a different design category from air conditioning or electric cooking.

Suppose an air conditioner draws 1,200W while running for four hours. That alone represents:

1,200W × 4 hours = 4,800Wh

That single appliance consumes more than four times the entire daily energy budget in the example above.

This is why buyers should define two groups:

Critical loads: refrigerator, lighting, phones, router, water pump and work equipment.

Comfort loads: air conditioning, microwave ovens, electric kettles, induction cooking and other high power appliances.

Size the dependable part of the RV solar setup around the critical loads first. Then calculate whether the comfort loads justify more battery capacity, more inverter power and a larger PV array.

How Many RV Solar Panels Do You Need?

Once the daily load is on paper, panel sizing stops being a guess.

A useful planning formula is:

Required PV watts = Daily Wh ÷ peak sun hours ÷ system yield

Assume an RV needs 1,150Wh per day, receives an illustrative 4.5 peak sun hours at its parking location and the designer uses a 75% planning yield to account for temperature, wiring, controller, orientation and other real world losses.

The calculation becomes:

1,150 ÷ 4.5 ÷ 0.75 ≈ 341W

In that case, starting the design around a 400W array makes more sense than selling a 200W package simply because it is cheaper or already in stock.

Latin America covers very different solar conditions, elevations, climates and travel seasons. A buyer traveling through several countries should not size an RV solar power system around the best sunny day of the year.

Roof shading matters as well. Airconditioning housings, roof vents, antennas and luggage can reduce useful production even when the regional solar resource is strong.

For an RV that changes location, season and parking orientation, a question is:

What solar capacity can recover yesterday's critical load consumption under the conditions the vehicle is likely to encounter?

How Much RV Solar Battery Capacity Do You Need?

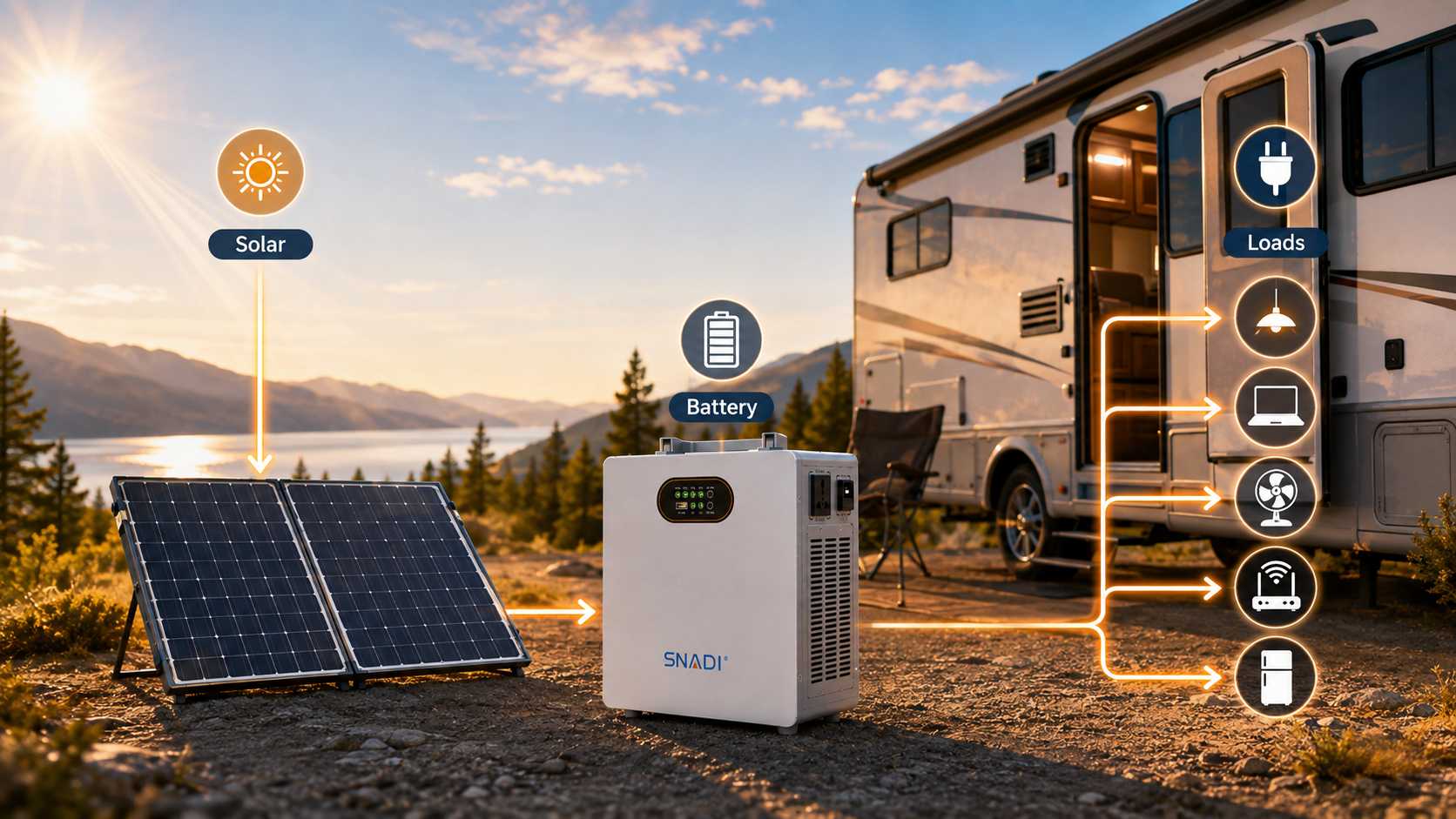

Solar panels determine how quickly energy can be replenished. The RV solar battery determines how long loads can continue running when there is no useful solar production.

Take the same 1,150Wh/day load.

A designer wants roughly 1.2 days of stored critical-load energy:

1,150Wh × 1.2 = 1,380Wh usable storage

The nominal battery capacity then needs to be higher than 1,380Wh because usable depth of discharge, conversion losses, battery protection settings and reserve requirements must be considered.

For example, if a project is deliberately designed around an 80% usable energy window:

1,380Wh ÷ 0.80 = 1,725Wh nominal battery capacity

This does not make 1.7kWh a default battery size. It simply shows why runtime should be calculated before choosing a familiar 100Ah or 200Ah battery label.

A 100Ah battery at 12.8V and a 100Ah battery at 25.6V have the same amp hour rating, but the second stores twice the nominal energy.

Watt hours or kilowatt hours make different system voltages easier to compare.

What Size RV Solar Inverter Should You Choose?

Battery capacity and inverter power solve different problems.

A RV solar inverter determines which AC loads can operate. Battery capacity determines how long they can operate.

If the largest simultaneous AC loads total 700W, a 500W inverter clearly cannot supply them. But jumping directly to a 3kW inverter does not solve the problem either if the battery, cables and protection devices were designed for a much smaller current.

Two numbers need attention:

Continuous power is the power the inverter can supply during normal operation.

Starting or surge power is the short-duration demand created by some compressors, pumps and motors when they start.

A refrigerator compressor, airconditioning compressor or certain power tools can therefore require more inverter headroom than their normal running wattage suggests.

The inverter wattage is easy to compare, so it becomes the headline number. Battery energy, surge demand and expected runtime are often left in the background even though they determine whether the system will actually work for the customer's load.

A technically sound quotation should show all three:

daily Wh + peak/surge W + desired backup hours.

SNADI/SNAT Solar Engineer's Tip:

Never select the inverter before identifying the hardest load to start. Then check whether the battery and DC cabling can supply the required current. A larger inverter attached to an undersized battery system simply moves the bottleneck somewhere else.

How to Size an RV Solar Charge Controller

The RV solar charge controller is not selected only by panel wattage.

The designer needs to check:

• battery system voltage

• solar array open circuit voltage

• controller PV voltage range

• maximum PV current

• maximum accepted solar input power

• low temperature PV voltage

• series or parallel array configuration

This is particularly relevant with portable power stations where the controller is already built into the product.

For example, SNADI/SNAT's current MS Series Portable Energy Storage Power Station integrated MPPT solar charging, pure sine wave output and a portable product range marketed at 300W, 500W and 1000W. Its show an 11–55VDC PV input range, with listed maximum PV input ratings varying by model, including 300W and 550W configurations.

That means a buyer cannot simply connect any combination of panels whose total wattage looks acceptable. Panel voltage and current must also stay within the selected unit's input window.

Always verify the final model datasheet before ordering panels.

Portable Power Station or Fixed RV Solar System?

Portable and fixed RV solar systems solve different problems, so the cheaper option at purchase is not always the cheaper option to own.

A portable power station can be the practical choice for a customer who wants to charge laptops, phones, lights or small tools without modifying the vehicle. Someone living off-grid for long periods, especially with refrigeration or larger AC loads, get better value from a fixed battery, inverter and roof mounted PV system because the system can be sized and serviced component by component.

Compare the systems by what they cost to own.

A low priced system is not really cheap if the customer still burns generator fuel every night. The opposite mistake is just as real: several kilowatt-hours of battery storage make little financial sense for a customer who spends most nights connected to shore power.

Why System Economics Matter in Latin America

RV buyers do not usually justify solar with the same payback model used for a commercial rooftop system. The money is more often tied to fuel, campground hookups, travel disruption and the value of having power where the grid is unavailable or unreliable.

For an RV user, the avoided costs can include:

• generator fuel

• generator servicing

• paid electrical hookups

• travel detours to obtain power

• interruptions to remote work

• replacement costs created by poor system matching

Grid reliability also shapes buyer expectations in the region. A 2025 World Bank analysis found that 53.3% of surveyed firms in Latin America and the Caribbean reported experiencing an electrical outage, while 32.7% considered electricity a major or very severe obstacle. These figures refer to businesses rather than RV users, but they help explain why mobile and backup electricity can carry economic value beyond electricity-price savings.

Battery storage has also become far cheaper at the global system level. IRENA reports that utility-scale battery storage costs fell from USD 2,571/kWh in 2010 to USD 192/kWh in 2024, a 93% reduction. That figure is not an RV battery price and should not be used as one. It does, however, show how quickly the economics of storing electricity have changed.

For an RV buyer, peak shaving is usually the wrong ROI lens. More useful questions are: How many generator hours can be avoided? How many hours can the refrigerator and work equipment run? How many days can the vehicle stay off-grid before another charging source is needed? What does a power interruption cost if the RV is also being used as a mobile workspace?

Where the SNADI MS Series Fits

The SNADI/SNAT MS Series Portable Energy Storage Power Station is positioned for portable and emergency applications and is currently offered across a 300W–1000W product range. MS portable power station has  lithium battery technology, pure sine wave AC output, integrated MPPT charging, AC/DC/USB outputs, status monitoring and electrical protection functions.

For an RV, that makes the product class more relevant to selected loads such as:

• laptops

• phones

• lighting

• routers

• fans

• communication equipment

• small mobile tools

• short-duration AC loads within the selected model's rating

Knowing when not to specify a portable unit matters. If the requirement includes several hours of air conditioning, electric cooking or other sustained high-power appliances, should move toward a larger battery bank, suitable RV solar inverter, properly engineered PV input and dedicated protection hardware.

Common RV Solar Sizing Mistakes

The first mistake is buying panels before calculating the load.

The second is assuming sunny weather eliminates the need for battery storage.

The third is selecting an RV solar inverter by its wattage while ignoring battery current and runtime.

The fourth is treating a 1,000W coffee maker and a 1,000W compressor load as electrically identical.

The fifth is ignoring shade from equipment already mounted on the roof.

The sixth is combining solar panels without checking PV voltage against the controller's maximum input.

One of the costliest mistakes is sizing for an imagined use case instead of the real one. A weekend traveler charging phones and lights, a remote worker running a laptop and router all day, and a full-time boondocker using refrigeration and AC loads should not receive the same RV solar setup.

Choosing RV Solar Panels Around the Loads You Actually Use

Good RV solar panels cannot compensate for a poorly sized battery, an undersized inverter or unrealistic expectations about air-conditioning runtime.

Start with the load sheet. Calculate daily watt-hours. Decide how long those loads must operate without charging. Match the RV solar battery to that runtime, the inverter to continuous and starting power, and the panels to the energy that needs to be recovered each day.

For lighter mobile loads, the SNADI/SNAT MS Series Portable Energy Storage Power Station can provide a compact starting point, with pure sine wave output and integrated MPPT solar charging. Larger comfort loads call for a properly designed fixed system rather than forcing a portable unit outside its intended operating range.

If you are evaluating an RV project, prepare the appliance list, running watts, operating hours, peak load, required backup time and available PV area before requesting a quotation. Those six inputs will tell an engineer far more than the question, 'How many solar panels can fit on the roof?'
