An MPPT charge controller is a DC power conversion and battery charging device installed between a photovoltaic array and a battery. It searches for an array operating point that can deliver the most available power under current conditions, then converts that input into controlled charging output. The array, controller, and battery limits still define what is safe and usable.
The device is not an inverter because it does not create AC for ordinary building loads. It is not a battery management system because it does not monitor individual cells inside the battery pack. It also cannot make any panel compatible with any battery. Its practical value depends on array voltage, battery voltage, weather, cable route, charge requirements, and the selected model.
The Controller Boundary

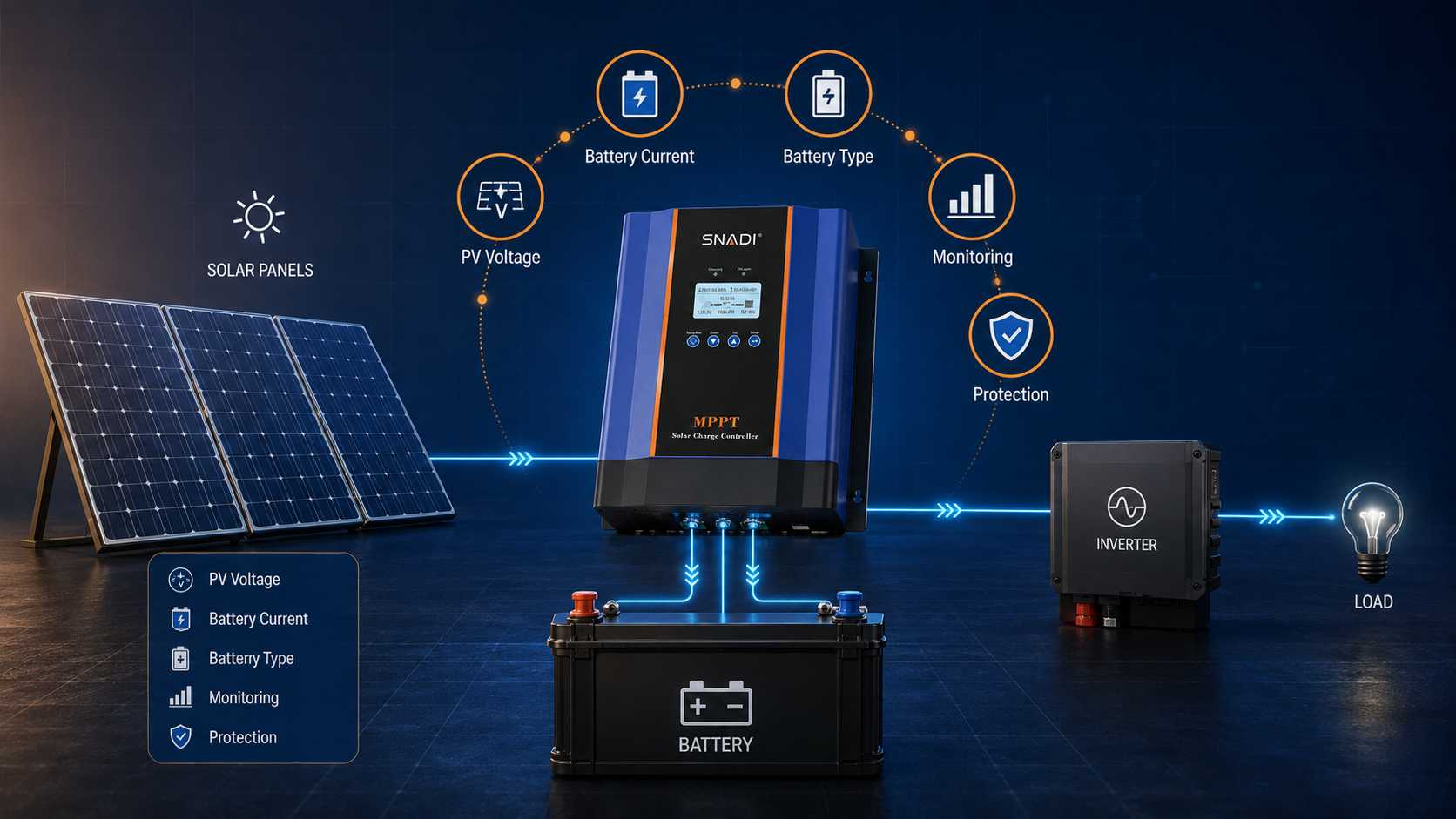

An MPPT solar charge controller has two connected responsibilities. On the PV side, it changes the operating point presented to the modules and searches for a useful combination of voltage and current. On the battery side, it regulates charging according to the selected profile and the power available from the array.

An inverter is still required when the battery must supply AC appliances. The battery management system remains responsible for cell level protection and internal pack conditions. These devices may exchange information in a designed system, but one cannot silently replace another.
Some hybrid inverters already include an MPPT stage. Adding a separate controller without checking the system architecture can duplicate equipment or create an unsupported connection. Start with a block diagram showing modules, controller, battery, inverter, loads, and any generator or grid input. Mark which functions are integrated before shopping by ampere rating.
How Maximum Power Point Tracking Responds to the Array
The Best Operating Point Moves

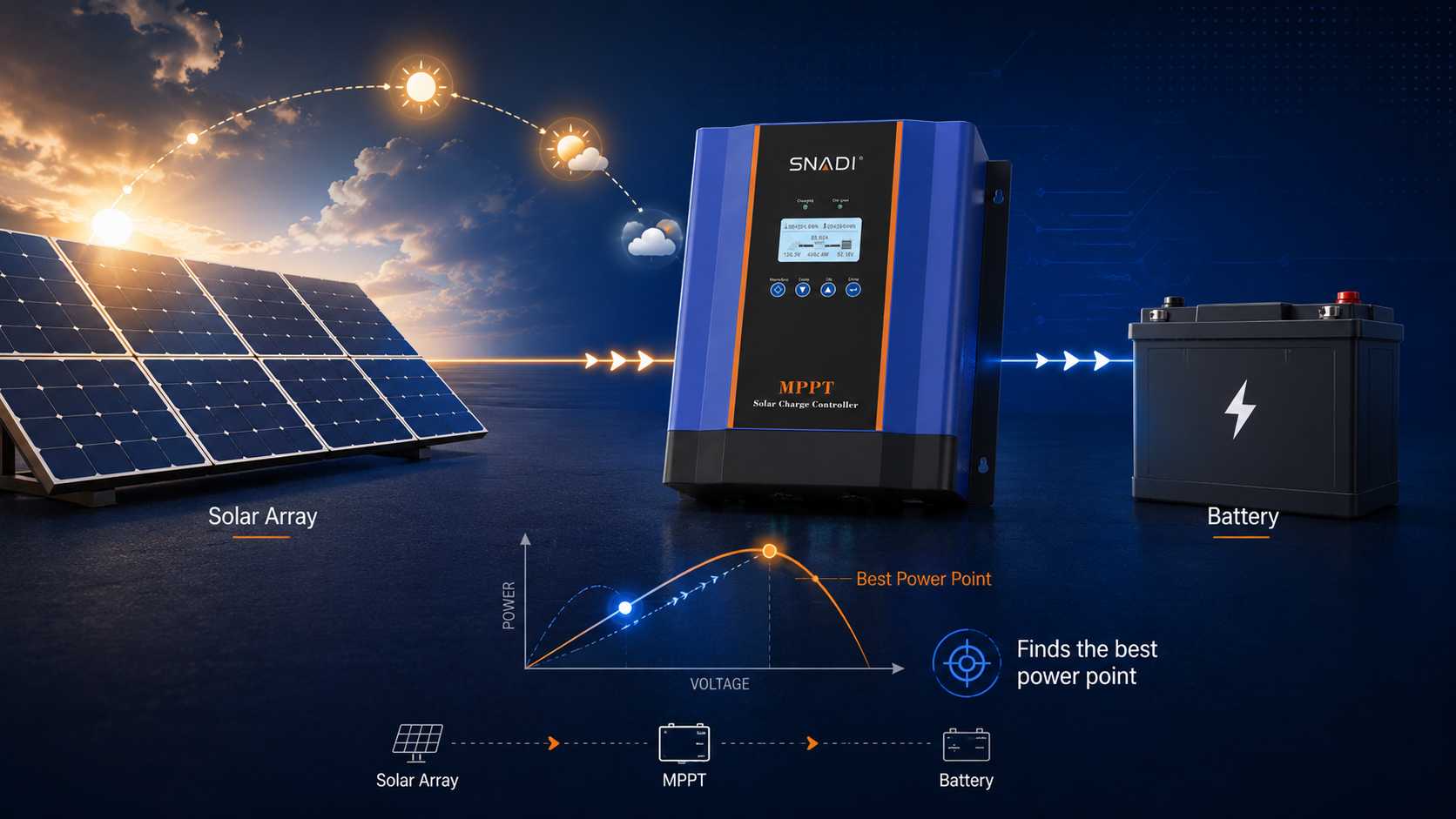

A PV module does not offer the same voltage and current combination throughout the day. Irradiance, cell temperature, and shading change its current voltage curve. The maximum power point is the location on that curve where voltage multiplied by current is highest at that moment.

A National Renewable Energy Laboratory field study found that the maximum power point voltage of one array shifted with irradiance and cell temperature. The result should not be converted into a promised percentage for another site. It supports a narrower engineering point: a fixed operating voltage can miss the best available point as conditions change.
The DC Conversion Stage Changes Voltage and Current
An MPPT controller measures PV behavior, adjusts the load seen by the array, and uses a DC conversion stage to provide suitable charging output. A higher PV input voltage can be converted toward a lower battery charging voltage while available power appears as a different current on the battery side, after conversion loss and control limits.
PV input current and battery charging current are therefore not the same rating. The controller label must be read by electrical side. Power remains constrained by the array, conversion performance, controller rating, and battery acceptance. MPPT rearranges voltage and current within those boundaries. It does not create energy.
Battery Charging Rules Set the Destination
Finding available PV power is only half the task. The controller must also limit and shape charging for the connected battery. Battery chemistry, nominal voltage, temperature requirements, charge current, and manufacturer instructions determine the acceptable destination.
Decode Every Rating by Electrical Side
The most useful approach to MPPT controller sizing is to create a rating map before making calculations. In 100/30, 100 V is the maximum PV voltage and 30 A is the maximum battery charging current. These figures describe opposite sides of the controller.
Field to collect | Electrical side | What it tells the buyer | Final verification source |
Module open circuit voltage and temperature coefficient | PV | Possible open circuit voltage as conditions change | Current module data sheet and design review |
Module maximum power voltage and array arrangement | PV | Expected operating voltage and series relationship | Array schedule and controller manual |
Maximum PV input voltage | Controller input | Absolute boundary the designed array must not cross | Exact controller model manual |
MPPT operating range | Controller input | Window in which tracking is intended to operate | Exact controller model manual |
Maximum charging current | Battery output | Highest controlled current available to the battery side | Controller manual and battery requirements |
Battery voltage and chemistry | Battery | Charging profile and compatibility basis | Battery manual and supported configuration list |
Do not use the maximum PV voltage as a normal design target. Module open circuit voltage changes with temperature, and an array includes modules in series and parallel. A qualified designer must check the current module data, exact controller manual, site temperature, string arrangement, and local electrical requirements.
Battery current needs equal care. A controller capable of a stated current does not mean every battery should receive it. The battery manufacturer, battery management system, cable, fuse, and conductor temperature can impose lower limits. The usable system value is the lowest applicable limit, not the largest number on a product page.
Choose MPPT or PWM From Voltage Fit and Operating Value
A PWM controller connects the array and battery more directly during charging, so array operation is pulled closer to battery voltage. This can be acceptable in a small system designed around compatible voltage relationships. It can also leave available module power unused when array maximum power voltage is meaningfully higher than battery charging voltage.
An MPPT controller separates those operating voltages through power conversion. That ability often becomes valuable when the array voltage is higher than battery voltage, cable distance favors lower PV current, changing weather moves the array operating point, or limited roof area makes captured charging opportunity commercially important.
PWM can be rational for a modest maintenance charging system with well matched equipment and low energy demand. MPPT can be rational for a larger array, a longer cable route, or a battery that must recover after repeated outages. Neither choice removes the need to verify voltage limits, charging requirements, installation conditions, and manual instructions.
Test the Purchase Against Two Different Duty Cycles
Consider a small battery supporting lighting and communications equipment. Daily demand is low, the cable run is short, and module voltage is intentionally matched to the battery system. A compliant PWM design may meet the operating goal at lower CAPEX. Paying more for MPPT does not automatically create enough financial value to justify the change.
Now consider a small business with limited roof space, a longer cable route, and a battery that must recharge after repeated outages. The array operating voltage is higher than battery voltage. Lost charging opportunity increases generator fuel use or leaves less reserve for the next interruption. An MPPT design may offer stronger value if the array remains inside the PV input range and the battery can accept the planned current.
The commercial comparison is not controller price against a universal energy percentage. It is controller price against captured charging opportunity, cable design, roof constraint, battery availability, and avoided generator operation. Request an estimate based on the actual array and load profile instead of a fixed MPPT gain claim.
Where We Use the SNADI/SNAT Solar CM Controller
For a standalone battery charging architecture, we use the SNADI/SNAT Solar CM MPPT Solar Charging Controller as the relevant product family. CM has 30A through CM 100A choices, automatic recognition for 12 V, 24 V, and 48 V battery systems, an LCD for PV and battery information, and optional RS485 communication.
The CM family makes sense when a separate controller belongs in the planned DC battery system. If a hybrid inverter already includes MPPT charging, the engineering task shifts to the integrated inverter input and battery limits. Adding a separate CM controller requires a deliberately designed architecture. Matching nominal voltage alone is not sufficient.
SNADI/SNAT Solar Engineering check: Mark every PV side figure in one color and every battery side figure in another. If a value cannot be assigned to one side, ask the supplier to identify the terminal, operating condition, and manual page before approving the model. |
Use a Procurement Gate Before the Final Quotation
A procurement gate turns controller sizing into an evidence check instead of a guess. It also gives the buyer a clear owner for every compatibility decision.
Decision gate | Evidence to provide | Why it affects cost or risk |
Is a separate controller required | System block diagram and inverter model | Prevents duplicated hardware and unsupported connections |
Does the PV array fit | Module data sheet, string plan, and site temperature range | Prevents input overvoltage and weak tracking operation |
Does the battery fit | Chemistry, nominal voltage, charge current, and communication needs | Prevents wrong charging behavior and warranty conflict |
Does the site fit | Cable distance, enclosure location, heat, dust, and service access | Exposes cable, thermal, and maintenance costs |
Can the supplier support it | Current manual, model table, alarm list, and support route | Reduces commissioning delay and repeated site visits |
Before choosing an MPPT controller, confirm the exact model rating, PV voltage boundary, tracking range, battery current limit, chemistry support, installation environment, protection design, and support route. The quotation should state which party verifies each item.
For financial comparison, request equipment CAPEX and the consequences of limitation. A smaller controller may restrict charging current during strong production. A larger controller may add cost that the battery or array can never use. A lower cost PWM design can be acceptable for one matched system and expensive in lost charging opportunity for another.
Use Monitoring
Monitoring can show whether the controller sees PV voltage, enters a charging state, reaches a current limit, or records a battery related alarm. Record timestamps, PV voltage, battery voltage, charge current, controller temperature, operating mode, and the exact error code. Add weather and load notes only when they explain the same period.
This evidence can separate absent PV input from a battery acceptance limit or thermal restriction. It cannot make live DC work safe. Stop self diagnosis after a burned smell, water entry, melted connector, exposed conductor, repeated protection action, unusual heat, or a battery management alarm.
Send support the controller model, serial number, current manual, module data sheet, battery data sheet, system diagram, and screenshots from the event. Do not repeatedly reset equipment, change battery profiles, or reconnect arrays to see what happens. Those actions can erase evidence, affect a warranty review, or increase electrical risk.
Conclusion
What is an MPPT charge controller becomes easier to answer when the label is divided into two electrical sides. The PV side has its voltage and operating limits. The battery side has its charging current, chemistry, and profile requirements. Maximum power point tracking connects those sides through controlled DC conversion but cannot remove their boundaries.
Before requesting a final model, send us the module data sheet, proposed string arrangement, battery data sheet, site temperature range, and a simple system block diagram. Our SNADI/SNAT Solar engineering team can review whether a standalone CM controller belongs in the architecture and identify the model level questions that must be resolved before installation.
