Modern energy systems rely on a critical component that often operates silently in the background. Whether you are building a remote cabin or upgrading a mobile home, you must understand the heart of your power system. This comprehensive guide explores the essential question: what is an electric inverter? By the end of this article, you will possess a deep understanding of how this technology enables modern living in off grid environments.
What is an Electric Inverter?
An electric inverter is a power electronics device designed to transform electricity from one form to another. Specifically, it takes direct current, which is the type of power stored in batteries and generated by solar panels, and converts it into alternating current. Alternating current is the standard form of electricity used by the vast majority of household appliances and industrial tools.
In an off grid solar application, the energy captured by photovoltaic modules is typically 12 volts, 24 volts, or 48 volts direct current. While this is perfect for storage, your refrigerator, air conditioner, and laptop charger require a standard voltage like 110 volts or 220 volts alternating current. Without knowing what is an electric inverter and having one installed, your solar energy remains trapped in the battery bank, unable to power your daily life.
The significance of this device has grown exponentially as we move into 2026. Global energy decentralization has made high quality power conversion a necessity rather than a luxury. Reliable conversion ensures that sensitive electronics receive clean power, free from fluctuations that could cause long term damage.
How Does an Electric Inverter Work?
The science behind power conversion is a feat of engineering that simplifies complex physics into a compact box. To understand how the process works, we must look at the behavior of electrons.
The Role of Power Electronics and Switching
At its core, an inverter uses high speed switching to simulate the behavior of alternating current. Direct current flows in a single, constant direction. Alternating current, as the name suggests, changes direction many times per second, usually 50 or 60 cycles per second, known as Hertz. The device employs a set of transistors, often MOSFETs or Insulated Gate Bipolar Transistors, arranged in what engineers call an H bridge circuit. By turning these switches on and off thousands of times per second in a specific sequence, the device forces the direct current to change direction. This process, combined with a transformer, increases the voltage to the required level. Advanced models in 2026 utilize Pulse Width Modulation to ensure the resulting wave is smooth and consistent.

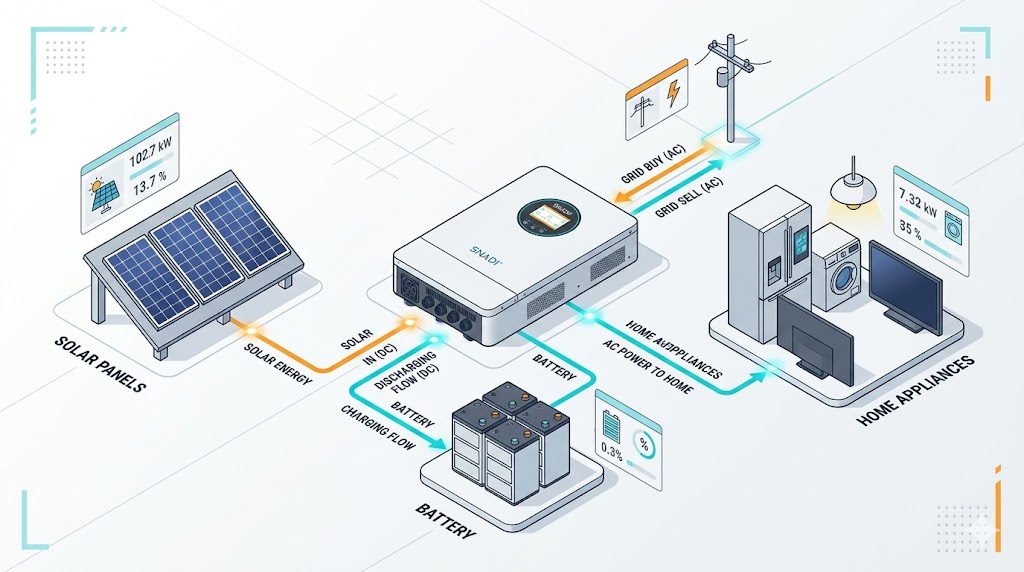

From Batteries and Solar Panels to Home Appliances
The journey of a single watt begins at the solar array. The panels produce direct current which flows into a charge controller and then into a battery bank. When you flip a switch on your microwave, the inverter draws that stored energy. It processes the raw direct current through its internal circuitry, filters the signal to remove electrical noise, and outputs the alternating current through your outlets. This seamless transition is what allows an off grid system to feel exactly like a standard utility connection.
Types of Electric Inverters: Which One Do You Need?
Selecting the right equipment requires understanding that not all conversion methods are equal. The internal architecture determines the quality of the electricity produced.
Pure Sine Wave Inverters
For most modern users, a pure sine wave model is the gold standard. It produces a wave that is nearly identical to, or even cleaner than, the power provided by a utility company. This is crucial for sensitive electronics like medical equipment, high end audio systems, and appliances with brushless motors. In 2026, as home automation and smart devices become standard, the demand for pure sine wave conversion has reached an all time high. It minimizes harmonic distortion, which protects your equipment and ensures it runs at peak efficiency.
Modified Sine Wave Inverters
These are budget friendly options that produce a blocky, stair step wave. While they are significantly cheaper, they are not suitable for all loads. Simple devices like incandescent light bulbs or old style heaters can run on modified waves, but motors will run hotter and electronics may experience interference. For a primary off grid residence, these are generally avoided in favor of more stable technology.
Application Based Classification
In the off grid sector, we focus primarily on stand alone systems. Unlike units designed to feed power back into a central utility, off grid inverters are built to manage a local battery bank and handle the full load of a building independently. Some modern hybrid models can also integrate with a backup diesel generator, providing a multi energy approach to power security.
Key Technical Specifications to Consider
When evaluating equipment, you must look beyond the price tag and examine the technical performance.
Efficiency Ratings
Efficiency is a measure of how much energy is lost as heat during the conversion process. In 2026, industry leaders have achieved peak efficiency ratings exceeding 95 percent. This is vital because every percentage point lost in conversion is energy you must generate through more solar panels. High efficiency is especially important in the winter months when every watt counts.
Continuous Power versus Surge Power
This is perhaps the most misunderstood specification. Continuous power is the total wattage the device can handle indefinitely. Surge power, or peak power, is the ability to handle a short burst of energy, often double the continuous rating, for a few seconds. This is necessary to start devices with compressors, such as pumps and air conditioners, which require a massive initial hit of energy to begin moving.
Safety Protections
A high quality unit must include comprehensive protection logic. This includes over current protection, short circuit prevention, thermal shutdown, and battery under voltage protection. These features ensure that even if a fault occurs in your wiring, the inverter will shut down safely to prevent fire or equipment destruction.
Top Applications of Electric Inverters in 2026
The versatility of power conversion has led to its adoption across various sectors.
Solar Energy Systems: Providing primary power for residential and commercial off grid buildings.
RV and Marine: Allowing travelers to use standard appliances while at sea or in remote wilderness areas.
Backup Power for Home: Serving as an Uninterruptible Power Supply (UPS) during regional energy failures.
Industrial Automation: Powering remote sensors and communication hubs in mining or agricultural operations.
Future Trends: The Evolution of Inverter Technology
As we look toward the later half of this decade, several exciting technologies are emerging. The integration of Artificial Intelligence allows inverters to monitor weather patterns and adjust battery discharge rates to ensure power lasts through a storm. Furthermore, the use of Gallium Nitride and Silicon Carbide in power electronics has allowed manufacturers to create smaller, lighter units that run much cooler than traditional silicon based models. Another major trend is Vehicle to Home integration, where the inverter can draw power from an electric truck to run a household for several days during an emergency.
The Arid Sands Water Reclamation Project
To illustrate the impact of these devices, we can look at a project completed in January 2026 in the Northern Territory of Australia. A remote cattle station, owned by Michael Sterling, required a solution to power a deep well water pump located forty miles from the nearest power line.
The project utilized a 12kW high efficiency off grid inverter paired with a 200Ah lithium iron phosphate battery bank. Before the installation, the farm relied on a diesel generator that required weekly refueling and frequent maintenance. After the switch to a solar based system, the farm achieved twenty four hour operation with zero fuel costs. The pure sine wave output ensured that the expensive pump motor operated without overheating, extending its expected life by thirty percent. This case demonstrates how understanding what is an electric inverter and choosing the right specifications can transform the economic viability of remote operations.
Technical Comparison Table: Inverter Performance Standards
| Feature | Pure Sine Wave (High Tier) | Modified Sine Wave (Budget) | 2026 AI Hybrid Models |
| Efficiency | 93 to 96 percent | 80 to 85 percent | 97 plus percent |
| Harmonic Distortion | Less than 3 percent | 30 to 40 percent | Less than 2 percent |
| Device Compatibility | All appliances | Limited to simple loads | All plus smart grid logic |
| Life Expectancy | 10 to 15 years | 3 to 5 years | 15 plus years |
| Heat Generation | Low | High | Ultra Low |
Conclusion
An electric inverter is the gateway to energy independence. By converting raw solar energy into usable power, it enables a modern lifestyle anywhere on the planet. As technology continues to advance, these devices are becoming more efficient, smarter, and more reliable.
When you are ready to select a unit, use this five point checklist:
Calculate your total continuous wattage and add a twenty percent safety margin.
Check the surge rating of your largest motorized appliance.
Ensure the unit is compatible with your battery chemistry, specifically LiFePO4.
Verify that the efficiency rating is at least 90 percent.
Look for a model with built in communication ports for remote monitoring.
✉️Email: exportdept@snadi.com.cn
Website:
FAQ
Pure sine wave inverters produce electricity that is identical to the power provided by the utility grid, making them safe for sensitive electronics. Modified sine wave inverters are more affordable but produce a choppier signal that may cause interference or reduced efficiency in certain motors and medical equipment.
Q2: Why are inverters necessary for solar power systems?
Q3: What components are found inside a typical electric inverter?
Q4: Can an inverter operate without a battery?
Q5: How do I choose the correct inverter size for my needs?
