| v | ||
| Solar Panel | ||
| Model | 580W | |
| Maximum Power(Wp) | 580 | |
| Open Circuit Voltage(Voc)(V) | 49.75 | |
| Short Circuit Current(Isc)(A) | 13.63 | |
| Quantity(Pcs) | 14 | |
| Size(mm) | 2256*1133*35 | |
| Weight(KG) | 28 | |
| Warranty Time | 10 Years | |

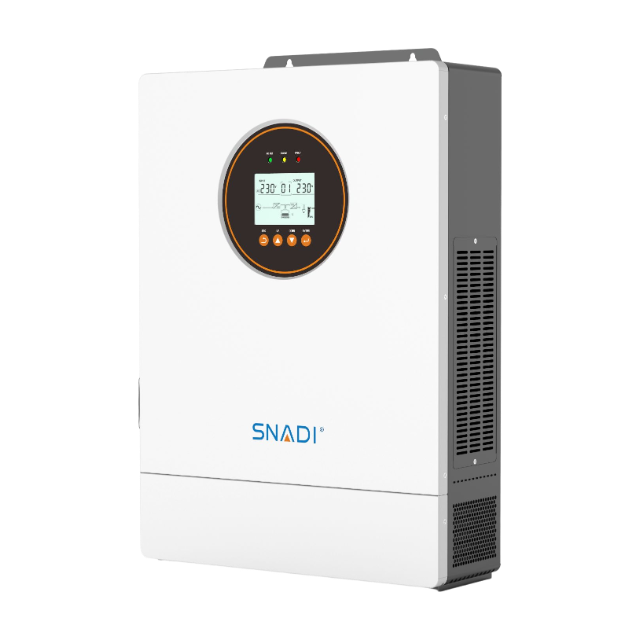

| Solar Inverter | ||
| Model | ES-123048-54B | |
| Parallel Mode(function reserved) | Maximum parallel operation of 6 units | |
| Mains Mode | ||
| Nominal Input Voltage | 230VAC | |
| Input Voltage Range | (170~280VAC)±2%(UPS mode); (90~280VAC)±2%(APL mode) | |
| Frequency | 50/60Hz(Auto detect) | |
| Frequency Range | 47±0.3~55±0.3HZ(50Hz);57±0.3~65±0.3Hz(60Hz) | |
| Max. Efficiency | >95% | |
| Conversion Time (bypass and inverter) | 10ms(typical) | |
| Max. Bypass Overload Current | 60A | |
| Inverter Mode | ||
| Output Voltage Waveform | Pure Sine Wave | |
| Nominal Output Power | 12000VA/12000W | |
| Power Factor | 1 | |
| Nominal Output Voltage | 230VAC | |
| Output Frequency Range | 50±0.3Hz/60±0.3Hz | |
| Max. Efficiency | >93% | |
| Overload Protection | (102%<load<125%)±10%: report error and turn off the output after 5 minutes (125%<load<150%)±10%: report error and turn off the output after 10 seconds Load>150%±10%: report error and turn off the output after 5 seconds | |
| Peak Power | 24000VA | |
| Load Motor Capability | 8HP | |
| Nominal Battery Input Voltage | 48V(Min. start voltage 44V) | |
| Battery Voltage Range | 40.0~60VDC±0.6VDC(Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery...LCD screen can be set) | |
| Save Power Mode | Load≤50W Enter save power mode | |
| Mains Charge | ||
| Battery Type | Lead-acid or lithium batteries | |
| Max. Charge Current (configurable) | 150A | |
| Charge Voltage Range | 40~60VDC | |
| Solar Charge | ||
| Max. PV Open Circuit Voltage | 500VDC | |
| PV Operate Voltage Range | 120~500VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Battery Voltage Range | 40~60VDC | |
| Max.PV Input Power/Current | 9000W*2/27A*2 | |
| Charge Current Range (configurable) | 0~150A | |
| Max. Hybrid Charge Current (PV+AC) | ||
| Max. Hybrid Charge Current (configurable) | 0~150A | |
| Certification | ||
| Safety Certifcation | CE(IEC62109-1,2) | |
| EMC Certifcation Level | EN61000,C2 | |
| Operate Temperature Range | -15~55°C | |
| Storage Temperature Range | -25~60°C | |
| Humidity Range | 5~95%(Three anti paint protection) | |
| Noise | ≤60dB | |
| Cooling | Forced air cooling, adjustable wind speed | |
| Communicate | USB/RS485(/WiFi/GPRS)Dry node control | |
| General | ||
| External Dimensions: L*W*H(mm) | 433*135*592 | |
| Packing Dimensions: L*W*H(mm) | 510*230*665 | |
| Battery | ||
| Model | BL-15000LP | |
| Voltage | 51.2V | |
| Capacity | 314Ah | |
| Rated Power | 16076.8W | |
| Maximum Number Of Parallel Machines | 16 | |
| Display | SOC status indicator light, LED indicator light, LCD display screen | |
| Communication | RS485, CAN, RS232 | |
| Inverter Protocol (customizable) | pylon, growatt, voltronic, must, goodwe... | |
| Service Life | 25°C ambient temperature environment 6000 cycles | |
| Recommended Charging Voltage | 58.4V | |
| Recommended Charging Current | 56A | |
| Discharge Termination Voltage | 40V | |
| Standard Working Current | Charge: 56A Discharge: 56A | |
| Maximum Continuous Operating Current | Charge: 140V Discharge: 200V | |
| BMS Cut off Voltage | Charge: 58.4V(cell 3.65V) Discharge: 40V(cell 2.5V) | |
| Operation Temperature | Charge: 0~45℃ Discharge: -15~55℃ | |
| Storage Temperature | -5~35°C | |
| Shipping Voltage | ≥51.2V(within 30 days of shipment) | |
| Shell Material | Cold rolled plate 1.5mm | |
| Battery Size: L*W*H(mm) | 480*238*780(Excluding rollers and brackets) | |
| Packaging Size: L*W*H(mm) | 575*340*950 | |
| Net Weight(KG) | 125/130 | |
| Gross Weight(KG) | 130/135 | |
| Additional Features(optional) | WiFi, Bluetooth | |

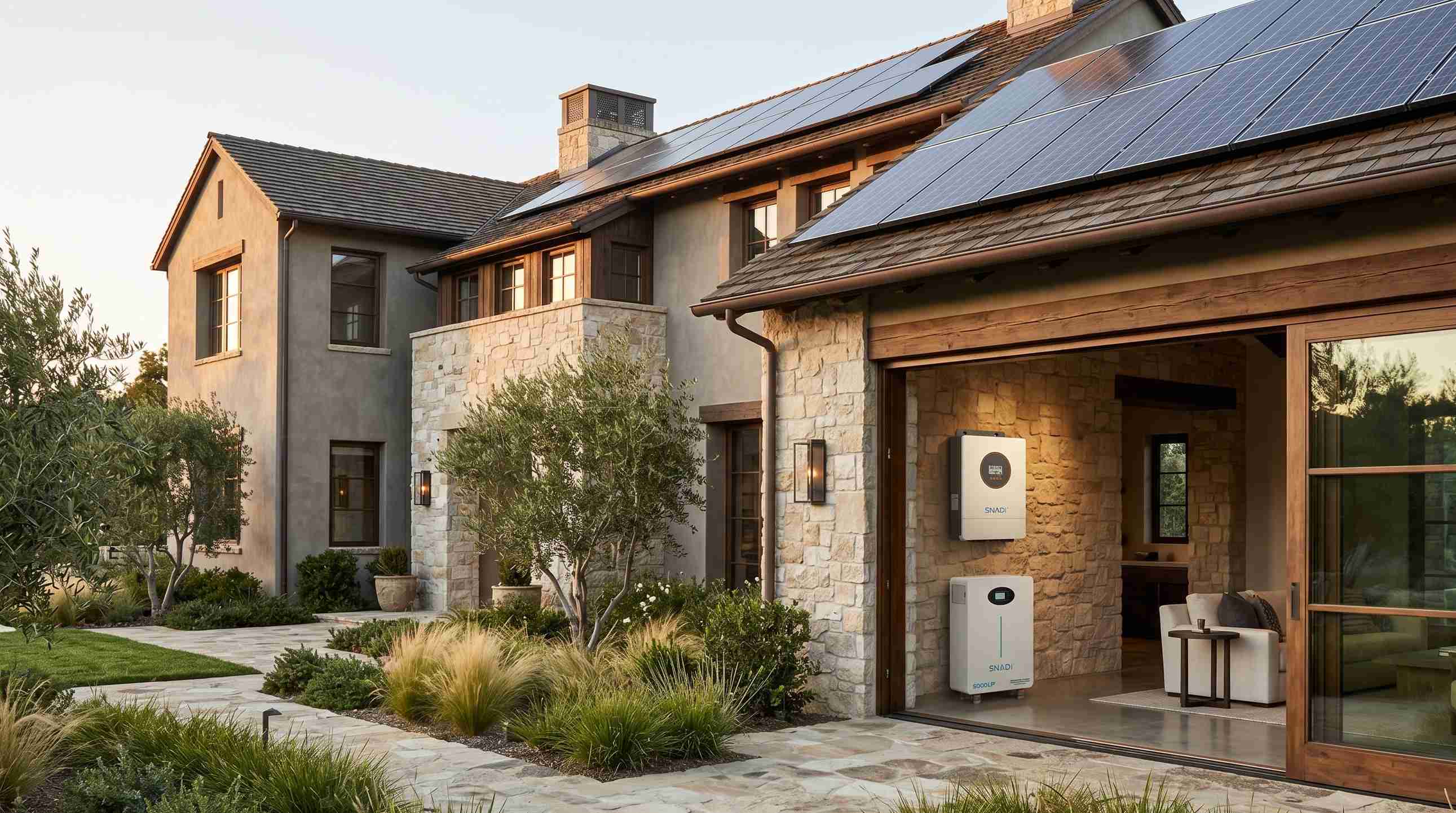

Whole Home Solar Backup Solution

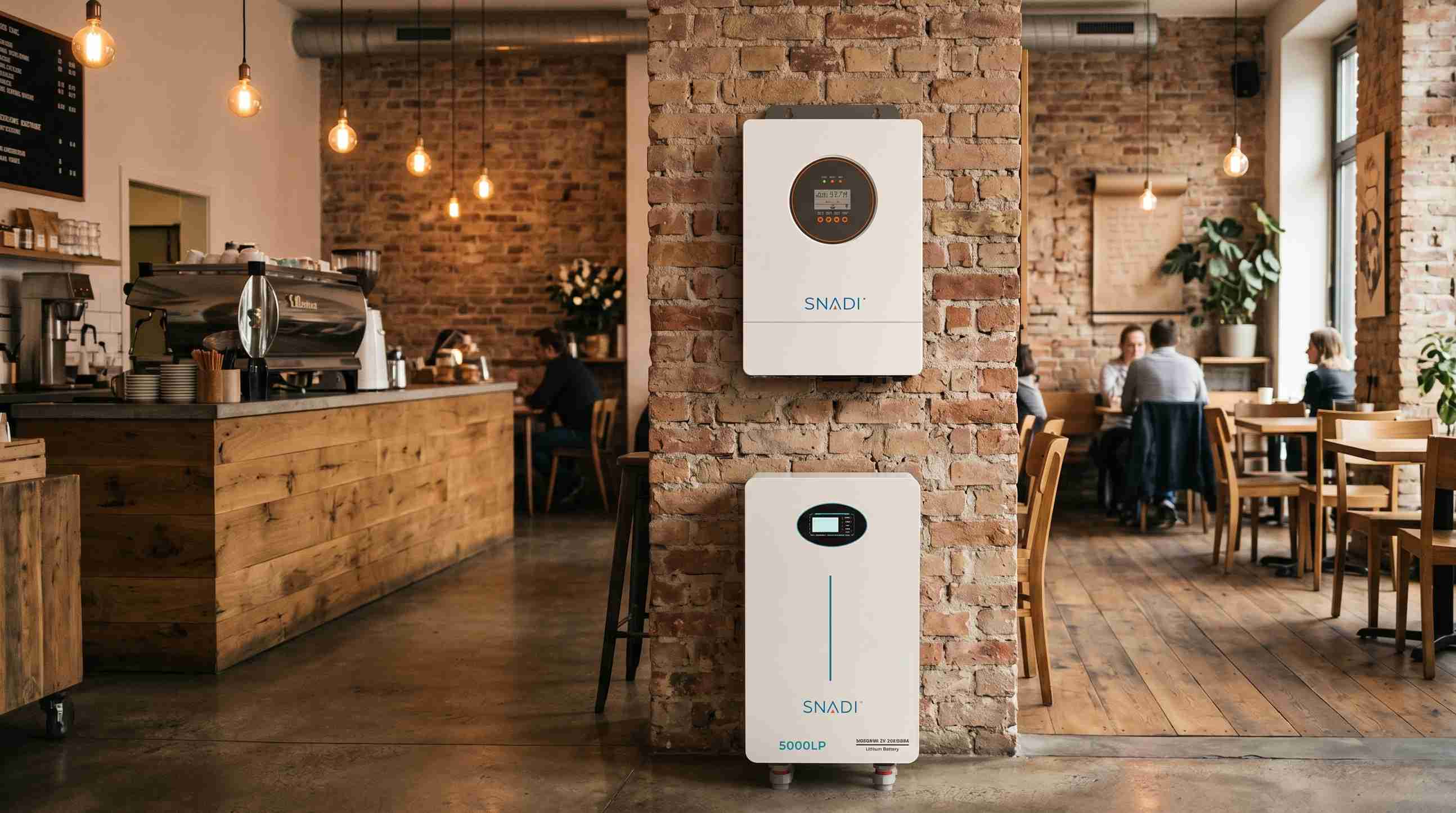

Commercial Solar Peak Shaving System
