| SNADI/SNAT Solar 5KW 14KWH Residential Energy Storage System （Support customization） | ||
| Solar Panel | ||
| Model | 580W | |
| Maximum Power(Wp) | 580 | |
| Open Circuit Voltage(Voc)(V) | 49.75 | |
| Short Circuit Current(Isc)(A) | 13.63 | |
| Quantity(Pcs) | 6 | |
| Size(mm) | 2256*1133*35 | |
| Weight(KG) | 28 | |
| Warranty Time | 10 Years | |
| Solar Inverter | ||
| Model | TS-652048-902-A | |
| PV Input | ||
| Maximum Allowable Access String Power | 9000W | |
| Maximum DC Voltage | 500V | |
| MPPT Voltage Range | 80-450V | |
| Rated Voltage | 380V | |
| Starting Voltage | 75V | |
| Maximum DC Current | 27A | |
| Short Circuit Current | 40.5A | |
| MPPT Channels | 1 | |
| Number Of MPPT Strings Per Channel | 2 | |
| Battery | ||
| Battery Type | Lead acid or LFP | |
| Rated Voltage | 48V | |
| Voltage Range | 40-60V | |
| Maximum Discharge Power | 6500W | |
| Maximum Charging Power | 6000W | |
| Maximum Charging Current | 120(optional)(MPPT: 120A, mains: 120A) | |
| Maximum Discharge Current | 135A | |
| Battery Capacity | ≥ 100Ah(configured according to demand) | |
| Maximum Charging Voltage | 60V(adjustable) | |
| Communication Input | ||
| Maximum Input Power | 11500W | |
| Maximum Output Current | 50A | |
| Rated Input Voltage | 220/230/240V(optional) | |
| Rated Input Frequency | 50/60Hz(optional) | |
| THDi | <3%(linear load) | |
| Power Factor | 1 | |
| Generator Input | ||
| Maximum Input Power | 6000W | |
| Maximum Output Current | 27.3A | |
| Rated Input Voltage | 220/230/240V(optional) | |
| Rated Input Frequency | 50/60Hz(optional) | |
| Off Grid Output | ||
| Maximum Output Power | 6500W | |
| Rated Frequency | 50/60Hz(optional) | |
| Frequency Accuracy | ±2% | |
| Voltage Level | 220/230/240V(optional) | |
| Maximum Output Current | 28.2A | |
| Voltage Regulation Accuracy | ±1% | |
| Voltage Harmonics (full load) | THDV<3%(linear load) | |
| Overload Capacity | 105% < load rate ≤ 150%, alarm shutdown after 10.5 seconds Load rate ≥ 150%,Alarm and shutdown after 5.5 seconds | |
| Efficiency | ||
| Maximum Efficiency Of Mains Power(100% R+50% CHG) | 95% | |
| Maximum Efficiency Of Battery Inverter | 93% | |
| General | ||
| Environmental Temperature Range | -10~55°C (>40°C load reduction or derating) | |
| Relative Humidity | 5%~95% | |
| Maximum Working Altitude | >2000m reduction | |
| Protection Level | IP65 | |
| Standby Power Consumption | <10W | |
| Cooling Method | Smart Air Cooling | |
| Noise Index | <50dB | |
| Display Mode | LCD screen | |
| Communication Method | Dry contact point, WIFI,RS485 | |
| Parallel Unit Quantity | 6 | |
| Product Dimensions | 635*440*196mm | |
| Package Dimensions | 715*485*270mm | |
| Battery | ||

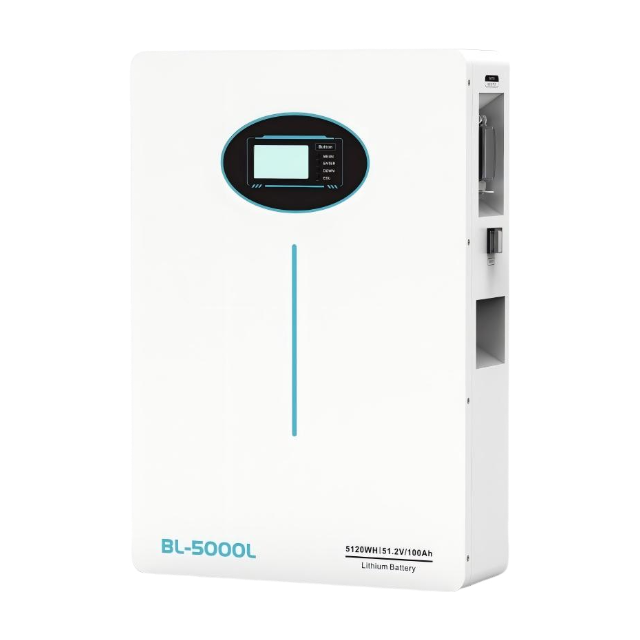

| Model | BL-5000L | |
| Voltage | 51.2V | |
| Capacity | 100Ah | |
| Rated Power | 5120W | |
| Maximum Number Of Parallel Machines | 16 | |
| Display | SOC status indicator light, LED indicator light, LCD display screen | |
| Communication | RS485, CAN, RS232 | |
| Inverter Protocol (customizable) | pylon, growatt, voltronic, must, goodwe... | |
| Service Life | 25°C ambient temperature environment 6000 cycles | |
| Recommended Charging Voltage | 58.4V | |
| Recommended Charging Current | 20A | |
| Discharge Termination Voltage | 40V | |
| Standard Working Current | Charge: 20A Discharge: 20A | |
| Maximum Continuous Operating Current | Charge: 50A Discharge: 100A | |
| BMS Cut off Voltage | Charge: 58.4V(cell 3.65V) Discharge: 40V(cell 2.5V) | |
| Operation Temperature | Charge: 0~45℃ Discharge: -15~55℃ | |
| Storage Temperature | -5~35°C | |
| Shipping Voltage | ≥51.2V(within 30 days of shipment) | |
| Shell Material | Cold rolled plate 1.2mm | |
| Battery Size: L*W*H(mm) | 440*145*640(Excluding bracket) | |
| Packaging Size: L*W*H(mm) | 535*250*735 | |
| Net Weight(KG) | 45 | |
| Gross Weight(KG) | 50 | |
| Additional Features(optional) | WiFi, Bluetooth | |

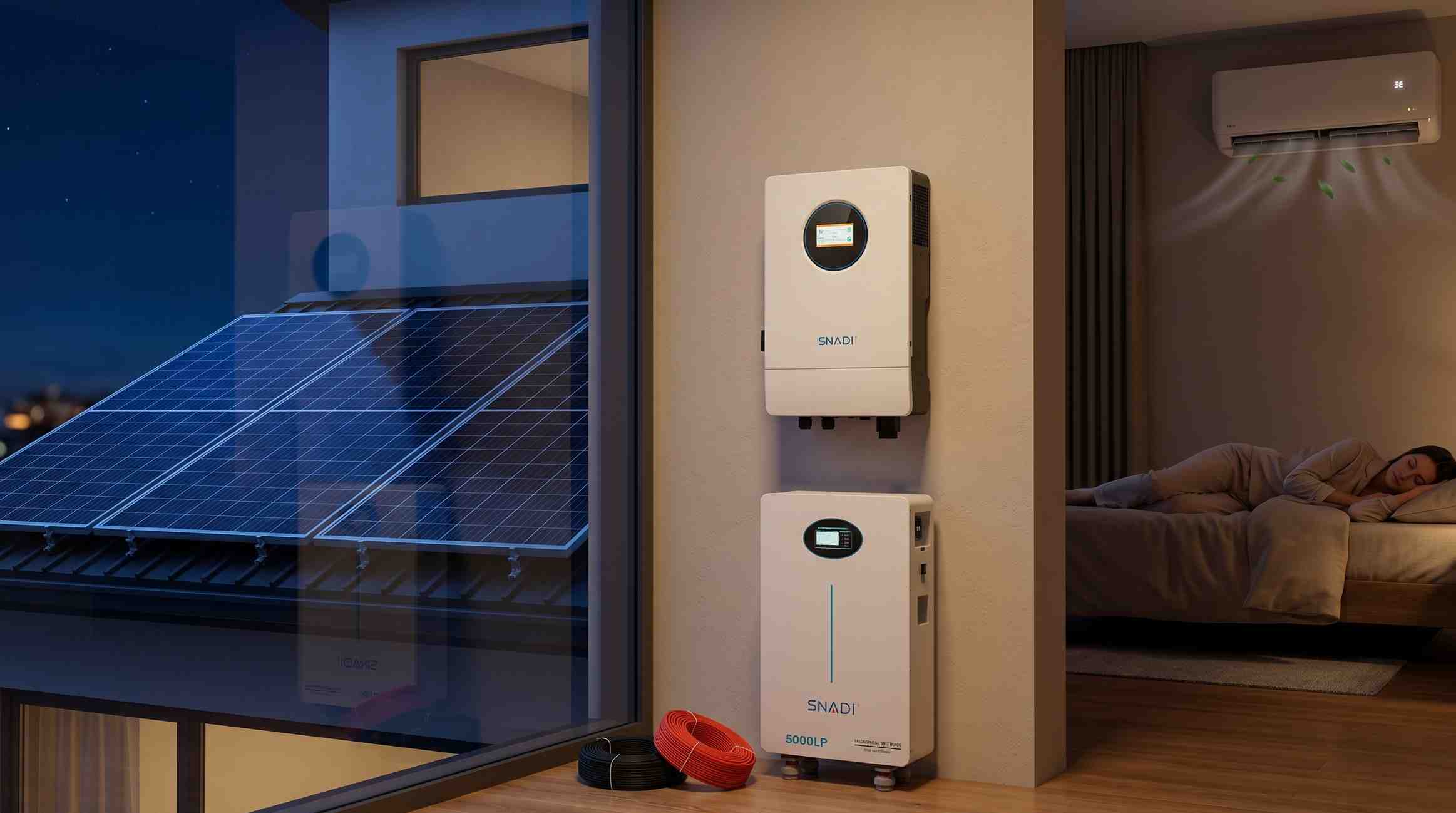

Low Electricity Bills At Night

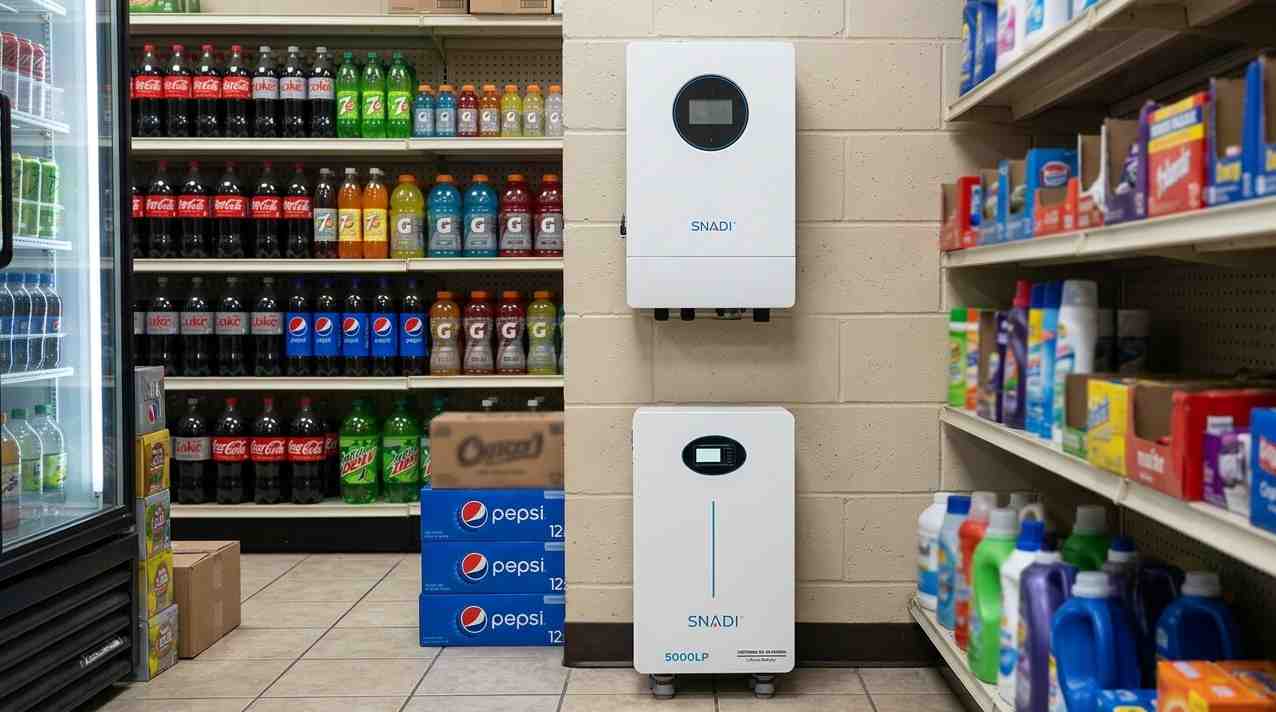

Continuous Small Business Power
