15KW 45KWH Home Solar Power System

In regions facing chronic grid instability or high tariff peak periods, maintaining a seamless power supply for high consumption households or light commercial facilities is a significant technical challenge. Our 10kW home solar power system integrated with an ultra large 48kWh energy storage bank is specifically designed to eliminate energy anxiety by providing multi day autonomy. By utilizing high safety lithium battery modules and a sophisticated Power Management System (PMS), this solution mitigates the risk of system failure under heavy inductive loads, ensuring your clients receive a robust energy buffer that reduces emergency maintenance calls and enhances overall system longevity.

For professional solar installers and distributors targeting the premium off grid and hybrid markets, offering a high capacity 10kW/48kWh configuration is a strategic advantage for capturing high value contracts. This all in one solar power system prioritizes modular scalability and plug and play compatibility, significantly reducing on site labor costs and technical complexities during installation. By incorporating our distributed energy solutions into your product portfolio, you provide a future proof infrastructure that maximizes ROI through advanced peak shaving and total energy independence, backed by our rigorous international quality certifications and comprehensive technical support.

Inquire

Factory Direct Price

Global Supply | MOQ 1 | Door to Door. 24/7 Online Support & On site Installation. Free Custom Whole House Solar Solutions & DIY Parts.

A set of three high-efficiency SNADI monocrystalline solar panels for residential and commercial renewable energy systems.

Higher powern generation better LCOE

type with very Lower LID

Better Temperature Coefficient

Better low irradiance response

Double electroluminescence(EL) tests, Carefully inspected before and after lamination to guarantee fault free modules

Front angled view of SNADI 12kw AS split-phase inverter featuring a circular smart LCD display and touch buttons.

Built in 1 or 2 MPPT

Can parallel 1-6 units

Can operate independently off the grid or in parallel with the grid

Capable to work without battery

Detachable dust cover for harsh environment

Wifi remote monitoring optional

High-capacity SNADI vertical lithium batteries BL-15000L/LP (300Ah) with smart LCD monitoring and Grade A LiFePO4 cells.

Higher powern generation better LCOE

type with very Lower LID

Better Temperature Coefficient

Better low irradiance response

Double electroluminescence(EL) tests, Carefully inspected before and after lamination to guarantee fault free modules

Professional SNADI solar PV DC cables in red and black rolls, UV resistant and durable for photovoltaic system wiring.

4 mm²: PVC insulated, single core, Red Meters 50

4 mm²: PVC insulated, single core, Black Meters 50

35 mm2: PVC insulated, single core, Red Meters 2

35 mm2: PVC insulated, single core, Black Meters 2

10 Years solar cable warranty

Side perspective of SNADI SCB series PV combiner box featuring an IP65 rated waterproof and dustproof housing for outdoor solar installations.

Excellent heat dissipation design and intelligent controlled

Innovative maximum power point tracking technology, the conversion rate of up to 97%

Quick scan of the entire I-V curve. Efficient track the maximum power point

Three types of lead acid battery, sealed, colloid, open type battery and lithium battery series charging procedures are optional

With the functions of over charge, over discharge, overload and short circuit automatic protection

With RS485 communicate interface. It can communicate with multiple and the upper computers, which is convenient to check the operating parameters of the controller

A detailed close-up of a sturdy, solid oak wooden shipping and storage crate on a white background, complete with metal corner protectors, front latches, and a side handle.

Better protection

Export wooden package

Size: 230*6*118cm

Weight: 56Kgs

SNADI/SNAT Solar 10KW 48KWH Residential Energy Storage System （Support customization）
Solar Panel
Model	590W
Maximum Power(Wp)	590
Open Circuit Voltage(Voc)(V)	53.5
Short Circuit Current(Isc)(A)	13.82
Quantity(Pcs)	12
Size(mm)	2279113430
Weight(KG)	30
Warranty Time	10 Years
Solar Inverter
Model	AS-123048-54B
Parallel Mode(function reserved)	Maximum parallel operation of 6 units
Mains Mode
Nominal Input Voltage	120VAC(L1/N, L2/N)/240VAC(L1/L2)
Input Voltage Range	(85~140VAC)±2%
Frequency	50/60Hz(Auto detect)
Frequency Range	47±0.3~55±0.3HZ(50Hz);57±0.3~65±0.3Hz(60Hz)
Max. Efficiency	>95%
Conversion Time (bypass and inverter)	10ms(typical)
Max. Bypass Overload Current	2pole, 60A/60A(L1/L2)
Inverter Mode
Output Voltage Waveform	Pure Sine Wave
Nominal Output Power	12000VA/12000W
Power Factor	1
Nominal Output Voltage	120VAC(L1/N, L2/N)/240VAC(L1/L2)
Output Frequency Range	50±0.3Hz/60±0.3Hz
Max. Efficiency	>91%
Overload Protection	(105%<load<110%)±5%: report error and turn off the output after 5 minutes (110%<load<125%)±5%: report error and turn off the output after 10 seconds Load>125%±5%: report error and turn off the output after 5 seconds
Peak Power	18000VA
Load Motor Capability	6HP
Nominal Battery Input Voltage	51.2V(Min. start voltage 44V)
Battery Voltage Range	40.0~58.6VDC±0.6VDC(Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery...LCD screen can be set)
Save Power Mode	Load≤25W Enter save power mode
Mains Charge
Battery Type	Lead-acid or lithium batteries
Max. Charge Current (configurable)	160A
Charge Voltage Range	40~60VDC
Solar Charge
Max. PV Open Circuit Voltage	500VDC
PV Operate Voltage Range	90~500VDC
MPPT Voltage Range	80~450VDC
Battery Voltage Range	40~58.6VDC
Max.PV Input Power/Current	6000W*2
Charge Current Range (configurable)	220A
Max. Hybrid Charge Current (PV+AC)
Max. Hybrid Charge Current (configurable)	0~220A
Certification
Safety Certifcation	UL1741
EMC Certifcation Level	FCC part15, CLASS B
Operate Temperature Range	-15~55°C
Storage Temperature Range	-25~60°C
Humidity Range	5~95%(Three anti paint protection)
Noise	≤60dB
Cooling	Forced air cooling, adjustable wind speed
Communicate	USB/RS485(/WiFi/GPRS)Dry node control
General
External Dimensions: LWH(mm)	562137714
Packing Dimensions: LWH(mm)	640235785
Battery
Model	BL-15000LP
Voltage	51.2V
Capacity	314Ah
Rated Power	16076.8W
Maximum Number Of Parallel Machines	16
Display	SOC status indicator light, LED indicator light, LCD display screen
Communication	RS485, CAN, RS232
Inverter Protocol (customizable)	pylon, growatt, voltronic, must, goodwe...
Service Life	25°C ambient temperature environment 6000 cycles
Recommended Charging Voltage	58.4V
Recommended Charging Current	56A
Discharge Termination Voltage	40V
Standard Working Current	Charge: 56A Discharge: 56A
Maximum Continuous Operating Current	Charge: 140A Discharge: 200A
BMS Cut off Voltage	Charge: 58.4V(cell 3.65V) Discharge: 40V(cell 2.5V)
Operation Temperature	Charge: 0~45℃ Discharge: -15~55℃
Storage Temperature	-5~35°C
Shipping Voltage	≥51.2V(within 30 days of shipment)
Shell Material	Cold rolled plate 1.5mm
Battery Size: LWH(mm)	480238780(Excluding rollers and brackets)
Packaging Size: LWH(mm)	575340950
Net Weight(KG)	45
Gross Weight(KG)	50
Additional Features(optional)	WiFi, Bluetooth

Application

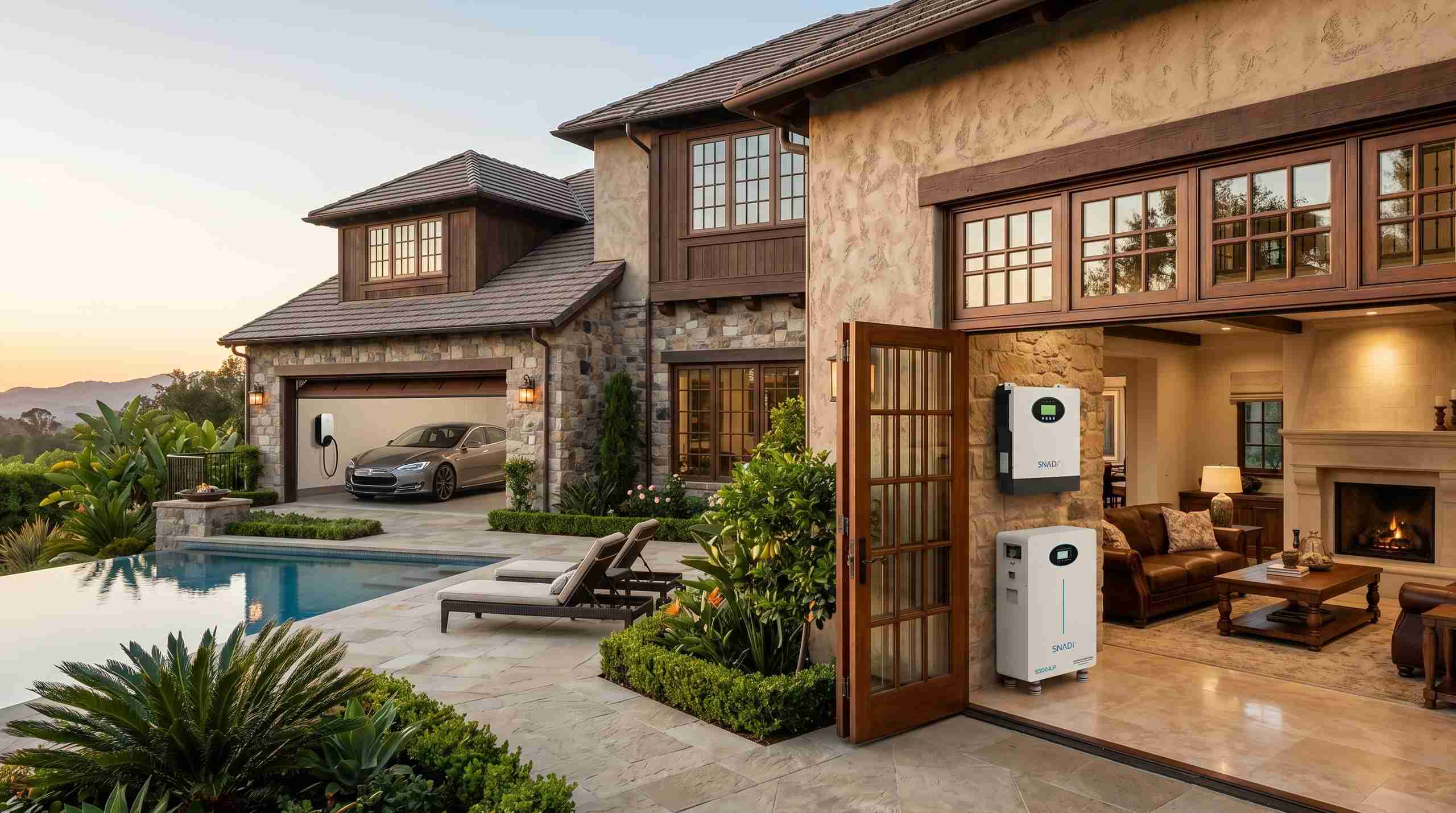

SNADI 10kW split-phase inverter and 48kWh lithium battery energy storage system installed in a luxury home, providing backup power for critical loads like an aquarium.

Whole Home Residential Backup Power

Commercial Factory Uninterrupted Power

Industrial workshop interior featuring a SNADI 10kW hybrid inverter and 48kWh energy storage battery to support manufacturing machinery and reduce operational costs.

Get Your Free Whole House Solution

Empower your home with a custom engineered energy strategy. Leveraging 15+ years of manufacturing expertise and our dual R&D centers in Foshan and Shenzhen, our experts design one stop solar solutions tailored to your unique power needs. Submit your requirements today for a professional consultation and a sustainable future.

Mob：+86 18039293535

E-mail：exportdept@snadi.com.cn

Whatsapp/Wechat：+86 18039293535

Your Trusted Partner for Global Solar Solutions

Rapid Logistics & Global Technical Support

SNADI guarantees efficient shipping within 7-15 days, ensuring your projects stay on track. We provide 24/7 online installation guidance, and for complex requirements, we can dispatch professional engineers to your country to provide on site technical setup and system optimization.

Bespoke Solar Designs & Factory Direct Pricing

Leveraging our dual R&D centers in Foshan and Shenzhen, our engineers develop customized solar energy storage solutions for residential, commercial, and industrial needs. By integrating lean production and intelligent manufacturing, we offer high performance systems at competitive prices to maximize your ROI.

Certified Reliability & 16 Years of Expertise

With a legacy spanning since 2010, SNADI delivers high quality products backed by international certifications including ISO 9001, CE, and RoHS. Every system undergoes rigorous testing to meet global safety standards, ensuring long-term durability in diverse environments.

Scalable Capacity & Supply Chain Stability

Our 20,000m² facility features 10 advanced automated production lines with a daily capacity of approximately 3,000 units. This massive industrial scale ensures a stable and reliable supply chain for distributors and wholesalers, supporting commercial project demands without compromise.
