Can off grid inverter work without battery

Yes, an off grid inverter can work without a battery, provided it is a modern hybrid or high-voltage off-grid model designed with a direct solar-to-load bypass system. These specialized inverters route direct current (DC) electricity generated by photovoltaic (PV) panels straight to the built-in Maximum Power Point Tracking (MPPT) controller, converting it instantly into alternating current (AC) power to drive real-time electrical loads during daylight hours.

Table of Contents

• What Is an Off Grid Inverter ?

• Is a Battery Always Required for Off-Grid Inverters?

• How to Use an Off Grid Inverter Without a Battery

• Pros and Cons of Using an Inverter Solar Off Grid Without a Battery

What Is an Off Grid Inverter ?

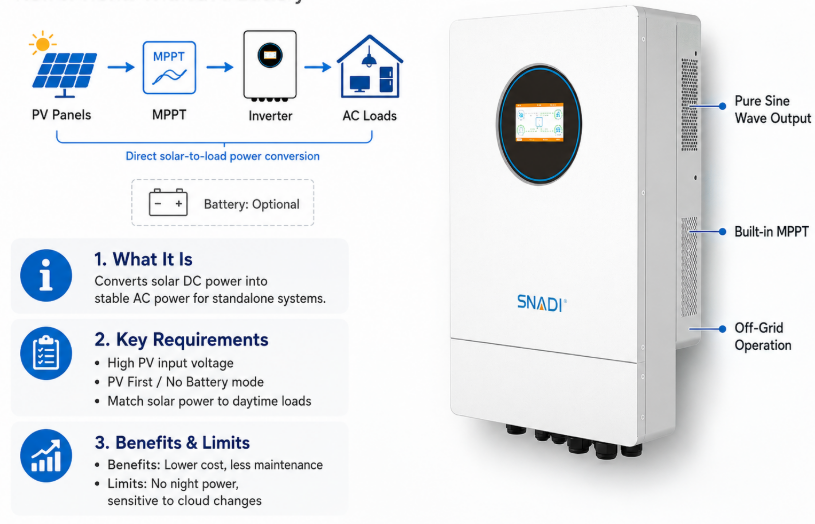

An off grid inverter is an electronic power conversion device designed to convert direct current electricity produced by solar panels or storage units into stable alternating current for standalone power systems.

At its fundamental structural level, an off grid inverter serves as the central processing unit of a standalone power installation. Traditional power grids deliver alternating current (AC) at synchronized frequencies and stable voltages. Photovoltaic modules, conversely, generate variable direct current (DC) dependent entirely on dynamic solar irradiance and ambient temperatures. The off grid inverter acts as the bridge between these two electrical domains. Unlike grid-tied units that rely on an active utility grid reference signal to synchronize their voltage and frequency output, an off grid inverter contains internal clock circuits, digital signal processors (DSP), and pulse-width modulation (PWM) algorithms to construct its own independent AC voltage wave from scratch.

In a conventional setup, the inverter sits downstream of both the photovoltaic array and an energy storage system. The system manages incoming DC power through an integrated or external charge controller, directs excess power toward energy storage, and draws power from the DC bus to invert it into standard single-phase or three-phase AC output. Modern industrial designs incorporate high-frequency switching topologies utilizing advanced Insulated-Gate Bipolar Transistors (IGBTs) or Silicon Carbide (SiC) MOSFETs. These power semiconductors switch at tens of kilohertz, allowing the inverter to maintain tight voltage regulation and clean sinusoidal waveforms even under dynamic operational environments.

From an engineering perspective, the internal architecture of an off grid inverter is designed around continuous load supply, power factor correction, and total harmonic distortion (THD) minimization. When connected to sensitive industrial electronics, motor loads, or telecom equipment, the quality of the generated AC wave determines system stability. Industrial-grade units feature rugged isolation transformers or high-frequency transformerless stages, robust cooling channels, and high-surge overload capacities to handle transient startup currents from heavy inductive loads.

System Topology and Internal Power Flow: The internal operation of an off-grid inverter relies on a dual-stage power conversion process. The primary stage utilizes a high-efficiency DC-DC boost converter integrated with Maximum Power Point Tracking (MPPT) logic to step up variable panel voltages to a stable internal DC bus level. The secondary stage utilizes a full-bridge inverter circuit controlled by high-speed digital logic to chop the DC voltage into a precise high-frequency pulse sequence. An output LC filter then smooths this pulse train, removing high-frequency harmonics and yielding a clean, continuous sine wave suitable for sensitive electrical infrastructure.

Is a Battery Always Required for Off-Grid Inverters?

Batteries are not universally required for all off-grid inverters, as advanced modern hybrid and high-voltage off-grid models can operate battery-less by feeding power directly from solar panels to AC loads.

The historical assumption that energy storage is strictly mandatory stems from early off-grid engineering principles. Legacy off-grid systems relied on low-voltage DC buses (typically 12V, 24V, or 48V). In these older topologies, the solar panels charged the energy storage bank, and the inverter drew power exclusively from that DC bus to generate AC output. Because the DC bus voltage was tightly bound to the chemical voltage limits of lead-acid or early lithium packs, the inverter could not function if the storage bank was disconnected or depleted. The control loops were simply not designed to stabilize the extreme voltage spikes and sudden drops characteristic of bare solar arrays without a massive capacitive energy buffer.

Modern power electronics have completely restructured this topology. High-voltage off-grid and hybrid inverters bypass the low-voltage DC bus bottleneck entirely. By utilizing MPPT solar input stages capable of handling high PV array voltages—often ranging from 120VDC up to 500VDC—the incoming solar array voltage matches or exceeds the required internal DC bus voltage needed to generate 230VAC or 400VAC power. Consequently, the internal power routing bus can draw energy directly from the PV input stage and feed it straight to the inverter bridge circuit.

When operating in a battery-less configuration, the inverter uses real-time power balancing logic. The internal microprocessor continuously monitors the power available from the solar array via high-speed sampling of panel voltage and current. Simultaneously, it measures the power demand of connected loads. As long as instantaneous solar generation exceeds or perfectly equals load demand, the inverter operates continuously without requiring an energy storage buffer.

Why do we engineer systems this way? During market research and discussions with commercial clients across Europe and Latin America, we observed that many industrial users seek maximum daytime self-consumption without incurring the massive initial capital expense of energy storage banks. Commercial facilities, workshops, and agricultural facilities often operate strictly during daylight hours. For these applications, requiring an expensive energy storage system introduces unnecessary financial friction, shortens payback periods, and introduces complex battery management considerations.

Operational Stability and Voltage Limits: Operating an inverter without energy storage requires strict adherence to minimum start-up and operational PV voltage thresholds. Because solar arrays exhibit dynamic voltage-current curves, a sudden shadow can drop array voltage below the inverter's active conversion threshold. High-performance units utilize ultra-wide MPPT tracking ranges to maintain stable internal DC bus levels even under diffuse light conditions, minimizing unexpected load shedding.

How to Use an Off Grid Inverter Without a Battery

To operate an off grid inverter without a battery, you must connect a high-voltage solar array that meets the inverter's minimum startup voltage and configure the unit to run in solar direct supply mode.

Successfully deploying a battery-less solar power system requires meticulous hardware matching, correct system sizing, and strict parameter configuration within the inverter control interface. You cannot simply take any off-grid inverter and disconnect energy storage; the internal control software and hardware topology must explicitly support battery-free operational modes.

1. Solar Array Sizing and Voltage Matching

The most critical step in a battery-free installation is matching the PV array's open-circuit voltage (Voc) and operating voltage (Vmp) to the inverter's high-voltage input specifications. Because there is no energy storage to smooth out energy dips, the solar array must act as both power source and voltage anchor.

• Calculate total string voltage based on minimum local ambient temperatures to ensure the array does not exceed the inverter's maximum allowable PV input voltage.

• Ensure that the string operating voltage (Vmp) comfortably exceeds the inverter's minimum MPPT working voltage under peak summer heat conditions.

• Size the total solar array wattage at 1.2 to 1.5 times the anticipated continuous AC load wattage to account for solar irradiancy fluctuations and system conversion losses.

2. Physical Wiring and Circuit Protection

In a battery-less configuration, DC circuit protection must be tailored for high-voltage direct current isolation. High-voltage DC arcs are notoriously difficult to extinguish compared to low-voltage or AC arcs.

• Install a dedicated high-voltage DC circuit breaker and isolator switch between the solar array and the inverter's PV input terminals.

• Ensure proper grounding of the solar panel frames, mounting structure, and inverter chassis to a common earth ground rod to prevent floating potential hazards.

• Connect the AC load distribution panel directly to the inverter's AC output terminals, incorporating appropriate AC breakers and Residual Current Devices (RCDs).

3. Firmware Configuration and Parameter Setup

Once physical connections are verified, the inverter's internal management system must be programmed to recognize the battery-free operating state.

• Access the inverter configuration menu via the LCD interface or integrated communication software.

• Set the battery type parameter to No Battery or PV Direct Mode depending on the specific firmware terminology.

• Configure the output source priority to PV First so that all available solar power is routed instantly to connected AC loads.

• Adjust load-shedding parameters or warning alarms to prevent continuous fault cycles when solar power drops below active demand.

In industrial applications requiring high operational continuity, engineering teams frequently deploy robust hardware solutions such as the ES On Off Grid Solar Inverter, which features advanced internal power management protocols specifically built to balance fluctuating PV inputs directly against active AC demand curves.

When engineering systems for European commercial facilities facing harsh outdoor weather or high dust industrial environments, protecting delicate power electronics becomes paramount. In these scenarios, utilizing specialized enclosures like the ES IP54 On Off Grid Solar Inverter Euro ensures that internal high-frequency switching components remain completely isolated from moisture, particulates, and chemical exposure while delivering steady battery-less solar conversion.

Pros and Cons of Using an Inverter Solar Off Grid Without a Battery

Operating a solar off grid inverter without a battery significantly reduces initial system cost and eliminates energy storage maintenance, but leaves the system vulnerable to instant power interruptions when sunlight fluctuates.

Designing solar installations without energy storage requires balancing financial savings against strict operational constraints. While removing storage solves several immediate budget and maintenance challenges, it introduces inherent physical limits regarding power availability and power stability.

Advantages of Battery-Less Off-Grid Systems

1. Substantial Capital Expenditure Reduction

   Energy storage banks—particularly modern Lithium Iron Phosphate (LiFePO4) systems—frequently account for 40% to 60% of total system hardware costs. Removing storage dramatically lowers initial financial investment, delivering significantly faster return on investment (ROI) for daytime-only power demands.

2. Elimination of Battery Degradation and Maintenance

   All electrochemical storage technologies suffer from capacity fade over time due to thermal stress, charge cycling, and age. Operating without energy storage eliminates battery thermal management systems, ongoing cell balancing, capacity monitoring, and expensive battery bank replacements every 5 to 15 years.

3. High System Efficiency and Reduced Thermal Loss

   Energy storage involves a round-trip efficiency penalty; charging and discharging lithium or lead-acid batteries incurs chemical and thermal energy losses ranging from 8% to 20%. Routing DC power directly from PV panels through the inverter to AC loads eliminates chemical conversion steps, maximizing direct solar utilization efficiency.

4. Simplified Logistics and Reduced Installation Complexity

   Energy storage systems add significant physical weight, require specialized hazards shipping compliance, and necessitate strict climate-controlled room space. A battery-free installation consists simply of solar arrays, isolation switchgear, and the inverter unit, drastically streamlining field setup and site requirements.

Disadvantages of Battery-Less Off-Grid Systems

1. Complete Absence of Nighttime Power

   Because solar panels generate electricity strictly in the presence of photons, a battery-less off-grid inverter shuts down entirely once the sun sets. Applications requiring continuous 24/7 power operation cannot rely on a battery-free configuration alone.

2. Extreme Sensitivity to Cloud Cover and Solar Irradiance Drops

   Without a battery to buffer transient power fluctuations, passing clouds, heavy haze, or sudden shading cause rapid drops in available PV generation. If incoming solar power falls below connected load demand, the inverter must instantaneously drop loads or shut down to prevent undervoltage damage.

3. Strict Limits on Motor Startup and Inrush Currents

   Heavy inductive loads—such as water pumps, air compressors, and refrigeration units—require high temporary inrush currents (often 3 to 5 times their nominal running power) during startup. Energy storage banks easily absorb these brief surge demands; without a battery, the solar array must be massively oversized just to meet transient peak startup spikes.

4. Increased Stress on Dynamic Control Algorithms

   In battery-less setups, the inverter's internal DSP control loops must make microsecond-level adjustments to track dynamic loads against fluctuating solar inputs. Any failure in power balancing results in immediate output voltage instability or system fault trips.

For demanding commercial projects and off-grid remote operations where reliable daytime power must be matched with operational flexibility, choosing robust conversion hardware such as the NKH Off Grid Hybrid Solar Inverter gives system designers the ability to operate efficiently in battery-less modes today while retaining full seamless plug-and-play expansion for energy storage banks tomorrow if facility power needs expand.

Maintenance Precautions and Operational Guidelines: When managing battery-free industrial inverters, operational teams must enforce strict load-management protocols. Always stagger the startup of inductive machinery so that high startup currents do not coincide. Ensure that PV panel arrays are cleaned regularly; while a dirty panel string in a battery-backed system simply slows charge rates, dirty panels in a battery-less installation directly cause premature midday load shedding due to sudden voltage drops under peak load.

Summary

Operating an off grid inverter without a battery represents an effective, highly efficient, and cost-conscious engineering solution for applications whose energy demands align with daylight hours. By shifting from low-voltage DC bus topologies to modern high-voltage solar inputs, contemporary off-grid and hybrid inverters bypass the need for continuous electrochemical storage buffers. While this configuration eliminates initial storage costs and avoids long-term battery degradation, it demands precise system engineering: PV string voltages must be accurately calculated, solar arrays must be oversized to absorb dynamic cloud coverage, and connected loads must be managed within real-time generation boundaries. For agricultural pumping, daytime commercial operations, and initial phases of remote infrastructure buildouts, battery-less off-grid inverters deliver clean, reliable pure sine wave AC power straight from the sun.
