Selecting the ideal off-grid inverter is critical for establishing a highly stable, self-sustaining photovoltaic energy network. A high-performance off-grid inverter must deliver clean, pure sine wave AC electricity, feature robust surge handling capacity to start heavy inductive loads, integrate smart battery charging management, and operate with high conversion efficiency. By choosing premium hardware configured with low-frequency toroidal transformers or high-frequency digital switching circuits, commercial and industrial operators can guarantee uninterrupted power delivery in the most demanding off-grid environments.
Table of Contents
What is an Off-Grid Inverter and How Does It Define Modern Solar Power Systems?
Crucial Technical Parameters of High-Performance Off-Grid Inverters
Low-Frequency vs. High-Frequency Off-Grid Inverters: A Technical Comparison
Key Application Scenarios and Loading Capacities for Industrial Off-Grid Inverters

What is an Off-Grid Inverter and How Does It Define Modern Solar Power Systems?
An off-grid inverter is an autonomous power electronic device designed to convert direct current stored in battery banks into high-quality alternating current for loads completely isolated from the municipal utility grid. Unlike grid-tied systems that synchronize their output wave with an active utility grid, an off-grid inverter must independently establish its own voltage and frequency reference, acting as the sole grid-forming source for the local distribution network.

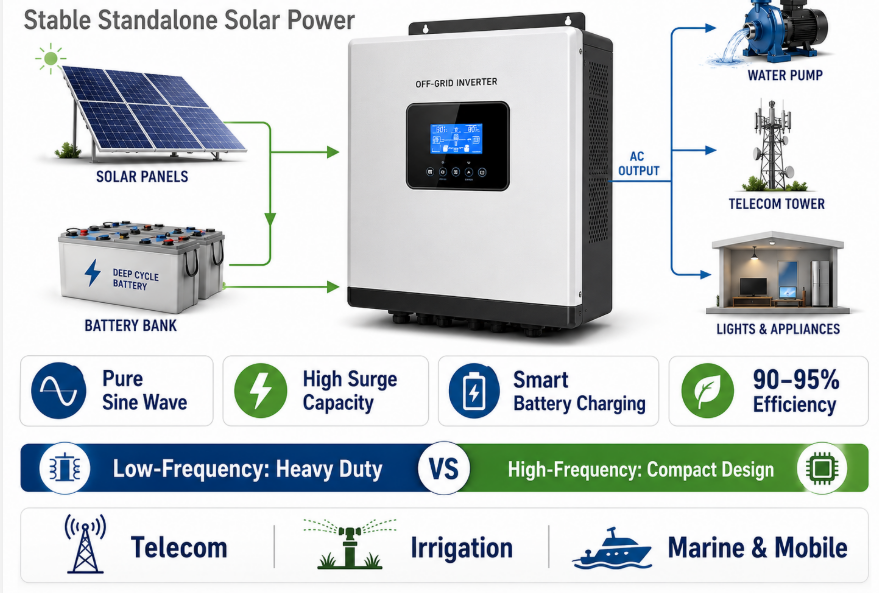

To fully understand the role of an off-grid inverter, one must examine the broader architecture of decentralized power systems. In a standalone photovoltaic installation, solar panels capture solar radiation and convert it to DC electricity, which is then regulated by a charge controller to feed a battery bank. Because standard commercial machinery, agricultural water pumps, telecommunications equipment, and residential appliances run on alternating current, they cannot use battery power directly. The off-grid inverter bridges this critical gap, ensuring that the stored chemical energy in the batteries is transformed into highly regulated, clean electricity that mimics or exceeds the quality of utility-grade power.
The internal architecture of a modern off-grid inverter comprises multiple complex sub-assemblies. These include input filtering stages to smooth DC voltage ripples, high-speed microprocessor control units (MCUs) that execute advanced pulse-width modulation (PWM) algorithms, and output isolation stages that prevent harmonic feed-back from damaging sensitive internal components. By managing the dynamic flow of energy from both the solar array and the energy storage system, the off-grid inverter serves as the operational brain of the entire site, monitoring battery state-of-charge, managing overload conditions, and executing protective shutdowns when electrical faults occur.
From an engineering perspective, modern off-grid inverter topologies are designed to handle extreme fluctuations in both supply and demand. Unlike grid-connected systems that operate under relatively stable load conditions, standalone installations must cope with sudden current spikes when heavy machinery starts up, as well as prolonged periods of low solar input. Therefore, the design philosophy behind these devices focuses heavily on thermal management, transient response times, and component-level redundancy. This ensures that even when operating at the absolute limits of their design envelopes, the systems maintain a steady, clean output waveform without experiencing thermal runaway or voltage sag.
Component Structure of an Off-Grid Inverter System
Sub-Assembly | Primary Material / Technology | Technical Function |
DC Input Stage | Low-ESR Electrolytic Capacitors & Busbars | Filters high-frequency ripple currents from battery banks |
Control Microcontroller | 32-Bit Digital Signal Processor (DSP) | Calculates PWM cycles, manages protection circuits, and monitors system telemetry |
Power Inversion Bridge | Insulated Gate Bipolar Transistors (IGBTs) or MOSFETs | Performs high-speed switching to shape the DC input into a raw AC waveform |
Magnetic Isolation | Copper-Wound Toroidal or Ferrite Core Transformer | Step-up voltage conversion and galvanic isolation between DC and AC circuits |
Output AC Filter | LC Low-Pass Filter Network (Inductors and Capacitors) | Filters out high-frequency switching noise to produce a pure sine wave |
Primary Advantages of Standalone Solar Inverter Architectures
Total Energy Independence: Operators are completely shielded from utility grid failures, rolling blackouts, and escalating electricity tariffs, making these systems highly suitable for critical remote operations.
Modular System Scalability: Modern industrial designs allow parallel operation, meaning multiple units can be interconnected to scale power output as site demands grow over time.
Galvanic Noise Isolation: By decoupling the local AC distribution network from the public utility grid, sensitive laboratory, medical, or telecommunications gear is fully protected from utility-borne surges and harmonic noise.
Crucial Technical Parameters of High-Performance Off-Grid Inverters
The performance, longevity, and load compatibility of an off-grid inverter are determined by a precise set of electrical specifications, most notably its continuous output rating, surge capacity, total harmonic distortion, conversion efficiency, and quiescent current draw. Evaluating these parameters under maximum thermal loads allows system integrators to select hardware that maintains high power quality without suffering premature component degradation.
When selecting a professional-grade off-grid inverter, continuous output power is the baseline metric. However, continuous power only tells part of the story. The surge or peak power rating—defined as the maximum wattage an inverter can sustain for brief periods (typically 3 to 10 seconds)—is highly critical. Many industrial machines, motor-driven pumps, and refrigeration compressors draw up to three or four times their running current during startup. If an off-grid inverter lacks sufficient transient surge capacity, its overcurrent protection will trigger immediately upon motor ignition, rendering the system incapable of running essential machinery.
Another critical engineering metric is the Total Harmonic Distortion (THD) of the output AC wave. Standard utility grids typically deliver electricity with a THD below 3%. High-quality advanced off-grid inverter solutions utilize advanced double-loop control loops and high-speed DSP processing to keep their output THD below 3% under pure resistive loads, and below 5% under highly non-linear inductive or capacitive loads. This level of power purity prevents overheating in induction motors, eliminates screen flickering in monitoring equipment, and ensures the reliable operation of digital microprocessors.
Furthermore, system efficiency must be evaluated across the entire load curve, rather than relying solely on the peak efficiency rating specified under laboratory conditions. An off-grid inverter rarely operates at 100% load; instead, its typical operating point fluctuates between 20% and 70% of its rated capacity. Premium inverters are optimized to maintain a flat efficiency curve, delivering over 90% efficiency even at partial loads. Simultaneously, the idle power consumption (also known as standby loss or quiescent current) must be kept to an absolute minimum. In off-grid systems that remain active 24/7, an inverter with high standby losses can drain a significant percentage of the daily solar harvest just by remaining turned on during the night.
Standard Specifications of Commercial Off-Grid Inverters
Technical Parameter | Optimal Range for B2B Applications | Engineering Impact |
AC Output Waveform | Pure Sine Wave (THD < 3%) | Prevents thermal buildup in motors; ensures smooth operation of digital controls |
Continuous Efficiency | 90% to 95% | Directly affects the sizing requirement of the solar array and battery bank |
Surge Capability | 300% of Rated Capacity for 5-10 Seconds | Allows safe startup of high-torque inductive loads like pumps and compressors |
Idle Power Consumption | < 1.5% of Rated Nominal Power | Maximizes battery preservation during periods of zero load or nighttime standby |
Transfer Time (UPS Mode) | 4 milliseconds to 10 milliseconds | Prevents computer resets and PLC dropouts during source transfer |
Critical System Protection Features
Intelligent Overcurrent Protection: The control unit dynamically limits output current when short circuits or excessive loads are detected, preventing damage to the internal power switches.
Dynamic Thermal Throttling: Variable-speed cooling fans adjust their RPM based on internal heatsink temperatures, combined with automatic power derating if ambient temperatures exceed safe thresholds.
Low-Voltage Battery Disconnect (LVD): Protects the connected battery bank from catastrophic over-discharge by cleanly shutting down the inverter when battery voltage drops below a preconfigured limit.
Low-Frequency vs. High-Frequency Off-Grid Inverters: A Technical Comparison
The primary structural distinction in off-grid inverter engineering lies between low-frequency topologies, which utilize robust, heavy iron-core toroidal transformers, and high-frequency topologies, which rely on compact solid-state electronic switching circuits and small ferrite-core components. While high-frequency inverters offer a lightweight and cost-effective footprint, low-frequency variants provide unmatched durability, exceptional peak surge capabilities, and high resilience to voltage spikes.
To conduct a rigorous technical comparison, one must look at how these two designs handle electrical stress. Low-frequency inverters operate by first switching the low-voltage DC input at high frequency, stepping it up via a large, heavy copper transformer that operates at the utility line frequency (50Hz or 60Hz). This massive transformer acts as an electromagnetic buffer. Because of the physical mass of its iron core and copper windings, it can absorb substantial inductive kickback and transient overvoltages without damage. This makes heavy-duty low-frequency solar inverters highly reliable for heavy industrial environments, agricultural installations, and off-grid remote sites where massive motor starts are common.
In contrast, high-frequency inverters use a multi-stage solid-state process to step up the voltage before using high-speed MOSFETs or IGBTs to shape the output AC waveform. This design completely eliminates the heavy iron-core transformer, replacing it with small ferrite transformers that operate at frequencies often exceeding 20kHz. The result is a unit that is significantly lighter, smaller, and easier to wall-mount. However, because high-frequency systems lack the large electromagnetic buffer of a low-frequency transformer, they are more susceptible to component failure when subjected to massive inductive spikes, rapid grid fluctuations, or highly reactive loads.
Furthermore, the thermal dissipation characteristics differ dramatically between the two styles. High-frequency inverters rely heavily on continuous, high-volume airflow through dense heatsinks to keep their delicate power transistors cool. Low-frequency inverters, while still requiring cooling fans under heavy loads, possess much larger thermal mass. This thermal mass allows them to handle brief, extreme overloads without instantly reaching critical silicon temperatures. Consequently, for critical commercial infrastructure where downtime is costly, the industrial sector overwhelmingly favors low-frequency toroidal transformer architectures.
Topographical Comparison: Low-Frequency vs. High-Frequency
Comparative Feature | Low-Frequency (Toroidal Transformer) | High-Frequency (Solid-State / Ferrite) |
Surge Multiplier | 3x rated power for up to 10 seconds | Typically 1.5x to 2x rated power for under 1 second |
Physical Weight | High (heavy iron core and thick copper windings) | Low (primarily silicon switches, PCBs, and small ferrite cores) |
Harmonic Resilience | Outstanding; filters out high-frequency noise naturally | Moderate; requires complex active electronic filtering |
Standby Idle Loss | Higher (due to iron-core magnetization currents) | Extremely low (minimal static switching losses) |
Long-term Longevity | Longest operational lifespan; highly repairable | Moderate lifespan; highly integrated circuit cards |
Working Principle of Toroidal Transformers in Solar Inverters: Unlike traditional square-core EI transformers, a toroidal transformer features a doughnut-shaped core made of high-permeability grain-oriented silicon steel, wrapped tightly with continuous copper wire. When the inverter's control circuitry switches the DC voltage into alternating pulses, this toroidal geometry minimizes magnetic flux leakage, resulting in significantly higher efficiency, lower acoustic hum, and a massive inductive energy storage capacity. This concentrated magnetic mass allows the system to easily ride through short-circuit events and startup surges that would instantly destroy high-frequency semiconductor switches.
Key Application Scenarios and Loading Capacities for Industrial Off-Grid Inverters
Industrial and commercial off-grid operations demand inverters capable of handling complex, highly reactive electrical loads without experiencing output degradation or frequency drift. Whether deployed in deep-sea mining vessels, remote telecommunication towers, or agricultural irrigation networks, off-grid inverters must be carefully matched to the precise loading profiles of the connected machinery to guarantee operational continuity.
When sizing an off-grid system, loads are categorized into three main types: resistive, capacitive, and inductive. Resistive loads, such as electric heaters and incandescent lighting, are straightforward because their starting current equals their running current. Capacitive loads, such as modern LED drivers and switch-mode power supplies found in server racks, can introduce high inrush currents as their input capacitors charge. Inductive loads, which include any device utilizing an electromagnetic coil to produce motion (such as electric motors, air compressors, pumps, and fans), present the most severe challenge to an off-grid inverter.
For instance, an agricultural water pump rated at 2.2kW can require up to 8.8kW of power for several seconds during startup due to the inertia of the water column and the motor rotor. To prevent the inverter's protection circuits from tripping, system designers must deploy industrial-grade off-grid inverter systems that offer verified peak-power capability. Selecting an inverter with a toroidal low-frequency transformer ensures that the system can supply this massive reactive power without dropping the output voltage, which would otherwise cause auxiliary control relays or computers on the same circuit to drop out.
Additionally, off-grid systems deployed in harsh environmental conditions must be derated to account for high temperatures and high altitudes. As ambient temperatures rise, the thermal dissipation capacity of the inverter's heatsinks decreases, requiring the control software to scale back the maximum allowable continuous current. Similarly, at high altitudes, the thinner air provides less effective cooling and reduced dielectric strength, necessitating careful thermal management and specialized physical installation designs to maintain safe operation.
Load Profile and Sizing Matrix
Load Class | Examples | Starting Current Characteristic | Recommended Inverter Type | Sizing Margin Requirement |
Resistive | Space heaters, heating elements, incandescent bulbs | Steady state; no inrush current | High-Frequency or Low-Frequency | Add 15% safety margin above total wattage |
Capacitive | LED driver arrays, computer servers, lab instrumentation | Extremely high initial spike (microsecond duration) | Low-Frequency or High-Frequency with active PFC | Add 30% safety margin; prioritize active power factor correction |
Inductive | Deep-well pumps, refrigeration compressors, industrial mixers | Massive inrush current (3x to 5x running current for several seconds) | Low-Frequency (Toroidal) exclusively | Size inverter continuous rating to at least 2.5x motor nameplate wattage |
Key Applications for Industrial Off-Grid Power Systems
Remote Telecommunication Infrastructure: Decoupled microwave repeater stations and cellular towers require highly reliable, low-noise pure sine wave power to run sensitive transceiver equipment and cooling systems 24/7.
Agricultural Irrigation and Livestock Operations: Solar-powered water pumps must start reliably several times a day, demanding high torque and excellent surge capacity from the power electronics.
Marine and Mobile Command Units: Emergency response vehicles and research vessels require robust, vibration-resistant power systems capable of managing complex, mixed electrical loads under changing environmental conditions.
Summary
Designing and implementing an ultra-reliable off-grid solar system depends heavily on selecting the correct power conversion hardware. High-performance off-grid inverters serve as the vital link between raw energy storage and the sensitive electrical machinery that powers businesses, farms, and infrastructure around the globe. By prioritizing heavy-duty toroidal low-frequency transformer topologies, ensuring low total harmonic distortion, and selecting units configured with modern communication protocols and robust surge capabilities, B2B buyers can confidently construct off-grid networks that deliver stable, clean, and reliable power for decades to come.
