The difference between hybrid inverter and off-grid inverter

The primary difference between a hybrid inverter and an off grid inverter lies in grid connectivity and power routing capability: a hybrid inverter synchronizes bi-directionally with the public utility grid to import or export AC power while simultaneously managing DC solar panels and battery storage, whereas an off grid inverter operates completely isolated from the grid network, relying solely on solar PV and local battery banks to maintain active load power via internal AC voltage synthesis.

Table of Contents

• Architectural Differences Between Hybrid and Off-Grid Inverters

• Grid Synchronization and Bidirectional Power Flow Capabilities

• Battery Charging Topologies and MPPT Efficiency Factors

• Off-Grid Inverter Surge Capacity and Inductive Load Management

• Energy Management System (EMS) and Load Prioritization Logic

• System Installation and Hardware Cost Considerations

• Regional Grid Compliance and European Standard Certifications

• Selection Criteria for Hybrid vs Off-Grid Solar Systems

Architectural Differences Between Hybrid and Off-Grid Inverters

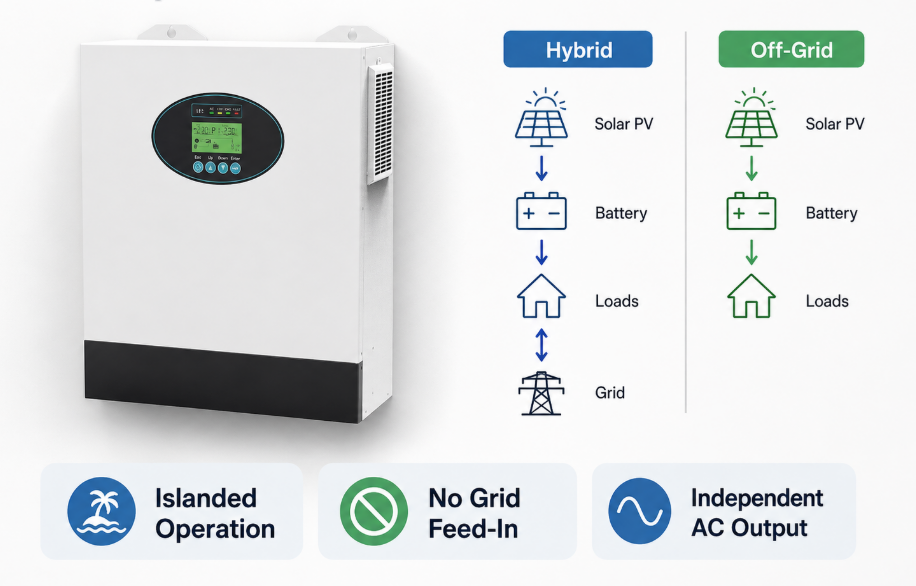

A hybrid inverter integrates grid-tied solar conversion, battery energy storage management, and bi-directional utility power routing within a unified physical enclosure, whereas an off grid inverter operates as an islanded power generation center isolated from utility grid frequency and voltage baselines.

From an electrical engineering standpoint, the functional architecture dictates how each inverter manipulates direct current (DC) generated by photovoltaic arrays and transfers it into stable alternating current (AC) for local consumption. In a standard off grid inverter circuit, the internal layout centers on a high-capacity DC-to-DC step-up stage followed by a full-bridge DC-to-AC pulse-width modulation (PWM) inverter module. The primary directive of an off grid inverter is to independently establish a stable 50Hz or 60Hz sinusoidal voltage reference from a local battery bank. The off grid inverter cannot feed energy back into an external grid power supply because it lacks anti-islanding switchgear and line-synchronization control loops. The system must generate its own reference voltage continuously, making battery health and solar controller capacity critical to uninterrupted operation.

Conversely, a hybrid solar inverter contains complex double-conversion circuitry and solid-state transfer switches capable of executing sub-10 millisecond power source handoffs. The internal power path allows the hybrid unit to draw energy from the grid to top off low-voltage or high-voltage battery banks, blend solar PV power with utility power to satisfy heavy site loads, or export excess solar generation back to the grid network under net-metering structures. When utility power fails, internal disconnect relays open instantly to prevent backfeeding into the utility lines, a safety requirement defined by global grid codes, and the system seamlessly transforms into a local off grid inverter power supply. This hybrid approach eliminates the single-point failure modes inherent to basic off grid inverter hardware while expanding energy source options.

To inspect advanced hybrid architectures designed for residential and light commercial projects, engineers often deploy integrated solutions like the high efficiency hybrid solar inverter with battery management, which combines dual MPPT channels with intelligent grid-to-battery power routing pathways. Understanding these core architectural differences allows system designers to size components correctly and prevent unexpected power dropouts under extreme load transients.

Grid Synchronization and Bidirectional Power Flow Capabilities

Hybrid inverters utilize phase-locked loop (PLL) control algorithms to continuously match utility grid voltage, frequency, and phase angle, whereas off grid inverter systems lack synchronization circuits and synthesize their own isolated voltage reference.

Bi-directional power flow is a fundamental characteristic that separates hybrid systems from pure off grid inverter configurations. A hybrid unit constantly measures grid parameters through high-speed current transformers (CTs) and voltage sensing circuits. By utilizing high-frequency pulse-width modulation (PWM) driven by insulated-gate bipolar transistors (IGBTs), the hybrid system controls both the phase angle and magnitude of its output current relative to the utility voltage. When local solar generation exceeds immediate consumption, the inverter creates a small phase shift that pushes energy into the grid. When power consumption demands supplementation, the inverter modulates its firing angle to pull supplementary energy from the grid without interrupting power quality to connected site loads.

An off grid inverter cannot execute phase locking with an external utility line. Its internal microprocessor operates in voltage source mode (VSM), generating a pure sine wave output from the continuous DC supply supplied by the battery bank or solar array. If an external generator is introduced into an off grid inverter circuit, the inverter must rely on an integrated AC transfer relay. Upon detecting incoming generator power, the off grid inverter disengages its internal DC-to-AC converter, allows the generator line to directly feed the loads, and redirects a portion of the incoming generator power into an internal battery charger module. There is no concurrent blending of solar power and utility power in a standard off grid inverter setup; the system operates on an either-or basis.

In demanding environments across Western Europe and severe industrial regions, system stability requires rugged hardware built to stringent environmental standards. Units such as the IP54 Euro standard hybrid inverter with advanced protection provide robust outdoor enclosure ratings alongside precise digital phase-locking software to guarantee zero-flicker performance under fluctuating line conditions.

Battery Charging Topologies and MPPT Efficiency Factors

Hybrid solar inverters typically employ high-voltage DC battery bus interfaces to maximize system efficiency, while an off grid inverter generally relies on low-voltage DC charging loops with integrated MPPT charge controllers.

The battery interface represents a pivotal engineering divergence in system design. Modern hybrid architectures frequently operate on high-voltage (HV) battery buses ranging from 150V DC up to 600V DC. By maintaining a high DC bus voltage that closely aligns with the solar array operating voltage range (200V to 500V DC), the internal power conversion stage avoids high step-up voltage ratios. This design minimizes current intensity, substantially reducing resistive copper losses within internal traces and cable runs. As a result, European efficiency ratings for high-voltage hybrid inverters routinely reach 97.5% to 98.2% across peak operating curves.

Conversely, a standard off grid inverter typically interfaces with low-voltage (LV) battery banks operating at nominal DC voltages of 12V, 24V, or 48V. Handling multi-kilowatt load profiles on a 48V battery bus requires high current throughput. For example, delivering a 5kW continuous AC load demands over 110 Amperes of continuous DC current from the battery bank. The integrated Maximum Power Point Tracking (MPPT) controller in an off grid inverter must step down the high PV array voltage (e.g., 150V DC) to match the 48V battery charging parameter. While modern buck-converter MPPT circuits achieve conversion efficiencies above 98%, the overall round-trip system efficiency of low-voltage off grid inverter systems is lowered by thermal dissipation across high-current battery cables and low-frequency isolation transformers.

To deliver high reliability across industrial installations, versatile off grid inverter options like the NKH high performance hybrid off grid inverter platform incorporate high-capacity MPPT controllers designed to process elevated solar array voltages while delivering thermal protection under continuous full-load operating conditions.

Maintenance Strategy and Thermal Optimization Tips: In high-current, low-voltage off grid inverter installations, thermal stress on internal MOSFETs and DC connection terminals represents the primary cause of hardware degradation over time. System maintenance engineers must perform annual infrared thermal scans of all DC terminal lugs to detect high-resistance connections. Ensure that battery cable lengths are matched precisely to prevent voltage unbalance across parallel strings, and clean fan filter elements monthly to maintain optimal forced-air cooling airflow across internal heat sinks.

Off-Grid Inverter Surge Capacity and Inductive Load Management

Off grid inverter hardware is engineered with heavy-duty low-frequency transformers to withstand severe inductive motor start-up surges, whereas transformerless hybrid inverters rely on electronic current-limiting circuits that require precise load capacity planning.

Inductive loads such as water pumps, air conditioning compressors, concrete mixers, and heavy power tools exhibit momentary starting inrush currents that reach three to six times their steady-state running amperage. An off grid inverter installed in an isolated environment must absorb these massive energy spikes without dropping system output voltage or triggering protective fault shutdowns. Low-frequency off grid inverter designs incorporate large copper toroidal transformers that store magnetic flux, providing thermal and electromagnetic inertia capable of supporting 200% to 300% surge capacity for 5 to 10 seconds.

In contrast, standard residential and commercial hybrid inverters utilize high-frequency switching circuits without large copper transformers to maximize conversion efficiency and reduce equipment footprint. While hybrid inverters possess short-duration surge headroom (typically 110% to 150% for up to 10 seconds), they depend on active silicon protection loops that trip into fault mode if maximum current limits are breached. In hybrid site designs, heavy inductive surges are usually buffered by drawing instantaneous reactive power from the connected utility grid. However, if the grid fails and the hybrid inverter operates in islanded backup mode, large inductive start-up loads can induce voltage sag or overload shutdowns if the inverter is undersized relative to the connected motor ratings.

Understanding these surge dynamics is essential for designing off grid inverter solar arrays supporting industrial processing machinery or remote agricultural pumping stations where utility power grid support is entirely absent.

Energy Management System (EMS) and Load Prioritization Logic

Hybrid inverters feature programmable Energy Management System (EMS) software designed for time-of-use energy arbitrage and zero-export control, whereas off grid inverter management logic focuses primarily on battery discharge depth and generator auto-start signaling.

The operational intelligence embedded within an inverter microprocessor dictates how power flows from solar panels, batteries, and auxiliary sources to active facility loads. A hybrid inverter functions as a smart energy router governed by advanced EMS firmware. Site managers can program the inverter to operate under various operational profiles:

1. Time-of-Use (TOU) Peak Shaving: The hybrid inverter discharges battery power to supply site loads during expensive peak-rate tariff hours and recharges the batteries using low-cost off-peak grid power or solar energy.

2. Self-Consumption Optimization: Solar generation is directed first to site loads, second to battery charging, and third to grid export, minimizing energy purchases from utility suppliers.

3. Zero-Export Grid Mode: In regions where grid operators prohibit solar feed-in, the hybrid inverter dynamically throttles solar panel output to match local load demands in real time.

An off grid inverter utilizes a more direct control loop structure focused on continuous load preservation and energy storage protection. Its energy management logic relies on battery state-of-charge (SOC) or set voltage levels. When battery SOC falls below pre-programmed threshold limits (e.g., 20% SOC), the off grid inverter closes a set of dry relay contacts to trigger an auxiliary diesel or gas generator to start. The off grid inverter then transfers the load to the generator while engaging its internal charger to replenish the battery bank. Once the battery reaches the absorption charge setpoint (e.g., 95% SOC), the relay opens to shut down the generator, returning the facility to quiet, zero-emission battery power.

System Installation and Hardware Cost Considerations

Hybrid inverter installations incur higher initial inverter unit costs but require smaller battery banks due to grid support, while off grid inverter projects demand larger battery storage capacity and higher overall balance-of-plant capital investment to ensure continuous power.

Evaluating the total cost of ownership (TCO) between hybrid and off grid inverter installations requires analyzing both initial equipment expenditure (CAPEX) and long-term operational maintenance (OPEX). A hybrid solar inverter typically costs 20% to 40% more than an equivalent kilowatt-rated off grid inverter due to complex grid-tie synchronization circuits, anti-islanding protection devices, and certified utility safety switchgear. However, because a hybrid system remains connected to the electric utility grid, site owners do not need to size the battery bank to cover multiple consecutive days of cloudy weather (autonomy days). The battery bank can be sized strictly for emergency backup durations or peak load shaving, significantly reducing battery capital costs.

Conversely, a standalone off grid inverter installation demands a significantly larger battery capacity to ensure uninterrupted reliability during extended periods of zero solar generation. The battery energy storage system (BESS) must be engineered to sustain site loads through local worst-case weather scenarios. Additionally, off grid inverter systems require dedicated balance-of-plant (BOP) components, including backup generator switchgear, heavy-gauge DC battery cabling, external fused disconnects, and dedicated AC load distribution sub-panels. When factoring in the complete energy storage system, the comprehensive cost of an off grid inverter infrastructure project often exceeds that of a grid-connected hybrid installation of comparable power capacity.

Regional Grid Compliance and European Standard Certifications

Hybrid inverters must comply with strict national grid connection standards such as EN50549, VDE-AR-N 4105, and IEEE 1547, whereas off grid inverter units are exempt from grid compliance mandates but must fulfill local off-grid electrical safety codes.

Grid-tied and hybrid inverters operate in parallel with public electrical infrastructure. Consequently, electrical utilities strictly mandate that hybrid equipment pass rigorous certification tests to prevent grid instability or line worker hazards. In European markets, hybrid units must feature certified anti-islanding protection (Loss of Mains detection) that disconnects the inverter from the grid within 100 milliseconds if utility power drops. Furthermore, hybrid inverters must support grid frequency regulation, power factor adjustment (reactive power compensation), and high-voltage ride-through (HVRT) protocols.

Because an off grid inverter is physically isolated from utility distribution lines, it does not inject power into public grids and is not subject to utility grid code compliance regulations. However, off grid inverter hardware must still satisfy strict industrial safety standards, including CE marking, Low Voltage Directive (LVD) standards, Electromagnetic Compatibility (EMC) testing, and national wiring codes governing ground bonding and earth leakage protection. In industrial and outdoor agricultural deployments, specifying enclosures with IP54 or IP65 ingress protection ensures internal power electronics remain fully protected against dust intrusion and moisture penetration, ensuring multi-year operational reliability in hostile ambient environments.

Selection Criteria for Hybrid vs Off-Grid Solar Systems

Selecting the correct inverter architecture depends on utility grid availability, local utility stability, overall project capital budget, and the operational criticality of connected site loads.

To assist system designers, project engineers, and commercial buyers in selecting the optimal solar inverter system architecture, the decision process can be structured around key field parameters:

1. Evaluate Grid Availability: If a reliable public power utility grid is accessible on-site, a hybrid solar inverter is the primary choice due to its ability to lower grid energy purchases while providing immediate emergency backup capabilities.

2. Analyze Site Power Reliability: In regions with unstable, low-quality grid power subject to frequent voltage fluctuations and blackouts, a hybrid inverter equipped with a wide AC input voltage window and fast transfer switching acts as an online UPS system. If utility power is completely absent (such as remote mining camps, island sites, or isolated agricultural facilities), a high-surge off grid inverter is the mandatory baseline choice.

3. Quantify Load Types and Surge Requirements: Facilities operating heavy inductive three-phase machinery or high-power motor pumps may require transformer-based off grid inverter configurations capable of supporting heavy peak starting loads.

4. Review Local Energy Regulations: If local utility regulations offer attractive feed-in tariffs or dynamic time-of-use pricing structures, a hybrid solar inverter unlocks additional revenue streams through grid energy sales and automated tariff optimization.

Conclusion and Engineering Summary

Both hybrid and off grid inverter architectures serve vital roles in modern solar photovoltaic and energy storage installations. The selection between these two conversion technologies comes down to site grid access, system autonomy targets, and the physical characteristics of the connected loads. Hybrid inverters represent the ideal solution for grid-connected residential, commercial, and industrial sites seeking to increase self-consumption, optimize energy tariffs, and maintain seamless power continuity during utility outages. Off grid inverter systems remain the gold standard for independent, isolated electrification projects where independence from utility networks, high surge endurance, and rugged energy autonomy are paramount.

By carefully evaluating voltage profiles, MPPT efficiency metrics, surge handling characteristics, and long-term operating costs, system engineers can design robust solar energy infrastructures tailored precisely to site demands.
