How Much DC Battery Power Do I Need for A 12V Setup?

One is a load rate, one is stored charge and one is a charging current. Comparing them directly cannot predict runtime.

Power describes how fast a load needs energy at a given moment. It is measured in watts. Energy describes how much work that load consumes over time. It is measured in watt hours. Battery capacity in amp hours describes stored charge at a stated voltage.

· Watts equal volts multiplied by amps.

· Watt hours equal watts multiplied by hours.

· Approximate nominal battery watt hours equal nominal volts multiplied by amp hours.

A 12V battery power in watts question therefore needs two answers. The first is the continuous and peak power the battery and BMS can deliver. The second is the amount of energy available before the approved discharge boundary is reached. A large Ah label does not prove that a battery can support a high starting load.

The daily total is not yet the battery size. It is the energy demand for one assumed day. Add realistic standby use, conversion loss and seasonal behaviour, then use the documented usable energy of the exact battery. Do not invent one universal reserve percentage.

The United States Department of Energy recommends this load first sequence for small photovoltaic systems: identify devices, determine watts, estimate hours and sum daily watt hours. Its guide also warns that a nameplate can represent a maximum design value rather than actual consumption, so measurement is preferable when practical.

Draw the DC Power Path Before Selecting Hardware

Charging Sources Have Real Operating Windows

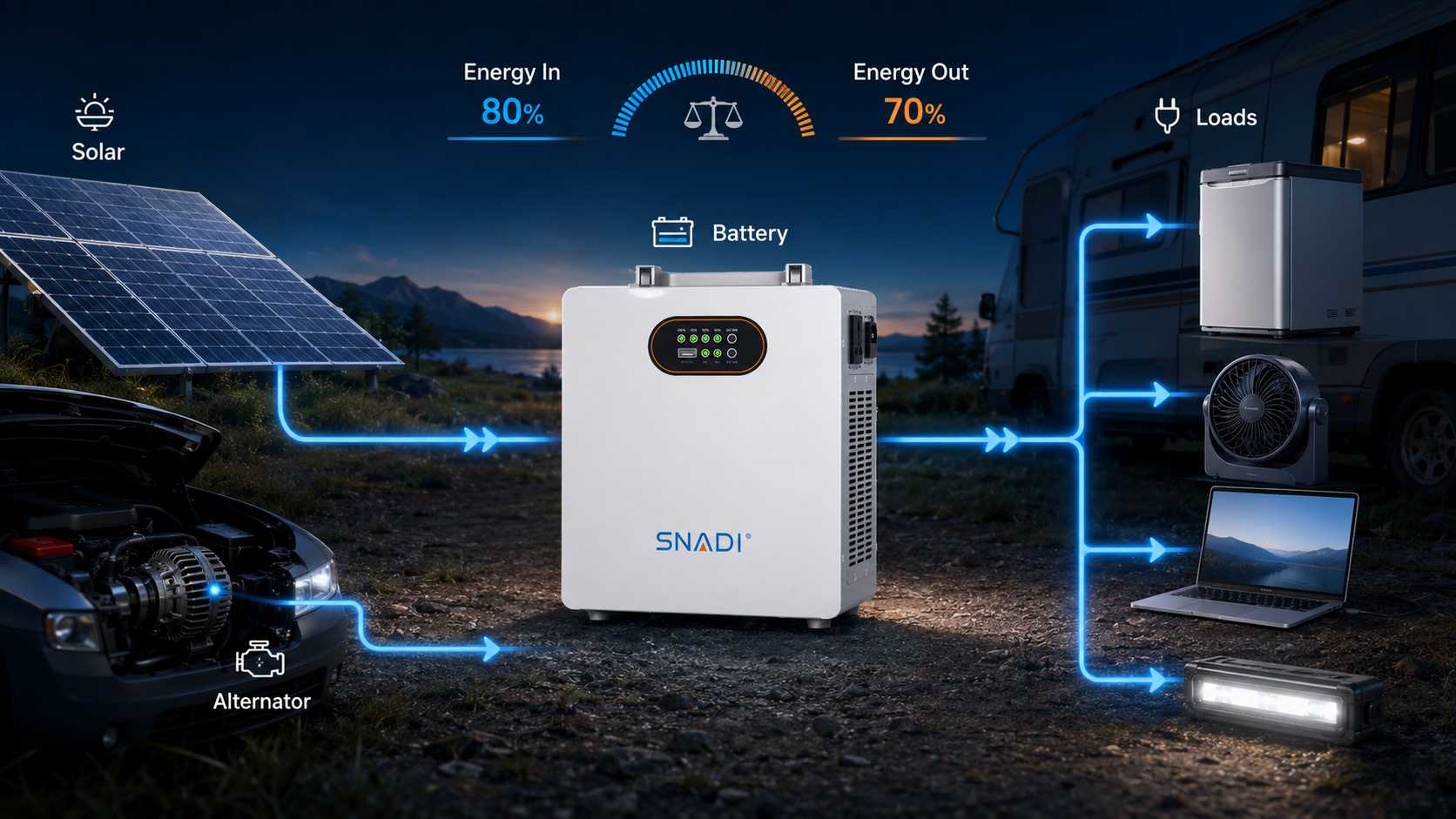

A 12V DC power system is a path, not a box. Draw it from left to right: source, charge control and protection, battery and BMS, distribution, then loads. Every node can limit the power that reaches the next one.

DC battery charging from solar and alternator can reduce dependence on one source, but the labels do not guarantee daily energy. Solar input changes with available light, array orientation, shading, temperature and controller limits. Alternator input changes with drive time, source management, vehicle operation and the conditions permitted by the vehicle manufacturer.

Record the source window in hours and measured energy, not only rated watts or amps. A 500W source that is available briefly may return less daily energy than a lower power source that operates steadily. Shore charging can add another path, but it also needs a verified charger profile and a realistic connection schedule.

Charge Control and Protection Limit the Flow

A DC DC battery charger is not a larger battery and it does not create energy. Its role is to control transfer between a source and an auxiliary battery within the published input, output, temperature and charging boundaries.

DC DC battery charger sizing begins with three checks: how much current the source may supply, how much charge current the battery accepts and how much energy must be returned during the available window. The smallest limit controls the real result.

The Battery and BMS Set the Acceptance Limit

DC battery power versus battery capacity is the distinction between rate and amount. A battery may hold enough energy for the day but still reject a charge current, limit a discharge peak or disconnect at a voltage or temperature boundary.

Check nominal energy, documented usable range, continuous discharge current, peak duration, allowed charge current, voltage limits, temperature conditions and permitted series or parallel arrangements. The BMS is part of the decision, not a reason to ignore system protection.

Distribution and Loads Reveal the Peak

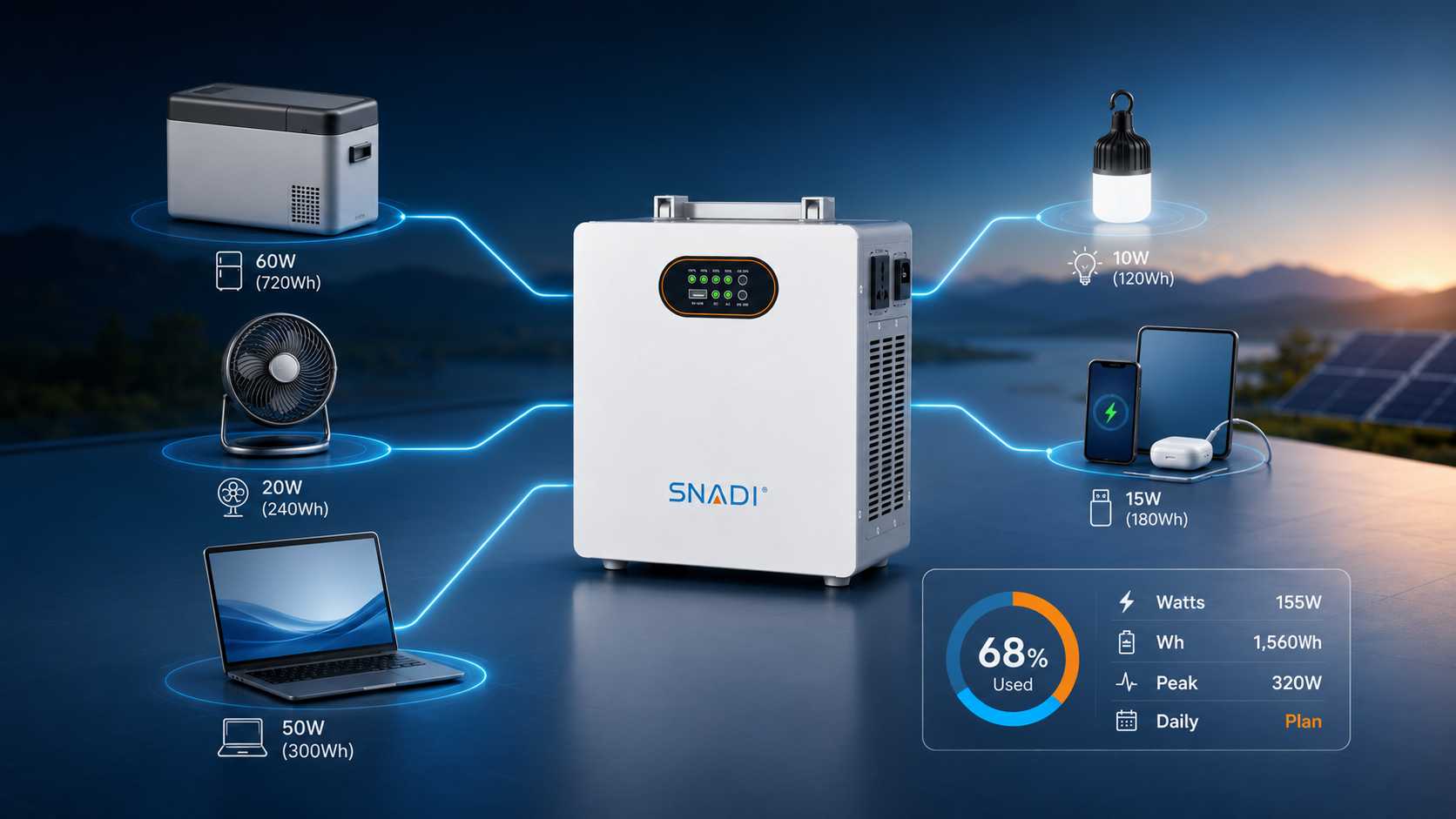

The load ledger needs a second view that asks what runs at the same time. A refrigerator start, fan, laptop charger and temporary appliance may create a peak that never appears in the daily energy total.

Voltage drop also matters more in a low voltage system because a given amount of power requires more current at lower voltage. This guide does not provide a universal cable or fuse value. Those selections depend on current, route length, insulation, installation environment, interruption rating, equipment terminals and governing requirements.

IEC Technical Specification 61200 Part 102 treats a locally supplied low voltage DC installation as a complete installation boundary. IEC 62093 separately covers photovoltaic power conversion equipment such as DC converters, battery chargers and charge controllers. Together, their scopes support a practical rule: buyers should verify both equipment qualification and the installation path around it.

Use an Energy Balance Instead of Guessing Runtime

For a first DC battery power calculation, take daily watt hours from the load ledger and multiply by the number of days the system must operate without dependable charging. That result is required usable energy, not rated battery capacity.

· Required usable energy equals daily load multiplied by the required no charge period.

· Daily returned energy equals measured source energy after controller and charging limits.

· The daily balance equals returned energy minus load energy.

If the example load uses 939Wh per day and the sources return only 700Wh, the system loses 239Wh each day under those assumptions. A larger battery delays the shortage but does not fix the negative balance. The buyer must reduce loads, improve the charging opportunity or define when another source enters.

DC battery runtime is also affected by changing loads. A compressor refrigerator cycles, fans use different speeds and charging electronics can change input power. DOE measurement guidance recommends observing fluctuating consumption over an interval rather than treating one brief reading as the average. That is the better approach for DC battery power for refrigerator planning.

SNADI/SNAT Solar Engineer tip:

Measure one representative hot day and one low charging day before buying more storage. The difference between those records often explains more than another online capacity calculator.

Choose a Component System or an Integrated Power Station

Once the ledger is complete, the buyer can compare two valid approaches. A component system offers control and expansion. A portable power station reduces field integration work. Neither approach removes the need to match power, energy, inputs and outputs.

At SNADI/SNAT Solar, we use the load ledger before discussing a portable product. The SNADI/SNAT Solar MS Series Portable Energy Storage Power Station provides 300W, 500W and 1000W variants with pure sine wave output, integrated MPPT charging and AC, DC and USB connections. The official variants publish an 11V to 55V DC photovoltaic input range.

Those specifications do not answer how much DC battery power is needed. Buyers should still compare the exact model energy capacity, continuous output, load starting requirement, port voltage, charging window and environmental limits. The product is an integrated option, not a substitute for the budget.

Run a Four Record Acceptance Check

Do not accept the system from a photograph or a battery percentage alone. Keep four records.

Document Record

Record exact model numbers, manual revisions, source limits, battery settings, protection schedule and qualified design approval. Keep the documents with the asset register so a later operator can tell which values belong to the installed equipment.

Static Installation Record

Record equipment condition, labels, terminal checks, isolation and protection inspection completed by the responsible professional. Confirm that the installation matches the approved path and that connectors are not being used outside their rated purpose.

Charging Record

Record source voltage, charger input and output, battery response, temperature, warnings and energy returned during a representative window. A charger current display without source voltage and time context cannot prove the daily balance.

Load Record

Record continuous load, coincident peak, lowest observed voltage, BMS behaviour and energy used across a normal operating period. Check whether the proposed charger can protect the source battery, whether the auxiliary battery accepts its output and whether the charging window replaces daily use.

Troubleshoot the Ledger Before Replacing Hardware

When loads shut down early, save the readings before changing parts. Compare the actual load against the ledger, the source energy against the charging plan and the battery response against its manual.

· The load used more daily energy than assumed.

· The refrigerator or another device had a higher duty cycle.

· The alternator or solar source was available for fewer hours.

· A charger reduced output because an input or temperature boundary was reached.

· Cable drop caused low voltage at the charger or load.

· The BMS limited charge or discharge.

· The monitor state estimate did not match measured energy flow.

Replacing the battery may hide a negative energy balance for a few days. Replacing the charger may not help if the source cannot support it. The ledger shows which claim failed first.

Conclusion

DC battery power is not one number printed on a battery or charger. A sound buying decision separates instantaneous watts from daily watt hours, records the real charging window and checks every limit along the DC path.

Begin with the load ledger. Verify peak demand, required usable energy and the daily charging balance. Then compare a component 12V system with an integrated portable power station using the same evidence. That process turns auxiliary battery power from a shopping guess into a system that can be reviewed, tested and maintained.

SNADI/SNAT Solar can review the portable power and solar charging side of a mobile auxiliary setup when the buyer provides the load ledger, required runtime, available charging sources and exact environmental conditions.
