How Does Distributed Solar Power Work, And Is It Right for Your Project?

Distributed solar power is electricity generated by solar PV at or close to the point where it is used. Depending on the project, that electricity can supply local loads directly, charge a battery, feed the distribution grid, or move between all three.

That makes distributed PV different from a centralized solar plant built mainly to produce bulk electricity for the wider power system.

IEA PVPS estimates that about 698 GW of PV was installed worldwide in 2025, taking cumulative global capacity close to 3 TW. Distributed PV accounted for roughly 286 GW of new capacity during the year.

Those capacity figures show scale, but they do not tell a project owner whether a particular installation makes sense. For that, the important questions are more practical: When does the facility consume electricity? How much solar can be used on site? What happens to surplus generation? Is the grid reliable? And what problem, if any, would a battery solve?

What Is Distributed Solar Power?

Distributed solar generation places PV close to the electricity user instead of relying entirely on power delivered from remote plants through transmission and distribution networks.

At the simpler end, a commercial installation may consist of rooftop modules, a grid-connected inverter, protection equipment and a utility connection. More complex projects can include lithium batteries, hybrid inverters, energy management controls, generator inputs, backup circuits and export-control equipment.

A battery is not required. Many distributed PV installations operate without storage.

The U.S. Department of Energy uses the broader term distributed energy resources (DER) for smaller resources connected to the distribution system. Solar PV and battery storage are both common examples.

Distributed Solar vs. Distributed Energy Resources

Distributed solar is one type of DER; DER is the wider category.

It can include solar PV, battery storage, controllable loads, generators and other local energy resources. A solar plus storage project therefore combines distributed generation with distributed storage.

Is Rooftop Solar Distributed Solar?

In most cases, yes.

Residential rooftops, commercial buildings and factory PV installations are common examples because generation takes place close to the load and normally connects through the local distribution network.

Community solar can also be treated as distributed generation even though the PV modules are not mounted on each subscriber's property.

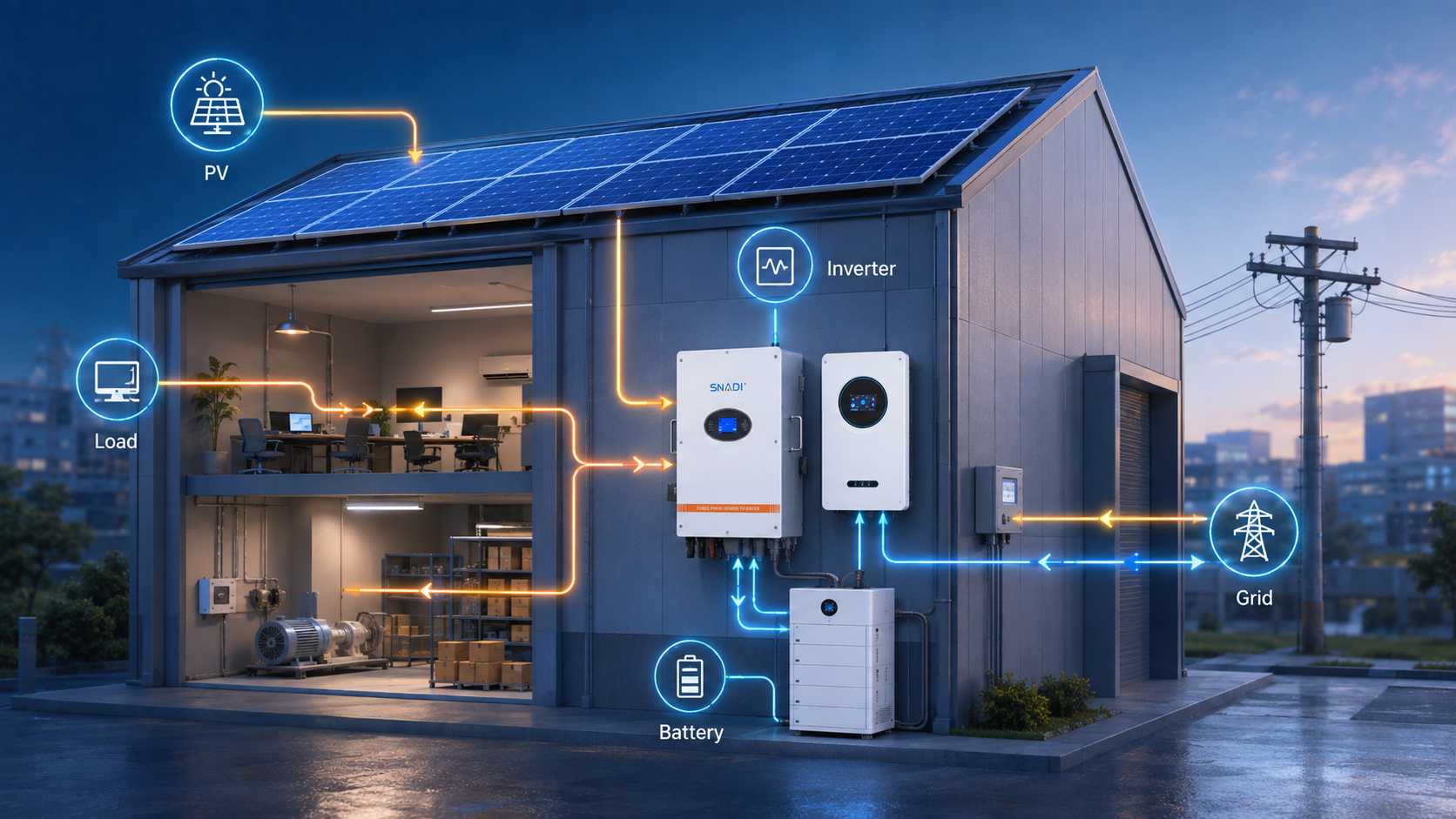

How Does a Distributed Solar Power System Work?

A simple way to picture the energy path is:

PV Modules → Inverter → Local Loads → Battery and/or Utility Grid

The modules generate DC electricity. The inverter converts it into AC power that can be used by the building.

From there, the operating sequence depends on the system configuration.

Solar Generation and Local Consumption

In a self consumption project, PV normally serves active loads first.

Take a warehouse using 35 kW at 11 a.m. If the rooftop array is producing 25 kW at that moment, the PV system can cover 25 kW while the grid supplies the remaining 10 kW.

This direct use of solar is often the simplest source of project value because it replaces electricity that would otherwise be purchased from the utility.

The calculation changes when generation rises above the building's load.

Battery Charging and Discharging

Surplus PV can be sent to a battery when storage is installed. The energy can then be discharged later, after solar output falls or when electricity from the grid is more expensive.

But the presence of surplus solar does not automatically justify a battery.

Before adding storage, define what it is expected to do: increase self consumption, provide backup, reduce a demand peak, shift energy into a different tariff period, or deal with an export restriction. Those objectives lead to different battery sizes and operating strategies.

Grid Import and Export

If PV and battery output are insufficient, electricity is imported from the grid.

If generation exceeds local demand and the battery is full or the project has no battery, the remaining power can be exported where utility rules and the interconnection agreement permit it.

Not every project allows export. Some installations require zero-export control, using meters or current transformers at the grid connection to measure power flow and regulate inverter output.

What Happens During a Grid Outage?

Grid connected PV should not be assumed to keep a building running during a utility outage.

A conventional grid-tied inverter normally includes anti-islanding protection and can disconnect when grid voltage disappears. Keeping loads online requires equipment and controls designed for backup operation.

That usually means some combination of a hybrid inverter, battery storage, transfer equipment and a dedicated group of protected loads.

For buyers who consider backup power essential, this requirement belongs near the beginning of the specification process. It is difficult to solve well after the equipment has already been selected.

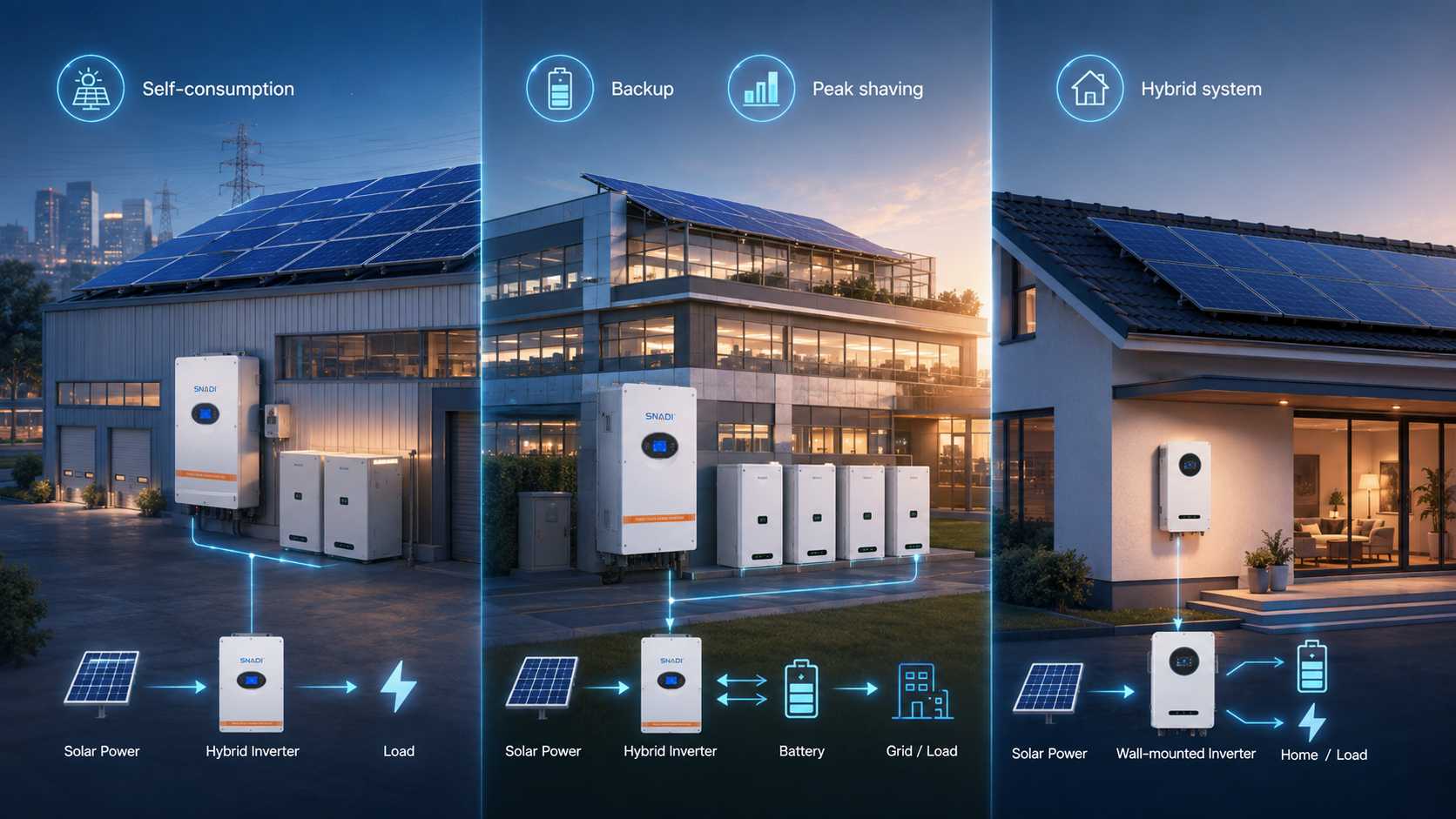

Types of Distributed Solar Power Systems

A warehouse, hotel and remote farm can all use distributed PV, but they should not be designed around the same architecture. Load timing, grid conditions and the commercial objective matter more than the label attached to the project.

Distributed Solar vs. Centralized Solar

Both systems use PV modules. Their role in the power system is different.

Local generation has obvious advantages where electricity can be consumed on site, but higher distributed-PV penetration also creates network issues. Reverse power flow, voltage control, export limits and available grid capacity become more important as more PV connects to the same distribution system.

IEA PVPS identifies storage, flexibility, grid capacity and system integration as increasingly important factors in continued PV deployment.

Main Components of a Distributed Solar System

Solar PV Modules

PV modules convert sunlight into DC electricity.

Array size should reflect more than the amount of available roof space. Designers also need to consider solar resource, structural limits, electrical constraints, expected annual generation and—especially for self-consumption projects—the timing of the site's electricity demand.

Filling every usable square metre with modules is not always the most economic design if much of the additional output would be curtailed or exported at low value.

Solar Inverter

The inverter sits between the PV array and the building's AC electrical system. In a basic grid-connected installation, its main job is power conversion. In a hybrid architecture, it can take on a much wider role.

Depending on the model and system design, the inverter may coordinate PV input, battery charging and discharging, grid interaction, backup output, generator input, monitoring and operating priorities.

For residential and smaller commercial projects, this choice can also determine how easily batteries or backup circuits can be added later.

Battery Energy Storage

Storage requirements differ sharply from one site to another.

A factory that consumes most of its PV output during working hours may meet its financial objective without batteries. A hotel in an area with frequent grid interruptions could value storage very differently because loss of power has an operational cost.

For commercial and industrial projects, one distinction is particularly important:

kW is power. kWh is energy.

Battery kW indicates how much power can be delivered at a given moment. Battery kWh indicates how much energy is available over time.

A project can have enough kWh for several hours of operation and still fail if the inverter or battery cannot provide the instantaneous kW required by the load.

EMS, Monitoring and Metering

Larger systems often need more than basic inverter monitoring.

An energy management system can coordinate PV, batteries, the utility connection and, in some installations, a generator. Metering is also essential for zero-export control and for strategies such as peak-demand management.

Protection and Mounting

DC and AC protection, breakers, isolation, grounding, surge protection, cabling and mounting hardware rarely receive as much attention as modules or inverters. They still have a direct effect on reliability.

The installation environment matters as well. Heat, dust, humidity and salt exposure can change enclosure, mounting and maintenance requirements.

Where Distributed Solar Creates Value

For many businesses, the first source of savings is straightforward: electricity generated and consumed on site replaces electricity that would otherwise be bought from the grid.

Existing roofs and carports also give owners a place to generate power without purchasing a separate generation site.

Some projects benefit from modular expansion. A business can install an initial PV capacity and increase it later, provided that the electrical infrastructure, roof area and inverter architecture were selected with expansion in mind.

Storage adds another set of possible benefits, but only where the operating conditions support them. Batteries can maintain selected loads during outages, move solar energy into later hours or reduce short demand peaks in tariff structures that charge for maximum demand.

These are different value streams. They should be modeled separately rather than grouped under a generic claim that solar-plus-storage always produces a better return.

Challenges and Limitations

Distributed PV is highly site-specific.

A project can be attractive at one building and uneconomic at another a few kilometres away if their tariffs and load profiles differ.

Typical constraints include shading, limited roof area, interconnection capacity, low export compensation, battery cost, local grid-code requirements and equipment exposed to unsuitable environmental conditions. Oversizing creates another risk. More PV or more battery capacity is not useful simply because it fits within the project budget.

Distribution networks can also face reverse power flow and voltage issues when large amounts of local generation operate at the same time. For projects that expect to export electricity, available connection capacity should be checked before the design assumes that every kilowatt of surplus PV can reach the grid.

Why Add Battery Storage to Distributed Solar?

The IEA expects residential, commercial, industrial and off-grid distributed PV to account for 42% of total PV expansion between 2025 and 2030. It also points to growing use of distributed PV with storage in markets where electricity networks are unreliable.

For an individual project, however, market growth is not a reason to buy a battery. The project economics still come down to what the storage system is expected to change.

Increase Solar Self-Consumption

Consider a commercial building that generates more solar electricity around midday than it can use.

If exported energy has little value—or export is restricted—some of that production may otherwise be curtailed or poorly compensated. A battery can capture part of the surplus and release it later as building demand rises.

The useful battery capacity depends on the size and duration of that surplus, not simply on the rated PV capacity.

Provide Backup Power

A facility may have 100 kW of total connected equipment but only 25 kW that must remain online during an outage. If those critical loads need roughly two hours of support, the starting requirement is about 50 kWh of usable energy, before accounting for reserve, conversion losses, battery aging and design margin.

Power capability needs a separate check. Motors, compressors and pumps can impose starting surges well above their normal operating demand.

Shave Demand Peaks

Suppose a factory normally operates around 150 kW but occasionally reaches 230 kW when several machines start at the same time.

If the electricity tariff includes a meaningful maximum-demand charge, battery discharge during those peaks may reduce the billed demand.

If the tariff does not penalize peak demand, that same control strategy may produce little financial benefit. Tariff analysis comes before battery sizing.

Control Solar Export

Some projects are designed for self-consumption only.

In these installations, meters or current transformers monitor the grid connection and the control system adjusts inverter output to keep export within the permitted limit. The control equipment still needs to comply with local interconnection requirements.

Support Weak-Grid Sites

Hybrid systems are also used where voltage disturbances and outages are common.

The important limitation is energy availability. A hybrid inverter does not create unlimited backup: operating time is determined by the battery's usable energy, the load and whatever PV generation is available during the interruption.

SNADI/SNAT Solar Engineer's Tip:

Start with the critical-load curve. First determine the kW that must remain online, then decide how many hours those loads need support. Only after that should battery kWh be selected.

How to Design a Distributed Solar Power System

1. Start With the Load, Not the Equipment

Monthly electricity bills are useful, but they are rarely enough for a commercial design.

Review when electricity is consumed, the site's maximum demand, which equipment is critical, and how the profile changes on weekends or across seasons.

A factory running mainly between 8 a.m. and 6 p.m. usually has a natural overlap with solar generation. A hotel may show a very different profile, with substantial demand continuing after sunset.

That difference changes both PV self-consumption and the potential role of storage.

2. Set a Practical PV Capacity

PV sizing should combine roof area, solar resource, structural conditions, electrical limits, interconnection constraints and the required level of self-consumption.

Adding modules increases generation, but once midday output consistently exceeds the site's load, additional capacity can also increase export or curtailment.

3. Choose the Inverter Architecture

Before comparing individual models, define what the inverter has to do.

Questions include:

• Is the project grid-connected only?

• Will a battery be installed now or later?

• Are backup loads required?

• Does the site use three-phase power?

• Is generator integration needed?

• Does the utility require zero-export control?

• Could the system need parallel expansion?

Rated power is only one part of the selection. A cheaper inverter can still be the wrong choice if it leaves out a function the project later depends on.

4. Decide Whether Storage Has a Job

If daytime PV already matches the load and utility service is reliable, a PV-only design can offer lower CAPEX and a simpler operating model.

Where outages stop production, exported electricity has little value or demand peaks are expensive, storage has more ways to create measurable value.

The point is not to decide that batteries are good or bad. It is to attach them to an operating requirement.

5. Size Battery Power and Energy Separately

A cold-storage facility might need 30 kW of critical-load power for 90 minutes. Another site could require only 10 kW but need eight hours of autonomy.

Daily electricity use does not tell you that distinction.

Both the required power output and the required duration need to be specified before choosing the battery and inverter.

6. Check the Interconnection Rules

Latin America is not one regulatory market.

Brazil's ANEEL currently classifies distributed microgeneration as systems up to 75 kW and minigeneration generally as systems above 75 kW and up to 3 MW, subject to regulatory details and exceptions.

Mexico's current distributed-generation framework includes interconnection documentation for generating plants below 0.5 MW.

A configuration accepted for a Brazilian project should therefore not simply be copied into a Mexican installation without checking the applicable utility and interconnection requirements.

7. Design for the Actual Environment

Datasheet ratings need to be matched against real installation conditions.

Ambient temperature, humidity, salt, dust, altitude and equipment location can affect enclosure requirements, corrosion risk and thermal performance. A coastal warehouse and an air-conditioned electrical room are very different environments even if both projects use an inverter with the same nominal power.

High ambient temperatures can also cause power-electronic equipment to derate, making thermal conditions part of the sizing exercise rather than an afterthought.

How to Choose an Inverter for Distributed Solar Power

SNADI/SNAT's current inverter portfolio covers small residential and off-grid systems as well as three-phase hybrid applications. The AS series is listed in 3.6 kW and 6.5 kW models, the BLS three-phase hybrid series covers 6–20 kW, and the GZB three-phase hybrid range is listed from 10–60 kW.

For larger business applications, SNADI/SNAT also supplies commercial battery storage equipment intended for applications including solar self-consumption, peak shaving and backup.

What Determines Distributed Solar Cost and ROI?

A single “distributed solar cost per system” is not very useful across Latin America.

Electricity tariffs, installation costs, financing, solar resource, export rules and self-consumption rates vary too much from one project to another.

For a PV only project, the basic value can be viewed as:

Annual solar value ≈ self consumed solar electricity × avoided electricity cost + value of exported electricity

Storage adds more variables. It can create value through time shifting, demand charge reduction, backup power or reduced generator use, while also adding equipment cost, conversion losses and long term battery replacement risk.

This is why adding a battery does not automatically improve project ROI.

For a stable grid factory with a strong daytime load, PV and an appropriately sized inverter may be the stronger investment. At another site, one expensive production outage may be enough to change the economics of storage.

Distributed Solar Power Trends in 2026

In 2026, the design conversation is increasingly moving from “How much PV can we install?” to “What should happen to that electricity after it is generated?”

IEA PVPS identifies system integration, storage, flexibility and grid constraints as increasingly important parts of PV deployment.

For distributed projects, four developments matter in particular.

Solar plus storage is becoming more relevant where export compensation is weak, grid reliability is poor or backup has a clear business value.

Self-consumption matters more when selling surplus electricity back to the grid is less attractive than using it on site.

Grid control is receiving more attention as PV penetration rises. Export limitation, metering, smart-inverter functions and interconnection settings are now practical design considerations rather than peripheral features.

Monitoring and energy management are also becoming more useful for commercial owners. A monthly generation figure is not enough when the business needs to understand when it is importing power, charging a battery, discharging, curtailing PV or approaching a demand peak.

Conclusion

Before selecting equipment, document the load profile, maximum and critical loads, required backup duration, site voltage and phase configuration, available roof area, utility connection rules, tariff structure and installation environment.

From there, the architecture becomes much easier to define. Some projects need straightforward grid-connected PV. Others need a hybrid inverter, export control or battery storage because the operating problem is different.

SNADI/SNAT Solar supplies hybrid and off-grid inverters, lithium battery products, and residential and commercial energy storage equipment for distributed solar applications.
