Inverter With Pure Sine Wave: Build A Load Manifest Before You Buy

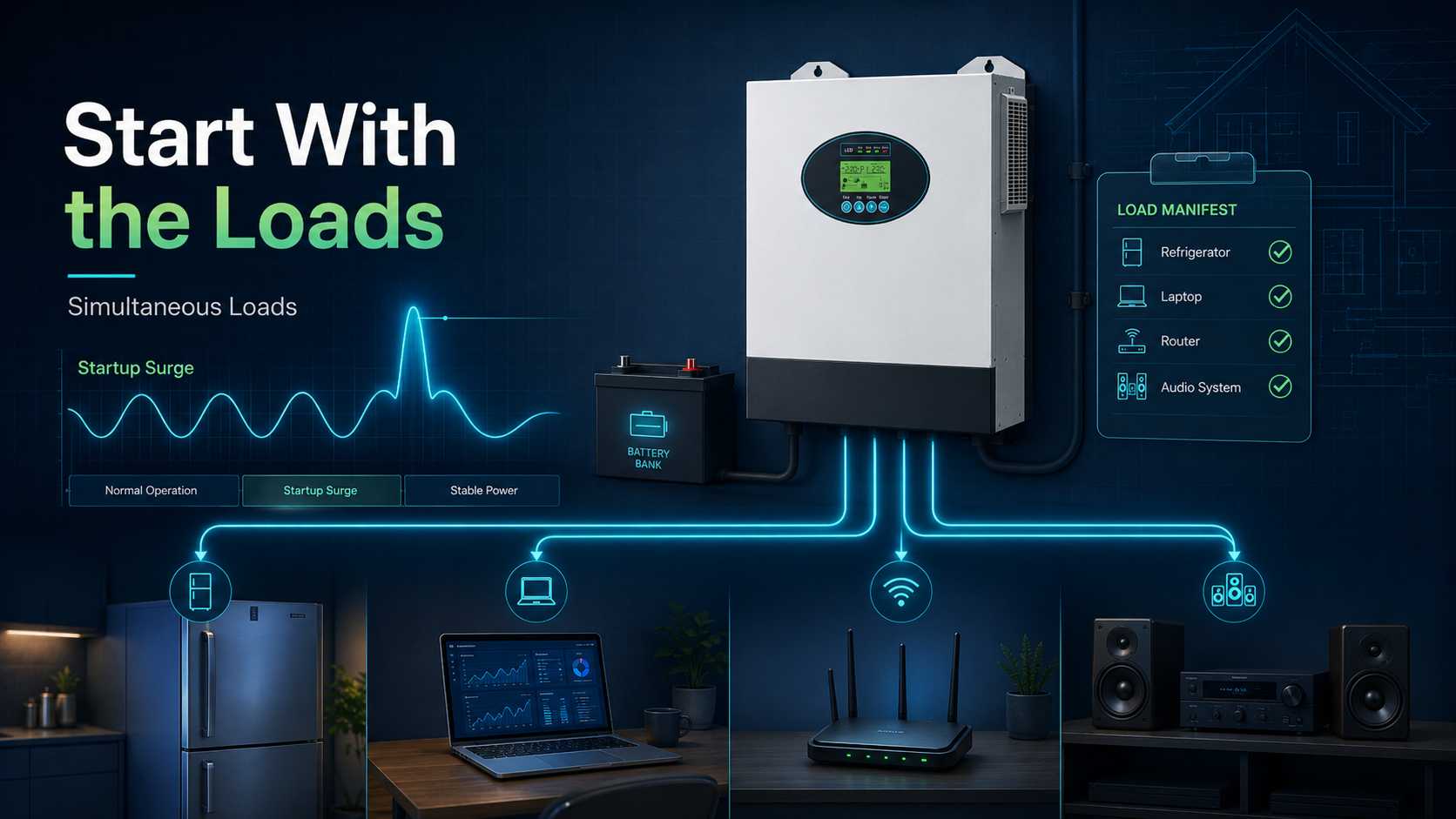

A refrigerator starts normally when it is the only load. Ten minutes later, the same compressor trips the inverter because a laptop supply, router and audio amplifier are already running. The label says pure sine wave, and the continuous watt rating looks sufficient. The purchase still fails because nobody recorded the simultaneous load or the startup event.

An inverter with pure sine wave output is often the right baseline for motors, electronic controls, audio equipment and sensitive devices. It is not a complete system specification. Buyers also need regional voltage and frequency, continuous W and VA, surge magnitude and duration, battery current, thermal limits, standby behavior and evidence from a real load test.

The basic conversion and waveform context is explained by the United States Department of Energy inverter overview

1. Identify every appliance and its exact model.

2. Record which appliances run at the same time.

3. Find continuous W, VA or current and startup evidence.

4. Confirm waveform, voltage and frequency requirements.

5. Calculate the battery side demand.

6. Compare model specific ratings and test the final system.

The phrase pure sine wave power inverter answers only the waveform question. A product can have a clean waveform and still be too small, connected to the wrong battery voltage or unable to support a compressor start. Pure sine wave inverter load compatibility is decided by the complete operating scene, not by waveform language alone.

Read the Specifications Behind Pure Sine

Build a Manifest for the Scene That Actually Happens

Resistive Loads

Heating elements and traditional lamps can be simpler electrically, but they may draw high steady power. Record watts and runtime. A simple waveform requirement does not mean a small battery or cable is acceptable.

Inductive Loads

For each motor or compressor, record running power, startup evidence, cycling frequency and restart behavior. Note whether two motors can start together. A pure sine wave inverter surge capacity should include both magnitude and supported duration.

Nonlinear Electronic Loads

Laptop supplies, routers, displays and audio electronics may draw current in pulses. Record W, VA or rated current where available, plus any power factor or waveform requirement in the manual. Do not enter a missing value as zero.

In this example, the steady group is 435 W while the measured refrigerator start can temporarily push the scene much higher. The selected inverter must carry both the steady combination and the documented event without unacceptable battery voltage sag.

Perform Pure Sine Wave Inverter Sizing on the DC Side

The inverter does not create energy. It draws it from a battery, solar input or another supported source. A planning estimate for battery current is: estimated DC current equals AC load divided by battery voltage multiplied by assumed inverter efficiency.

For an illustrative 1800 W operating scene on a 48 V battery with a 90 percent planning efficiency, estimated current is about 41.7 A. This does not include every transient, cable loss or margin. The battery management system, terminals, cable, fuse and disconnect must support the actual design current.

At the same AC power, a 12 V system carries about four times the current of a 48 V system before other differences. Higher voltage can reduce current and cable loss, but it does not remove battery, grounding or protection requirements. Calculate the worst simultaneous scene before choosing battery voltage. Oversizing the inverter first can create a high current design that the battery and cable path cannot support.

High current DC work and AC output wiring require a qualified installer using the product manual and local rules.

SNADI/SNAT Solar NKH 6000 Inverter

For a residential or small commercial off grid design with solar charging, we may review the SNADI/SNAT Solar NKH 6000 Off Grid Hybrid Solar Inverter after the load scene is defined.

The official page lists 6 kW rated power, 12 kW surge power, pure sine wave output, 9 kW maximum photovoltaic array power, a 60 to 450 V MPPT range and 500 V maximum photovoltaic open circuit voltage. The corresponding manual also supports a 48 V battery input, a five second surge duration, configurable 208 V, 220 V, 230 V or 240 V output, 50 Hz operation, 93 percent peak inverter efficiency and 62 W no load consumption.

1. The load manifest must stay within continuous output.

2. The measured startup event must fit the surge rating and duration.

3. The battery and BMS must support 48 V operation and required current.

4. The photovoltaic string must fit MPPT and open circuit voltage limits.

5. Ventilation, protection, output voltage and frequency must fit the installation.

The product should not be selected merely because 6 kW sounds larger than the appliance total. It should be selected when its complete electrical envelope fits the scene.

Compare Procurement Options by Cost and Operating Risk

Price matters, but the financial question is not only purchase cost. A failed refrigerator start, production interruption or repeated technician visit can erase the initial saving. Conversely, buying the largest inverter without a load case adds capital cost without guaranteeing runtime. The best quote is the one that closes the evidence gaps at an acceptable total cost.

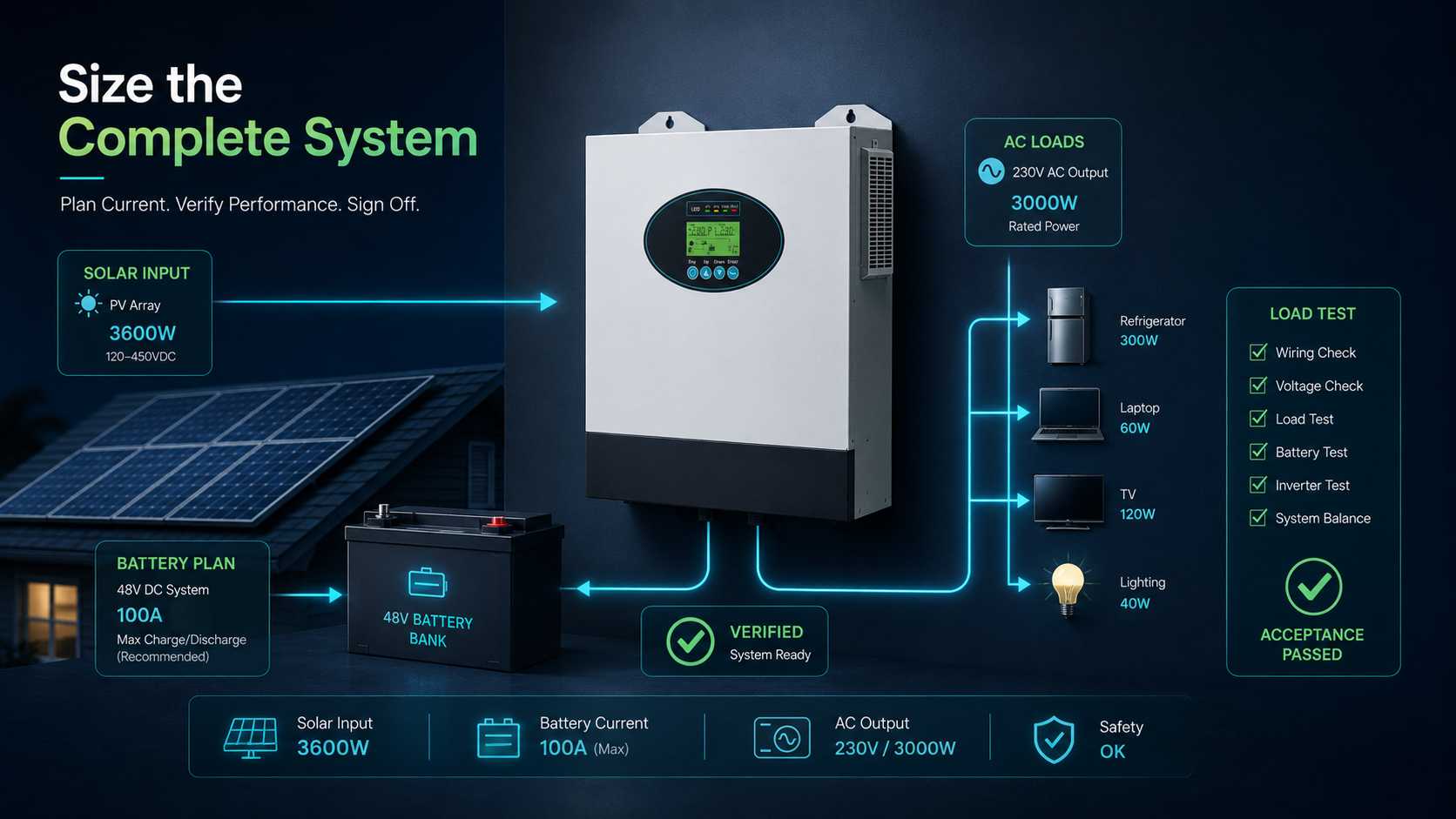

Run a Six Load Acceptance Trial Before Sign Off

Cold Start and Worst Simultaneous Start

Test the hardest documented startup once from a normal battery state, then test the realistic simultaneous group. Record battery voltage, AC output, startup result, alarm code and recovery. Do not create artificial overloads outside the manual.

Steady Operation and Thermal Run

Operate the expected group long enough to observe temperature, fan behavior, noise, voltage stability and any derating. A short demonstration cannot prove continuous performance.

Small Load, Mixed Load and Low Battery Behavior

Check whether the smallest intended electronic load remains powered. Test a realistic nonlinear and inductive combination. Verify alarms, shutdown and restart only within manufacturer approved limits.

IEA PVPS Task 18 emphasizes using operational data to understand off grid and hybrid photovoltaic systems. The purchase record should compare planned operation with measured results, not stop at a specification sheet.

Diagnose a Failed Trial Without Blaming Waveform First

A pure sine inverter for home can still fail because of cable voltage drop, weak battery discharge capability, poor ventilation or an incorrect operating mode. Troubleshooting should follow evidence in that order.

Conclusion

Choosing an inverter with pure sine wave output starts with appliances, not a product label. Build the simultaneous load scene, classify the loads, verify continuous W and VA, obtain surge duration, calculate battery current and demand model specific safety evidence.

For a pure sine wave inverter for solar system use, the photovoltaic input, battery path, protection and monitoring plan matter as much as the AC waveform. The NKH 6000 becomes a credible option only when its 6 kW continuous rating, documented surge window, 48 V battery architecture and solar input limits fit the completed manifest.
