Running a private school or university campus across Latin America comes with two brutal utility realities: punishing peak demand charges and frequent blackouts. Outside of payroll and faculty salaries, power bills are consistently the single biggest line item hitting a school's operating budget. Over the last five years, institutional electricity rates across developing markets have consistently outpaced core inflation, a trend well documented by World Bank energy tracking data .
Take Mexico's CFE GDMTH tariff (Gran Demanda en Media Tensión Horaria): private institutes pay heavy penalties if power demand spikes between 18:00 and 22:00, on top of elevated base rates. It's the same story in Brazil under ANEEL Grupo A time of use tariffs, where late afternoon air conditioning spikes trigger aggressive capacity charges. Then severe weather or summer heatwaves trip the grid. When that happens, classes stall: server rooms drop offline, water pumps lose pressure, and cafeteria refrigeration is immediately at risk.
For decades, diesel gensets were the only answer. But running diesel today easily tops $0.35 to $0.45 per kWh once you add fuel delivery runs, regular servicing, and filter changes turning every blackout into an unbudgeted expense. Adding commercial solar energy in schools paired with battery storage gives facility managers a practical way to flatten peak tariffs and keep critical campus circuits alive without burning through diesel reserves.
5 Operational and Financial Gains from On-Campus Solar
1. Shaving Peak Demand Charges
Schools have an ideal operating profile for solar: heavy consumption from 7:30 AM to 4:30 PM across classrooms, lighting circuits, computer labs, and split-system HVACs. Solar production peaks right alongside this daytime load. By supplying 40% to 70% of that power on-site behind the meter, you knock down your billed peak kW demand, directly shrinking monthly capacity charges on your utility bill.
2. Replacing Diesel Generator Hours with Battery Storage
When backed by high-voltage LiFePO4 battery banks, commercial hybrid inverters switch to island mode within 10 to 20 milliseconds after a grid drop. That seamless transfer prevents server resets, projector blackouts, and lab disruptions—without burning through costly diesel fuel or dealing with generator startup lag.
3. Locking in Fixed Power Costs Against Utility Inflation
IRENA's renewable power cost benchmarks show commercial solar Levelized Cost of Electricity (LCOE) sitting comfortably below $0.05/kWh. Onsite solar essentially prepays a major portion of your campus electricity for the next 20 to 25 years at a fixed rate, insulating school boards from unpredictable annual tariff hikes.
4. Turning Dead Roof Space and Parking Lots into Power Assets

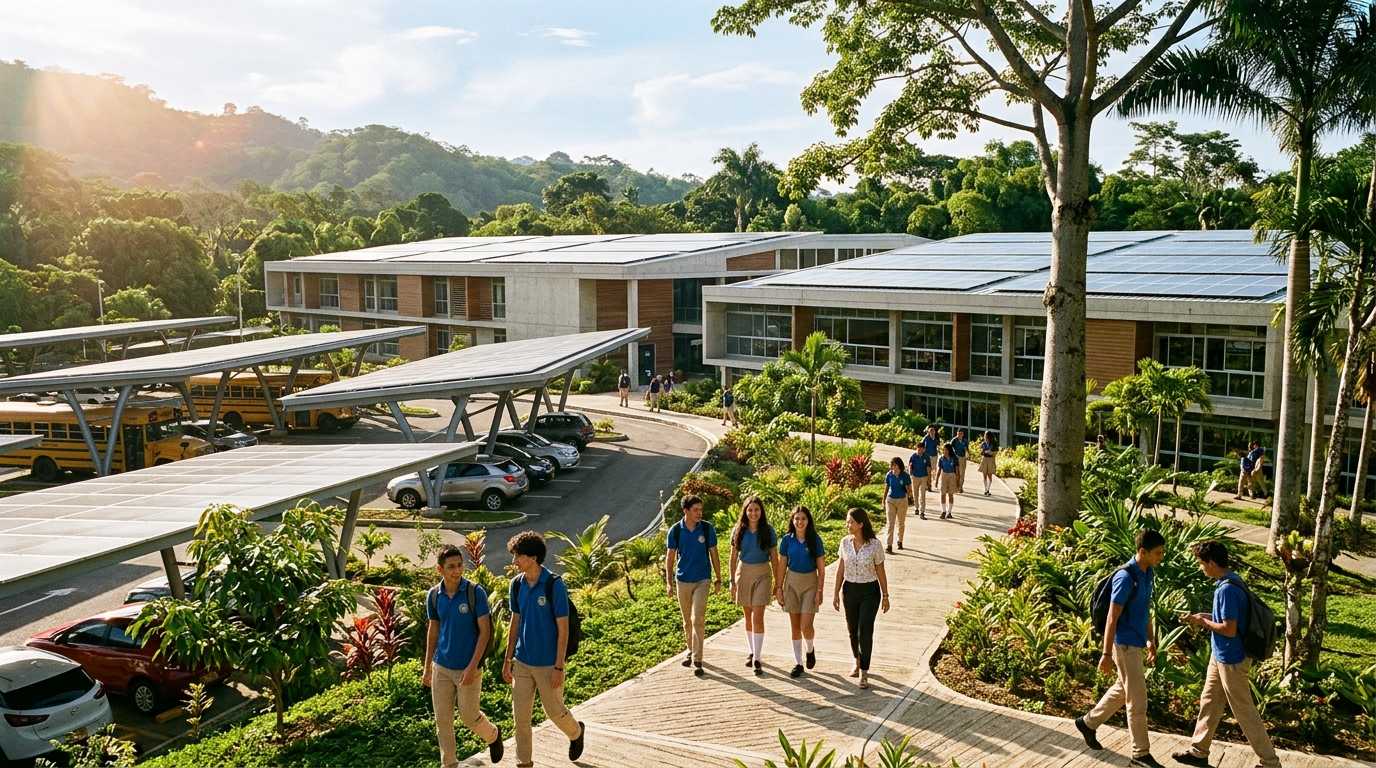

Educational campuses usually have plenty of unshaded real estate: concrete classroom rooftops, metal-clad sports gyms, and open parking lots. Solar carports are especially effective, they generate clean power while giving faculty and visitor vehicles shelter from tropical heat.
5. Live Data for STEM and Technical Curriculum
Most modern hybrid inverters and battery cabinets export live telemetry over RS485 or CAN bus protocols to cloud dashboards. Science and engineering faculties can pull live irradiance curves, inverter efficiency metrics, and battery state of charge (SoC) logs straight into physics, math, and electrical engineering lab assignments.
■ SNADI/SNAT Solar ENGINEERING NOTE: Sizing Inverters for Non-Linear Campus IT Loads Computer labs, server racks, and campus wide LED ballasts generate substantial 3rd and 5th harmonic distortion. Never size a school's solar inverter strictly against total connected nameplate kVA. Look for three-phase commercial hybrid units rated for total harmonic distortion (THDi) under 3%. Crucially, verify that the inverter neutral busbar and neutral conductors can handle the unbalanced return currents caused by single-phase 120V classroom circuits tied to 208V/220V three-phase distribution boards. |
System Architecture: Choosing Between Hybrid, Off-Grid, and AC-Coupled Setups
Your electrical architecture depends on two factors: local grid interconnection rules and how frequently the main line drops.
Option A: Three-Phase Commercial Hybrid Inverters + High-Voltage Batteries (Best for Grid-Tied Campuses)
If the campus has access to net billing or distributed generation frameworks (such as Brazil's Lei 14.300 or Mexico's CRE regulations), a 30kW to 100kW three-phase hybrid inverter paired with a 50kWh–200kWh high voltage LiFePO4 bank is the most versatile setup. The inverter prioritizes onsite self consumption, stores midday generation surplus, and pushes remaining excess to the grid when rates are favorable. When utility power cuts out, its internal transfer switch isolates and powers essential distribution boards within milliseconds.
Option B: Parallel Off-Grid Inverters + Low Voltage Racks (For Remote, Rural, or Unstable Feeders)
For rural boarding schools, island facilities, or campuses stuck on weak distribution feeders with no net metering permits, running parallel off-grid inverters (ganging 5kW to 15kW units up to 45kW–90kW total capacity) is far more dependable. These operate on 48V/51.2V server-rack LiFePO4 batteries and include dry contacts to auto start an existing diesel generator only during extended stretches of heavy rain.
Option C: AC-Coupled Energy Storage Systems (ESS) for Existing Solar Arrays
If the school already installed grid-tied string inverters years ago, don't rip them out. Adding an AC-coupled C&I storage cabinet directly to the main AC switchboard introduces peak shaving and backup power without replacing working PV inverters.
Sizing, Payback, and Net Savings
Here is how standard solar and energy storage configurations perform across Latin American educational facilities with typical solar resources (4.8 to 5.5 peak sun hours/day):
School Profile | Typical System Size | Battery Storage (ESS) | Estimated Payback | 20-Year Net Savings |
Primary / K-12 School (Daytime Only, ~300 Students) | 30 kW PV + 30 kW Hybrid Inverter | 40 kWh - 60 kWh LiFePO4 Rack | 3.8 - 4.8 Years | $140,000 - $220,000 |
Secondary / High School (Labs + Gym + AC, ~1,000 Students) | 100 kW PV + Dual 50 kW Inverters | 100 kWh - 150 kWh C&I Cabinet | 4.2 - 5.5 Years | $480,000 - $750,000 |
University Campus (Dorms, Server Rooms, Central Chillers) | 300 kW - 1 MW+ PV Arrays | 300 kWh - 600 kWh Modular ESS | 4.5 - 6.0 Years | $1,800,000 - $4,200,000 |
Engineering Trade-Offs and Field Risks to Plan For
1. Roof Structural Capacity and Waterproofing
School roofing in Latin America ranges from cast concrete slabs (losa de concreto) to aged corrugated zinc and trapezoidal metal sheets (calamina / teja de zinc). A standard commercial PV array adds roughly 15 to 20 kg/m² of dead load once racking is factored in. Always require a certified structural load audit before mounting. For flat concrete decks, ballasted non-penetrating racking avoids roof punctures and prevents water leaks during severe rainy seasons.
2. Managing Holiday Surplus Generation (The Vacation Problem)
Campuses sit largely empty for 2 to 3 months a year during summer and winter breaks (December–January, July–August). If local utility regulations limit or penalize grid export (like Brazil's Law 14.300 grid tariffs or Mexican CRE export caps), unmanaged solar backfeeding can trigger utility billing penalties. Inverters must feature responsive zero-export power curtailment or redirect excess midday generation into on-site storage for perimeter lighting, security, and administrative loads.
3. Battery Selection: Why LiFePO4 Outclasses Legacy Lead-Acid

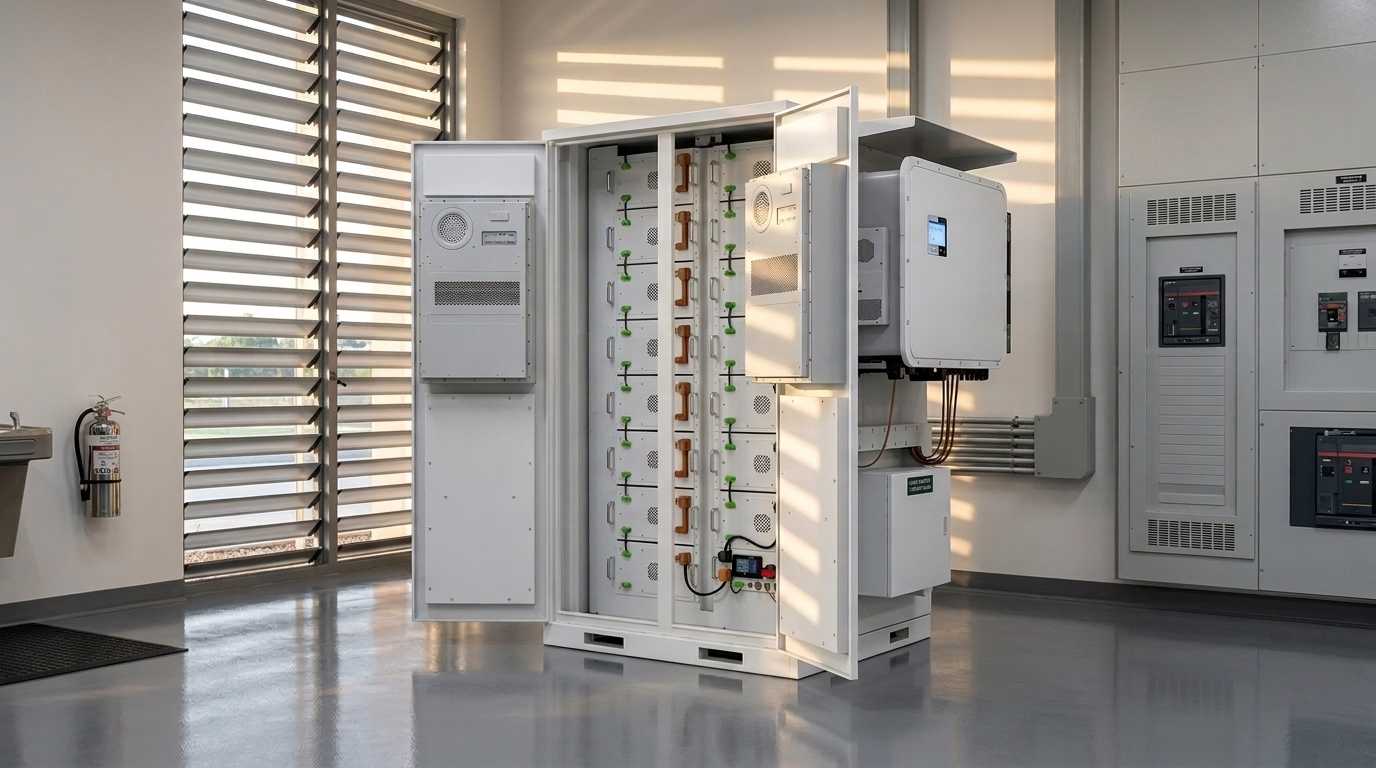

Flooded lead-acid and tubular gel batteries may look cheap on an initial purchase order, but they are a liability on a school campus. They degrade fast in unconditioned electrical rooms above 30°C, deliver only 800 to 1,200 cycles at 50% DoD, and vent hazardous hydrogen gas requiring dedicated exhaust systems. Tier-1 LiFePO4 batteries deliver 6,000+ cycles at 80% DoD, integrate smart BMS cell protection, take up a third of the physical footprint, and eliminate off-gassing risks in school buildings.
Next Steps for School Boards and EPC Contractors
Deploying solar and battery storage is no longer just a sustainability talking point for Latin American educational institutions, it's an operational necessity. By pairing campus daytime loads with commercial hybrid inverters and high-voltage LiFePO4 storage, schools gain immediate relief from punishing peak demand tariffs while keeping classrooms running through grid blackouts.
For EPCs and installers, the key to winning and delivering these projects lies in disciplined hardware selection: sizing for nonlinear computer loads, protecting against inverter thermal derating, and selecting modular, closed loop battery systems that can grow with the campus.
