A solar charge controller manages DC energy between a photovoltaic array and a battery. It regulates charging within the electrical limits and settings of the array, controller, and battery. It does not replace the battery management system, an inverter, DC protection, or a qualified installation review.
The sequence below helps buyers collect useful evidence, reject an incompatible design, and know when remote diagnosis should stop.

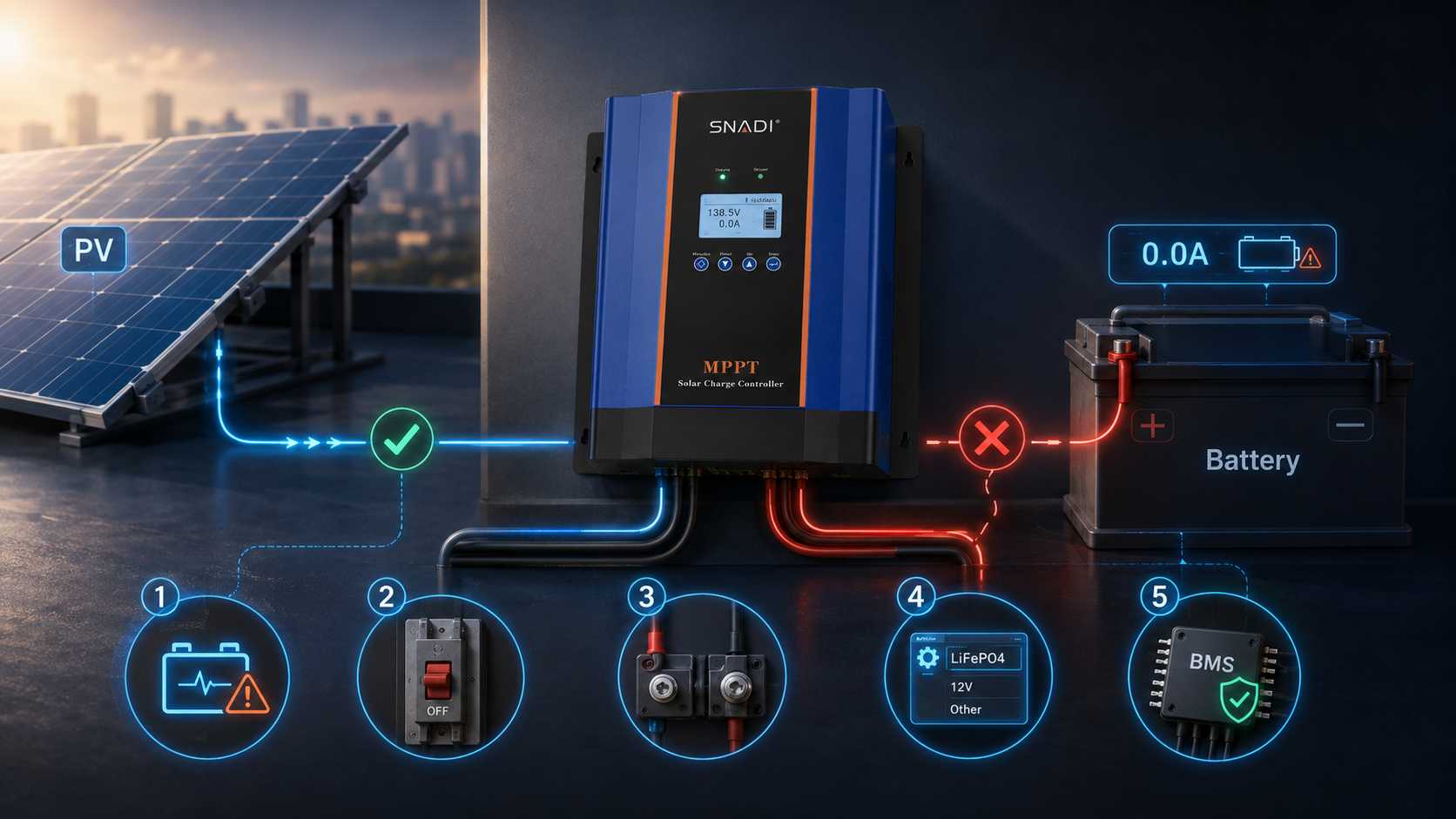

Start With the Symptom
Begin with information that can be read without opening equipment or touching live conductors. Record the exact controller model, time, weather, PV voltage, battery voltage, charging current, operating stage, temperature, and alarm code. A single zero value says little. A group of readings taken at the same moment gives a supplier or installer a useful starting point.
Stop operating the equipment when there is smoke, a burned smell, water entry, melted insulation, exposed conductor, unusual heat, repeated protection action, or an unfamiliar battery alarm. Photograph the display and labels from a safe position, then contact qualified support.
The same no charge symptom can follow a poor battery connection, an open protective device, a battery management restriction, weak PV conditions, or a setting that does not match the battery. Replacing the controller before separating these categories can add CAPEX while leaving the original fault in place.
Visible symptom | First information to check | Why it matters |
No PV reading | Weather, array isolation status, protection indication, and exact error code | The controller may have no available input or may be in protection |
PV voltage but no charging current | Battery voltage, battery state, charge stage, temperature, and alarm history | The battery may be full, limited, disconnected, or outside an allowed condition |
Charging stops too early | Battery profile, voltage at controller and battery terminals, and load changes | A setting, voltage difference, or battery protection event may be involved |
Controller runs hot or alarms | Installation location, ventilation, load history, and manual limit | Thermal protection or a site condition may be restricting operation |
Nighttime battery drain appears unusual | Controller log, other DC loads, inverter standby use, and battery monitor data | The controller may not be the only path drawing energy |
Trace the Power Path Before Blaming the Controller
Write the system as one line: PV array, DC isolation and overcurrent protection, charge controller, battery protection, battery, and then DC loads or an inverter. A standalone solar battery charge controller belongs between the array and battery. Household AC loads normally receive power through an inverter, not through a controller load terminal.
This diagram prevents three common purchasing errors. First, a hybrid inverter may already contain one or more MPPT inputs, so another standalone controller could duplicate a function. Second, a battery management system protects cells and can restrict charging, but it does not replace the external controller. Third, a controller display can report a local terminal value that differs from the value at the battery when a connection, cable, or protective device introduces a problem.
Pass Three Rating Gates Before Comparing MPPT and PWM
Gate One: PV Input Voltage Is a Boundary
Collect module open circuit voltage, module maximum power voltage, the number of modules in series, the controller maximum PV input voltage, and the MPPT operating range. These figures answer different questions. Maximum input voltage is a boundary. The operating range is where tracking is designed to work. Maximum power voltage is a module operating value, while open circuit voltage represents a different condition.
Temperature belongs in this check because module voltage can change as cell temperature changes. A string that appears acceptable from a warm weather label comparison may need a different conclusion under the coldest expected design condition. Do not treat the controller maximum as a target. Use the current module data sheet, controller manual, site conditions, and local design method.
Gate Two: Charging Current and Battery Voltage Answer Different Questions
The ampere rating usually describes the battery charging side, while the PV input has its own voltage and current conditions. Victron Energy manual this separation in a manual where a 75 by 15 model denotes 75 V maximum PV voltage and 15 A maximum battery charging current. The naming rule belongs to those models, but the wider lesson applies to every quotation: identify which terminals and operating condition each number describes.
A controller able to deliver more current does not mean the battery should accept that current. Battery manufacturer limits, cable design, protective devices, temperature, and the battery management system may set a lower ceiling. For solar charge controller sizing, the lowest applicable system limit governs the decision.
Gate Three: Battery Profile and Temperature Must Agree
Lead acid charging may require bulk, absorption, float, equalization, and temperature compensation behavior according to the battery manufacturer. Lithium batteries may require different voltage limits, charge termination behavior, temperature restrictions, and communication support.
IEC 62509 scope sets minimum functioning and performance requirements for photovoltaic charge controllers used with lead acid batteries. Before requesting a final controller model, send the supplier the module data sheet, proposed series and parallel arrangement, battery data sheet, battery management communication requirement, site temperature range, cable distance, and a system block diagram. This package is more valuable than panel wattage alone.
Read the Label as Separate PV and Battery Limits
A rating map is the safest starting point for MPPT controller sizing. Put each number next to the terminal and condition it describes. The PV side may include maximum input voltage, operating range, input current, and permitted array power. The battery side may include nominal voltage, charging current, chemistry, temperature conditions, and communication requirements.
Do not use maximum PV voltage as a normal design target. An array can cross that boundary when modules are placed in series and voltage rises at low temperature. And do not treat the largest charging current as the correct battery setting.

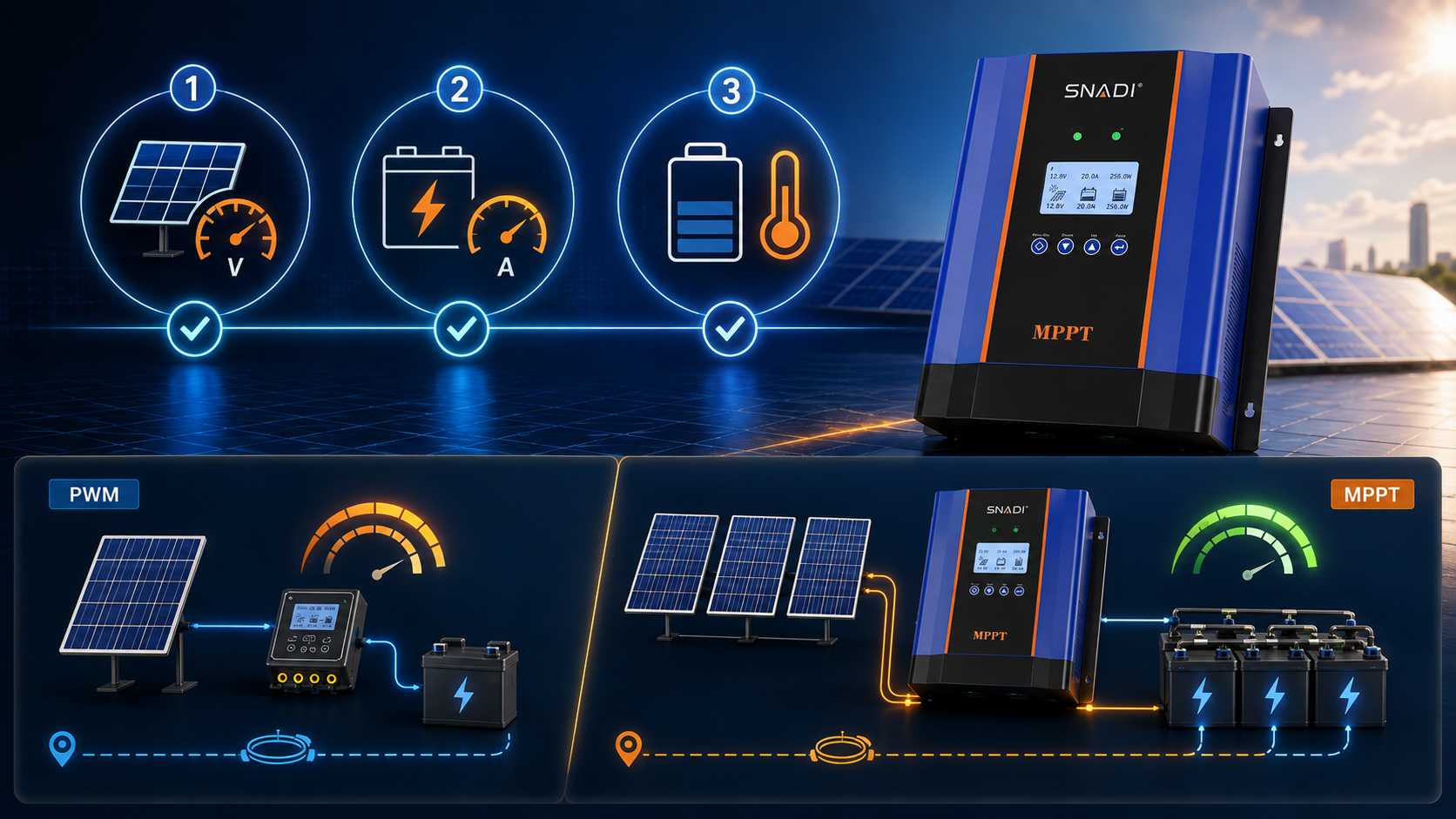

Choose MPPT or PWM for System Fit
A PWM controller connects the array more directly to the battery during charging, so array operation is pulled toward battery voltage. This can suit a small, intentionally matched system with modest energy demand and a strong reason to control equipment cost.
An MPPT solar charge controller uses DC conversion to let the array operate at a different voltage from the battery while it manages charging output. Sandia and IEA PVPS report note that maximum power voltage varies with irradiance and temperature and that an MPPT algorithm adjusts voltage to seek maximum power. This supports a conditional benefit, not one fixed energy gain for every site.
PWM may be sensible for a small maintenance charging system with well matched equipment and low energy demand. MPPT may be sensible for a larger array, a longer cable route, or a battery that must recover after repeated outages.
Decision factor | PWM is more likely to fit when | MPPT is more likely to fit when |
PV and battery voltage relationship | The system is deliberately matched and confirmed by manuals | The array operates at a meaningfully higher voltage within controller limits |
Energy value | Daily demand is low and some missed PV opportunity has little operating cost | Limited roof area or backup demand makes charging opportunity valuable |
Cable route | The PV cable path is short and low voltage current is manageable | A higher PV operating voltage supports a practical cable design |
Budget and service | Lower controller CAPEX matters most and the design remains compatible | Added control, monitoring, and energy capture can reduce operating risk |
Growth plan | The system is fixed and small | Future array or battery changes are planned and documented |
Test the Choice Against Two Different Duty Cycles
Now consider a small business with limited roof space, a longer cable route, and a battery that must recharge after repeated outages. The array operating voltage is higher than battery voltage. Lost charging opportunity increases generator fuel use or leaves less reserve for the next interruption. An MPPT design may offer stronger value if the array remains inside the PV input range and the battery can accept the planned current.
The commercial comparison is not controller price against a universal energy percentage. It is controller price against captured charging opportunity, cable design, roof constraint, battery availability, and avoided generator operation. Request an estimate based on the actual array and load profile instead of a fixed MPPT gain claim.
Place the CM Controller Only After the Architecture Is Clear
For a system designed around a separate controller, we use the SNADI/SNAT Solar CM MPPT Solar Charging Controller as the relevant product family. We provide CM 30A, 40A, 50A, 60A, 80A, and 100A choices. We also publishes different MPPT operating ranges and maximum panel input power values for 12 V, 24 V, and 48 V battery systems.
The same CM model can have different published panel power guidance as battery system voltage changes. The buyer still needs array open circuit voltage under design conditions, maximum power voltage, string arrangement, battery chemistry, allowed charge current, communication needs, enclosure conditions, and the current manual revision.
Conclusion
A solar charge controller decision becomes safer when the symptom is separated from the product choice. First capture the readings. Then trace the power path. Pass the PV voltage, battery current, and battery profile gates before comparing MPPT with PWM or selecting a model.
For a standalone charging architecture, send our engineering team the PV module data sheet, string plan, battery data sheet, site temperature range, cable distance, and system block diagram. We can review whether the CM MPPT Solar Charging Controller belongs in the design and identify the model questions that must be resolved before installation.
