For an industrial facility in Querétaro or an agro processing plant in Minas Gerais, power quality and utility billing present an expensive double bind: a 15 minutes motor starting spike can set maximum capacity demand charges for the entire month, while sudden grid outages ruin production lines and waste raw ingredients. Running diesel gensets burns between $0.35 and $0.50 per kilowatt-hour in fuel and routine maintenance. Meanwhile, Latin American utility structures notably Brazil's Law 14,300 distribution wire fees (TUSD Fio B) and Mexico's CFE GDMTH peak demand rates penalize unmanaged grid export while heavily rewarding behind the meter self consumption and peak shaving.
Selecting the right commercial battery energy storage system (BESS) requires looking past generic product brochures. EPC contractors and plant engineers have to weigh upfront capital cost against round trip efficiency, usable depth of discharge, thermal behavior in unconditioned rooms, and inverter integration. This engineering guide breaks down primary battery chemistries, coupling topologies, and DC voltage architectures for commercial, industrial, and microgrid deployments.

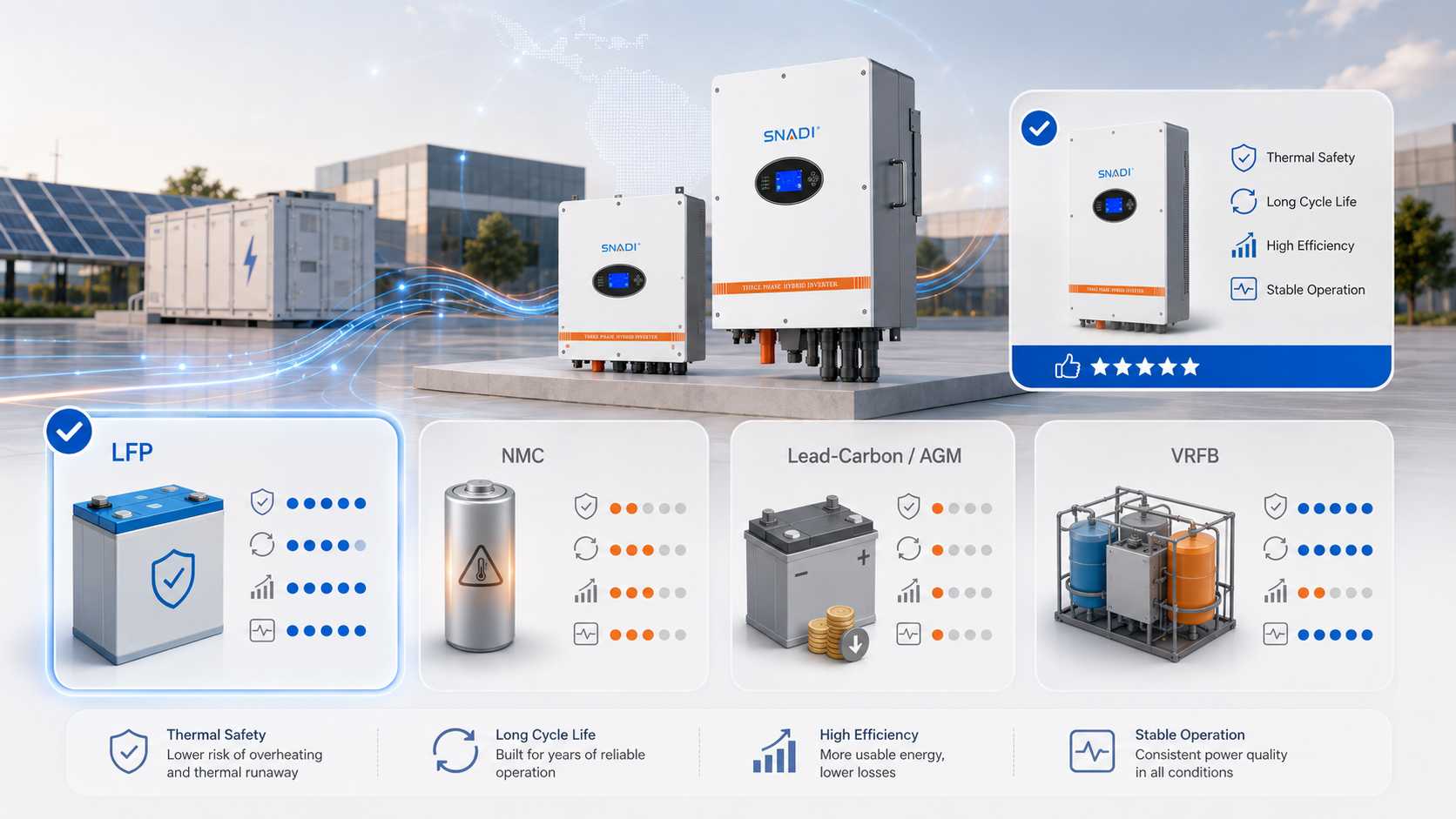

1. BESS Chemistry: Thermal Safety, Cycle Durability, and LCOS
Cell chemistry determines thermal runaway thresholds, cycle longevity, footprint, and real Levelized Cost of Storage (LCOS). Four chemistries define the commercial landscape:
1.1 Lithium Iron Phosphate (LiFePO4 / LFP) – The Distributed Storage Standard
LFP is the clear standard for commercial, industrial, and residential stationary storage. Its olivine crystal structure and strong P-O covalent bonds prevent oxygen release during thermal stress, raising thermal runaway onset to ~270°C (compared to ~210°C in high nickel chemistries).
• Cycle Life: 6,000 to 8,000 full cycles at 80% Depth of Discharge (DoD) before hitting 70% State of Health (SoH)—supporting 15+ years of daily solar cycling.
• Round-Trip Efficiency (RTE): 92% to 96% DC to DC efficiency, minimizing energy losses during daily charge/discharge routines.
• High C-Rate Capability: Continuous 0.5C to 1.0C discharge allows a 10 kWh battery pack to deliver 5 kW to 10 kW continuous output to sustain inductive motor startup surges.
• Supply Chain & Compliance: Cobalt free and nickel-free composition eliminates toxic heavy-metal handling liabilities and avoids unstable mineral pricing.
For commercial rack cabinets and scalable residential systems, modular solutions like the SNAT Solar LiFePO4 Lithium Battery Series integrate open-protocol CAN/RS485 communication with leading hybrid inverters, supporting multi cabinet paralleling up to 15 packs without third-party active balancers.
1.2 Nickel Manganese Cobalt (NMC) – High Energy Density with Thermal Overhead
NMC offers high gravimetric energy density (up to 250 Wh/kg vs. 160 Wh/kg for LFP), making it the dominant choice in electric vehicles. In stationary B2B installations across Latin America, however, NMC poses critical engineering challenges:
• Thermal Sensitivity & HVAC Load: Lower thermal runaway onset (~210°C) demands complex active liquid cooling and fire suppression systems compliant with strict UL 9540A testing.
• Shorter Cycle Life: Typically delivers 2,500 to 4,000 cycles at 80% DoD (8–10 years under daily peak-shaving duty, compared to 12–15 years for LFP).
• Higher LCOS: Cobalt raw materials and shorter life yield a Levelized Cost of Storage of $0.11–$0.16/kWh, versus $0.07–$0.12/kWh for LFP.
1.3 Lead-Acid & Lead-Carbon – Low Initial CAPEX, Severe Operational Limits
Deep-cycle flooded, AGM, and Gel batteries are still found in legacy off-grid projects in rural Colombia, Peru, and Central America due to low initial price tags. Lead-carbon designs add carbon materials to the negative plate to resist sulfation during partial state-of-charge (PSoC) operation. Despite low purchase costs, their operational economics fail for cyclic commercial duty:
• Low Usable Capacity: Recommended DoD is capped at 50% for standard AGM (70% for Lead-Carbon). Supplying a 20 kWh usable daily load requires purchasing a 40 kWh lead-acid bank.
• Poor Efficiency: RTE averages only 75% to 82%, wasting nearly a quarter of harvested solar power in internal heat dissipation.
• Frequent Replacements: Delivering only 1,000 to 2,500 cycles, lead-acid banks require full replacement every 3 to 5 years, multiplying lifetime freight, site labor, and disposal expenses.
1.4 Vanadium Flow (VRFB) & Sodium-Ion (Na-Ion)
Vanadium Redox Flow Batteries (VRFB) decouple energy capacity from power output via liquid electrolyte tanks. They provide 15,000+ cycles and zero fire risk, making them suitable for long-duration storage (6–12 hours). However, their large footprint, parasitic pump losses (reducing RTE to 68–75%), and high initial CAPEX make them impractical for distributed C&I setups under 500 kWh.
Sodium-ion (Na-ion) is developing as a promising low-cost alternative with wide operating temperatures (-20°C to 60°C) and 3,000–5,000 cycles. However, distribution availability and field-tested inverter integration in Latin America remain limited, keeping LFP as the dependable commercial choice.
SNADI/SNAT SOLAR ENGINEER’S FIELD NOTE: Thermal Derating in Tropical & Desert Deployments In northern Mexico (Sonora, Chihuahua) and northeast Brazil (Bahia, Ceará), ambient temperatures inside unconditioned electrical rooms regularly surpass 40°C. Standard LFP battery management systems (BMS) automatically throttle charging current at 45°C to protect cell chemistry. Operating 10°C above 25°C continuous cell temperature accelerates calendar aging by ~20%. EPC engineers must specify shaded, forced cross-ventilation enclosures or climate-controlled battery cabinets rather than mounting modules directly beneath uninsulated metal roofs. |

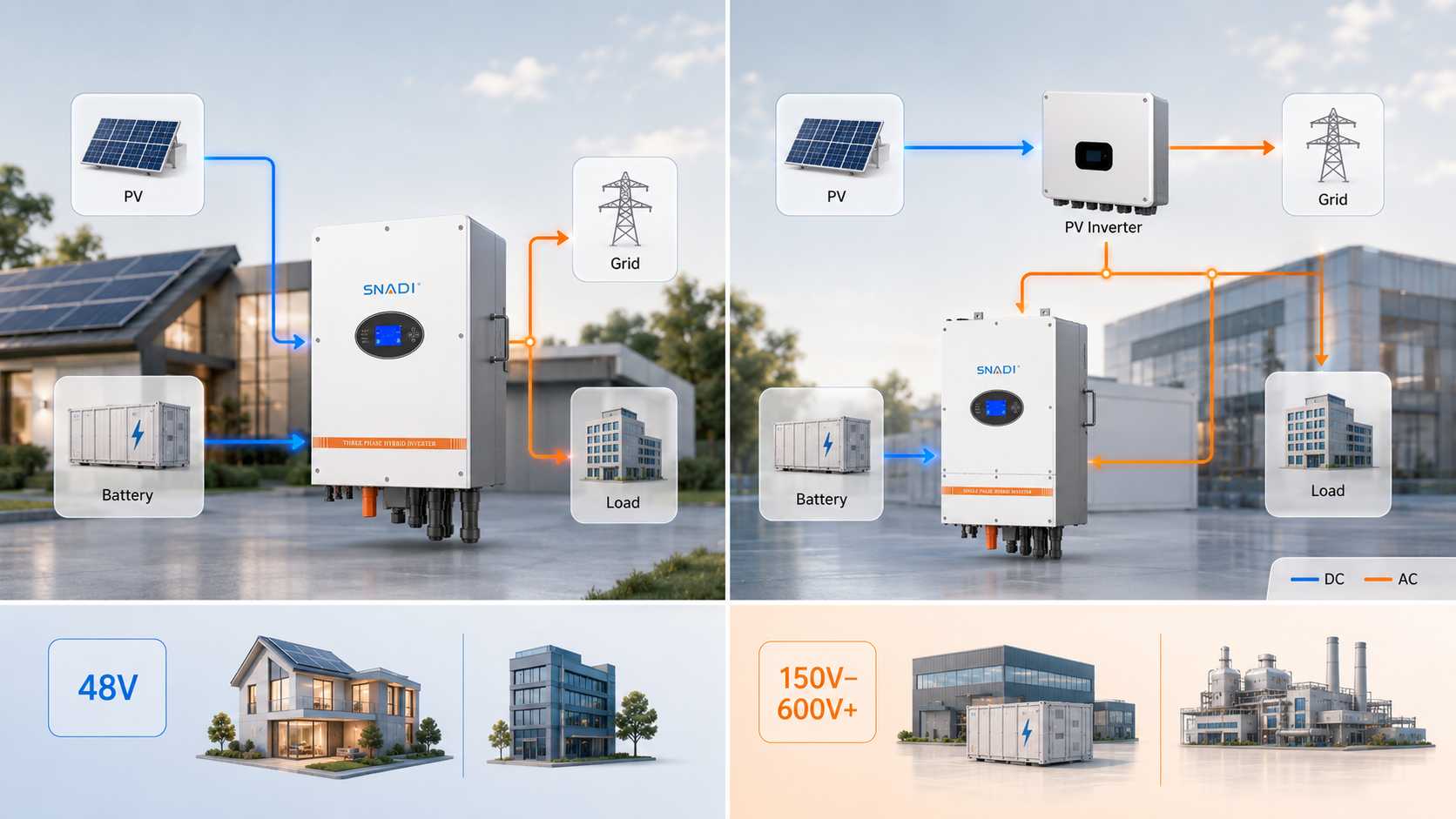

2. System Architecture: DC-Coupled vs. AC-Coupled Storage
Coupling topology dictates overall conversion efficiency, component count, transfer latency, and balance-of-system (BOS) wiring expenses.
2.1 DC-Coupled Architecture – Maximum Efficiency for New Solar-Plus-Storage
In a DC-coupled system, solar PV strings and the lithium battery bank connect to a shared DC bus inside a central hybrid inverter. The unit handles MPPT solar charging, battery dispatch, and AC grid power conversion within a single chassis.
• Higher Efficiency (94%–96% RTE): DC solar power charges the battery bank directly through internal DC-DC stages, avoiding double DC to AC and AC to DC conversion losses.
• Unified System Control: A single hybrid inverter oversees solar harvesting, battery dispatch, grid export limiting, and diesel generator dry-contact start commands.
• Lower Installation Cost: Eliminates redundant AC subpanels, duplicate meters, and extra AC breakers, reducing electrical BOS hardware costs by up to 20%.
For commercial single-phase and three-phase facilities, pairing modular lithium storage with hybrid platforms like the SNADI/SNAT BLD Single-Phase & BLS Three-Phase Hybrid Inverter Series provides built-in 10ms automatic transfer switching (ATS) for seamless backup while supporting 100% unbalanced phase loads.
2.2 AC-Coupled Architecture – Modular Retrofits for Existing Solar Arrays
In an AC-coupled setup, existing grid-tied string inverters remain unchanged on the main AC switchboard. A separate storage inverter connects to the AC bus to charge batteries from excess solar generation and discharge during peak tariff hours or grid outages.
• Triple Conversion Losses: Energy converts DC (PV) → AC (Grid Inverter) → DC (Battery) → AC (Building Loads), reducing system RTE to 84%–88%.
• Dual Hardware Costs: Requires separate solar and battery inverters alongside external power meters to prevent inadvertent backfeeding during outages.
3. Voltage Platforms: Low-Voltage (48V) vs. High-Voltage (150V–600V+)
Operating voltage directly influences cable gauge requirements, resistive thermal losses, inverter selection, and installation safety codes.
3.1 Low-Voltage (48V / 51.2V): 5 kWh to 30 kWh Deployments
Operating below 60V DC places low-voltage battery banks within extra-low voltage safety thresholds, simplifying electrical permitting and installer handling in homes, retail shops, and remote telecom sites. Standard 48V 100Ah (5.12 kWh) modules connect in parallel on shared copper busbars.
Engineering boundary: Delivering 10 kW continuous power at 48V requires over 200 Amperes of DC current. This demands heavy 50 mm² to 70 mm² copper conductors and high-capacity DC fuses. Scaling low-voltage architecture beyond 30 kWh results in bulky cabling and higher resistive losses.
3.2 High-Voltage (150V to 600V+ DC): 50 kWh to 500 kWh+ C&I Deployments
Commercial and industrial facilities with 30 kW to 250 kW three-phase loads utilize series-connected battery racks operating between 200V and 600V+ DC. Delivering 50 kW at 400V DC requires only 125 Amperes, reducing cable gauge requirements to 16 mm²–25 mm² and minimizing line losses across larger commercial footprints.
4. Technical & Economic Comparison Matrix
The table below compares primary battery technologies across real-world engineering and financial criteria for Latin American buyers:
BESS Technology | RTE (%) | Cycle Life (@80% DoD) | LCOS ($/kWh) | Core Operational Advantage | Typical Latin America Use Case |
LiFePO4 (LFP) Lithium | 92% – 96% | 6,000 – 8,000 | $0.07 – $0.12 | High thermal stability, zero cobalt, 15-year life | C&I Peak Shaving (Brazil Law 14,300), 24/7 Backup |
NMC Lithium | 90% – 94% | 2,500 – 4,000 | $0.11 – $0.16 | High volumetric energy density, compact weight | Space-constrained urban commercial buildings, EV fleets |
Lead-Carbon / AGM | 75% – 82% | 1,000 – 2,500 | $0.16 – $0.28 | Low initial capital expenditure, mature supply chain | Low-budget rural off-grid solar, basic telecom backup |
Vanadium Flow (VRFB) | 68% – 75% | 15,000 – 20,000+ | $0.06 – $0.10 | Zero degradation, non-flammable water electrolyte | Multi-megawatt microgrids, 8–12 hr agricultural storage |
5. Regulatory Drivers & Financial Returns Across Latin America
Project economics in Latin America are shaped by local billing rules, grid reliability, and diesel displacement:
• Brazil (Law 14,300/2022 & ANEEL Framework): Under Brazilian federal electricity regulation, new distributed solar systems face progressive wire tariffs (TUSD Fio B) on exported power, stepping up toward 100% by 2029. Installing an on-site LFP storage system allows commercial consumers to bank daytime solar and discharge during the 18:00–21:00 peak window—avoiding wire fees and achieving project payback within 3.8 to 5.2 years.
• Mexico (CFE GDMTH Industrial Peak Tariffs): Under CFE commercial billing, the monthly peak demand component can account for over 40% of the total electric invoice. A 2-hour or 4-hour LFP battery sized for peak shaving trims peak demand charges directly off the utility bill.
• Off-Grid & Diesel Generator Replacement: In agricultural zones and remote processing plants where diesel is delivered at $1.20+/liter, electricity costs easily exceed $0.40/kWh. Combining solar PV with a DC-coupled LiFePO4 battery bank reduces diesel runtime by 70% to 90%, recovering full equipment CAPEX in under 24 months through fuel savings alone.
6. 5-Step Buyer & EPC Decision Framework
Before issuing procurement orders, EPCs and facility engineers should verify five core technical parameters:
1. Define Primary Duty Cycle: Determine whether the system is built for daily cycling (peak shaving and tariff arbitrage) or emergency standby backup. Daily cycling requires LFP chemistry with at least 6,000 cycles at 80% DoD; emergency backup can utilize lower-cycle options if budget is strictly constrained.
2. Calculate Usable Capacity vs. Inrush Currents: Always calculate usable energy by multiplying nominal capacity by the manufacturer's recommended DoD (e.g., 20 kWh nominal × 90% DoD = 18 kWh usable). Verify that the hybrid inverter's surge rating accommodates inductive motor startup spikes (e.g., 3x continuous rating for 5 to 10 seconds).
3. Check BMS and Inverter Closed-Loop Compatibility: Ensure the battery BMS communicates natively via CAN/RS485 with the hybrid inverter firmware. Closed-loop communication prevents over-voltage charging, monitors individual cell temperatures, and dynamically throttles charge currents.
4. Audit Operating Environment & Ingress Protection: Verify that enclosures feature IP54 to IP65 ratings for outdoor or dusty warehouse environments, and confirm operating temperature ratings up to 55°C without premature shutdown.
5. Verify International Safety Certifications: Insist on documented compliance with UL 1973, IEC 62619, and UL 9540/UL 9540A to guarantee battery cell safety and pass municipal electrical inspection standards.
✉️Email: marketing@snadi.com.cn
Website:
☎️WhatsApp / WeChat: +86 1803929353
FAQ
LFP is the strongest all-around choice for most commercial and industrial solar storage projects discussed in the guide. It offers 6,000 to 8,000 cycles at 80 percent depth of discharge, 92 to 96 percent round-trip efficiency, strong thermal stability, and a service life suitable for more than 15 years of daily cycling.
What is the difference between DC-coupled and AC-coupled battery storage?
Should a commercial BESS use 48V or a high-voltage battery platform?
How should battery storage systems be designed for hot climates?
What should buyers check before purchasing a commercial battery energy storage system?
