A cloudy day does not create the same problem for every solar buyer. A grid connected home may simply import more electricity for several hours. A shop with a battery may need to protect evening reserve. An off grid site may face a real load shedding decision. A mobile system may have only a short charging window before travel.
A single answer such as panels still work or output falls to a fixed percentage is not enough. The useful question is what changes for your system, your loads and your operating plan when cloud cover reduces the energy arriving at the array.
System type | First effect of clouds | Main buyer metric | Operating response |
Grid connected solar | More grid imports during low production | Monthly solar energy and self consumption | Shift flexible loads or accept short grid imports |
Solar plus battery | Lower daytime charging surplus | Battery state of charge before evening | Reserve energy for priority loads |
Off grid solar | Greater chance of an energy deficit | Daily load energy and autonomy days | Shed optional loads or start backup generation |
Mobile or portable solar | Longer recharge time | Watt hours needed before the next use | Reduce loads, increase collection time or add another charging source |
Grid Connected Systems Absorb Short Weather Changes
For a grid connected home or small office, clouds usually change where electricity comes from rather than whether loads can run. The array may cover part of the building demand while the grid supplies the balance. A brief fall in cloudy day solar panel output can be financially visible without being operationally disruptive.
Compare monthly and annual energy estimates, import prices and the share of production used on site. A proposal based only on a bright noon power reading tells little about bill savings. If daytime loads are small, even a strong array may export energy that has less value than direct self consumption. If daytime loads are steady, lower overcast production can still offset purchases.
Battery Systems Must Protect the Evening Reserve
A battery does not create energy. It moves available energy across time and provides stored power when production falls. On a cloudy morning, the controller may have to choose between serving current loads and charging the battery. If the site consumes most production as it arrives, little remains for evening use.
For solar battery cloudy weather planning, track usable battery energy, minimum reserve, charging power and the load profile. A 10 kWh battery with 8 kWh available does not promise eight hours of backup unless the protected load is close to 1 kW and conversion losses are considered. A 4 kW protected load would consume the same reserve much faster.
Off Grid Systems Face an Energy Budget
Off grid buyers must separate power from energy. Inverter power answers whether motors, pumps or refrigerators can start and run. Battery energy answers how long they can run. Array energy answers how much can be replaced during the available daylight.
Assume a remote office uses 18 kWh per day. A cloudy day provides only 7 kWh after system losses. The daily deficit is 11 kWh before battery discharge losses. If the next day is also cloudy, a design with one day of usable reserve may require early load reduction or generator support. The response should be written into operating procedures before commissioning.
Mobile Systems Have a Charging Window Problem
For a field team, service van or temporary workstation, the problem may be time rather than total annual solar resource. A portable panel can continue collecting diffuse light, but a short stop under dense cloud may not replace the energy used by tools, communications equipment and laptops.
The SNADI/SNAT Solar MS Series Portable Energy Storage Power Station offers 300 W, 500 W and 1000 W output classes, pure sine wave output, integrated MPPT solar charging and AC, DC and USB connections. Its role is to combine storage, conversion and portable connections in one unit. Buyers still need to match appliance starting power, daily watt hours, panel input limits and available charging time to the selected output class.

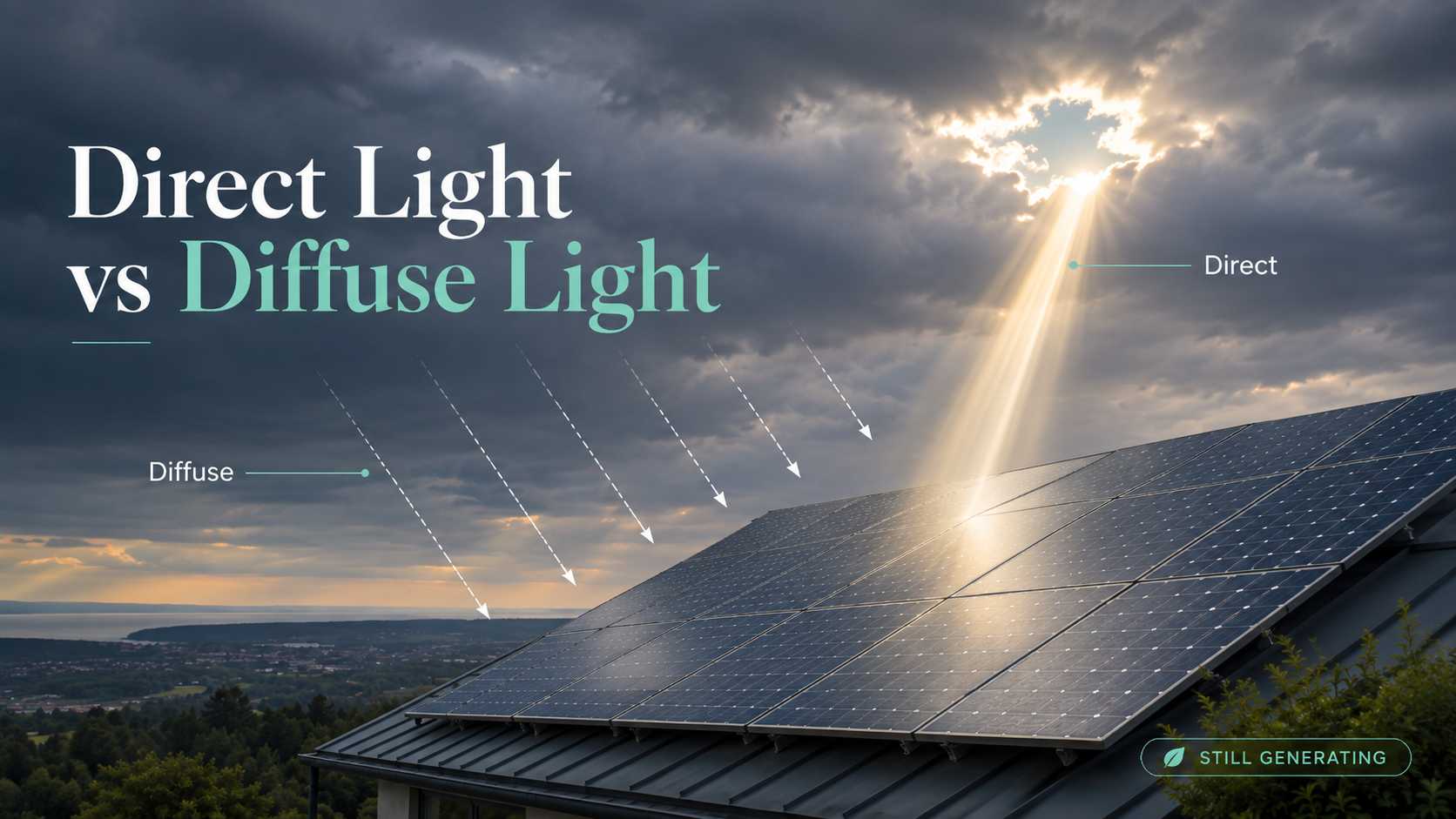

What Clouds Change in the Light Reaching a Panel
Direct Light Falls First
Cloud droplets scatter and absorb incoming solar radiation. Thick cloud can sharply reduce direct beam radiation, so the power curve may lose the high midday peak seen on a clear day. The United States Department of Energy explains that photovoltaic systems can use both direct and scattered sunlight, while local weather and cloud conditions change the resource that reaches the surface.
For buyers asking do solar panels work on cloudy days, the answer is a qualified yes. Electrical production normally continues when enough light reaches the cells, but the available input is lower and less stable.
Diffuse Light Still Reaches the Array
For buyers comparing diffuse sunlight solar panels, performance depends on the full system, not a special cloud mode. Photovoltaic cells respond to usable light that reaches them from the sky. Under overcast conditions, a larger share arrives after scattering rather than in a direct path from the sun.
Array orientation, nearby obstacles and horizon exposure can influence how much diffuse light is available. A wide open sky can help, while close buildings, trees or roof structures may block parts of the sky dome. These site factors should be included in the design review.
Cool Modules Do Not Replace Missing Irradiance
Cloudy conditions can reduce module temperature, and photovoltaic voltage can benefit from cooler operation. That effect does not cancel the loss of irradiance. Buyers should be cautious when a sales claim treats cool weather as proof that output will remain near clear sky levels.
Low light PV performance should be assessed with module data, inverter operating range and realistic weather inputs. The inverter must receive enough voltage to start and remain within its MPPT window, while the array must provide enough power to serve loads or charge storage.
Put Every Cloud Percentage on Trial
Claims about solar power in overcast weather often fail because they omit the measurement boundary. A percentage can describe panel power at one moment, daily energy, monthly energy or annual energy. Those values are not interchangeable.
Claim to review | Missing question | Better evidence |
Panels make 20 percent on cloudy days | What cloud density and what time interval | Irradiance and power measured at the same interval |
A battery solves cloudy weather | How much usable energy and which loads | Load profile, reserve setting and autonomy calculation |
High efficiency panels fix low light | Compared with which module and inverter | Independent module data and site energy model |
The app proves the system is healthy | Is the sensor chain complete and calibrated | Inverter energy, irradiance, meter data and alarm history |
A vendor percentage becomes useful only after the proposal states the weather dataset, system size, orientation, losses and reporting period. For commercial buyers, ask whether the figure represents a typical year, a poor month or a selected day. Also ask whether the simulation includes clipping, shading, cable loss, soiling, battery conversion and standby consumption.
Score a Solar Proposal Before You Buy
Check the Weather Basis
Ask which historical weather source supports the yield estimate. SNADI/SNAT Solar estimates grid connected system production and uses a range based on 30 years of historical weather data, while also warning that model assumptions do not represent every technology or site detail. A serious proposal should disclose the dataset and state where project specific engineering begins.
For buyers comparing cloudy climate solar production, the monthly weather distribution matters more than a selected low output day. Request monthly energy results and the modeled range so procurement teams can see seasonal exposure.
Check Energy and Power Separately
Daily kWh and inverter kW answer different questions. The proposal should show annual and monthly energy, expected peak power, critical load demand and motor starting requirements. For a battery project, it should also show usable storage energy, charge and discharge limits, reserve level and expected conversion losses.
Check the Cloud Sequence
One cloudy afternoon may be easy to manage. Three low production days can expose a weak design. Ask for a simple energy balance for one poor day and a consecutive day scenario. The goal is not to predict every cloud. It is to show when the battery reaches reserve, when loads must be reduced and when another source starts.
Check the Operating Boundary
Define which loads are protected and which remain outside the backup panel. Refrigeration, communications and security may be priority loads. Electric heaters, large pumps or vehicle charging may be flexible. A project becomes easier to size when every load has an operating rule.
SNADI/SNAT Solar Engineer tip:
Request a one page energy flow diagram with array power, inverter power, usable battery energy, protected loads, grid connection and generator input. If a supplier cannot show where energy goes during a cloudy afternoon, the quotation is not ready for approval.
Build a Consecutive Cloud Plan
The financial goal is not maximum hardware. It is the lowest cost design that keeps the selected operations within an acceptable risk level. A larger battery increases autonomy but also raises capital cost and may sit partly unused in normal weather. A smaller battery reduces initial cost but can increase grid imports, generator runtime or production interruption risk.
Design option | CAPEX effect | OPEX effect | Operating risk | Best fit |
Grid connected solar without battery | Lowest of the four options | Grid imports remain during clouds | Low if the grid is reliable | Bill reduction where outages are rare |
Solar with modest battery reserve | Moderate | Can reduce peak imports and short outage cost | Medium during long cloud sequences | Priority loads and evening self use |
Larger battery with load controls | Higher | Lower generator use when solar can recharge | Lower if load rules are followed | Sites with costly interruptions |
Solar, battery and generator input | Higher system and control cost | Fuel and maintenance remain | Lowest for long energy deficits | Remote or weak grid operations |
For a fixed residential or small commercial system that needs outdoor installation flexibility, the SNADI/SNAT Solar GS Hybrid Solar Inverter IP65 provides 6.5 kW output, support for a 48 V battery, 9 kW maximum allowable photovoltaic string power, an 80 to 450 V MPPT range and a dedicated generator input. WiFi and RS485 support monitoring, while as many as six units can operate in parallel when the verified load plan requires more power.
This inverter does not decide the battery size or autonomy target by itself. We would first review interval load data, motor starts, array voltage, battery current limits, backup circuits and the installation environment. Only then can a buyer judge whether one unit, parallel expansion or a different system class is appropriate.
Use a Monitoring Trust Ladder
Level One Is an App Screenshot
An app can show current power and battery state, but one screen is only a moment. It may not reveal sensor gaps, communication interruptions or whether a low value is normal for the irradiance at that time.
Level Two Is Interval History
Export power, energy, state of charge and alarm history at consistent intervals. Compare several clear and cloudy days with similar load conditions. This exposes repeated clipping, late inverter start, unexpected standby consumption or a battery that reaches reserve too early.
Level Three Adds Site Measurements
For a commercial acceptance test, add revenue meter data or a verified site meter, and measure irradiance when the project risk justifies it. IEC 61724 Part 1 defines monitoring terminology, equipment and methods, and provides guidance on monitoring system classes. SMA also notes that cloud conditions can limit load scheduling based only on forecast photovoltaic production, which is why flexible loads need fallback logic.
Level Four Connects Data to Decisions
The highest value comes when monitoring triggers an action. A low battery reserve can delay a pump cycle. A forecast energy deficit can keep non priority loads off. A persistent gap between measured irradiance and array output can open an inspection ticket. Data is useful when someone owns the response.
Five Buying Mistakes That Hide Cloud Risk
1. Comparing only panel wattage while ignoring daily load energy.
2. Treating one cloudy day percentage as a year round yield guarantee.
3. Sizing a battery from nameplate energy without usable energy and reserve.
4. Protecting every load instead of defining priority and flexible circuits.
5. Accepting monitoring access without a data retention and alarm review plan.
These mistakes often appear in proposals that look attractive on price. A lower quotation may exclude metering, protection devices, commissioning, communications or backup panel work. Compare scope line by line before comparing the final number.
Conclusion
Solar panels cloudy days performance cannot be judged by one percentage. The effect depends on whether the grid can fill the gap, whether a battery has enough reserve, whether an off grid site has a load plan and whether a mobile system has enough charging time.
The next step is to compare three records: a weather based energy estimate, a time based load profile and a clear operating response for consecutive cloudy days. We can then match inverter power, usable storage, photovoltaic input and monitoring depth to the real buyer risk. That process turns cloudy weather from a vague concern into a design condition that can be measured, priced and managed.
✉️Email: marketing@snadi.com.cn
Website:
☎️WhatsApp / WeChat: +86 1803929353
FAQ
Yes, when enough direct or diffuse light reaches the cells. Output is usually lower than under a clear sky, and the reduction varies with cloud density, time, array design and system losses.
What percentage of output should I expect in cloud?
Will a battery keep every load running?
Should I add more panels or more battery?
What should I send for an engineering review?
How do I compare cloudy climate solar proposals?
