Types of Inverter: Choose The Right Solar Architecture, Not Just A Product Name

A hybrid inverter, a string inverter and a pure sine wave inverter are not always competing products. Each name may describe a different property. One describes the relationship with solar and storage. Another describes where power conversion happens. The third describes output waveform.

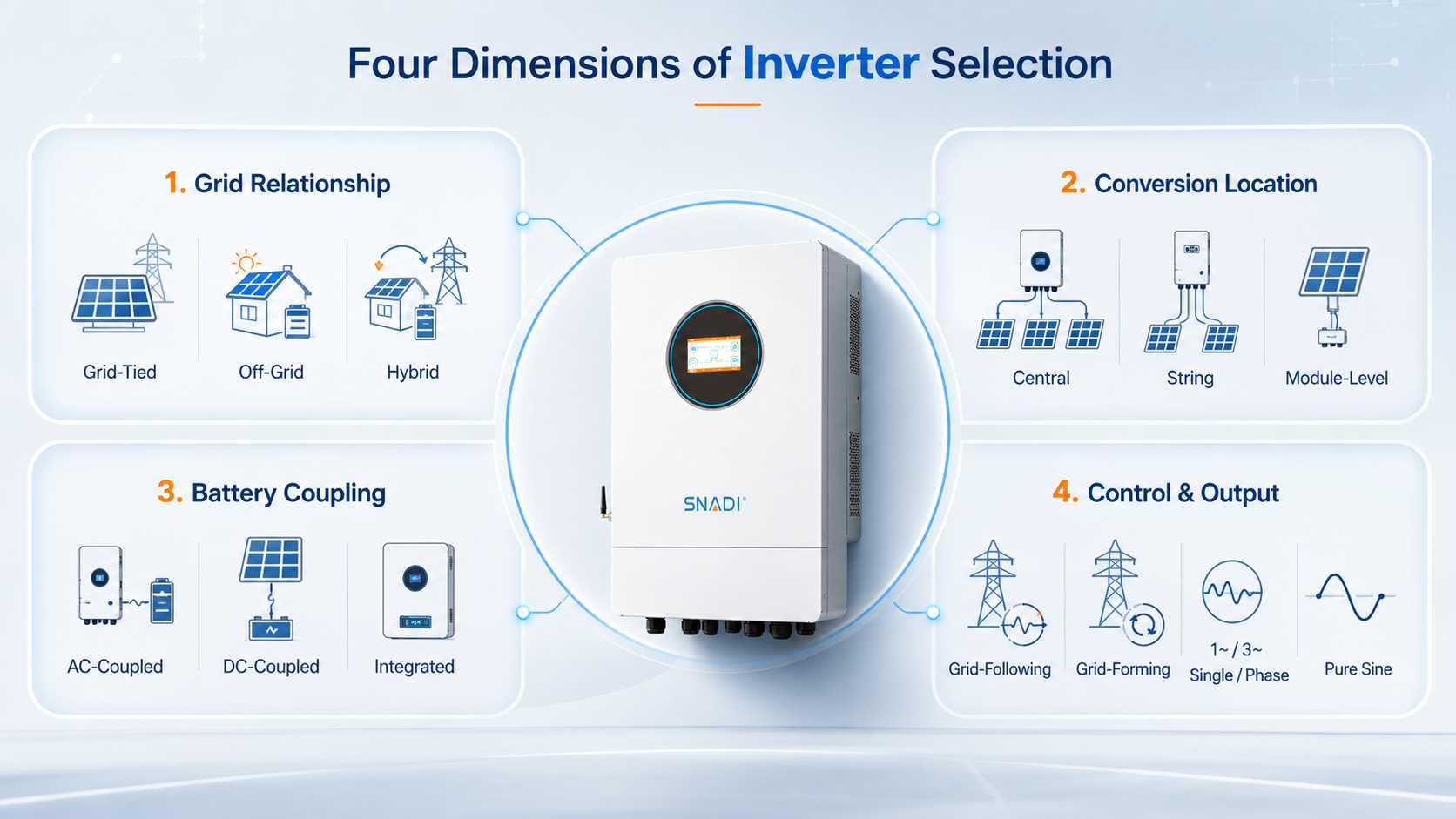

That category trap is why lists of inverter types often disagree. For a solar buyer, the useful map has four dimensions: grid relationship, conversion location, battery coupling and control behavior. A single product can occupy one position in every dimension. We use this architecture map before discussing brands or prices because it helps reject incompatible quotations early.

Grid Relationship

A grid tied inverter normally works with an established utility signal and follows local interconnection settings. An off grid inverter must support a standalone electrical system. A hybrid inverter can coordinate more than one source, but its exact grid and backup behavior must still be verified from the model documentation.

Conversion Location

A central inverter converts power from a large array at one point. A string inverter converts power from one or more module strings. A microinverter converts at module level. A power optimizer conditions direct current at the module but still relies on another inverter for direct current to alternating current conversion.

Battery Coupling

A battery inverter can connect storage on the alternating current side of an existing solar system. A hybrid inverter may connect compatible storage on the direct current side. The energy path affects conversion stages, retrofit scope, backup design and commissioning.

Control and Output

A smart inverter may communicate with a utility or energy management system. A grid forming inverter can establish a voltage and frequency reference in a suitably designed system. Phase, voltage, waveform and surge capability remain separate specifications. The layered taxonomy is supported by the United States Department of Energy inverter overview.

System Before Comparing Products

Write one sentence containing six facts: site type, grid condition, photovoltaic size, battery plan, priority loads and expansion horizon. Without these facts, the phrase best inverter has no engineering meaning.

Consider a small workshop with an unstable grid, a 9 kW photovoltaic array, a future 48 V battery, a 4 kW priority load panel and one motor with a short starting surge. This brief already eliminates products that cannot accept the planned array voltage, coordinate the battery or supply the required surge.

For a grid connected building, also record export limits and the utility approval path. For an off grid site, record daily energy, autonomy hours, generator availability and the largest motor start. Ask every supplier to rewrite this one sentence at the top of the quotation. A supplier that changes the load, battery or grid assumption is quoting a different system.

Decide the Relationship With the Grid

Grid Tied Inverter

A grid tied inverter is selected when the utility remains the voltage and frequency reference. It can offset building consumption and may export surplus energy when local rules permit. Standard grid connected solar does not automatically power backup circuits during an outage.

Verify output voltage, frequency, phase, export control, adopted interconnection profile and commissioning evidence. Do not treat the word smart as proof that every local grid function is available or approved.

Off Grid Inverter

An off grid inverter must maintain local power without an operating utility signal. The system needs enough inverter power for continuous loads and starting surges, enough battery energy for the required duration and enough charging capacity to restore that energy.

For a remote clinic or farm, a generator input may reduce the battery capacity required for rare long deficits. That trade off can lower capital cost, but it retains fuel, maintenance and startup risk.

Hybrid Inverter

A hybrid inverter coordinates solar, storage and one or more alternating current sources. The label alone does not prove blackout operation. Buyers still need a protected load panel, transfer behavior, battery compatibility, reserve settings and a tested island mode.

The SNADI/SNAT Solar GS Hybrid Solar Inverter IP65 is a 6.5 kW hybrid model for residential and small commercial applications that need 48 V battery support, generator input and an IP65 enclosure. Its page lists 9 kW maximum allowable photovoltaic string power, 500 V maximum direct current voltage, an 80 to 450 V MPPT range, WiFi, RS485 and parallel operation for as many as six units. These specifications are useful only after the project array, battery and load contract is defined. The product specifications are listed on the SNADI/SNAT Solar GS Hybrid Solar Inverter IP65 page.

Choose Where Conversion Happens

Central Inverter

A central inverter concentrates conversion and service at one location. This architecture can suit large, uniform arrays with planned service access. The failure boundary is also concentrated, so spare strategy and downtime response deserve attention.

For the residential and small commercial projects we focus on, a central architecture is usually outside the normal project scale. We do not present our residential or small commercial hybrid inverters as utility scale central inverter replacements.

String Inverter

A string inverter converts direct current from groups of modules. Multiple MPPT channels can separate roof orientations or electrical conditions. Verify the number of MPPTs, strings per MPPT, current limits and the operating voltage window across expected temperatures.

String equipment is generally accessible at wall or equipment room level, which can simplify service. A common inverter fault may still affect all modules assigned to that unit.

Microinverter

A microinverter converts power at each module or a small module group. It can support module level monitoring and reduce the effect of one module condition on the rest of an array. The trade off is more rooftop electronics and a different service path.

Shade does not make a microinverter automatically superior. The decision should follow a measured shade profile, roof geometry, expected yield difference, access cost and product support.

Power Optimizer Supported String System

A power optimizer is not a complete inverter. It conditions module direct current and sends that power to a string inverter for final conversion. This can provide module level visibility while keeping the main inverter at an accessible location.

Choose the Battery Coupling Path

Direct Current Coupled Storage

In a direct current coupled design, solar and a compatible battery connect through a hybrid inverter on the direct current side. This can reduce conversion stages when charging from solar. It also makes battery protocol, voltage, current and firmware compatibility central to the design.

Alternating Current Coupled Storage

An alternating current coupled design adds a battery inverter on the alternating current side. It can be practical when an existing solar inverter remains in service, but backup behavior and control coordination must be designed across both conversion systems.

Battery Integrated Hybrid

Some products combine battery and inverter functions in one assembly. This can simplify procurement, but it can also bind replacement and expansion choices to one product ecosystem.

Match Control, Phase and Waveform

Grid Following and Grid Forming

Grid following equipment needs an established voltage and frequency reference. Grid forming equipment can establish that reference within a properly designed islanded system. Neither phrase proves that the full installation can black start, transfer safely or energize every load.

Ask for the operating diagram for grid present, grid failed, low battery and generator running states. The answer should show which contactors change state and which circuits remain powered.

Single Phase and Three Phase

Select phase from the site service and load distribution. A three phase workshop may need balanced motor supply, while a residence may use single phase service. Some systems can parallel units, but parallel capability must match the approved wiring method, communication design and output phase.

Pure Sine Wave Inverter

Pure sine wave describes output waveform, not the complete solar inverter architecture. Sensitive electronics, motors and communications equipment generally require verified power quality, but the waveform label does not replace voltage, frequency, distortion, grounding or certification checks.

The NKH family uses pure sine wave output and integrated MPPT control, which makes it relevant when a remote site needs an off grid hybrid architecture. The exact model must still be matched to continuous power, motor surge, battery voltage, photovoltaic window and installation temperature. The product family is described on the SNADI/SNAT Solar NKH Off Grid Hybrid Solar Inverter page.

Four Scenarios That Change the Shortlist

Simple Roof Without a Near Term Battery

A string architecture may be a practical shortlist when the roof is uniform, shade is low and service access is straightforward. Recheck future expansion, monitoring depth and local safety rules before approval.

Multi Plane or Shaded Roof

Separate MPPT channels, a power optimizer supported string system or a microinverter architecture may deserve comparison. Request a quantified yield study rather than a broad shade claim.

Existing Solar Adding Backup

An alternating current coupled battery inverter may preserve the existing photovoltaic inverter. A wider redesign may be justified when the old equipment cannot support export control, monitoring or the required backup circuits.

Remote Site With Motor Loads

The SNADI/SNAT Solar NKH Off Grid Hybrid Solar Inverter can enter the shortlist for remote residential and small commercial loads that need integrated MPPT control and pure sine wave output. Our engineering review would request motor running power, measured starting current, required autonomy, battery plan, photovoltaic string design, generator details and ventilation conditions before selecting an NKH power class.

Compare Ownership Risk, Not Only Purchase Price

The lowest CAPEX option may create more downtime or fewer expansion paths. The highest equipment price may not create value if the site has no shade, no backup need and easy grid access. Ask suppliers to price the same operating brief and state what is excluded.

Conclusion

The types of inverter cannot be reduced to one ranked list. The right decision starts by naming the grid relationship, conversion location, storage coupling and control behavior required by the site. It ends by proving electrical, battery, grid, environmental and service compatibility.

For a supplier review, complete this sentence: we need a stated grid relationship with a stated conversion location, storage path and output behavior, proven by the listed design documents and commissioning records. We can then compare a GS hybrid configuration, an NKH off grid configuration or another architecture against the same buyer requirements instead of comparing product names in isolation.
