Solar Solutions for Unstable Grid: A Practical C&I Energy Strategy for LATAM

For a factory owner in Mexico, Brazil, Colombia, Peru, Chile, or Central America, an unstable grid is not just an electrical inconvenience. It is a margin leak. One voltage sag can stop a CNC line. One feeder trip can spoil cold chain inventory. One evening demand spike can raise the electricity bill for the whole month, especially in tariff structures where maximum demand matters as much as total energy consumption. In Mexico, CFE’s GDMTH tariff applies to medium voltage users with demand equal to or above 100 kW, which puts many factories, warehouses, agro processing plants, and commercial buildings directly inside the demand management problem.

This is why solar solutions for unstable grid conditions must be designed around risk control, not only around energy yield. A normal PV system may reduce daytime kWh purchases, but it does not guarantee continuity during a blackout. A diesel generator can support critical loads, but it exposes the owner to fuel logistics, maintenance failures, noise restrictions, and volatile operating cost. A properly sized hybrid inverter plus LiFePO4 battery system gives the facility a controllable buffer between utility power, solar generation, battery discharge, and backup generation. The commercial value is not only lower energy cost. It is production continuity, peak charge control, and a cleaner operating model.

Why Grid Instability Is a Finance Problem Before It Is a Power Problem

Most energy discussions start with equipment. A better discussion starts with the income statement. In a C&I site, electricity affects revenue, working capital, maintenance cost, quality control, and customer delivery performance. A two hour outage at a house is an annoyance. A two hour outage at a plastics plant can mean scrap material, idle labor, delayed shipments, and damage to motors or drives. A ten minute voltage disturbance can reset programmable logic controllers, create nuisance trips, and force an operator to restart a process that was not designed for interruption.

The financial impact is often hidden because it is scattered across departments. The operations team sees downtime. The maintenance team sees failed contactors and overheated drives. The finance team sees electricity bills and diesel purchases. The sales team sees late orders. When those costs are combined, grid instability becomes a board level risk. Reuters reported that Mexico reached 51,595 MW of electricity demand in May 2024 during extreme heat and water stress, with infrastructure constraints increasing outage risk. That kind of peak system stress is exactly the environment where factories need local energy resilience rather than passive dependence on the feeder.

For EPCs and system integrators, this changes the sales conversation. The client is not only buying solar panels and an inverter. The client is buying a reduction in unplanned stops, a cap on demand spikes, and a more predictable cost base. That is why proposals should show avoided downtime, peak shaving, diesel displacement, and battery life assumptions. If the offer only promises annual kWh savings, it misses the strongest reason C&I buyers invest in hybrid energy systems.

What an Unstable Grid Really Means in C&I Sites

An unstable grid is not one single failure mode. It can mean voltage sag during motor starting events, overvoltage during light load periods, unstable frequency in weak networks, recurring short outages, or poor power quality caused by long feeders and limited transformer capacity. In LATAM, these problems often appear in industrial parks at the edge of urban growth, agro industrial facilities far from strong substations, islanded or semi isolated regions, and fast growing cities where demand has expanded faster than distribution infrastructure.

Weak grid conditions are especially difficult for inverter based systems. The inverter must synchronize with the grid voltage waveform, measure phase and frequency, and inject power within safe limits. When grid impedance is high or voltage is distorted, the inverter’s control loop is under stress. A 2020 IET Power Electronics review on PV inverter stability in weak grids found that stability problems include control loop instability and inverter output voltage instability, with phase locked loop behavior among the nonlinear control issues explored.

For a factory, the practical translation is simple. The weaker the feeder, the more important the inverter and storage architecture become. A low cost grid connected inverter may look attractive on a spreadsheet, but it can become the wrong asset in a site where the grid frequently collapses or drifts outside safe operating windows. The system has to be able to decide when to use solar, when to charge the battery, when to support loads from storage, and when to coordinate with a generator.

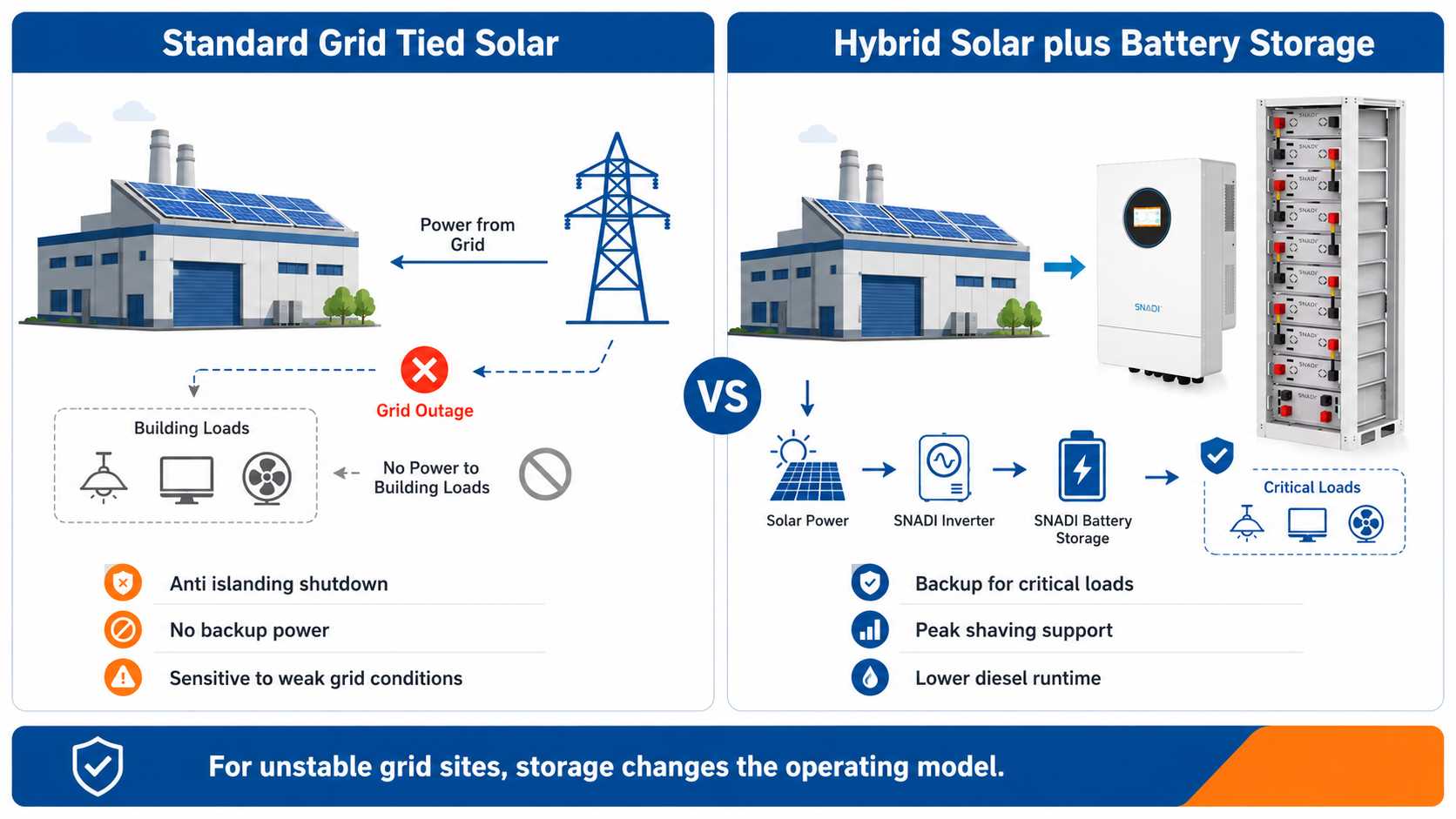

Why Standard Solar Alone Does Not Protect a Facility

A standard grid connected solar system is built to export or self consume electricity when the grid is present. It is not built to keep operating independently during a blackout unless it is paired with the right inverter topology, storage, protection design, and local load control. Anti islanding protection is required because uncontrolled local generation during a grid outage can create safety risks for utility workers and equipment. So when the grid fails, many ordinary grid connected solar systems shut down even if the sun is strong. This is the source of a common buyer complaint. A company invests in solar, then discovers that the facility still has no power during a grid outage. The panels are producing potential energy, but the inverter cannot legally or technically supply the internal loads without an approved backup architecture. This is why solar solutions for unstable grid applications must use hybrid design rather than basic grid connected PV design.

The storage layer changes the logic. A hybrid inverter can coordinate solar input, battery charge and discharge, grid input, and sometimes generator input. The battery provides a voltage and energy buffer. Critical loads can be separated from noncritical loads. The system can be set to preserve battery state of charge before known peak hours or high outage risk periods. For C&I buyers, the question is not whether solar works. The question is whether the architecture can maintain useful power when the utility source is weak, expensive, or absent.

The Engineering Architecture That Works

The practical architecture has four layers. The first is the hybrid inverter layer. This is the control point that converts PV and battery energy into usable AC power and manages operating priority. In unstable grid sites, the inverter should be selected for input tolerance, protection behavior, monitoring capability, generator coordination, and thermal performance. A datasheet wattage number is not enough. The EPC must check overload behavior, battery voltage range, PV input limits, communications, and site environment.

The second layer is LiFePO4 battery storage. LiFePO4 chemistry is widely used in stationary storage because it supports strong cycle life, stable thermal behavior, and practical C&I service patterns when paired with a proper BMS. The battery must be sized by load profile, not by guesswork. A site with a 120 kW critical load for 2 hours needs a different design from a site with a 30 kW security and refrigeration load for 8 hours. The design should include depth of discharge limits, inverter efficiency, battery aging, and reserve energy.

The third layer is generator integration. In many LATAM C&I sites, the realistic strategy is not to remove diesel on day one. The better strategy is to reduce generator runtime, avoid low load diesel operation, and let the generator serve as a controlled backup source rather than the first response. A hybrid inverter with dry contact or generator input logic can start the generator when battery voltage or state of charge reaches a defined threshold. This reduces manual intervention and prevents operators from running the generator inefficiently for small loads.

The fourth layer is energy management. This is where the system becomes a financial tool. Loads should be prioritized. HVAC, pumps, compressors, lighting, refrigeration, IT, and process loads do not carry the same business value. The energy management logic should protect high value loads first, shave short peaks when possible, and avoid unnecessary battery cycling when grid energy is cheap and stable. A good C&I system is not designed around maximum theoretical autonomy. It is designed around the cheapest acceptable risk profile.

ROI Model for a Medium Size LATAM Factory

The table below is an illustrative financial model for a medium size facility with a 250 kW peak demand profile, recurring evening demand spikes, and several short outages per month. It is not a tariff quote. Local tariffs, diesel price, battery price, financing cost, import duties, and installation costs must be verified by country and utility. The purpose is to show the structure of the business case that EPCs should present to C&I buyers.

A project with 4,350 USD of net monthly value creates 52,200 USD of annual operating benefit before financing and tax effects. If the installed incremental cost of the hybrid storage portion is 120,000 USD, the simple payback is about 2.3 years. If the site has higher outage losses or higher demand charges, the payback improves. If the site has low diesel use, stable grid supply, and minimal demand charges, the payback becomes weaker. This is why C&I storage should be designed with a site specific load profile, not a generic product brochure.

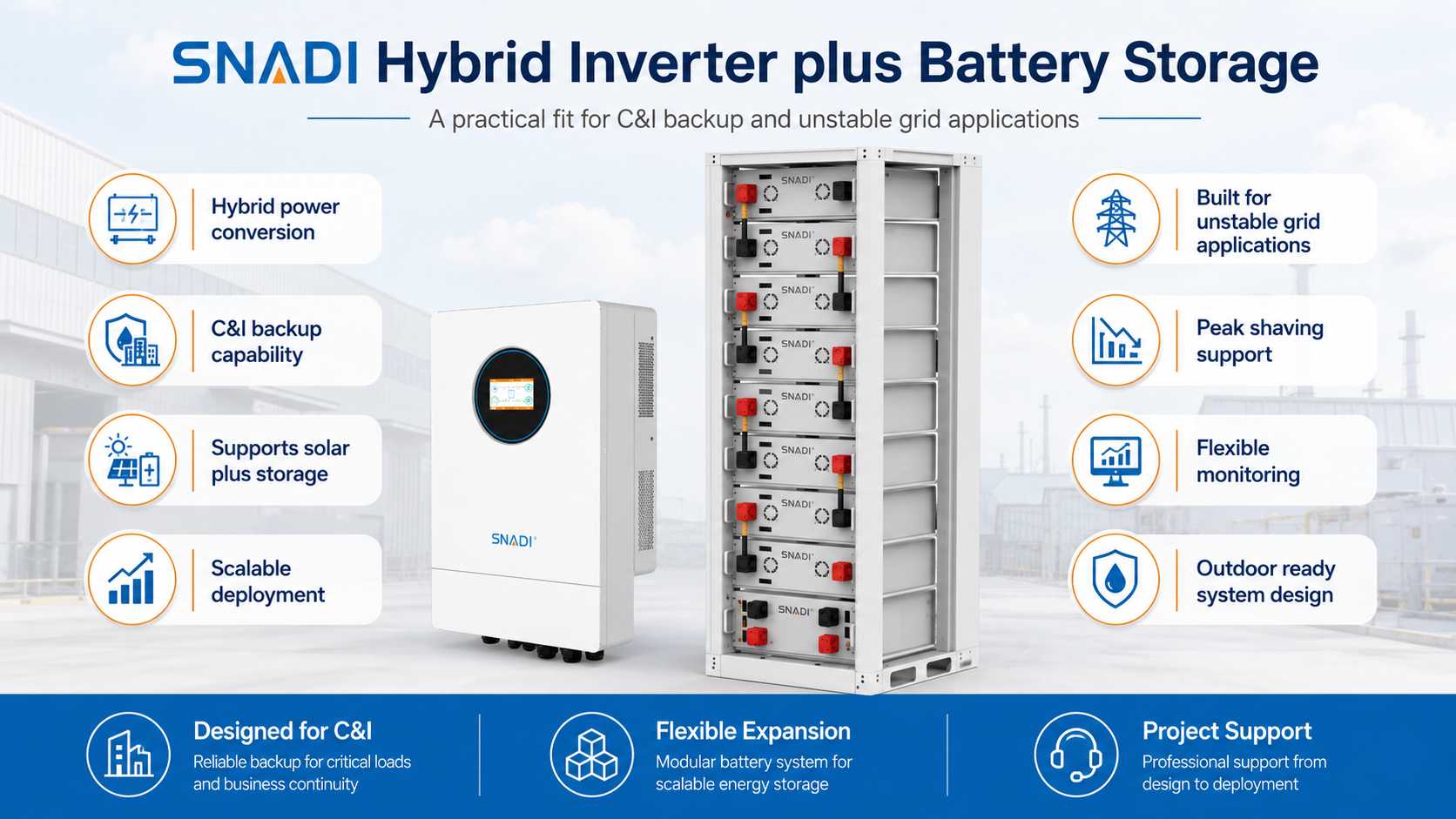

Product Fit: Where GS Hybrid Solar Inverter IP65 Makes Sense

For small and medium C&I sites, outdoor installation is often a real constraint. Electrical rooms may be full. Warehouses may have dust. Coastal facilities may face humidity and corrosion risk. Agro industrial sites may have limited indoor space and higher exposure to rain, heat, and dirt. In those cases, an IP rated hybrid inverter is not a cosmetic feature. It can reduce enclosure cost, simplify placement, and improve installation flexibility. The GS Hybrid Solar Inverter IP65 fits this use case when the project requires a compact hybrid inverter for outdoor or semi exposed installation. SNADI/SNAT Solar's 6.5 kW GS model with IP65 protection, 48 V battery support, 9,000 W maximum allowable PV string power, 500 V maximum DC voltage, 80 to 450 V MPPT range, generator input, WiFi, RS485, dry contact, and parallel operation up to 6 units. GS solar inverter can up to 6 units can be used for a power network up to 39 kW too.

Its best role is modular backup and hybrid energy control for homes, small commercial sites, telecom style loads, remote offices, small workshops, farms, clinics, and selected C&I critical load panels. For larger factories, the EPC can still use the same engineering logic, but the inverter platform and voltage architecture may need a higher capacity commercial or three phase system. The correct recommendation is based on load segmentation, not on forcing one model into every job.

How to Size the Battery for Weak Grid Sites

Battery sizing starts with the critical load list. The EPC should divide loads into three groups. The first group is must run load, such as refrigeration, control systems, security, emergency lighting, servers, selected pumps, and safety related loads. The second group is flexible load, such as some HVAC, office circuits, and nonurgent process loads. The third group is shed load, such as heavy machinery that should not run during backup unless the system is specifically designed for it.

Once the critical load list is known, the basic battery energy calculation is direct. Required usable energy equals critical load in kW multiplied by required backup hours. Then divide by allowable depth of discharge and inverter efficiency. For example, a 20 kW critical load that must run for 3 hours needs 60 kWh usable energy. If the design uses 80 percent depth of discharge and 92 percent effective conversion efficiency, nominal battery capacity should be about 82 kWh. Extra reserve may be added for battery aging, high temperature operation, and longer outage risk.

Peak shaving uses a different sizing logic. The battery does not need to cover the whole site for hours. It needs to discharge during the expensive or measured peak interval. If a facility has a recurring 50 kW spike for 30 minutes, the energy requirement is only 25 kWh before efficiency and reserve. The inverter power rating becomes as important as battery energy capacity. This is why a combined energy and power model is needed.

SNADI/SNAT Solar’s Tip: In LATAM highland cities, altitude matters. Mexico City, Bogotá, Quito, La Paz, and many mining or industrial areas operate at elevations where air density is lower. Lower air density reduces cooling performance. At the same time, ambient heat in coastal or inland industrial zones can push equipment above nominal test conditions. Always ask for derating curves and leave thermal margin. A design that works at 25 degrees Celsius in a datasheet can underperform in a hot electrical room or exposed wall installation.

Why LiFePO4 Is the Practical Storage Choice for C&I Backup

C&I buyers care about safety, cycle life, and predictable service. LiFePO4 batteries are widely used in stationary storage because they tolerate frequent cycling better than many legacy chemistries and are well matched to daily solar charging and evening discharge. The real value, however, is not chemistry alone. It is the integration between cell quality, BMS protection, inverter communication, cabinet design, cable sizing, and commissioning discipline.

A battery without good BMS communication can become a weak point. A 100 kWh battery is not a promise of 100 kWh usable energy under all conditions. Temperature, depth of discharge policy, discharge rate, and aging all matter. In C&I sites, the battery also needs a maintenance concept. Terminals, torque values, ventilation, firmware, data logs, and alarm history should be checked as part of the service plan. This is especially important in dusty, humid, or high temperature environments. A storage system is not a static asset like a steel rack. It is an electrochemical system that requires operating discipline.

How to Evaluate Solar Solutions for Unstable Grid Projects

The first evaluation question is the outage profile. How many outages occur per month, how long do they last, and which loads must remain powered? A system designed for ten short outages per month is different from a system designed for one eight hour outage every quarter. The EPC should request utility bills, generator fuel records, production logs, and maintenance reports. These documents often reveal the real cost of instability better than interviews.

The second question is the tariff profile. Does the customer face time of use pricing, demand charges, reactive power penalties, or contracted demand constraints? A battery that only provides backup may leave money on the table if the facility also has avoidable peak charges. Conversely, a battery optimized only for arbitrage may fail the client during a blackout. C&I design is a tradeoff between savings and security.

The third question is the electrical architecture. Are critical loads already separated? Is there a main distribution board with room for protection equipment? Are there motors with high inrush current? Is the site single phase or three phase? Is there a generator? Is the grounding system acceptable? Many weak grid projects fail not because the inverter is poor, but because load separation and protection coordination were not done properly.

The fourth question is the environment. LATAM projects can face heat, dust, humidity, salt air, insects, unstable construction quality, and limited maintenance access. IP rating, cable glands, ventilation, corrosion protection, and installation workmanship matter. An IP65 inverter can help in outdoor conditions, but only if the full installation follows the same discipline. A protected inverter connected through poor cabling or exposed junctions still creates risk.

Recommended System Pattern for Small C&I Facilities

A practical small C&I design can start with PV, GS Hybrid Solar Inverter IP65 units, LiFePO4 battery modules, a critical load panel, generator input logic, and monitoring. The system should prioritize solar for daytime loads, charge the battery when solar surplus is available, maintain backup reserve, and discharge during selected peak windows. When the battery reaches its lower operating threshold during a long outage, the dry contact logic can start the generator and recharge the battery.

For a small agro processing site, clinic, office building, rural warehouse, or telecom support facility, this architecture can reduce diesel starts and protect priority circuits. The GS product page confirms IP65 protection, generator input, WiFi, RS485, dry contact, 48 V battery operation, and parallel quantity up to 6 units. These details make it relevant for modular designs where outdoor placement and staged expansion matter. The EPC should still be disciplined. Parallel operation requires correct configuration, balanced wiring, compatible batteries, and protection design. Battery current at 48 V can become high as power increases, so cable sizing and DC protection must be handled carefully. A 39 kW system at low battery voltage is not a casual installation. It needs trained installers and clear commissioning records.

For sites above roughly 30 kW of critical load, check whether a higher voltage commercial storage architecture is more efficient than adding more low voltage inverter capacity. Low voltage systems are practical and flexible, but current rises quickly. High current means more copper, more heat, tighter protection requirements, and more installation sensitivity.

The Role of Diesel in a Better Hybrid System

Diesel generators are not disappearing from LATAM C&I sites soon. Many facilities will still keep them for long outages, emergency compliance, and operational confidence. The problem is not the existence of diesel. The problem is using diesel as the first and only layer of resilience. That creates high fuel consumption, frequent maintenance, poor low load operation, and avoidable emissions. A hybrid system changes diesel from primary backup to secondary backup. The battery handles short interruptions and fast transitions. Solar reduces daytime fuel need. The generator runs less often, and when it runs, it can operate closer to an efficient load range by charging the battery and serving loads together. This is better than cycling the generator for every short outage or running it at low load for small critical circuits.

This is also easier for operators. Instead of manual starts, fuel checks, and uncertain runtime, the system can use programmed thresholds. The generator starts when the battery reaches a defined limit and stops when the system has recovered enough reserve. The owner still needs maintenance, but the generator is no longer abused by unnecessary starts.

Common EPC Mistakes in Weak Grid Solar Storage Projects

The first mistake is overselling autonomy. A client may ask for full factory backup for eight hours. The EPC should calculate the real battery size and cost before agreeing. Full backup of heavy process loads can be uneconomic. Critical load backup plus peak shaving often gives a better ROI. The proposal should show tiers. Tier one protects essential loads. Tier two protects essential and production support loads. Tier three supports broader operations for a shorter period.

The second mistake is ignoring the grid code and protection requirements. Anti islanding, transfer logic, grounding, neutral treatment, and protection coordination must be reviewed according to local requirements. A system that works electrically but violates interconnection rules can create liability. The higher the C&I load, the more important this becomes.

The third mistake is using average load instead of interval data. Monthly kWh tells only part of the story. Demand spikes happen in short windows. Outages may happen during specific times. Solar output may not align with peak demand. Interval data from meters, data loggers, or energy audits gives the model enough resolution to size inverter power and battery energy correctly.

The fourth mistake is treating the battery as free capacity. A battery has cycle limits, temperature limits, charge current limits, and warranty conditions. If the control strategy cycles the battery too hard for minor savings, the owner may lose long term value. A good ROI model includes degradation reserve and service cost.

Conclusion

The best solar solutions for unstable grid markets in LATAM are not built around panel count alone. They are built around the cost of interruption, the cost of peak demand, the cost of diesel, and the cost of poor power quality. A hybrid inverter and LiFePO4 battery system gives C&I sites a controllable energy buffer. It lets the owner decide which loads matter most, when to use battery energy, when to shave peaks, and when to call the generator.

For small C&I sites that need outdoor durability and modular growth, GS Hybrid Solar Inverter IP65 can be positioned as a practical inverter layer inside that broader solution. It can help you achieve your goals of： less downtime, lower avoidable operating cost, and better control over power risk.
